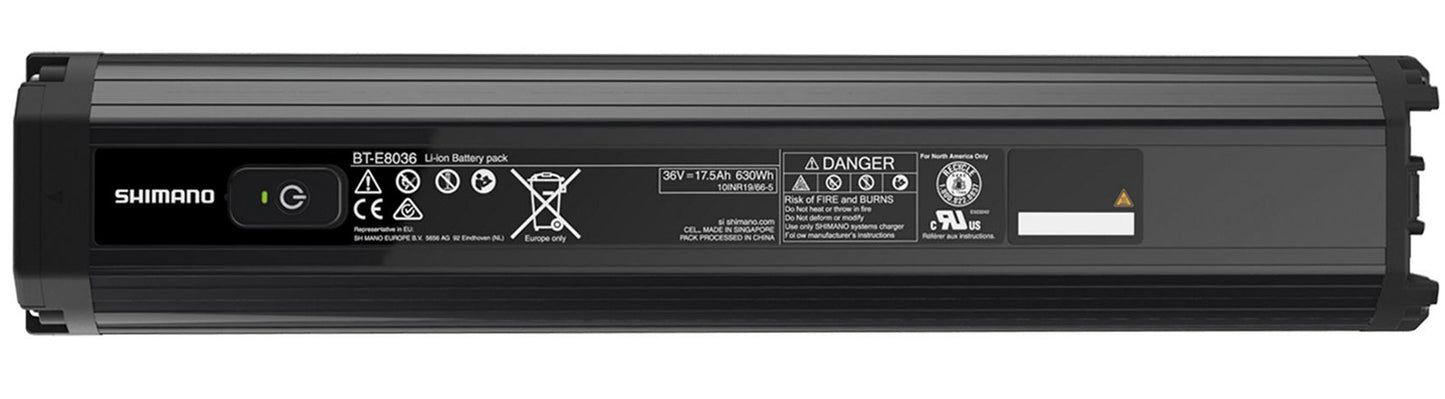

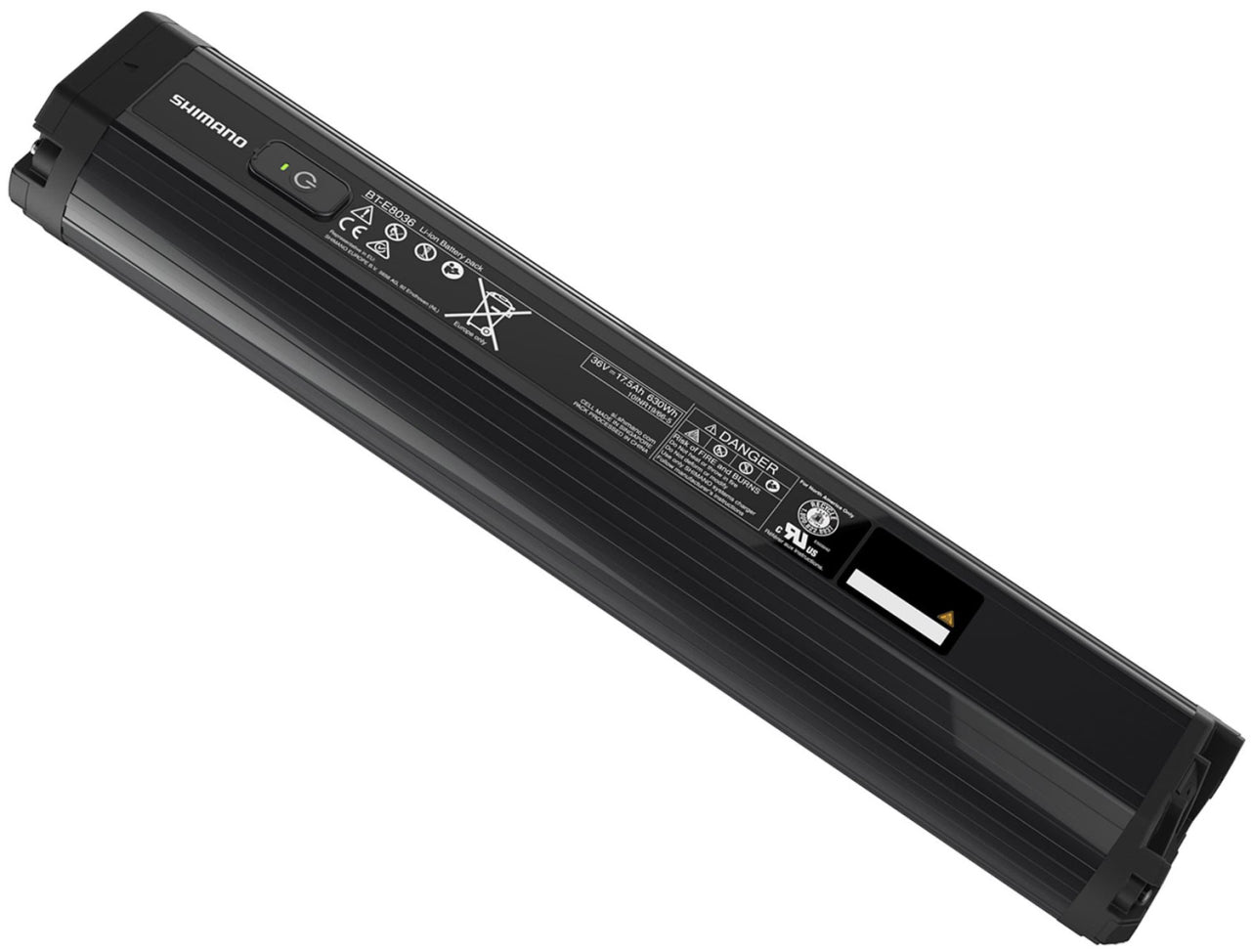

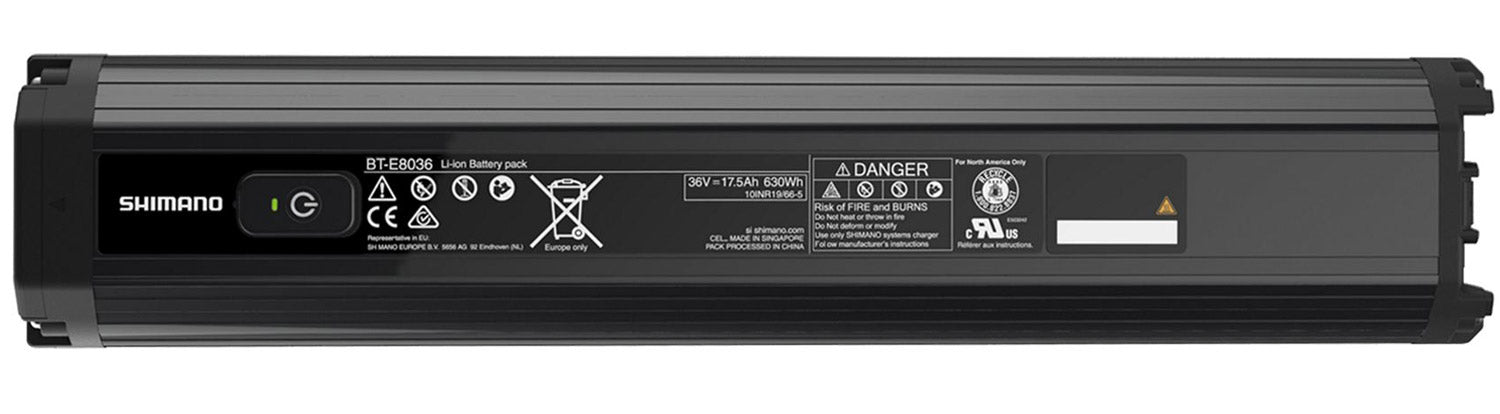

The Shimano Steps BT-E8036 is a high-capacity 630Wh integrated battery engineered for e-mountain bikes.
Its ultra-compact, low-profile design fits seamlessly into frame tubes, supporting sleek aesthetics while delivering enhanced impact and vibration resistance on technical terrain. Fully waterproof and built for durability, this battery provides consistent power delivery and impressive range for extended rides. Compatible with the Shimano E8000 E-MTB series, it combines reliable performance with the dependability riders expect from Shimano's proven e-bike technology.
Features
- Supports sleek frame design
- Optimum protection against the weather (IPX5 certified), surface damage and cold
- Recess for On / Off button and battery gauge
- Improved usability of double ratchet removal
- More compact size
- Optimized for E-MTB
- Capacity 630Wh (36V, 17.5Ah)
Specification
-
Use: E-Bike MTB
-
Group: Shimano Steps E8000
-
Model: BT-E8036
-
Design: Integrated
-
Battery Type: Li-Ion
-
Rated Voltage: 36V
-
Nominal Capacity: 17.5Ah
-
Nominal Capacity: 630Wh
-
Charging Time: approx. 6 hours
-
Compatible Charger: EC-E6000, EC-E6000-3 (for Japan), EC-E6002, EC-E8004
-
Compatible Battery Mount: BM-E8030-A, BM-E8030-B, BM-E8031-A, BM-E8031-B
Colour
Weight
Contents
- 1 x Shimano STEPS BT-E8036 Battery Integrated
