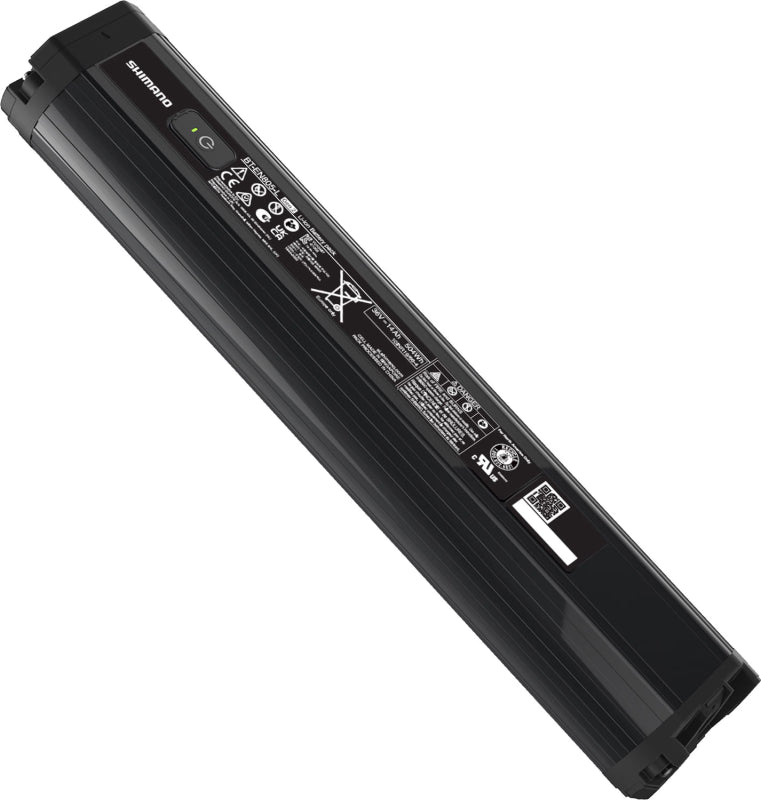

SHIMANO STEPS BT-EN805-L 504Wh BATTERY INTEGRATED

The second generation Shimano Steps BT-EN805-L delivers optimum performance and extended service life for serious e-mountain bikers.

This 504Wh integrated battery features a compact, low-profile design engineered specifically for E-MTBs, providing superior shock and vibration resistance while enabling a slim frame aesthetic. Built tough and water-resistant, the battery maintains consistent power delivery and exceptional range across multiple charge cycles. Full compatibility with DU-EP801 and DU-EP600 drive units makes it a versatile upgrade or replacement. Durable construction ensures reliable performance season after season, whether you're tackling technical terrain or pushing long distances.

Features

• Compatible with SHIMANO STEPS second-generation integrated down tube battery mount
• This integrated down tube battery's compact design helps keep a low center of gravity for more natural handling
• Durable construction with IPX5 water resistance stands up to the elements and low-pressure washes
• MTB-dedicated design
• Supports sleek frame design
• Compatible with SHIMANO STEPS drive unit DU-EP801 and DU-EP600

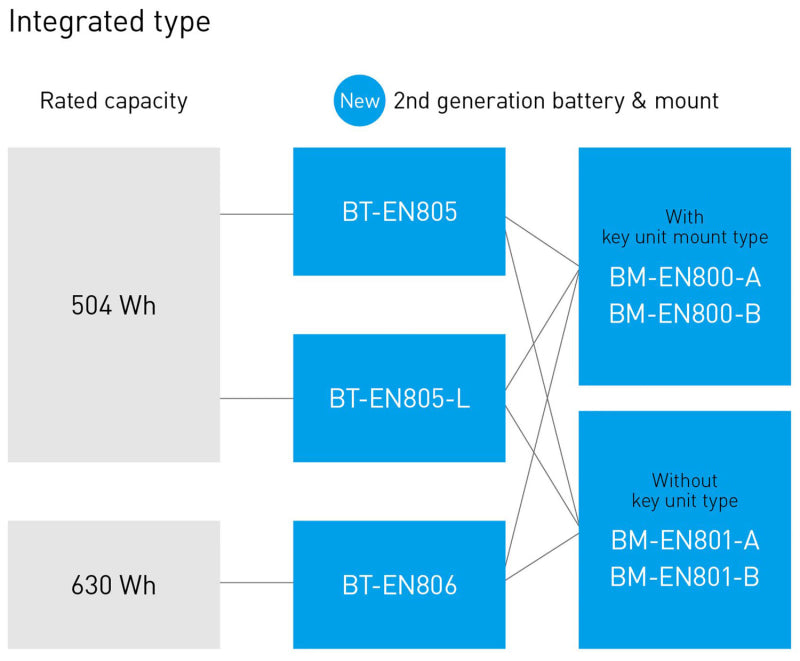

• Compatibility with BM-EN800-A, BM-EN800-B, BM-EN801-A and BM-EN801-B battery mount
• Capacity: 504 Wh (36 V, 14 Ah)
• Fully charge in 5 hours with EC-8004 charger
• Temperature: 0°C - 40°C (charging) -10°C - 50°C (operating)
• Long-lasting battery retains more than 60% of its initial maximum capacity after 1,000 full charges
• Note: 504 Wh version with long housing (housing size like BT-EN806)

Specification

• Use: E-Bike
• Group: Shimano Steps EP801/EP600
• Modell: BT-EN805-L (long version, housing size as BT-EN806)
• Design: Battery integrated
• Battery Type: Li-Ion
• Rated voltage: 36V
• Nominal Capacity: 14Ah
• Nominal Capacity: 504Wh
• Charging time: approx. 5 hours
• Compatible battery mount: BM-EN800-A BM-EN800-B BM-EN801-A BM-EN801-B
• Compatible charger: EC-E6002, EC-E8004
• Compatible adaptor for charge: SM-BTE80 or EW-CP100

Colour

• Black

Weight

• Approx. 3150g

Contents

• 1 x Shimano STEPS BT-EN805-L 504Wh Battery Integrated
