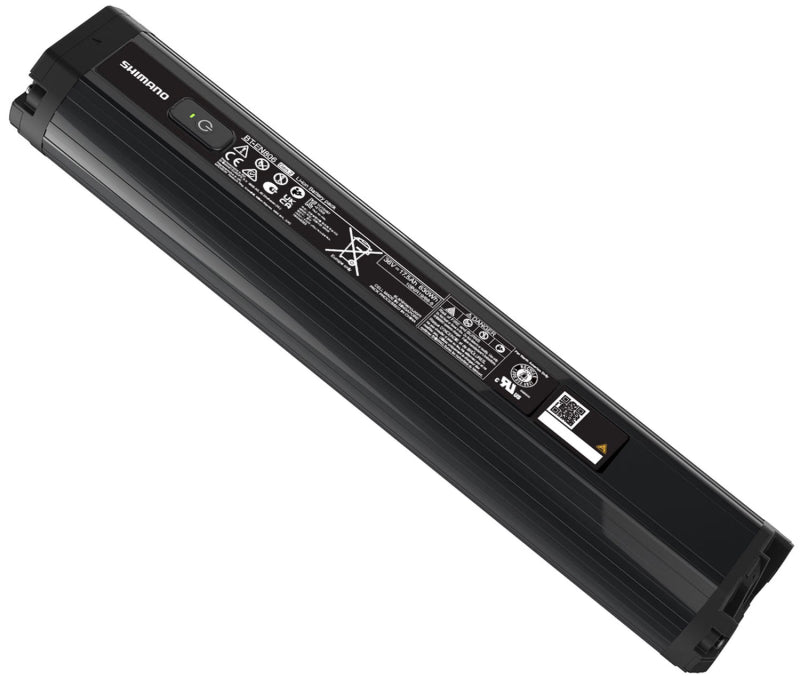

The second generation Shimano Steps BT-EN806 battery delivers optimal performance and extended service life for your e-MTB.
This extremely compact, durable and waterproof 630Wh battery integrates seamlessly into the down tube, enabling a slim frame design while providing greater shock and vibration resistance. The low-profile construction is specially engineered for e-mountain bikes, offering consistent power delivery and excellent range. Fully compatible with DU-EP801 and DU-EP600 drive units, it's the high-performance power source serious riders depend on.
Features
- Compatible with SHIMANO STEPS second-generation integrated down tube battery mount
- This integrated down tube battery's compact design helps keep a low centre of gravity for more natural handling
- Durable construction with IPX5 water resistance stands up to the elements and low-pressure washes
- MTB-dedicated design
- Supports sleek frame design
- Compatible with SHIMANO STEPS drive unit DU-EP801 and DU-EP600

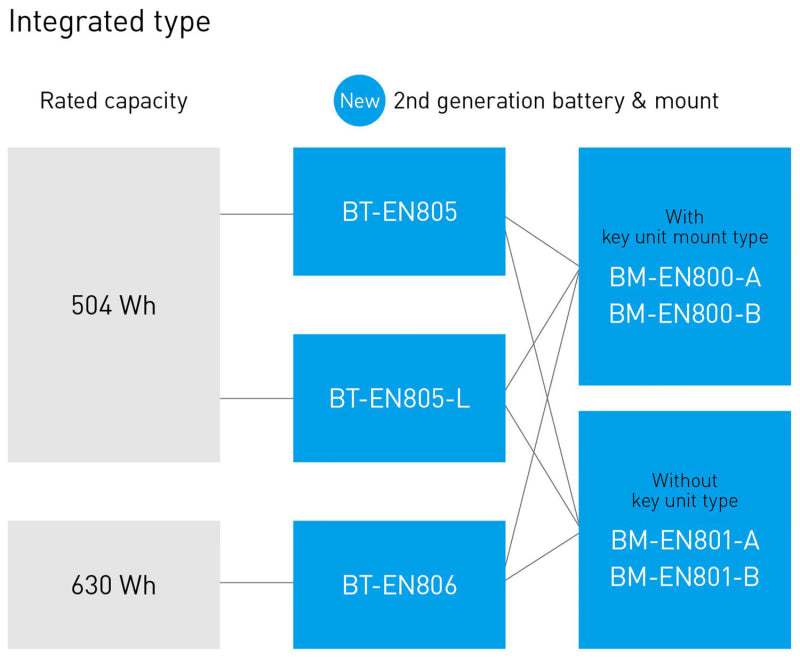

- Compatibility with BM-EN800-A, BM-EN800-B, BM-EN801-A and BM-EN801-B battery mount
- Capacity: 630 Wh (36 V, 17.5 Ah)
- Fully charge in 6 hours with EC-8004 charger
- Temperature: 0°C - 40°C (charging) -10°C - 50°C (operating)
- Long-lasting battery retains more than 60% of its initial maximum capacity after 1,000 full charges
Specification
-
Use: E-Bike
-
Group: Shimano Steps EP801/EP600
-
Modell: BT-EN806
-
Design: Battery integrated
-
Battery Type: Li-Ion
-
Rated voltage: 36V
-
Nominal Capacity: 17.5Ah
-
Nominal Capacity: 630Wh
-
Charging time: approx. 6 hours
-
Compatible battery mount: BM-EN800-A BM-EN800-B BM-EN801-A BM-EN801-B
-
Compatible charger: EC-E6002, EC-E8004
-
Compatible adaptor for charge: SM-BTE80 or EW-CP100
Colour
Weight
Contents
- 1 x Shimano STEPS BT-EN806 630Wh Battery Integrated
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
