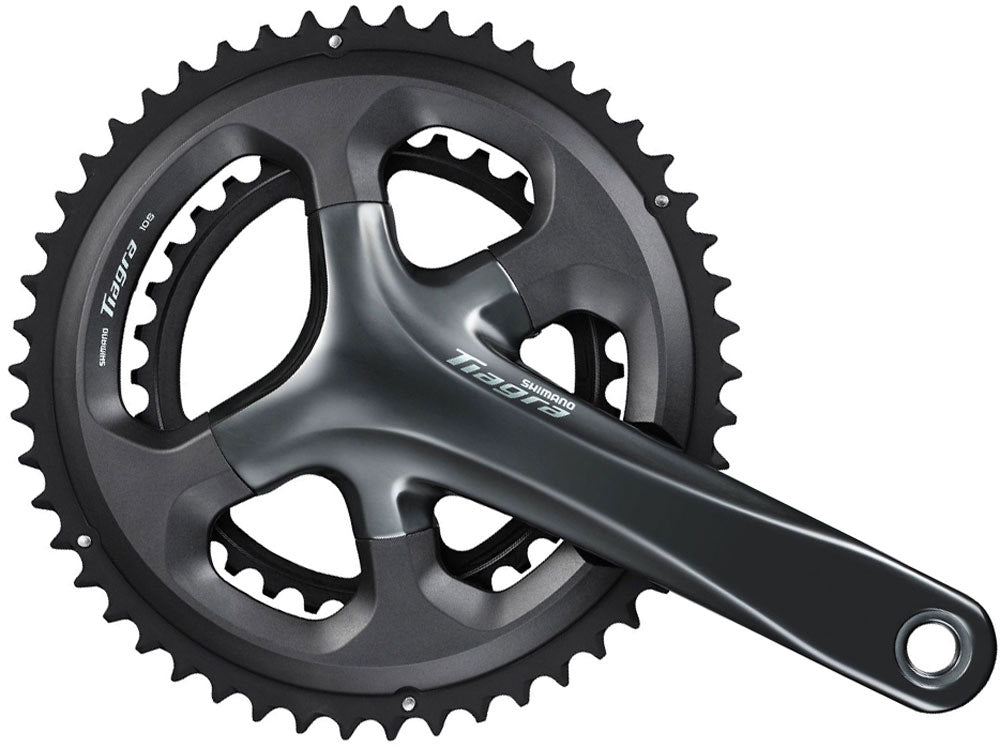

The Shimano Tiagra FC-4700 crankset delivers entry-level performance with a refined aesthetic. Its compact 48/34 chainring configuration suits varied terrain, while the slim profile and polished finish create a premium look.
Built with cascaded technology inherited from Shimano's higher-tier groupsets, this 10-speed compatible crankset offers reliable power transfer and smooth shifting. The 175mm crank arms provide optimal leverage for efficient pedalling. Ideal for road cyclists seeking quality components without compromise.
Features
- Optimum power transfer motivates riders to pedal further and faster
- Gear combinations to match more riding styles
- Optimal balance between stiffness and lightweight
- Reinforced 4-arm construction
- 110 PCD
- Optimized gear shape for HG-X chain
Specification
-
Use: Road / Cyclocross
-
Group: Tiagra
-
Gradation: 48-34T
-
Crank Arm Length: 175mm
-
Q-Factor: 150mm
-
Threaded BB shell width: 68mm
-
Gear: 10-speed
-
Construction: 2-Piece
-
Compatible Chain: HG-X 10-speed
-
Bolt Circle Diameter: 110mm
-
Chain line: 43.5mm
Crank Arm Length
Material
-
Crank arm: Aluminium
-
Crank axle: Steel
-
Large Chainring: Aluminium, GFRP
-
Small Chainring: Aluminium
Colour
Contents
- 1 x Shimano Tiagra FC-4700 2x10-Speed Crank 48/34T
