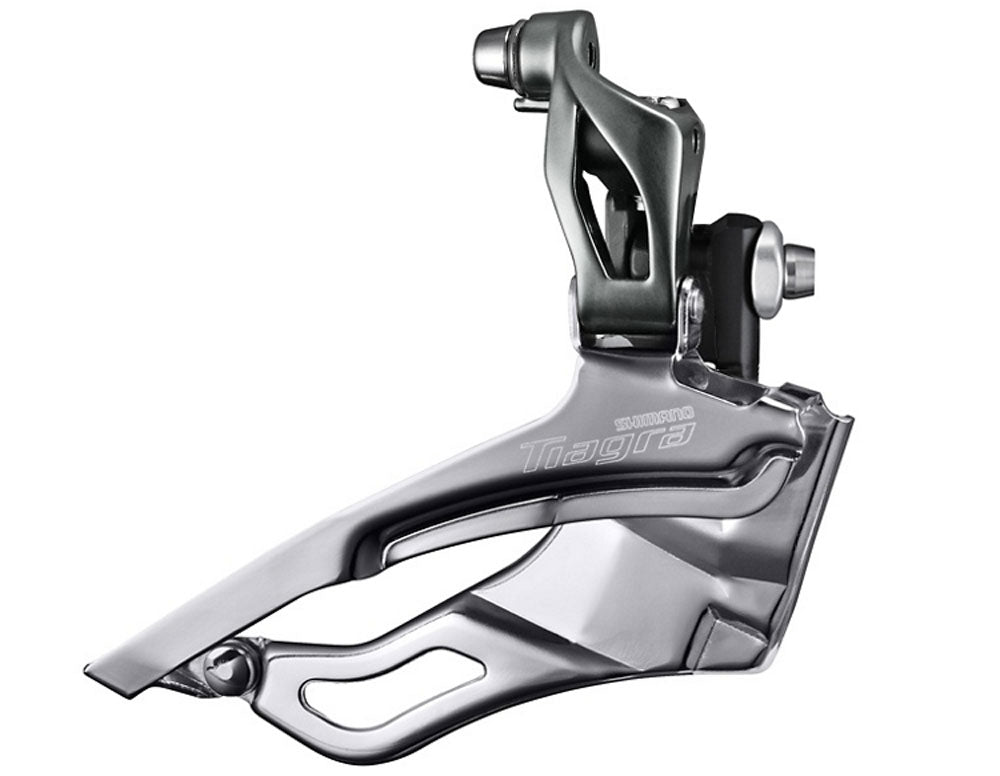

Fast and precise shifting with the Shimano Tiagra FD-4703 front derailleur for 3x10-speed cranks.
The 10-speed Tiagra provides serious entry-level riding performance with cascaded technology from top-tier lines.
Specification Shimano Tiagra FD-4703 3x10-speed Front Derailleur
-
Use: Road/Fitness
-
Group: Tiagra
-
Model:
- FD-4703-F (Brazed-On Mount)

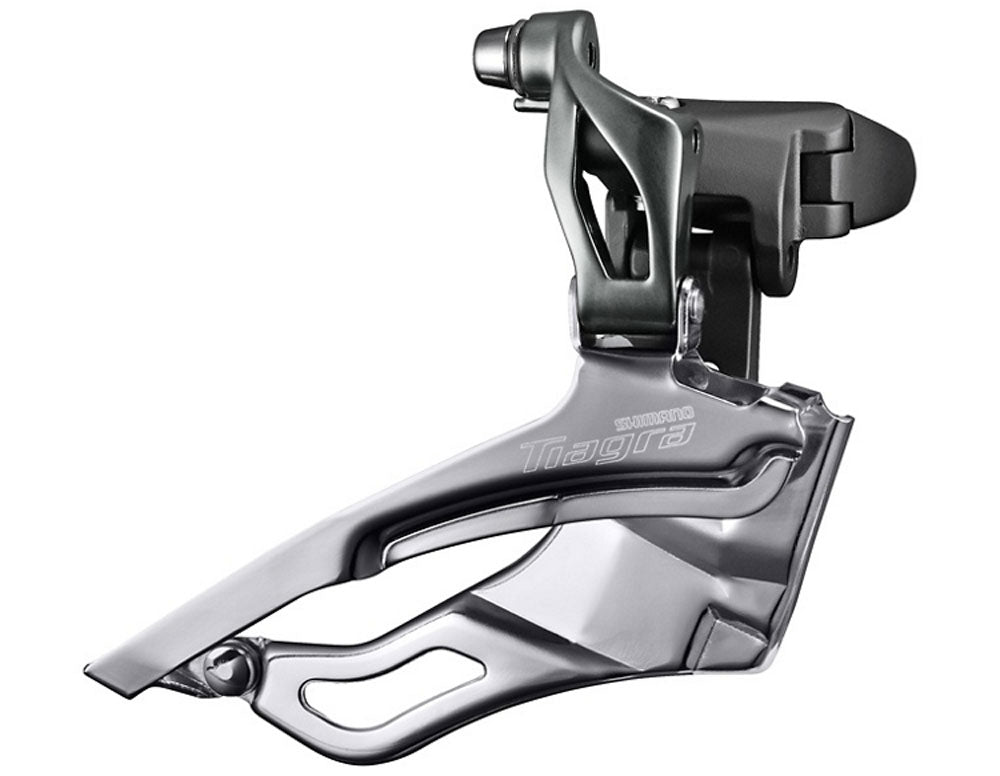

- FD-4703-B (Clamp Band Mount)
-
Cable route type: Down-Pull
-
Gear front: 3-speed
-
Gear rear: 10-speed
-
Top gear teeth: 50T
-
Total capacity: 20T
-
Compatible chain: HG 10-speed
-
Chain stay angle: 63-66°
-
Chain line: 45mm
Mounting
- Braze On
- 31.8mm (with adapter 28.6mm)
- 34.9mm
Material
Contents
- 1 x Shimano Tiagra FD-4703 3x10-speed Front Derailleur
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
