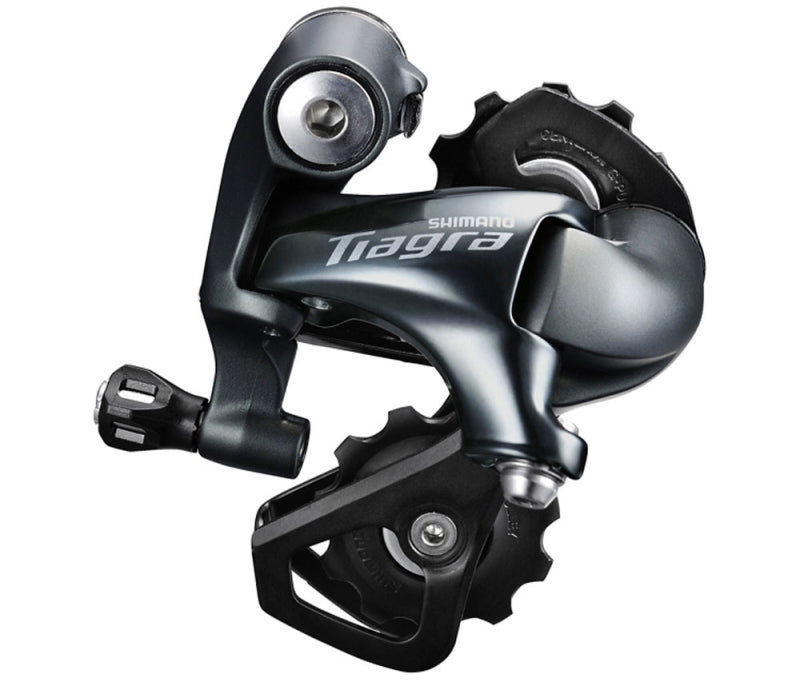

Shimano's Tiagra RD-M4700 delivers smooth, reliable shifting for 10-speed road bikes.
This short-cage derailleur combines lightweight operation with proven technology, making it an excellent choice for entry-level performance builds.
Features
- Offering pro-level features, the 10-speed compatible Tiagra rear derailleur gives high performance at a low price
- Wide link design increases rigidity and service life
- Advanced light action for low-friction shifting up or down the block
- Alloy body's and outer link leads to lower weight without compromising strength and durability
- 11-tooth pulleys for reduced pulley wear and chain noise
- Two fluorine-coated link pin bushings for low-friction performance
- 32 tooth max with triple, 34 tooth max with double chainset
- Compatible with 4700 10-speed road drive systems only
Specification
-
Use: Road/Fitness
-
Group: Tiagra
-
Model: RD-4700 SS
-
Cage: Short (SS)
-
Gear: 10-speed
-
Mount type: Direct Mount
-
Compatible chain: HG 10-speed
-
Total capacity: 33T
-
Max. front difference: 16T
-
Max. teeth large sprocket: 28T
-
Min. teeth large sprocket: 25T
-
Max. teeth small sprocket: 14T
-
Min. teeth small sprocket: 11T
Material
Contents
- 1 x Shimano Tiagra RD-4700 10-speed Rear Derailleur
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
