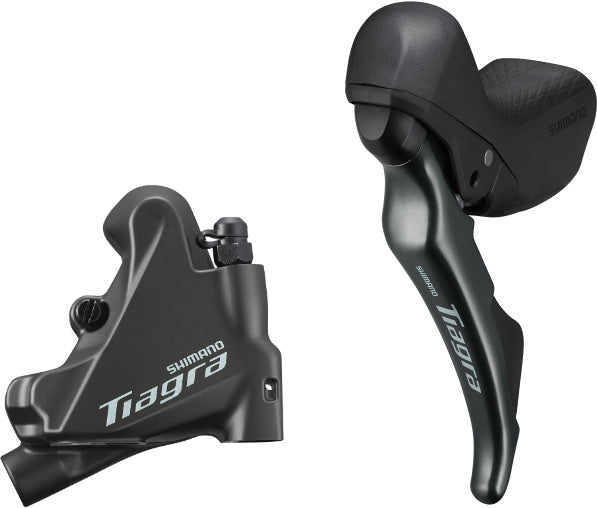

Shimano Tiagra 2x10-speed STI shifters with BR-4770 hydraulic disc brake callipers combine compact, ergonomic hood design with responsive braking performance.
Reduced lever stroke and lighter action deliver intuitive shifting and modulation, while the sleek profile enhances rider comfort during long rides. Purpose-built for all-terrain cycling with reliable stopping power and precise gear changes.
Features
- Greater rider control in all conditions
- Fast and easy bleeding through one-way Bleeding
- Rear (140mm)
Specification
-
Use: Road/Cyclocross
-
Group: Tiagra
-
Model: ST-4720
-
Type: Dual-Control (STI)
-
Handlebar mounting: left
-
Gear rear: 10-speed
-
Optical gear display: No
-
Lever reach adjust: Yes
-
Handlebar diameter: 23.8mm/24.2mm
-
Brake-type: Hydraulic Disc Brake
-
Brake caliper: BR-4770
-
Brake mounting: Flat-Mount
-
Brake pads: Resin
-
Brake hose: SM-BH90-JK-SSR rear 1700mm (shortable)
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: SM-RT70 (140mm)
Material
-
Body: CFRP
-
Lever: Aluminium, painted
-
Caliper: Aluminium, painted
Colour
Weight
-
STI Dual Control: approx. 310g
-
Caliper: approx. 140g

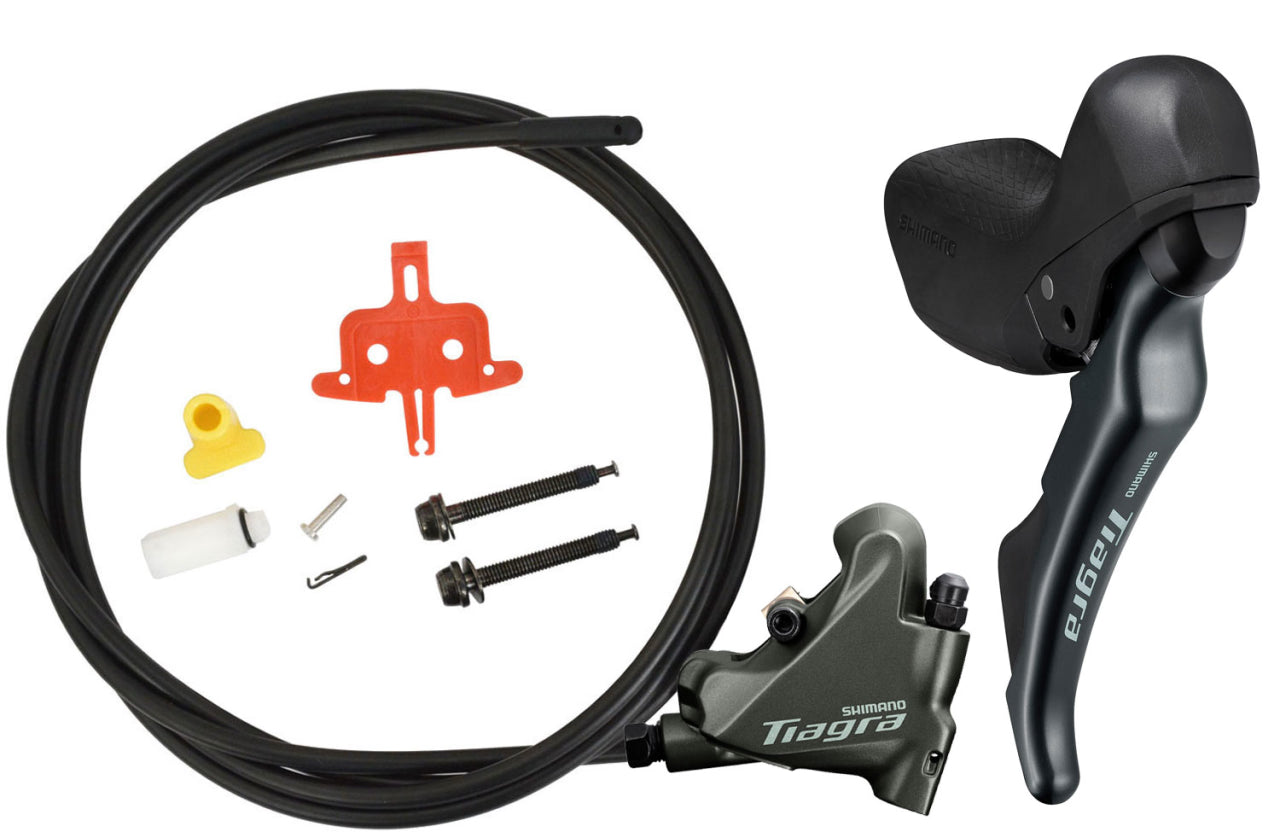

Contents
- 1 Tiagra 10-speed STI Dual Control ST-4720 right
- 1 Tiagra Disc Brake Caliper BR-4770 Flat-Mount
- 1 Brake Pads Resin
- 1 Brake Hose SM-BH90-JK-SSR 1700mm (shortable)
- 2 Screws for brake caliper (38mm)
- 1 Tube Joint Kit

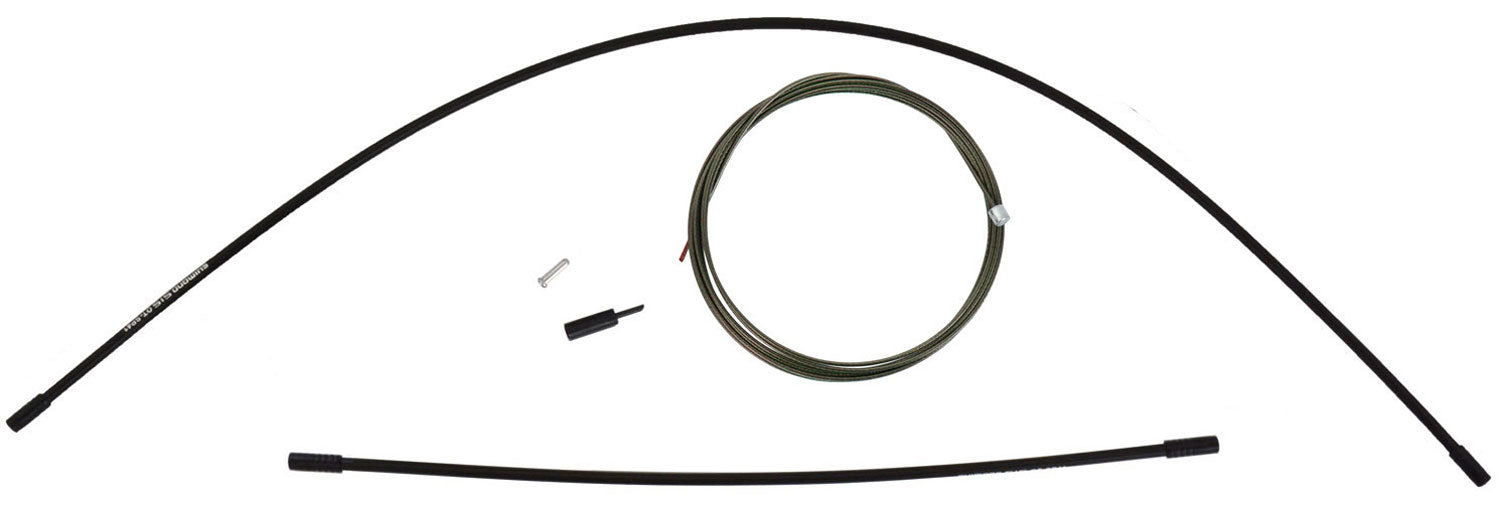

- 1 Gear wire (Optislick) 2100mm
- 1 Gear cable SIS OT-SP41 600mm
- 1 Gear cable SIS OT-SP41 300mm
- End caps
