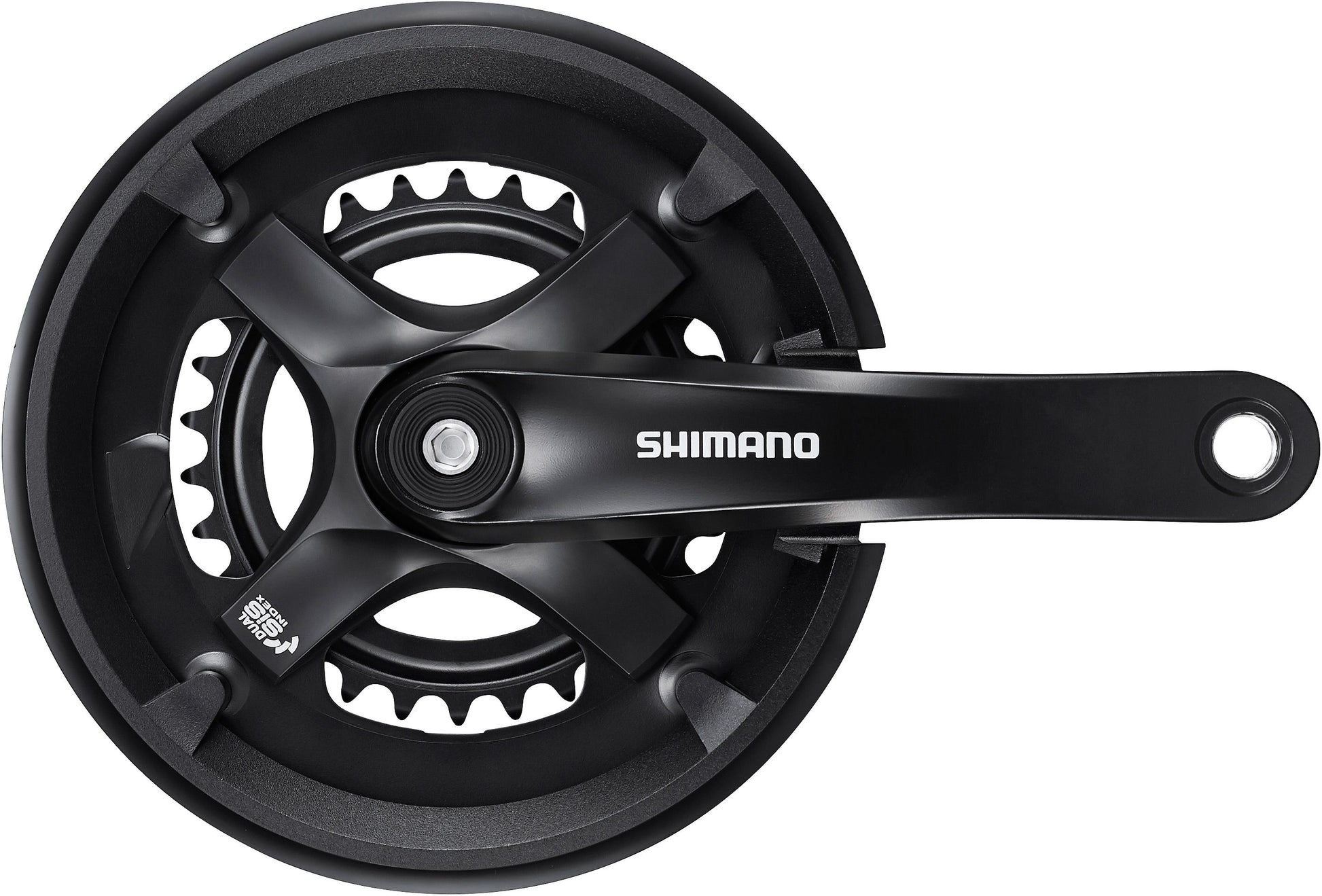

SHIMANO TOURNEY FC--TY501 2x6/7/8-SPEED SQUARE CRANK 46/30

SHIMANO TOURNEY FC-TY501 crankset for 2x6/7/8-speed bikes.

Reliable shifting performance with 46/30 chainrings, works with or without chainguard.

Features

• Entry level 7/8-speed double chainset offering slick hyperdrive shifting performance for off road enthusiasts
• Hyperdrive SG-X chainrings for fast and smooth gear shifts
• 7/8-speed compatible steel chainrings
• For use with 123 mm square taper bottom brackets

Specification

• Application: MTB, Trekking
• Groupset: TOURNEY
• Model: FC-TY501-2
• Chainring combination: 46-30T
• Threaded bottom bracket shell width: 68 / 73mm
• Gears: 2 x 6/7/8-speed
• Mount: square
• Q-factor: 185.5mm
• Compatible chain: HG 6/7/8-speed
• Spider/gear arms: 4
• P.C.D. (mm): Riveted
• Chainline: 48.8mm
• Chain guard ring: Yes

Crank Arm Length

• 170mm
• 175mm

Material

• Aluminium
• Steel

Colour

• Black

Contents

• 1 x Shimano TOURNEY 6/7/8-Speed Crankset FC-TY501 Square 46/30

BB-UN100 square bottom bracket not included!

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
