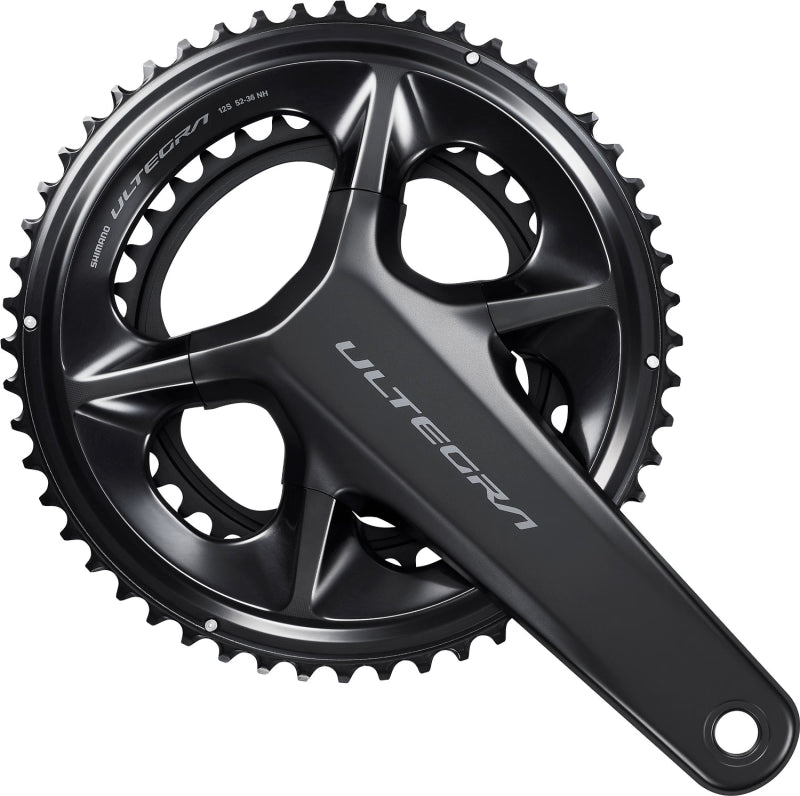

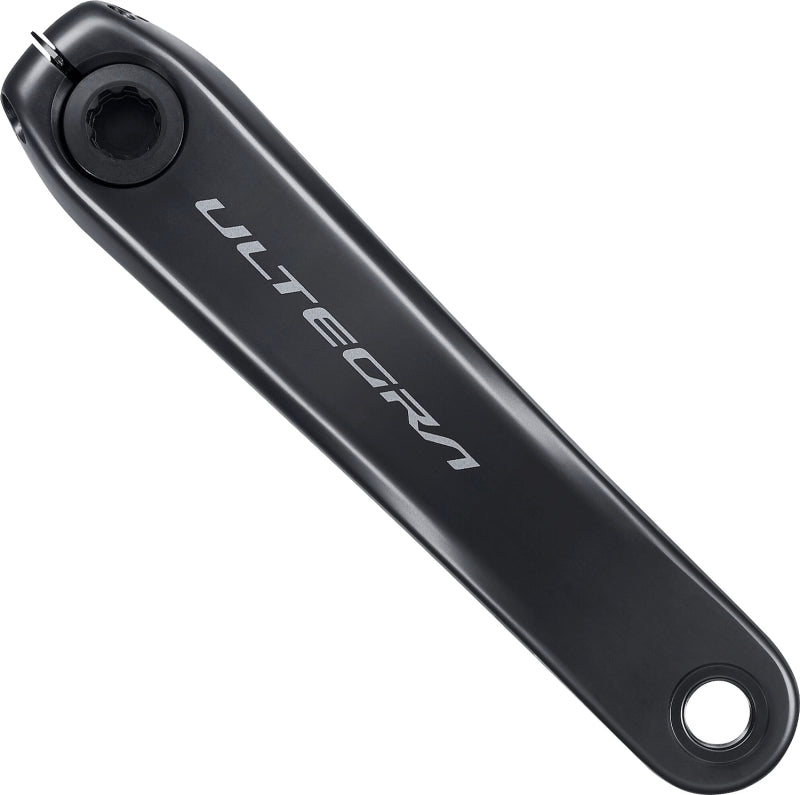

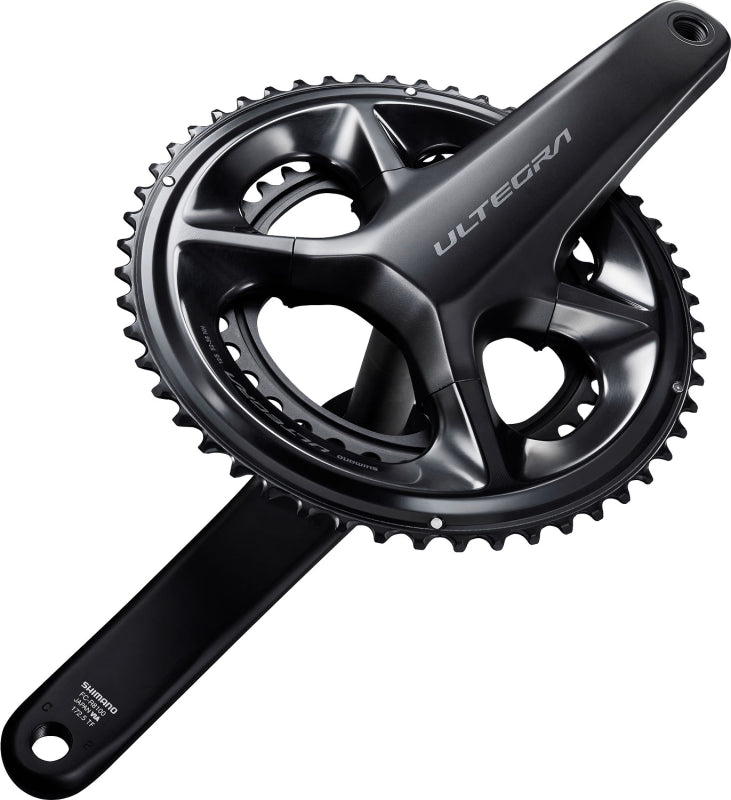

The Shimano Ultegra FC-R8100 2 x 12-speed HOLLOWTECH II crankset combines striking modern design with enhanced performance.
Its refined aesthetics deliver that coveted contemporary look, while optimised engineering ensures smoother power transfer and improved efficiency across all riding conditions. Built for serious cyclists seeking both style and substance.
Features
- HOLLOWTECH II crankset
- Optimum power transfer Best balance for lighter weight and efficiency
- New designed crank arm
- Maintains high rigidity and reduces weight
- 4-arm construction crankset
- Iconic design
Specification
-
Use: Road
-
Group: Ultegra R8100
-
Model: FC-R8100
-
Gradation: 52-36T
-
Q-factor: 146mm
-
Threaded BB shell width: 68 / 70mm
-
Gear front: 2-speed
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible chain: CN-M8100 HG 12-speed
-
PCD: 110mm
-
Chain line: 43.5mm
Crank Arm Length
- 160mm
- 165mm
- 170mm
- 172.5mm
- 175mm
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
-
Large Chainring: Aluminium Anodized / CFRP
-
Small Chainring: Aluminium Anodized
Colour
Contents
- 1 x Shimano Ultegra FC-R8100 12-Speed Crank 52/36T
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
