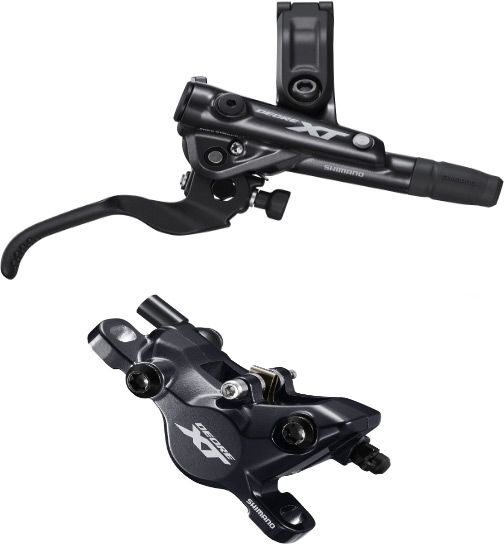

The XT BR-M8100 hydraulic 2-piston disc brake with BL-T8100 3-finger brake lever from Shimano fits seamlessly into the line-up of the Trekking XT T8000 component group.
SHIMANO's DEORE XT hydraulic M8100 brake lever features a longer 3-finger lever and I-SPEC II mounting capability.
Features
- Powerful fully bled XT hydraulic Servo Wave disc brake
- Fully bled lever and calliper comes without adapters or rotors giving you the freedom to customise to suit your bike
- Short stroke Servo-Wave mechanism for quick pad engagement and more power for aggressive riding
- Oversized 22mm twin phenolic pistons optimized for heat insulation, lightweight and stiffness
- Using Ice Tech alloy fin pads further improving heat radiation performance
- Recommended for use with Ice Tech rotors for optimum braking performance in a choice of 140, 160, 180 and 203 mm
- Lightweight forged calliper design that increases rigidity and reduces weight
- Forged alloy brake lever for optimum strength and reliability
- Mineral oil brake fluid is non-corrosive and less hazardous than conventional hydraulic brake fluid
- Shim-less mounting system allows for quick setting up
- Brake lever featuring reach and free stroke adjustment
- Hinged clamp for quick installation
- The kit also contains sintered pads, plus spare olives and insert should you wish to adjust the length of the cuttable hoses
- RT-MT800 Centerlock rotor in 140, 160, 180, 203mm are available separately!
Specification
-
Use: MTB
-
Group: Deore XT T8000
-
Model: BR-M8100+BL-M8100 (right)
-
Brake type: Hydraulic Disc-Brake
-
Brake lever: BL-M8100
-
Lever length: 3-Finger
-
Mount: right
-
Mounting system: I-spec-EV compatible
-
Reach adjustment: Yes, without tool
-
Calliper: BR-M8100 (2-Piston)
-
Brake mounting: Post mount
-
Brake pads: G03A Resin without Fin
-
Brake hose: SM-BH90-SBM
-
Brake hose length: front 1700mm (shortable)
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: RT-MT800
Material
-
Lever: Aluminium Anodized
-
Calliper: Aluminium Painted
Colour
Contents
- 1 x Brake lever XT BL-8100 right
- 1 x Brake calliper XT BR-M8100 (2-Piston)
- 1 x Brake hose SM-BH90-SBM 1700mm long (shortable)
- 1 x Sintered brake pads
- Spare olives
Rotor and Adapter not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
