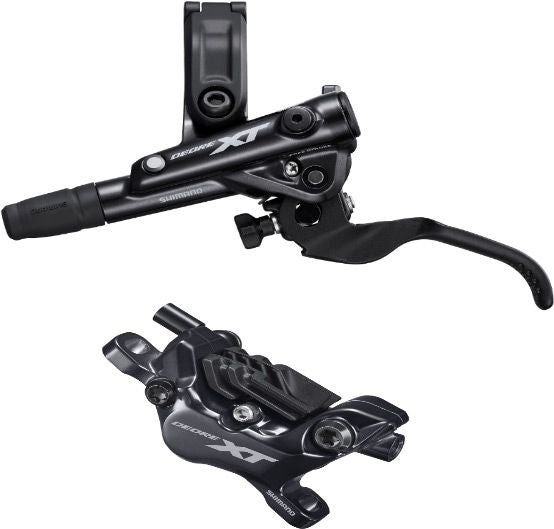

Shimano's XT BR-M8120 hydraulic disc brake delivers powerful stopping force with minimal hand effort.
The 4-piston design and 2-finger lever provide responsive, linear braking control ideal for demanding trail riding.
Features
- Powerful fully bled XT 4 pot hydraulic Servo Wave disc brake for more aggressive riding styles
- Fully bled lever and calliper comes without adapters or rotors giving you the freedom to customise to suite your bike
- Short stroke Servo-Wave mechanism for quick pad engagement and more power for aggressive riding
- 4 oversized pistons optimized for heat insulation, lightweight and stiffness
- Using Ice Tech alloy fin pads further improving heat radiation performance
- Recommended for use with Ice Tech rotors for optimum braking performance in a choice of 140, 160, 180 and 203 mm
- Lightweight forged calliper design that increases rigidity and reduces weight
- Forged alloy brake lever for optimum strength and reliability
- Mineral oil brake fluid is non-corrosive and less hazardous than conventional hydraulic brake fluid
- Shim-less mounting system allows for quick setting up
- Brake lever featuring reach and free stroke adjustment
- Hinged clamp for quick installation
- I-spec-EV compatible
Product features
-
Use: MTB, Enduro, Trail
-
Group: XT M8100
-
Model: BR-M8120 (rear)
-
Brake type: Hydraulic Disc-Brake
-
Brake lever: BL-M8100
-
Lever length: 2-Finger
-
Mount: Left
-
Clamp: open
-
Reach adjustment: Yes, without tool
-
Caliper: BR-M8120 (4-Piston)
-
Brake mounting: Postmount
-
Brake pads: N03A Resin with Fin
-
Brake hose: SM-BH90-SBM
-
Brake hose lengths: rear 1700mm (shortable)
-
Cable connection: Straight brake lever / Straight caliper
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: RT-MT800
Material
-
Lever: Aluminium Anodized
-
Caliper: Aluminium Painted
Weight
- Approx. 299g (without Rotor and Adapter)
Contents
- 1 x Brake lever XT BL-M8100 left
- 1 x Brake caliper XT BR-M8120 (4-Piston)
- 1 x Brake hose SM-BH90-SBM 1700mm long (shortable)
- 1 x Tube Joint Kit
- 1 x Brake pads N03A Resin with Fin
- 2 x Screw for brake caliper
Rotor and Adapter not included!
