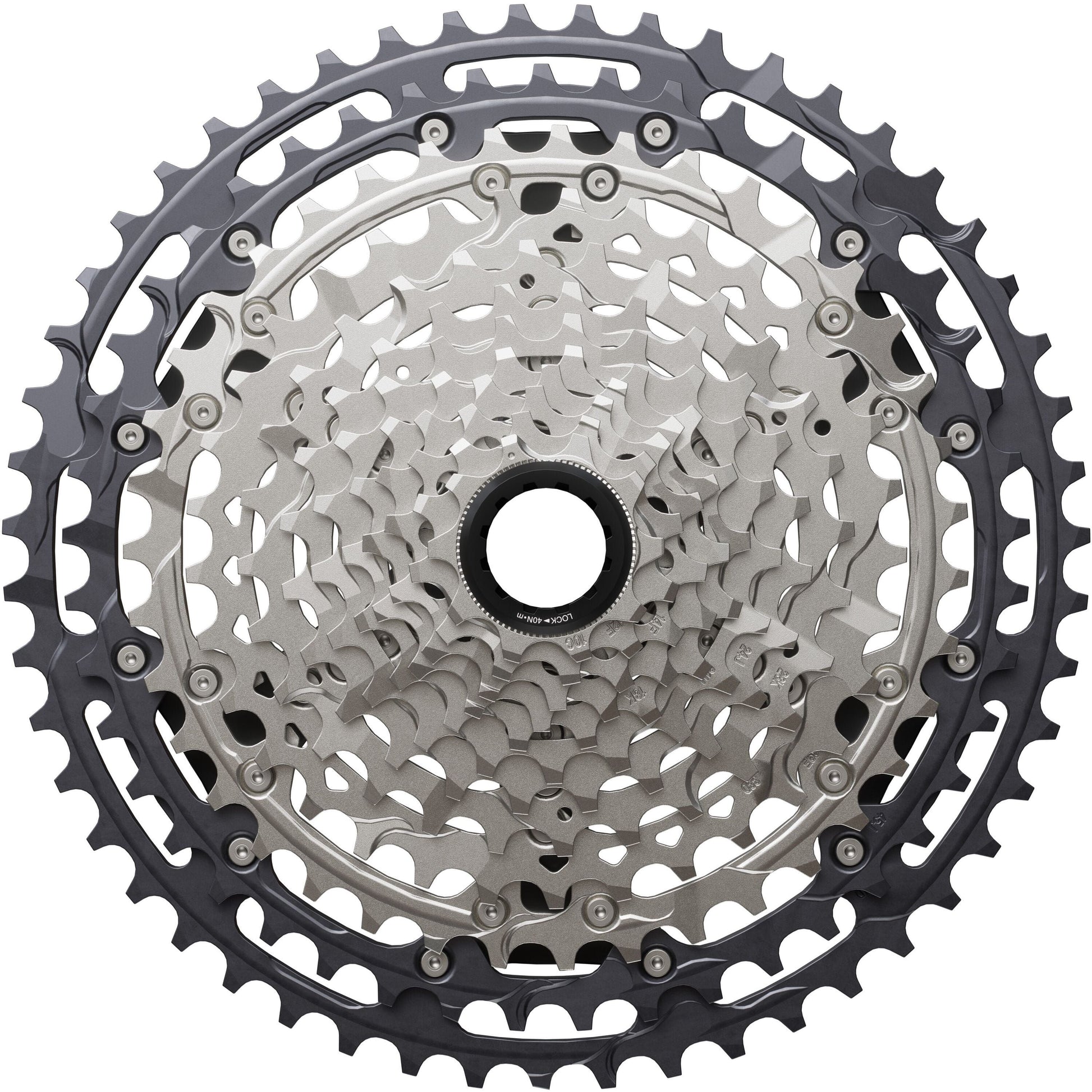

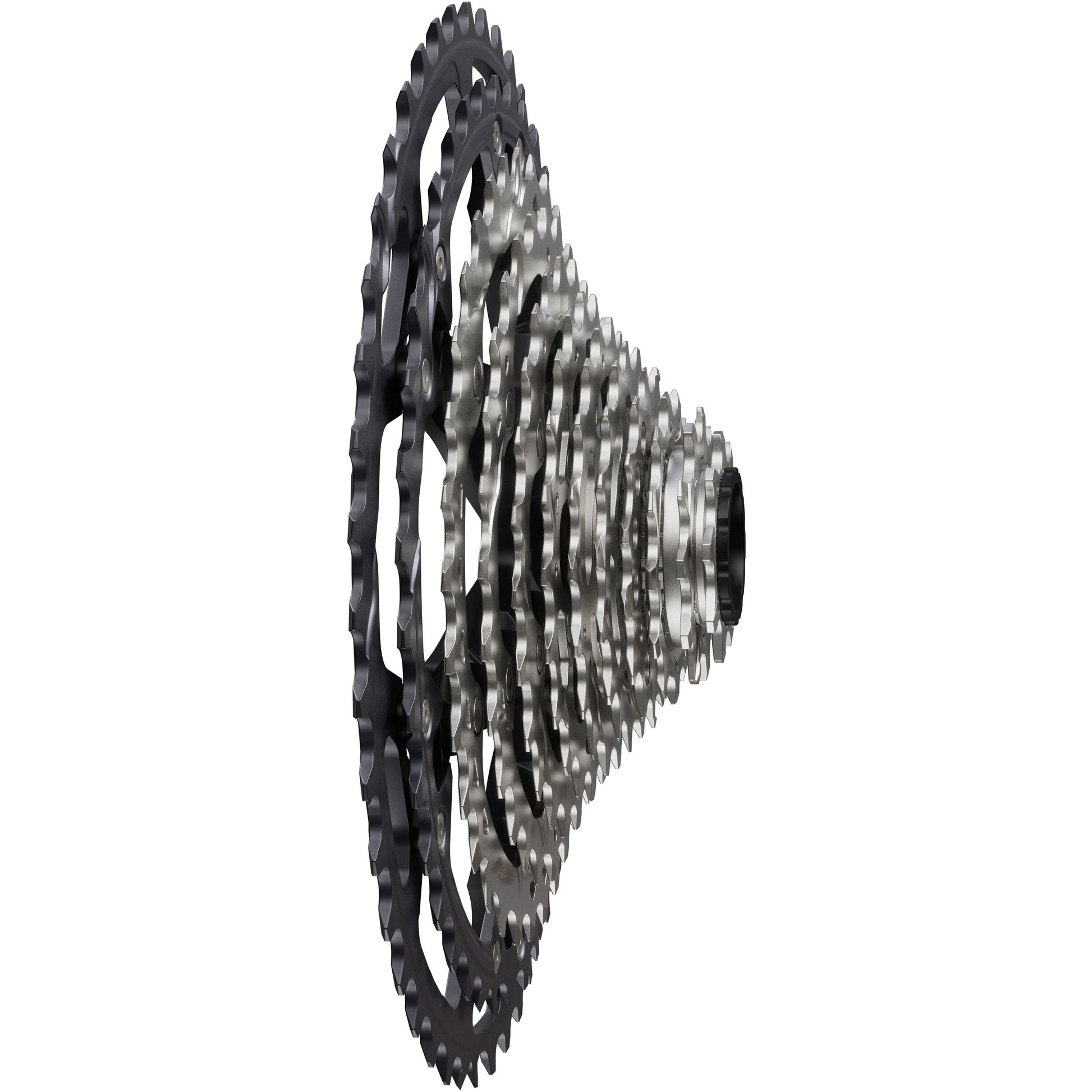

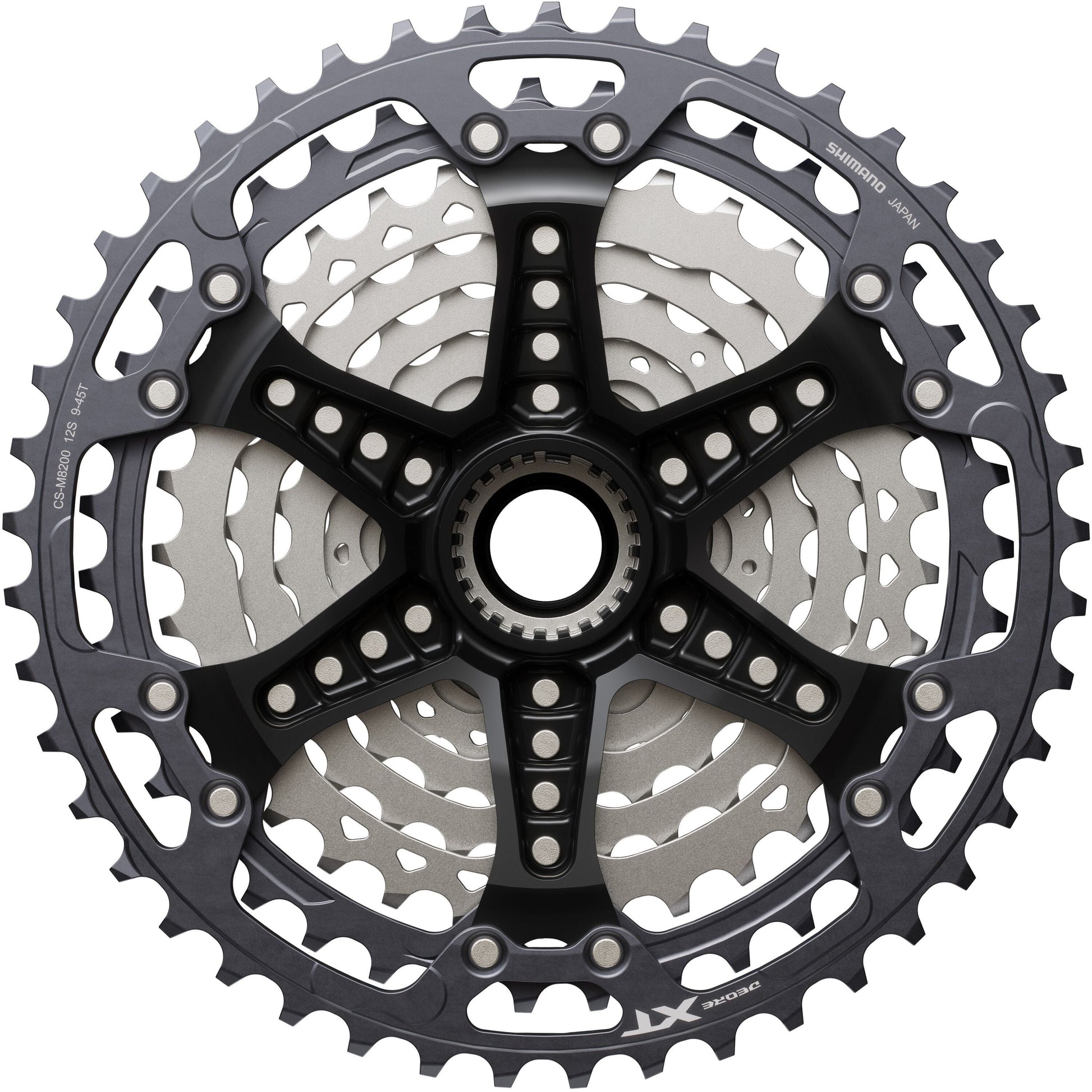

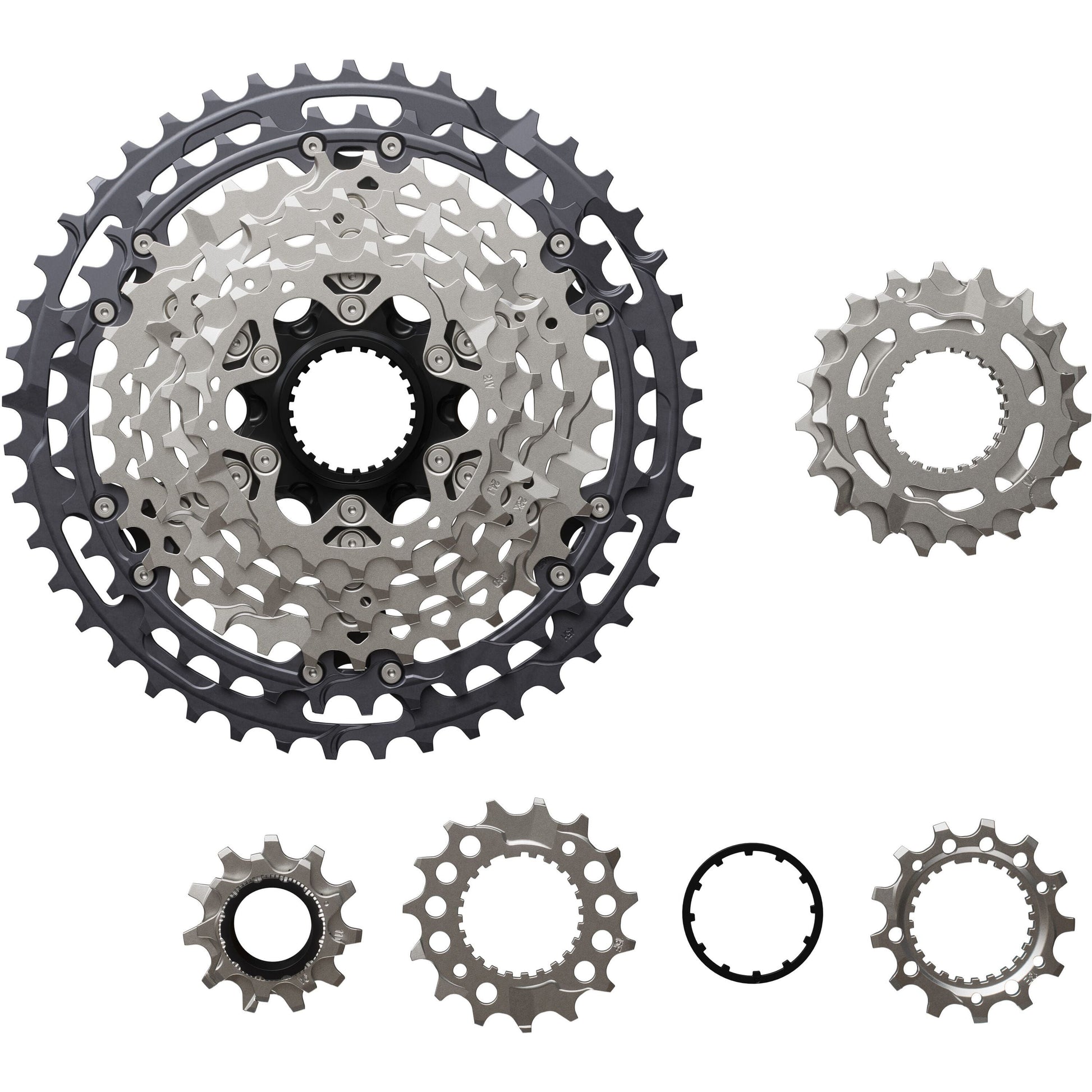

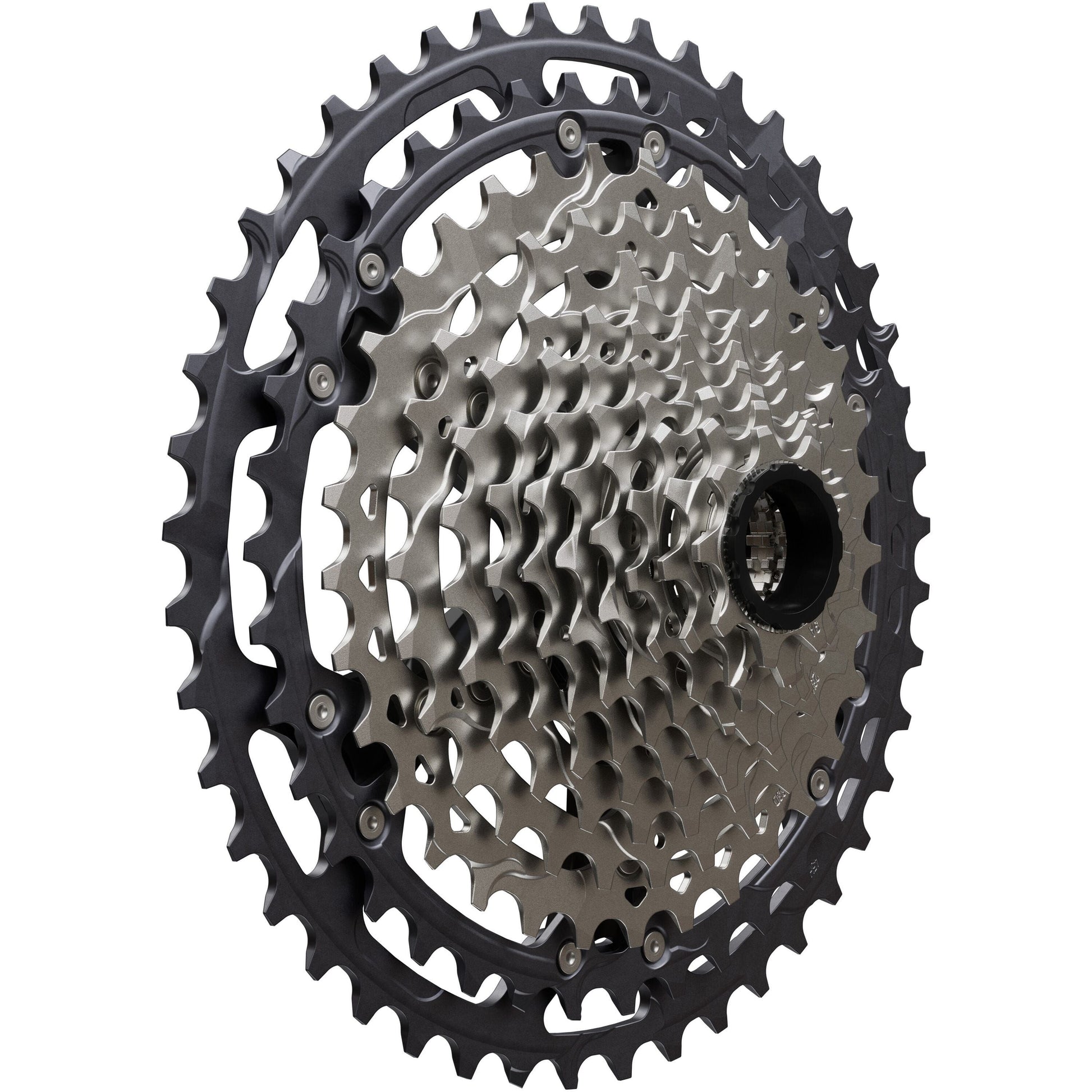

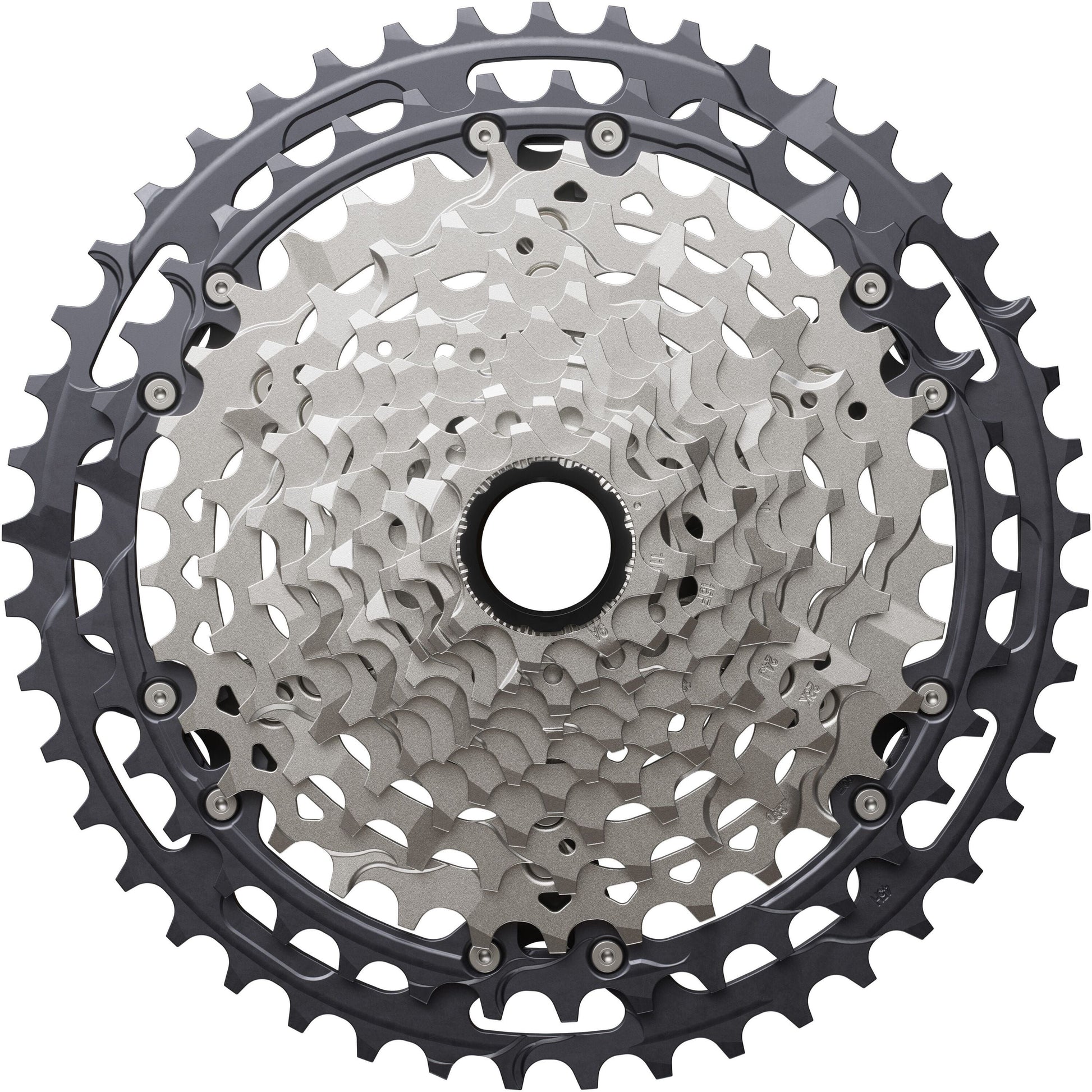

The Shimano XT CS-M8200 12-speed cassette is engineered to complement the DEORE XT M8200 Di2 groupset with precision performance.
Featuring Hyperglide+ technology, this Micro-Spline cassette delivers smoother, more responsive shifting even under heavy load. Its wide gear ratio range provides versatility across varied terrain, while the lightweight construction enhances acceleration and climbing efficiency. Built for durability and stability, this cassette represents the quality engineering Shimano is known for, making it an ideal upgrade for riders seeking reliable drivetrain performance.
Features
-
Gearing options:
-
9-45 (12-speed rhythm step spec for Cross Country)
- Compact drivetrain: In combination with smaller chainrings and the XT rear derailleur with medium cage, the 9-45 XT cassette offers a lightweight option with high ground clearance and an uncompromising 500% gear range
-
10-51 (12-speed wide range spec for Enduro)
- 510% gear range: The widest gear range and frame compatibility of all XT cassette options
-
Hyperglide+: Faster shifting, improved speed, shifting efficiency and smoothness on any terrain
-
Freehub compatibility: CS-M8200 is compatible with the MICRO SPLINE freehub body standard. The 9-45 version is mounted with a special locking ring tool (TL-LR021)
-
Build materials: The strategic use of steel and alloy ensures the CS-M8200 cassette is lightweight and robust enough to provide racer confidence
- Note: The TL-LR021 lock ring tool is required to fit the 9-45 cassette!
Specification
-
Use: MTB
-
Group: XT M8200
-
Model: CS-M8200-12
-
Type: Hyperglide+
-
Freehub compatibility: Shimano Micro-Spline 12-speed MTB
-
Gear: 1x12-speed
-
Compatible chain: 12-speed HG
Size
-
9-45 (9-11-13-15-17-19-21-24-28-33-39-45 teeth)
-
10-51 (10-12-14-16-18-21-24-28-33-39-45-51 teeth)
Material
- Aluminium spider arm
- Aluminium (sprockets)
- Steel (sprockets)
- Aluminium lock-ring
Contents
- 1 x Shimano XT CS-M8200 12-Speed Cassette
