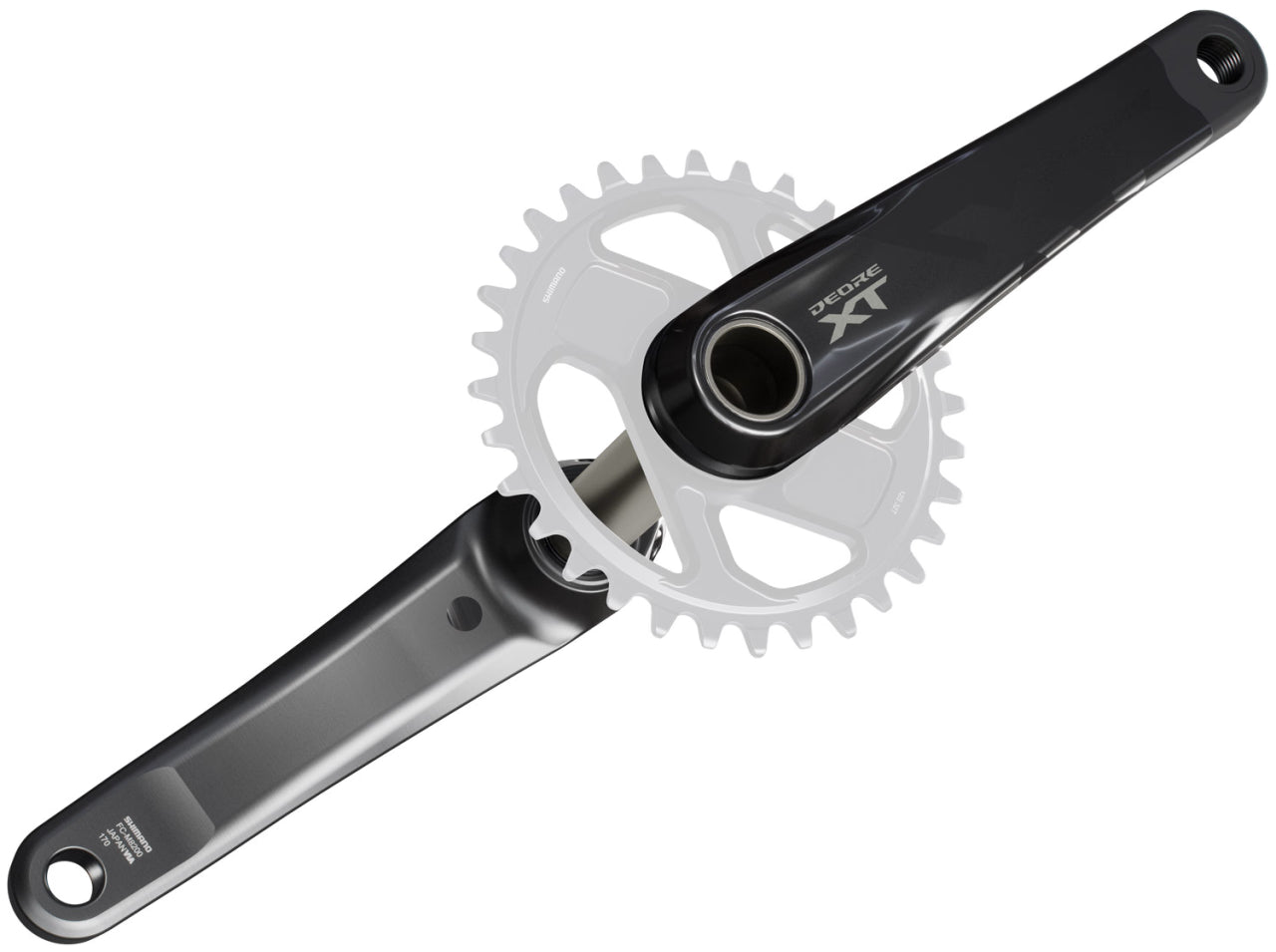

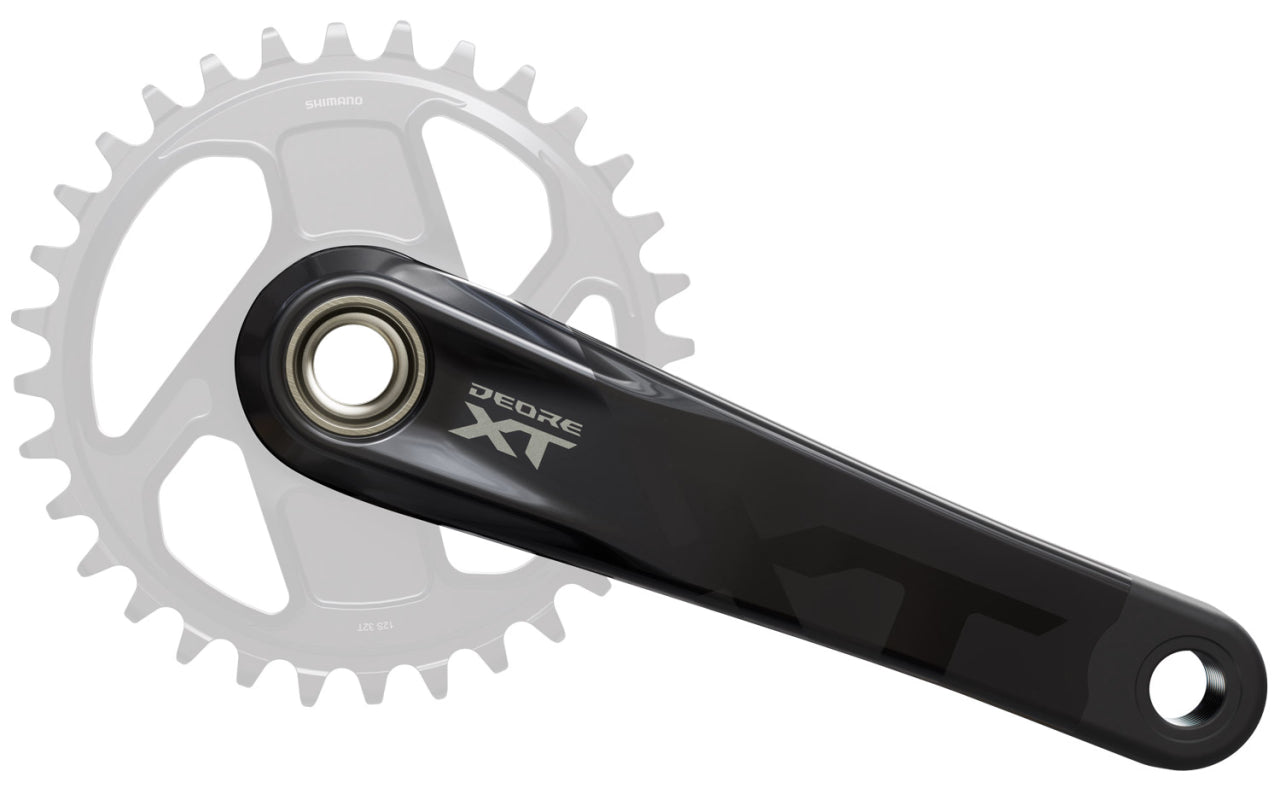

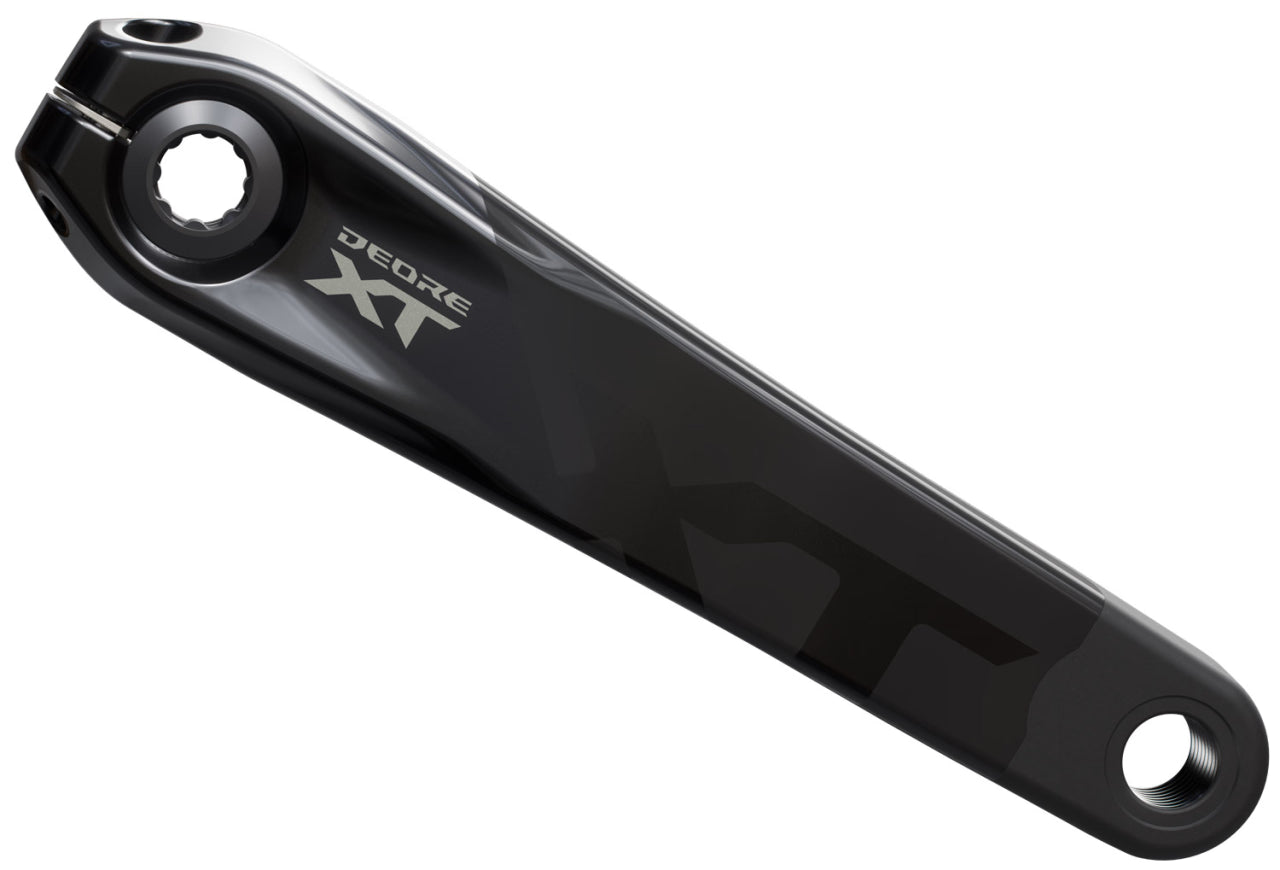

The Shimano XT FC-M8200 1 x 12-speed crankset delivers exceptional performance for demanding trail riding.
Built with HOLLOWTECH II forging technology, this crank combines lightweight construction with outstanding stiffness to handle the most aggressive impacts without compromise. Engineered with a stronger steel axle, the FC-M8200 maximizes durability while minimizing weight—ideal for riders who demand reliability on technical terrain. The 176 mm Q-factor and 55 mm chainline provide optimal pedalling efficiency and frame clearance, making this crankset a versatile choice for modern mountain bikes. Perfect for upgrading your drivetrain or building a complete 1 x 12-speed system.
Features
-
Enduro Specific Spindle: A thicker enduro-specific spindle raises the mark for durability and big- hit survivability
-
HOLLOWTECH II: Shimano’s forging provides optimal weight, stiffness and rigidity for Enduro riding and racing
-
Q Factor/Chain line: An enduro-optimized Q Factor brings race-feel familiarity, while a 55mm chain line offers maxed-out frame compatibility
-
Compatibility: M8200 cranks come standard with a 24mm spindle and are compatible with Shimano’s threaded and Press Fit bottom brackets
-
FC-M8200 Q-Factor 176mm
-
Chain line 55mm
-
O.L.D 131mm / 141mm / 142mm / 148mm
-
Compatibility 1 x 12-speed with CS-M8200 cassettes 9-45 and 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Specification
-
Use: MTB
-
Group: XT M8200
-
Model: FC-M8200
-
Gradation: Chainring is not included!
-
Q-Factor: 176mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible Chain: 12-speed HG
-
O.L.D: 131mm / 141mm / 142mm / 148mm
-
Chain line: 55mm
Crank Arm Length
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
- 1 x Shimano XT FC-M8200 1x12-Speed Crank without Chainring
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
