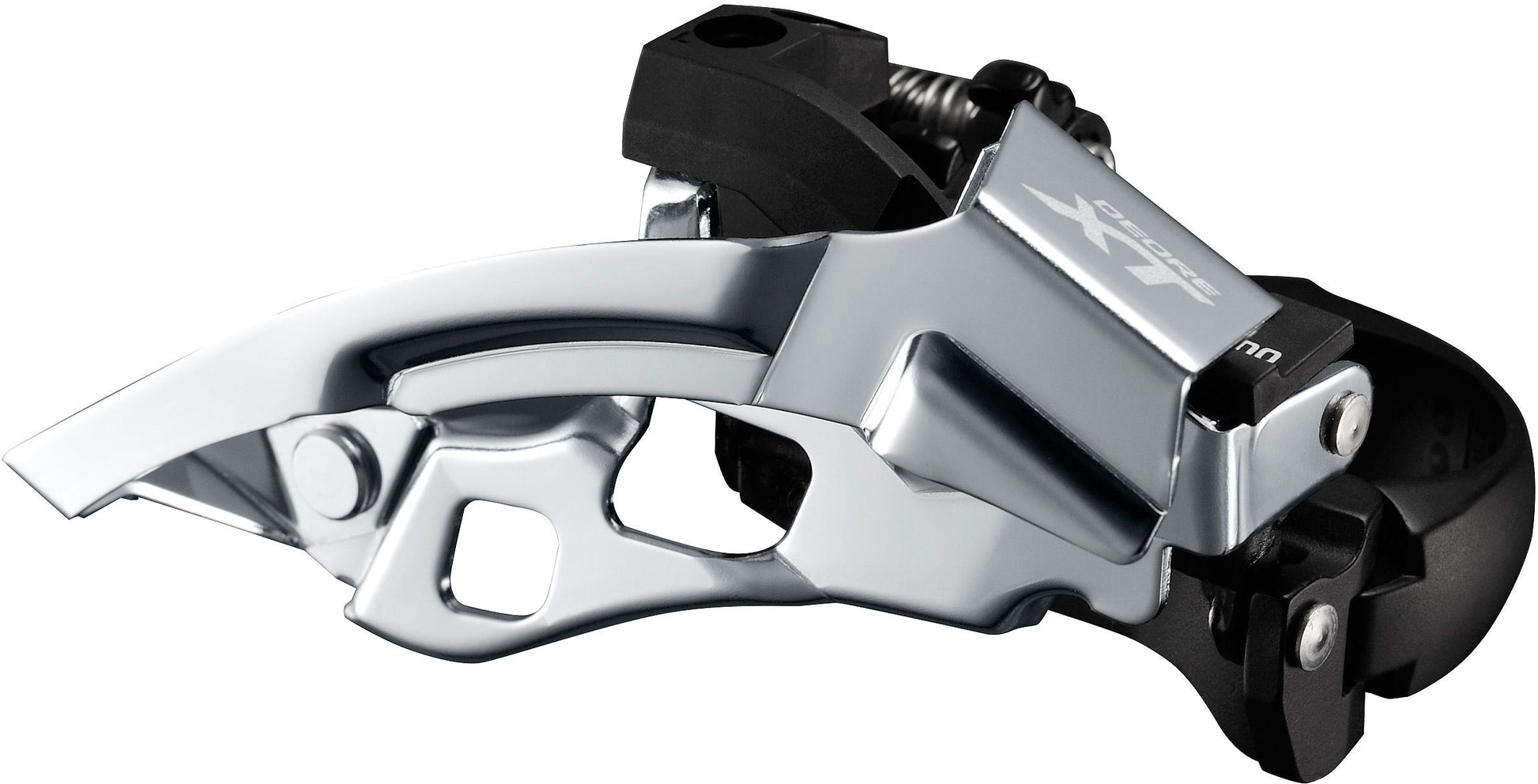

Shimano XT FD-T8000 front derailleur delivers reliable shifting across 3x10-speed setups.
Built for durability on both road and off-road terrain, it handles daily commuting and touring with consistent performance.
Features
- Lightweight front Top swing 10-speed trekking derailleur for smooth gear changes
- Dual Pull design for use with top or bottom cable routing
- The regular Multi-fit band clamp assures easy and secure fit on any frame type, with adapters to suit seat tube sizes 34.9, 31.8 and 28.6 mm
- Reinforced light weight chain guide adds rigidity and improved response
- Wider pivot link increases torsional rigidity
- Easy access angled adjustment screws and clamp bolt
- Angled inner chain guide tail for increased tyre clearance
- 10-speed design - for use with 10-speed trekking drivetrains
- Specifically developed for 68 and 73 mm bottom bracket shells with a 50 mm chain line
- 63-66 degree chainstay to seat tube angle range
- 48 tooth outer ring compatible, total capacity 22 teeth
Specification
-
Use: Trekking
-
Group: XT (10-speed)
-
Model: FD-T8000-L-3
-
Mounting: Low Clamp
-
Multi-Clamp: 34.9mm (28.6mm / 31.8mm w/ Adapter)
-
Cable route type: Dual Pull
-
Gear front: 3-speed
-
Gear rear: 10-speed
-
Top gear teeth: 48T
-
Total capacity: 22T
-
Compatible Chain: HG-X 10-speed
-
Chain stay angle: 63-66°
-
Chain line: 50mm
Material
Contents
- 1 x Shimano XT 3x10 Front Derailleur FD-T8000 Low Top-Swing 63-66°
