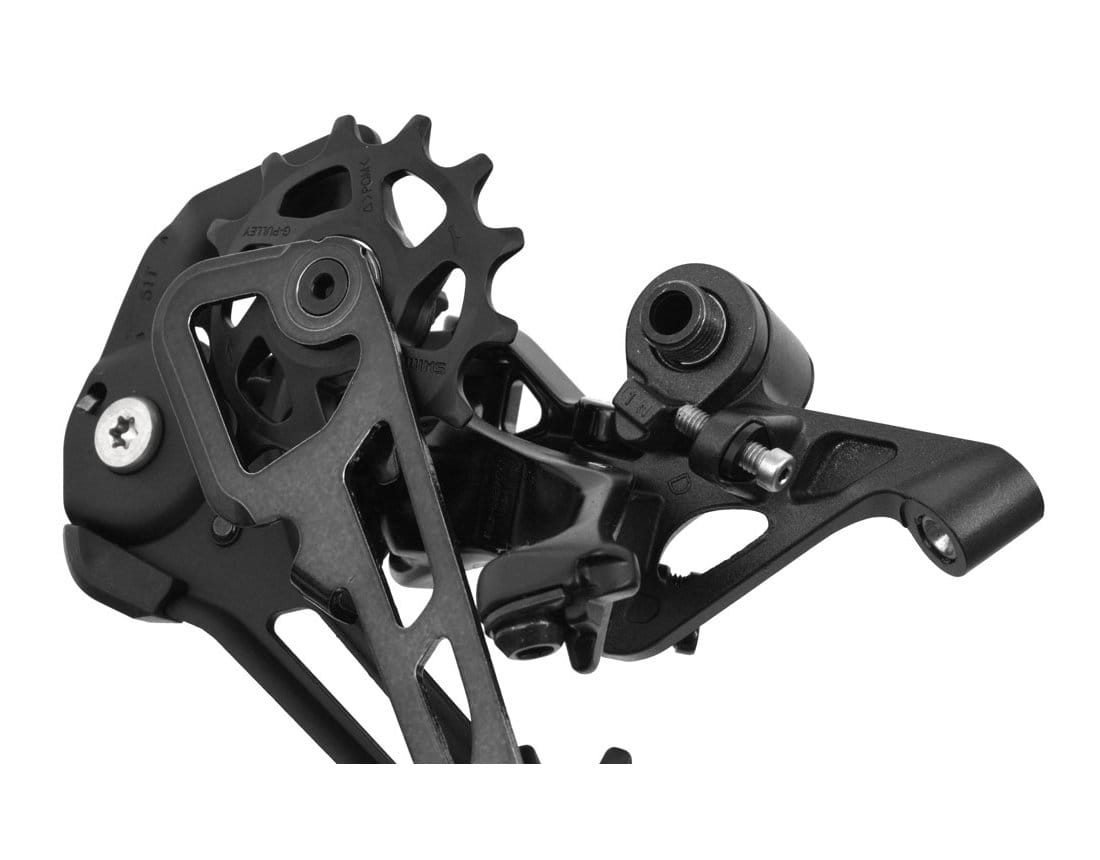

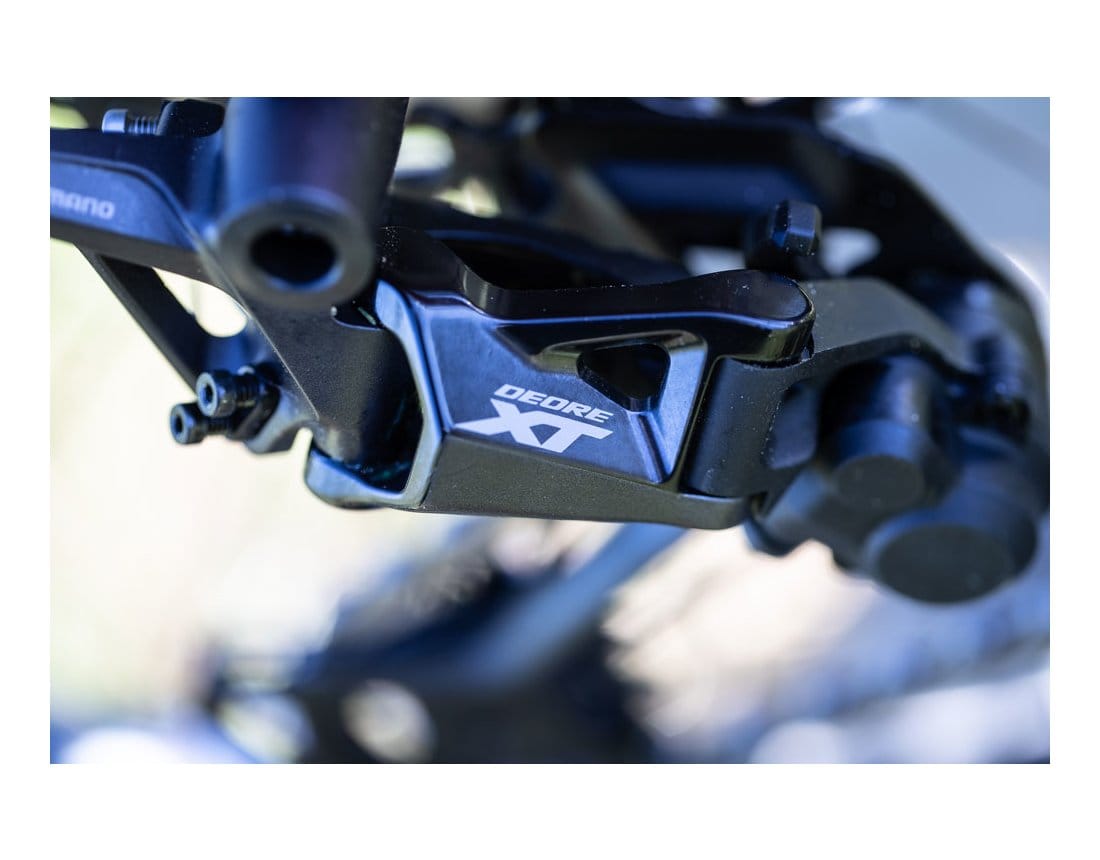

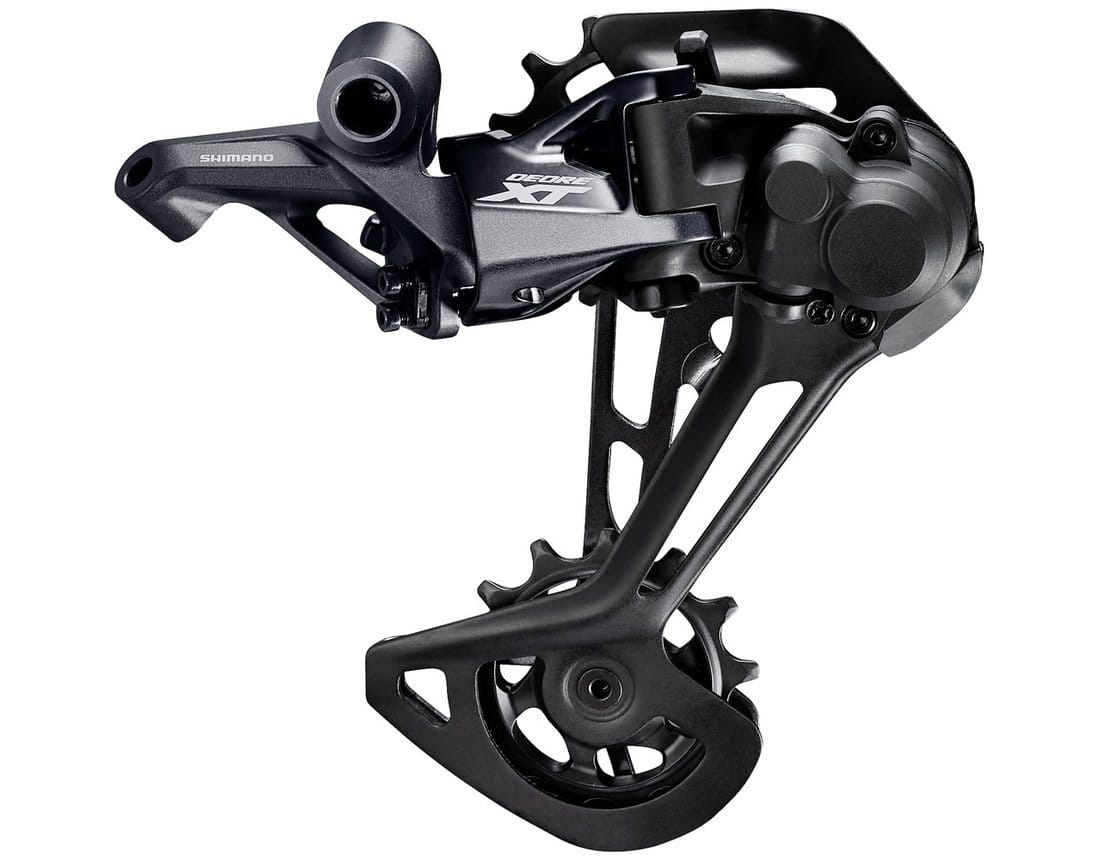

The Shimano XT RD-M8100 12-speed rear derailleur features an elegant yet aggressive angled design and an attractive anodised aluminium surface.
The derailleurs feature bigger 13-tooth pulleys and include Shimano’s proven Shadow RD+ low profile technology.
Features
-
Shadow RD+ For optimal chain retention
-
RD-M9100-GS
- 45T max cog size
- Works with 12-speed 10-45-teeth cassette
- Better ground clearance (28mm shorter cage)
-
RD-M8100-SGS
- 51T max cog size
- Works with 12-speed 10-51 teeth cassette
-

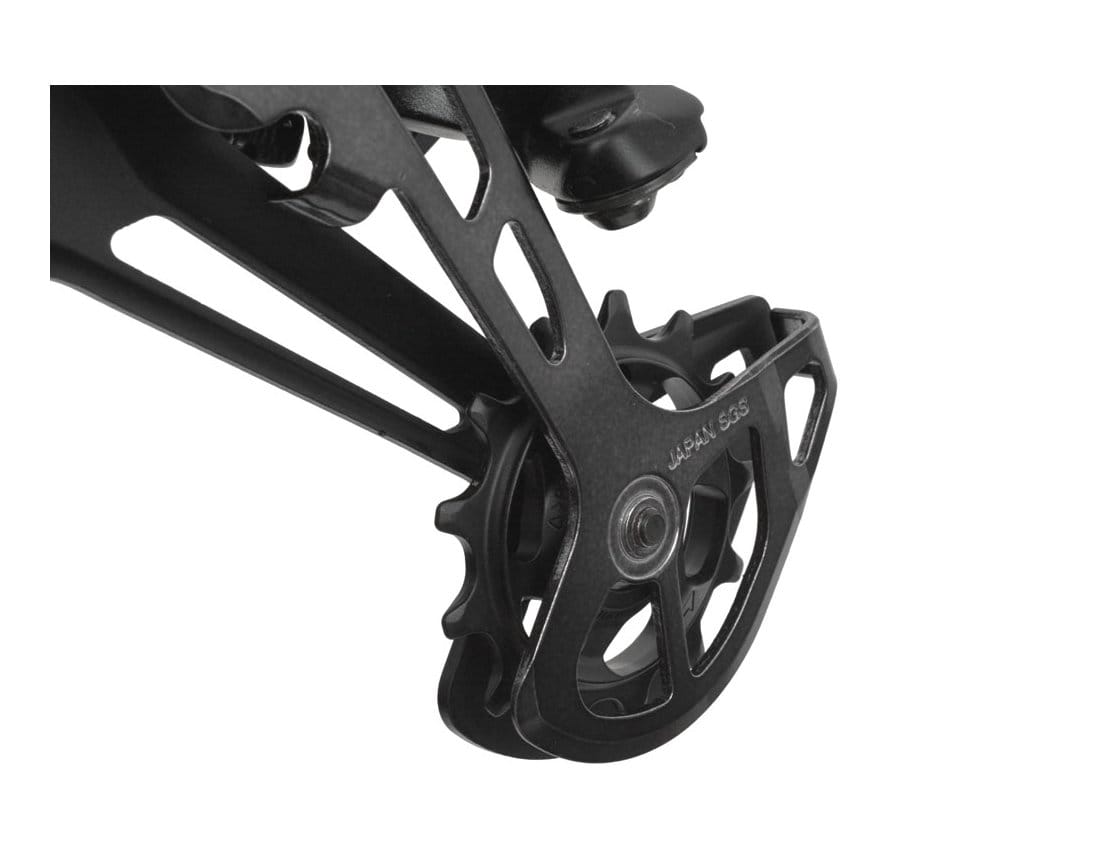

Pulley size with 13T increased for reduced friction
Specification
-
Use: MTB
-
Group: XT M8100
-
Model: RD-M8100
-
Mount: Direct attachment (Conventional)
-
Technology: Shadow RD+
-
Gradations:
- GS-Type 1x12-speed (10-45 cassette)
- SGS-Type 1x12-speed (10-51 cassette)
-
Compatible chain: CN-M8100 12-speed
-
Max. teeth large sprocket: 45T (GS) / 51T (SGS)
-
Min. teeth large sprocket: 45T (GS) / 51T (SGS)
-
Max. teeth small sprocket: 10T
-
Min. teeth small sprocket: 10T
-
Max. Front Difference: 0T
-
Total Capacity: 34T (GS) / 41T (SGS)
Pulley cage
- Type-GS medium
- Type-SGS long
Material
- Aluminium
- GFRP
- Stainless steel
- Steel
Weight
- Type-GS 286g
- Type-SGS 284g
Contents
- 1 x Shimano XT 12-speed Rear Derailleur RD-M8100
