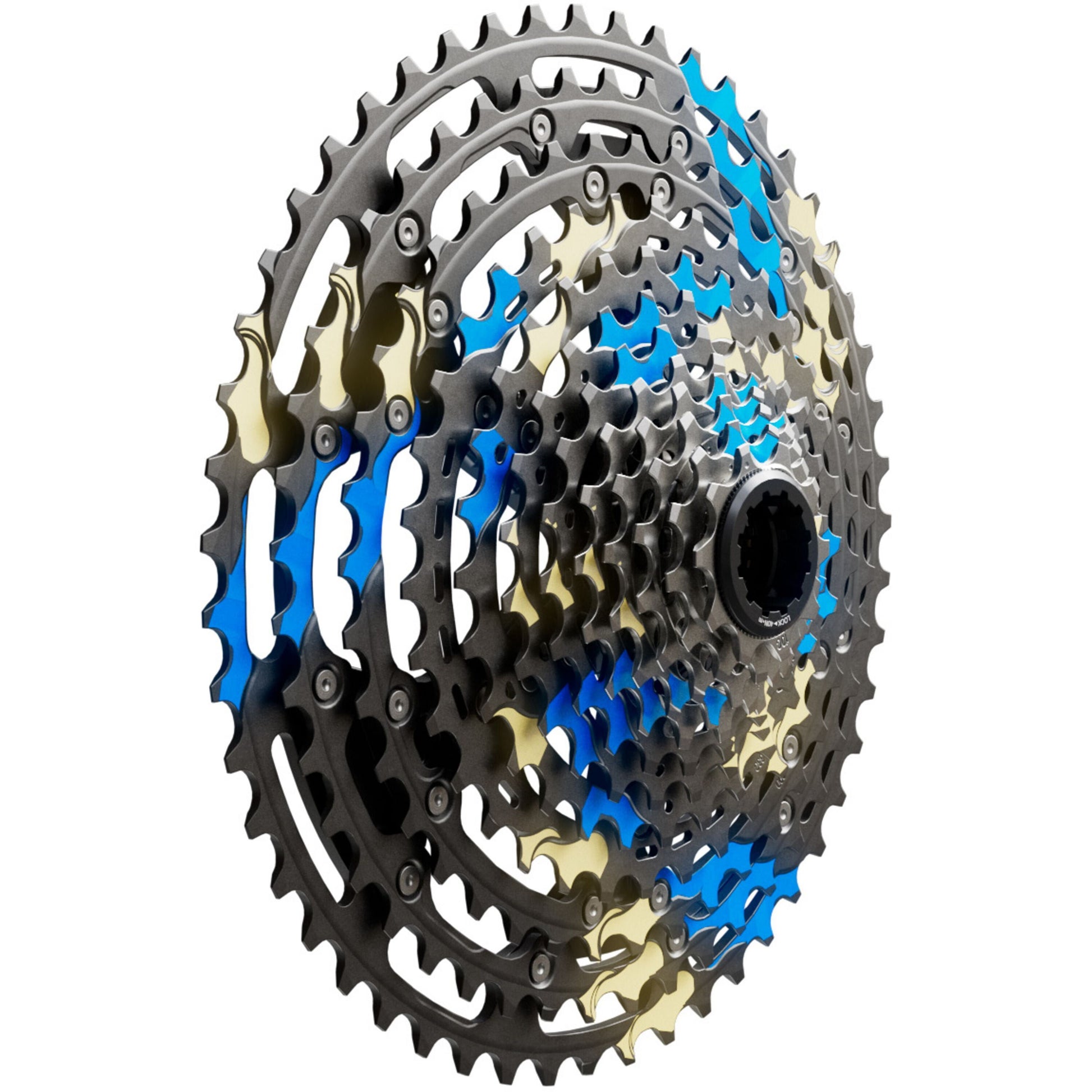

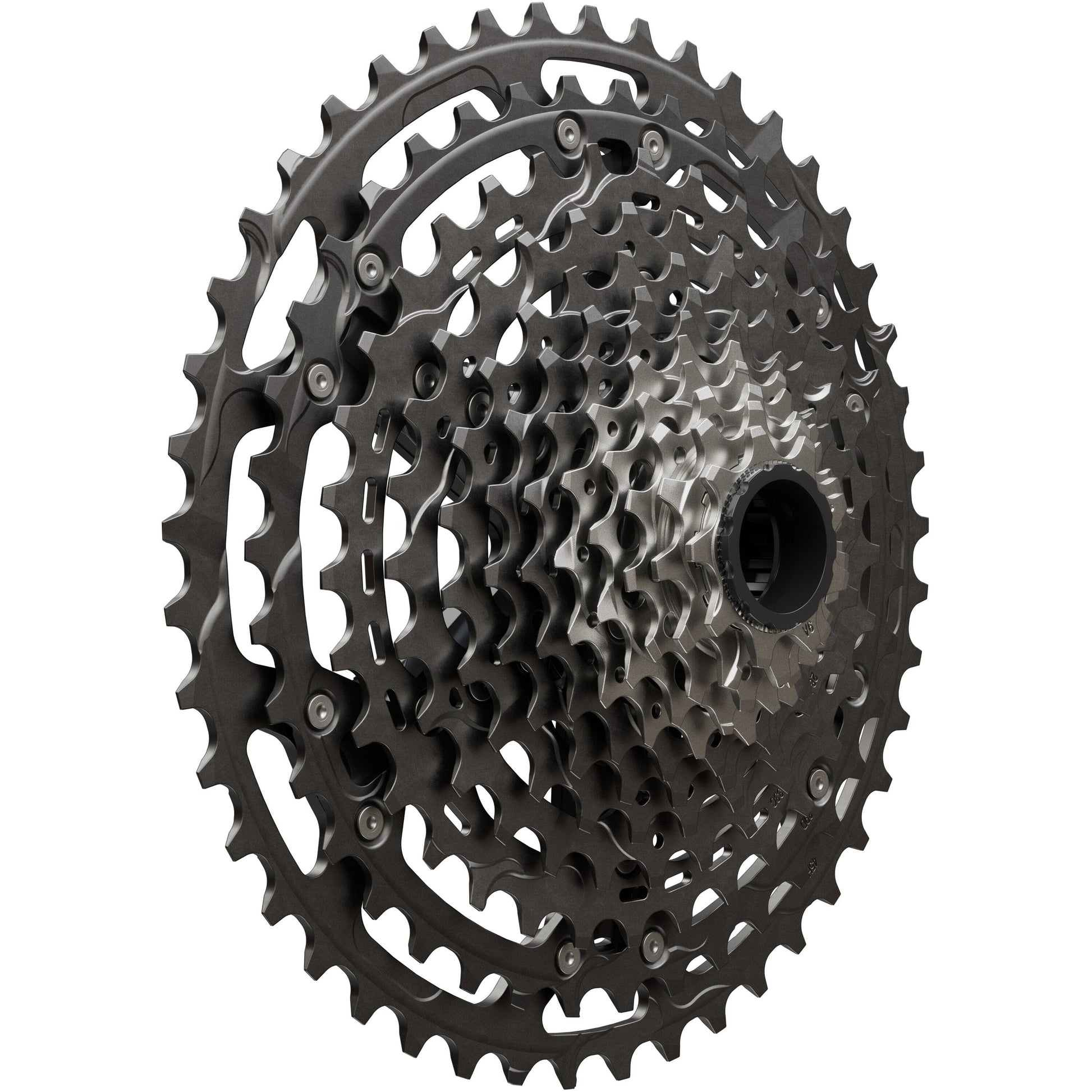

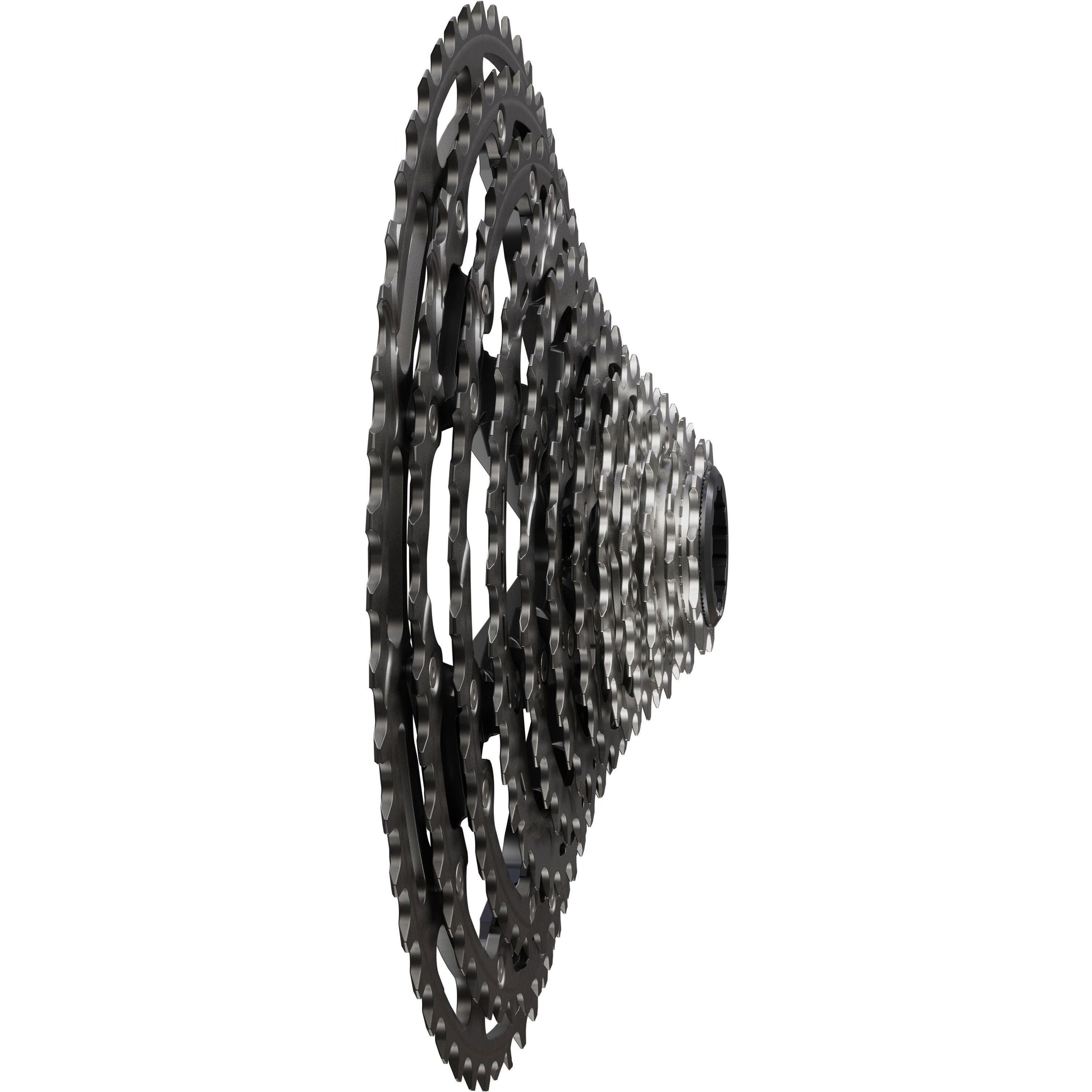

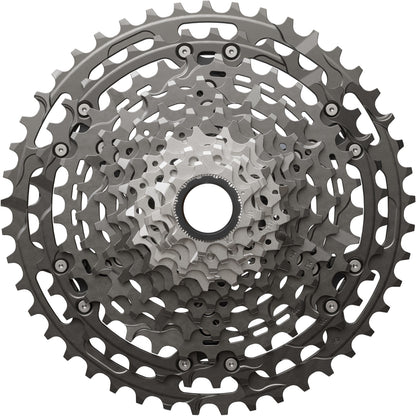

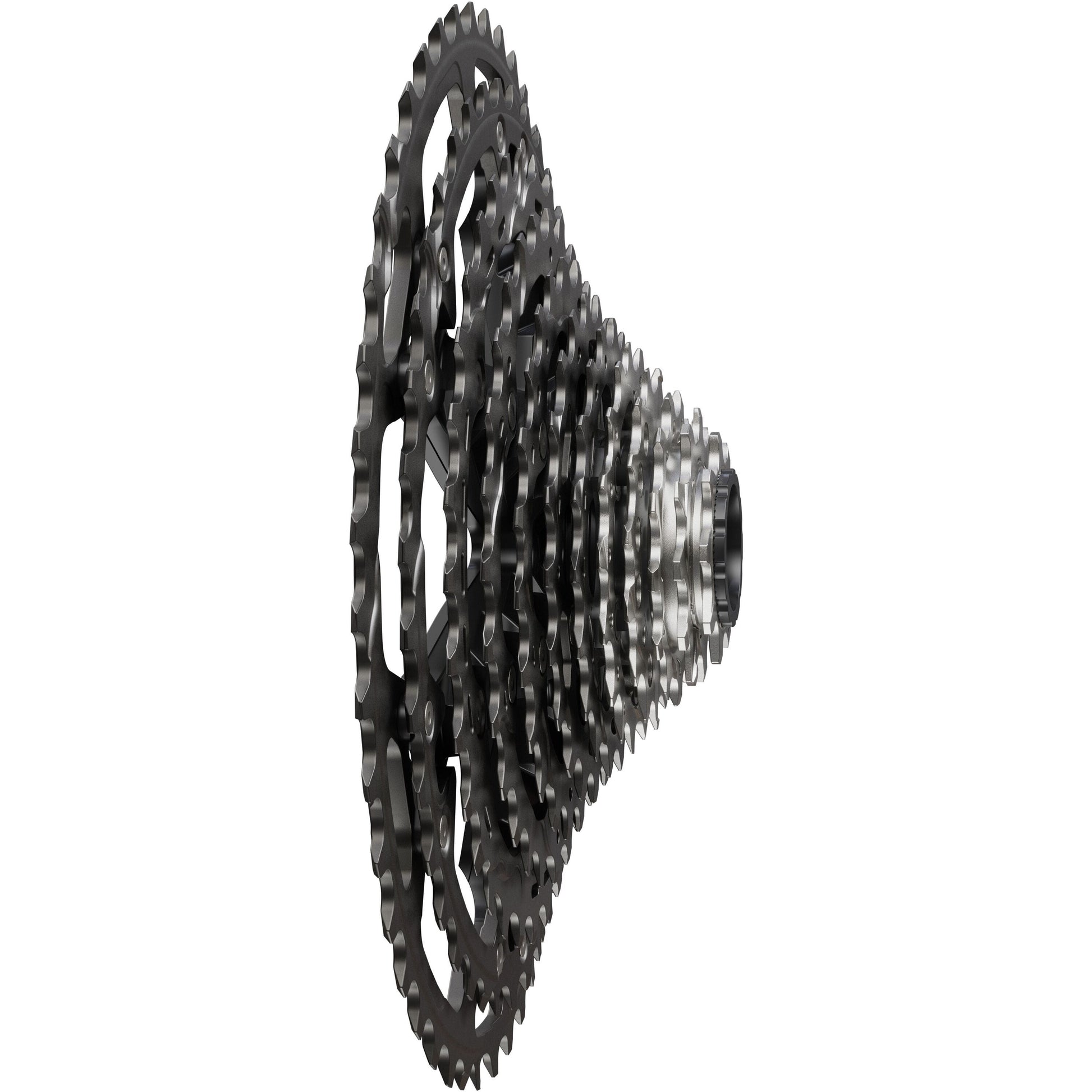

The Shimano CS-M9200 is the dedicated Micro-Spline cassette for XTR M9200 Di2 systems, engineered to maximise drivetrain performance.
Hyperglide+ technology enables seamless shifting under load, maintaining momentum through technical terrain. This cassette combines reduced weight with enhanced rigidity and longevity, delivering the durability expected from XTR-level components. Optimised for 12-speed compatibility, it's the perfect match for modern electronic shifting systems.
Features
-
Gearing options:
-

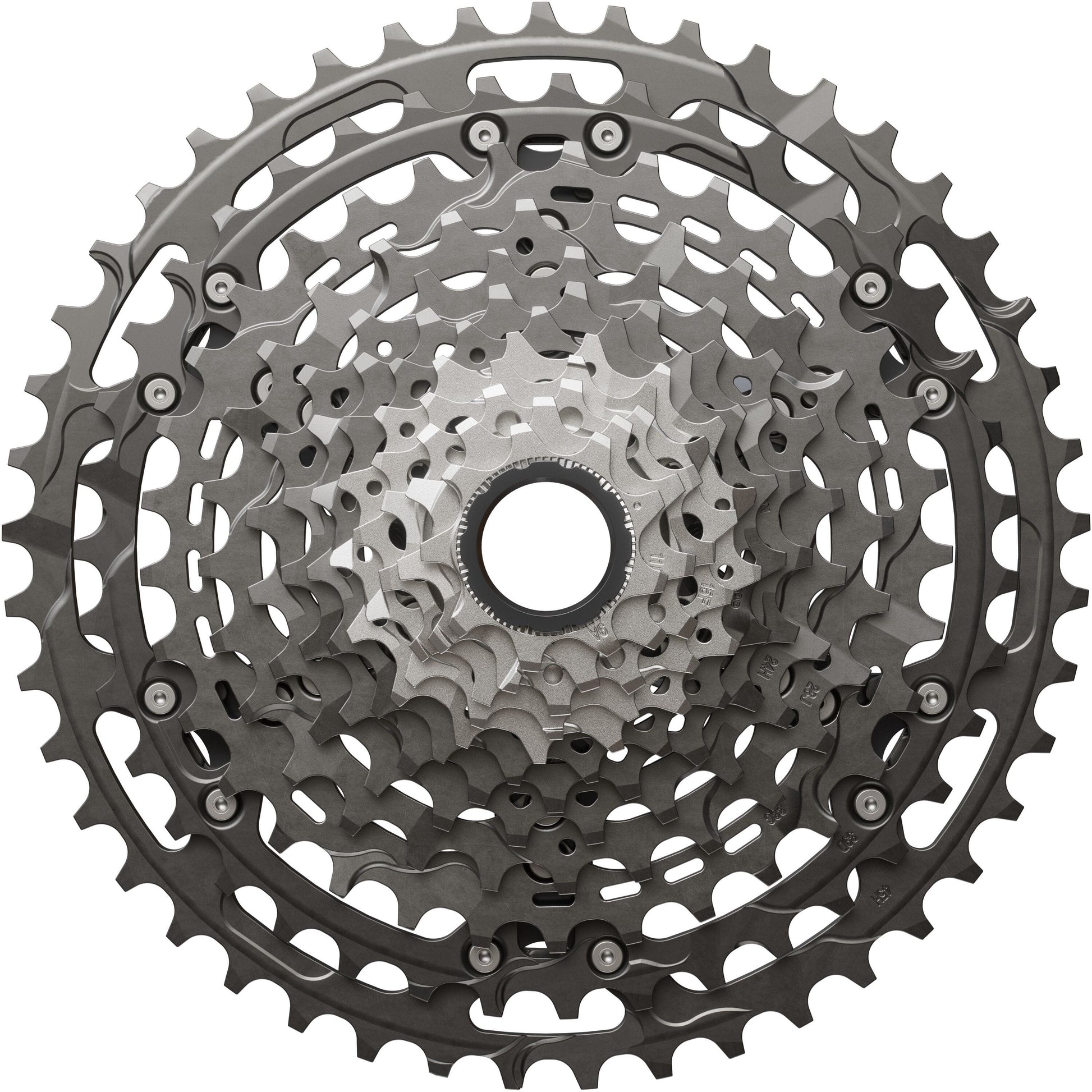

9-45 (12-speed rhythm step spec for Cross Country)
- Compact drivetrain: In combination with smaller chainrings and the XTR rear derailleur with medium cage, the 9-45 XTR cassette offers a lightweight option with high ground clearance and an uncompromising 500% gear range
-

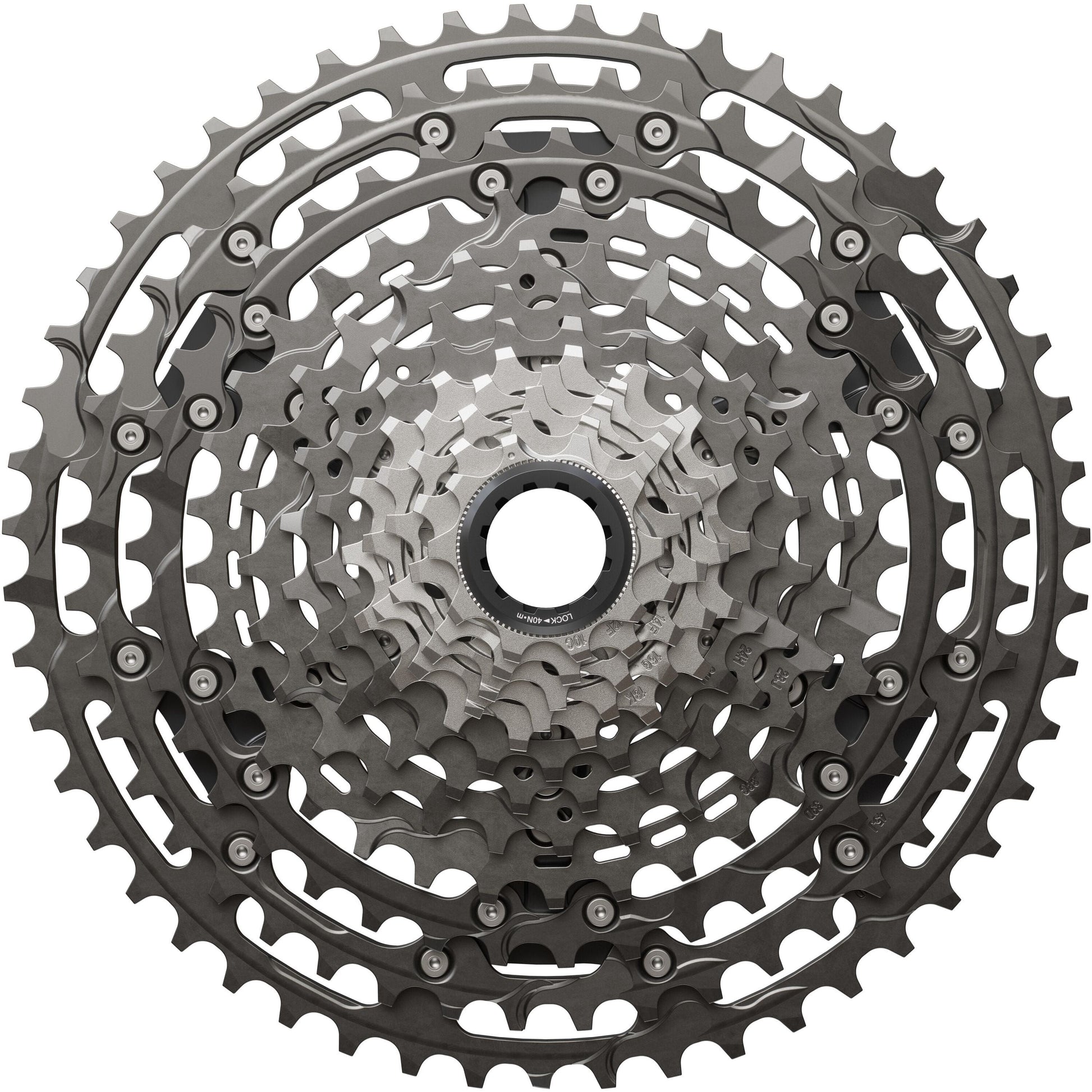

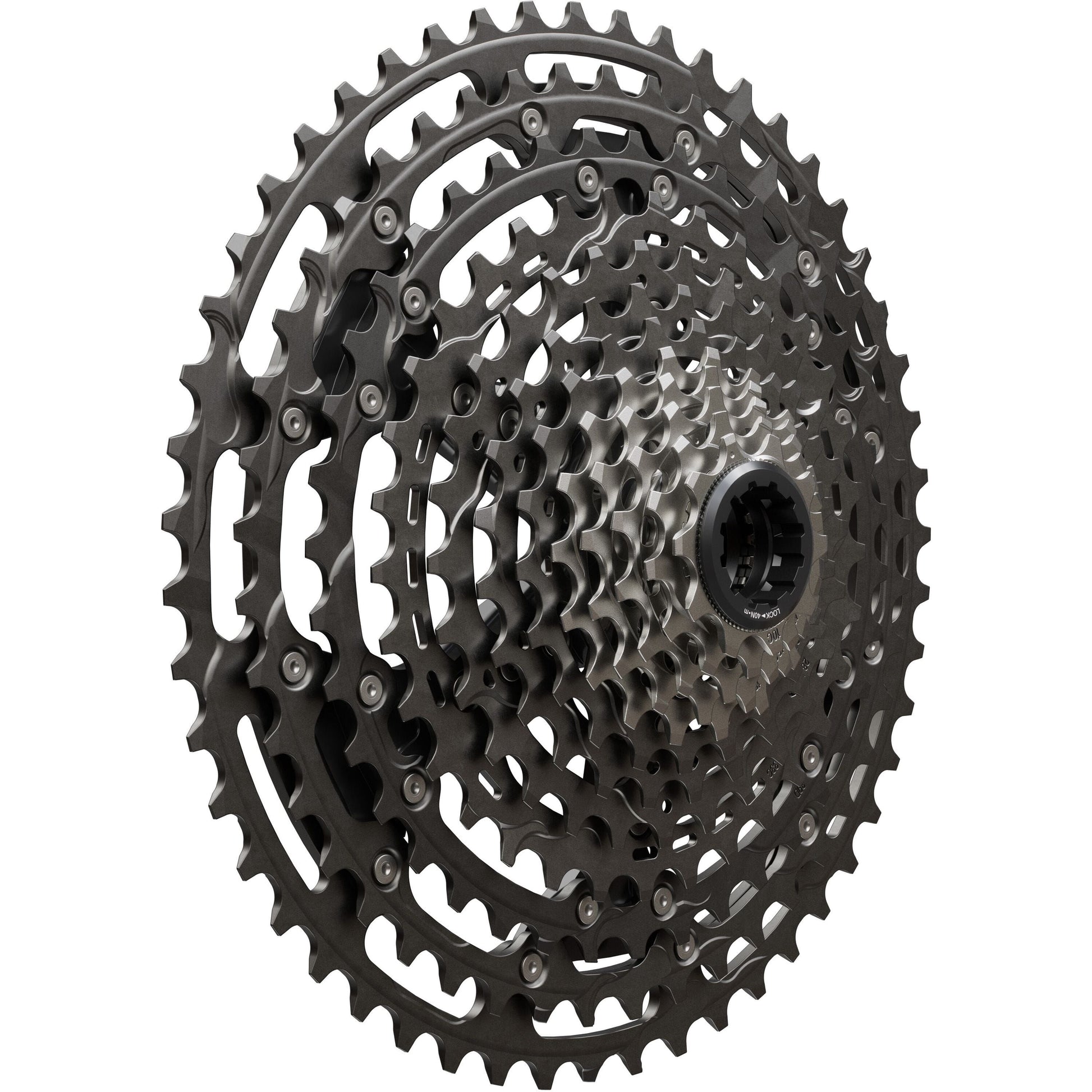

10-51 (12-speed wide range spec for Enduro)
- 510% gear range: The widest gear range and frame compatibility of all XTR cassette options
-
Hyperglide+: Faster shifting, improved speed, shifting efficiency and smoothness on any terrain
-
Freehub compatibility: CS-M9200 is compatible with the MICRO SPLINE freehub body standard. The 9-45 version is mounted with a special locking ring tool (TL-LR021)
-
Build materials: The strategic use of steel, titanium, and alloy ensures the CS-M9200 cassette is lightweight and robust enough to provide racer confidence
- Note: The TL-LR021 lock ring tool is required to fit the 9-45 cassette!
Specification
-
Use: MTB
-
Group: XTR M9200
-
Model: CS-M9200-12
-
Type: Hyperglide+
-
Freehub compatibility: Shimano Micro-Spline 12-speed MTB
-
Gear: 1x12-speed
-
Compatible chain: 12-speed HG
Size
-
9-45 (9-11-13-15-17-19-21-24-28-33-39-45 teeth)
-
10-51 (10-12-14-16-18-21-24-28-33-39-45-51 teeth)

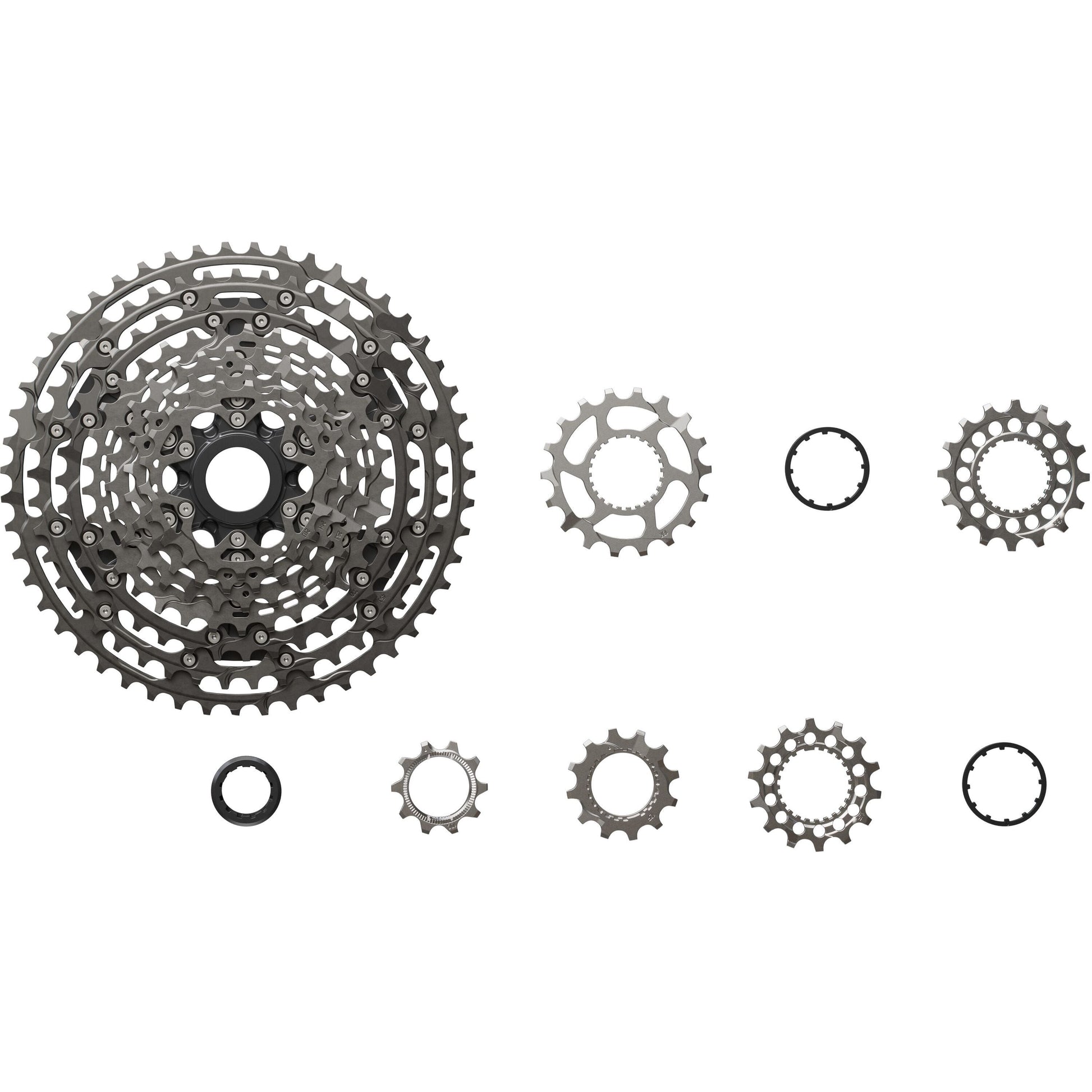

Material

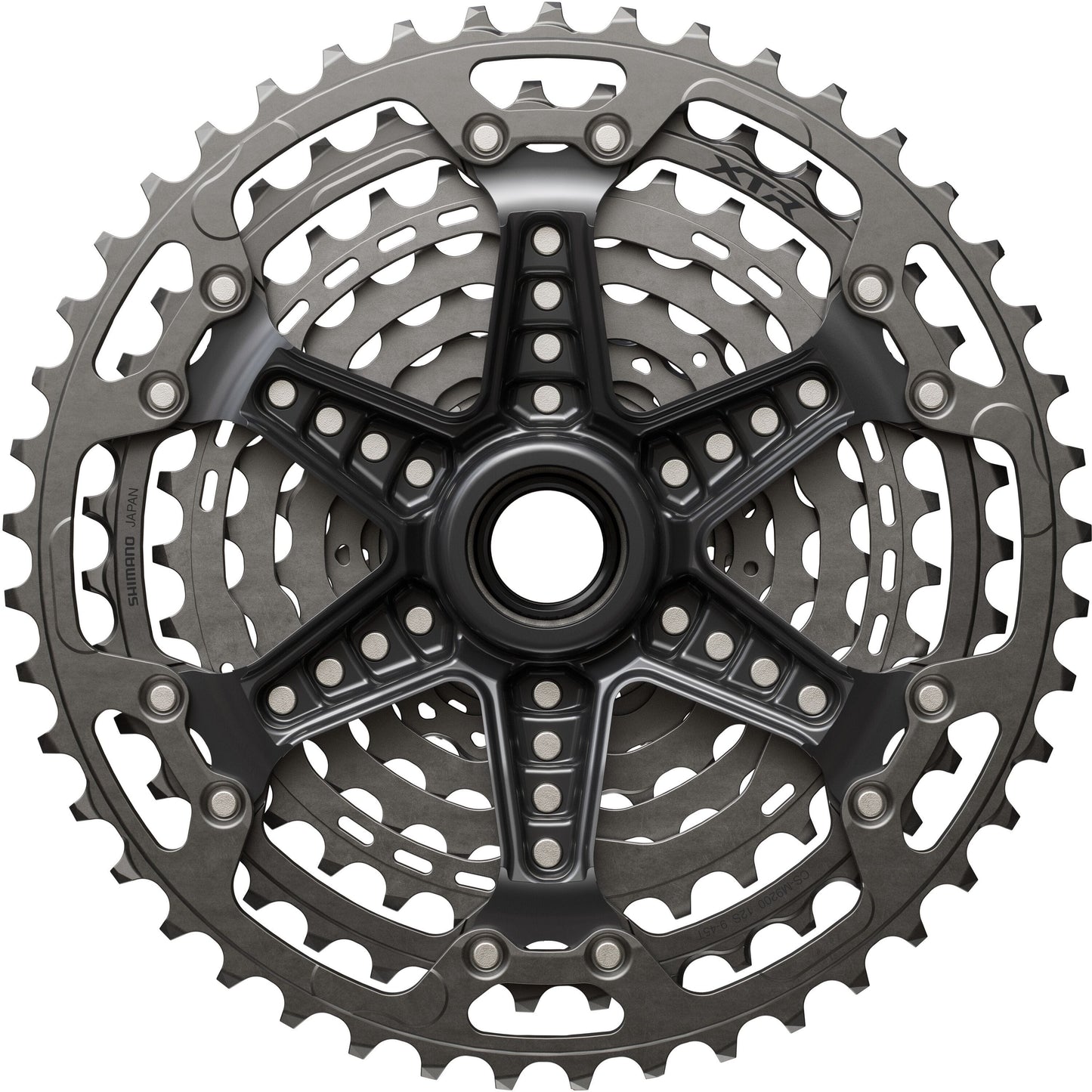

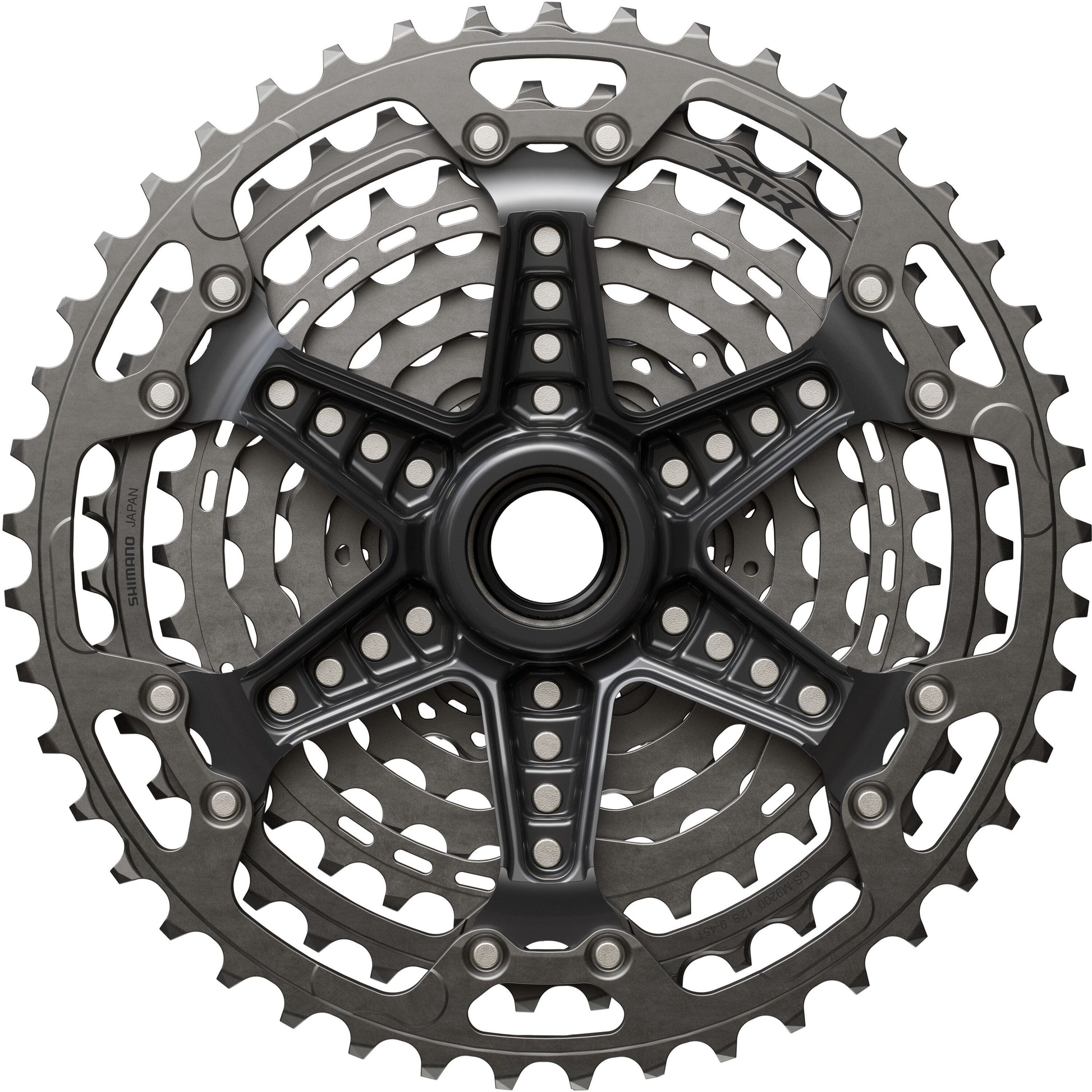

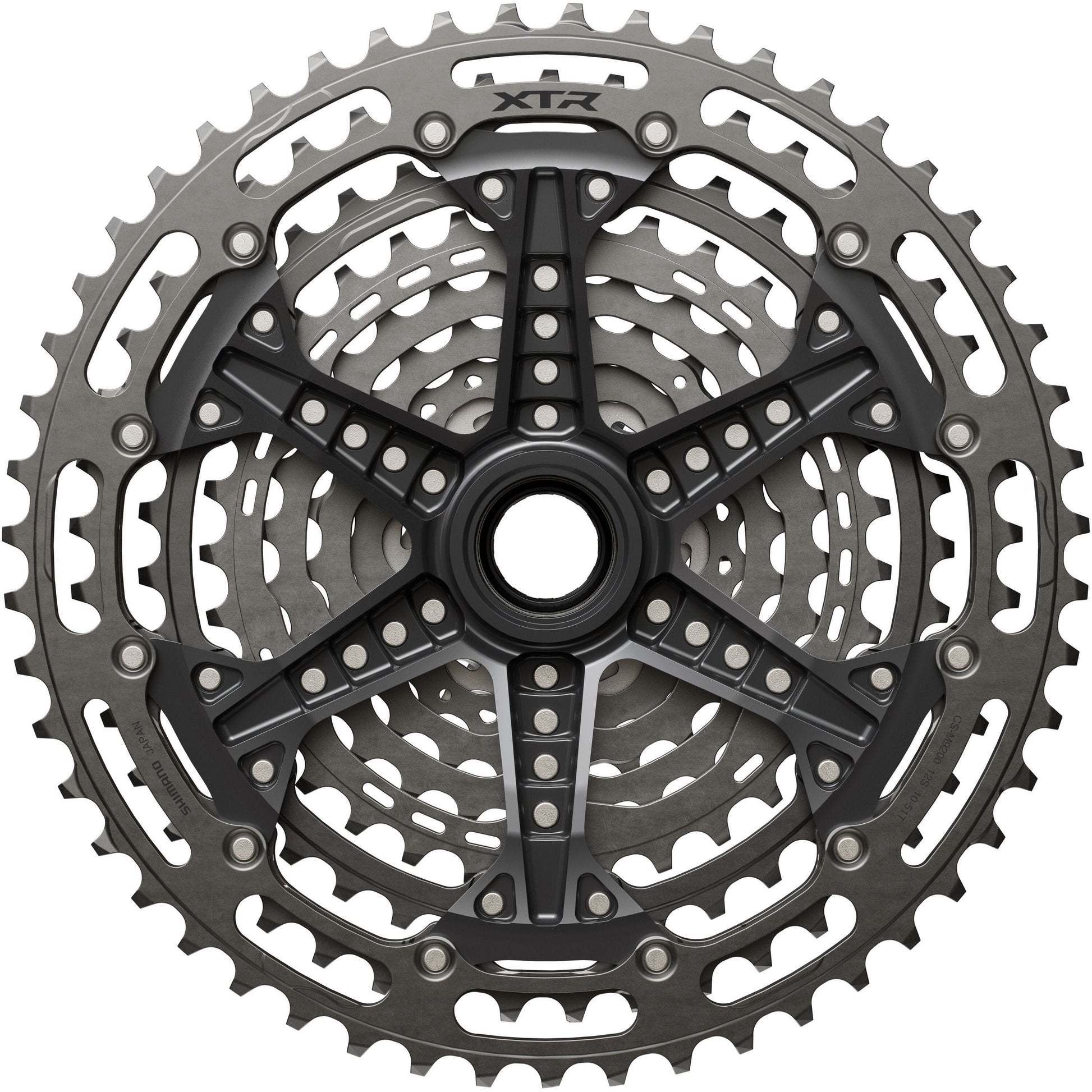

- Aluminium spider arm
- Titan (sprockets)
- Aluminium (sprockets)
- Steel (sprockets)
- Aluminium lock-ring
Contents
- 1 x Shimano XTR CS-M9200 12-Speed Cassette
