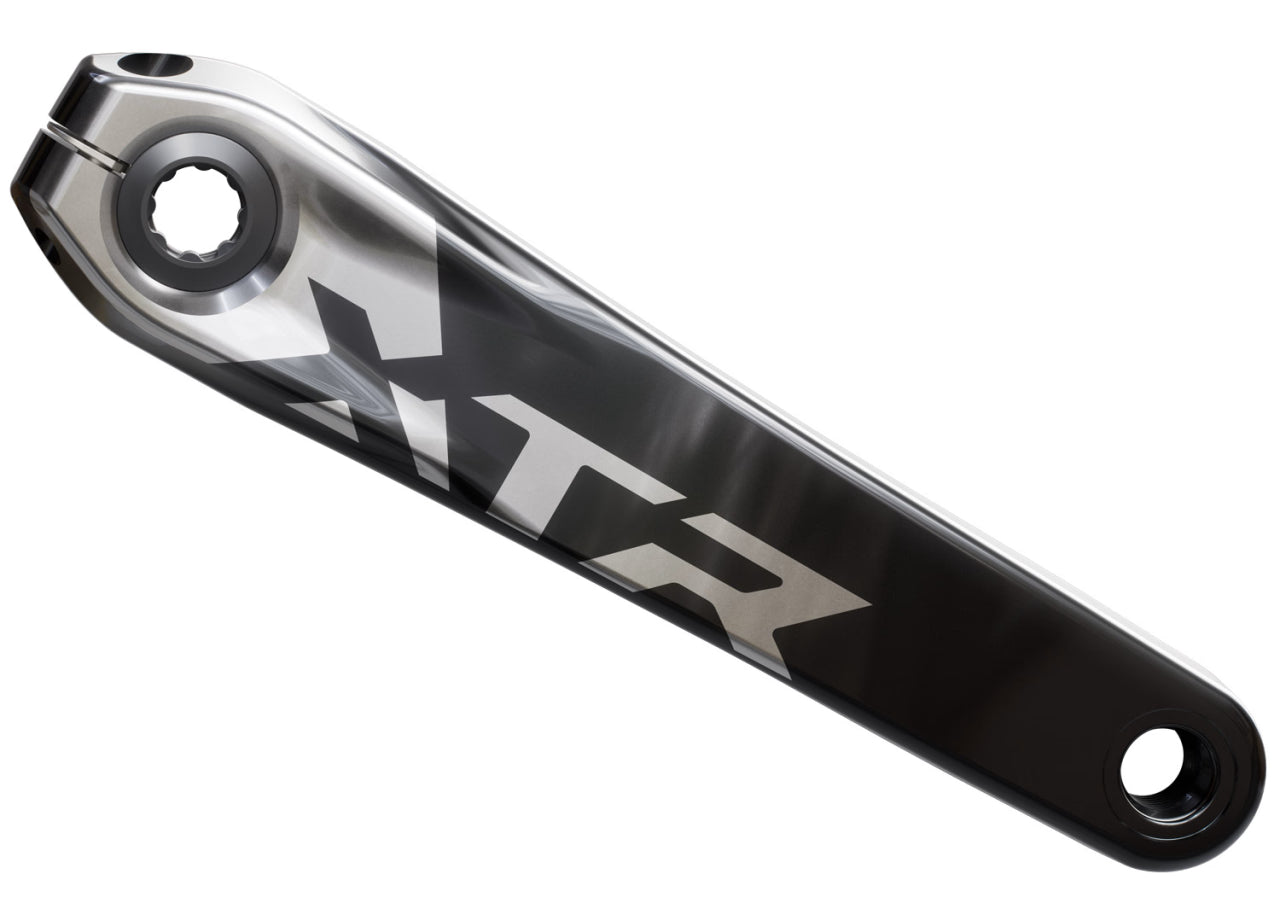

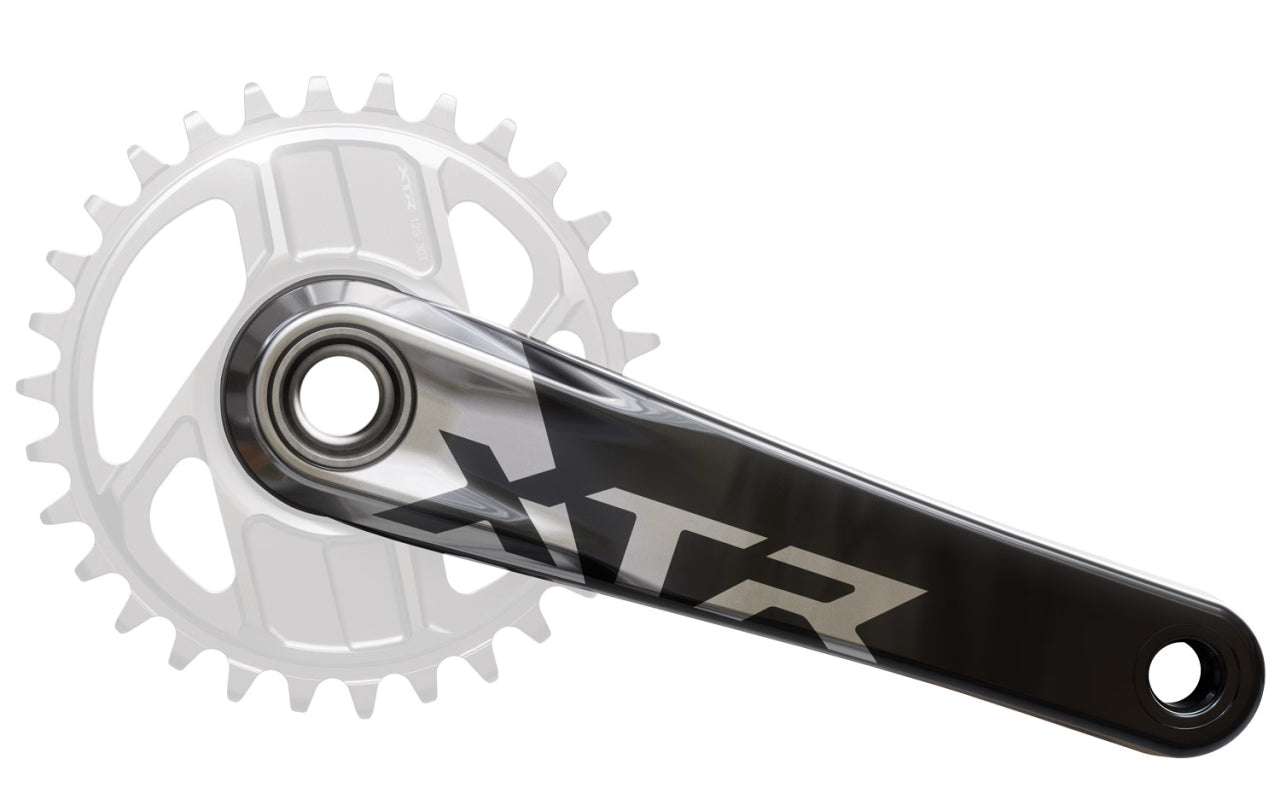

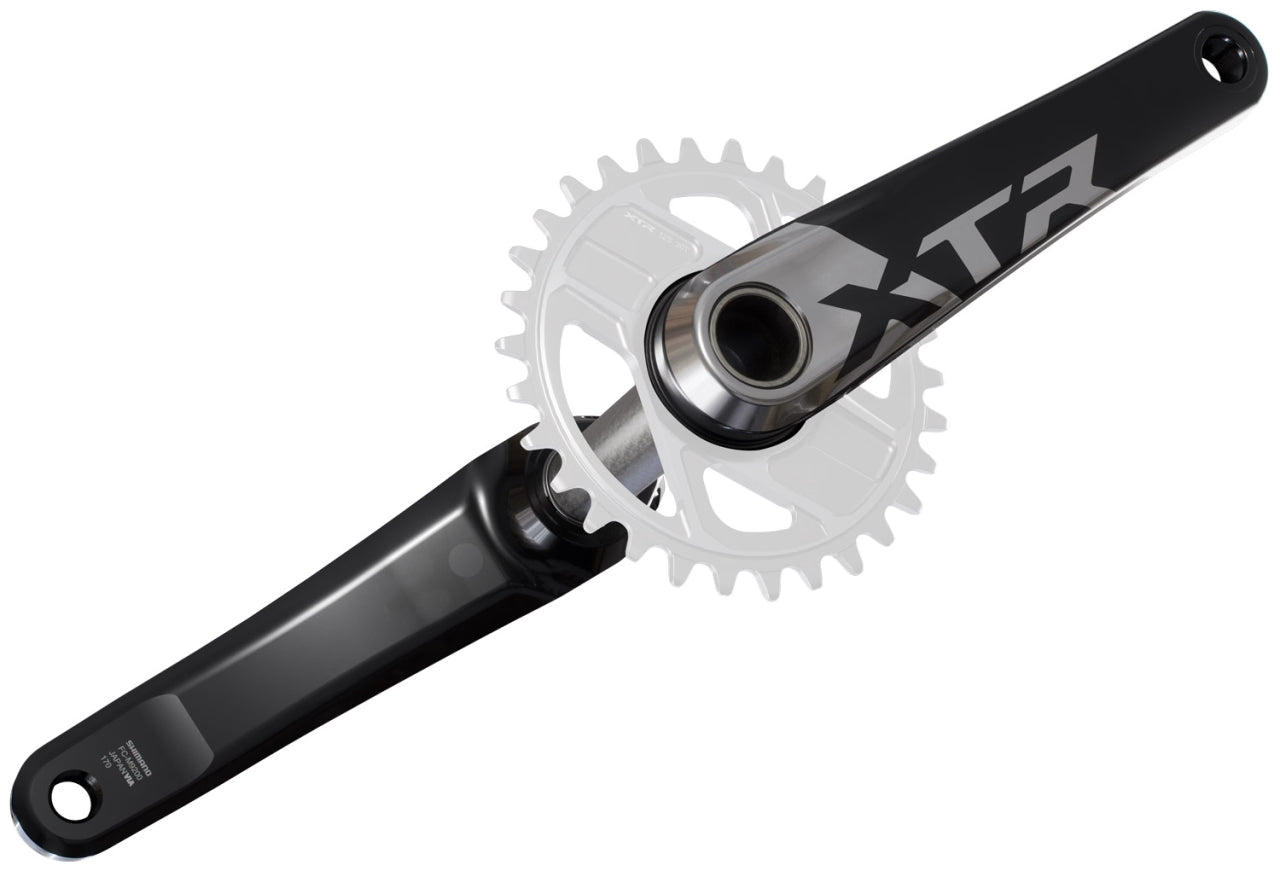

The Shimano XTR FC-M9200 1 x 12-speed XC crankset delivers uncompromising performance for competitive cross-country racing.
Built on Shimano's legendary HOLLOWTECH II hollow forging technology, this crankset combines lightweight construction with exceptional rigidity. The 168 mm Q-factor and 55 mm chainline are precision-engineered for optimal pedalling efficiency and drivetrain compatibility with modern 12-speed systems. Purpose-built for riders who demand the absolute best in weight savings and power transfer, the FC-M9200 represents the pinnacle of XC racing crankset design.
Features
-
Lightweight: The crankarm and steel axle strike a balance between reliable power transfer and light weight for top-level XC performance
-
Machined Chainring: The SM-CRM96 is Shimano’s lightest ever machined chainring (is not included!)
-
HOLLOWTECH II: Shimano’s forging provides optimal weight, stiffness and rigidity for XC riding and racing
-
Q Factor/Chainline: An XC-optimized Q Factor brings race-feel familiarity, while the 55mm chain line offers maximum frame compatibility
-
Compatibility: M9200 cranks come standard with a 24mm spindle and are compatible with Shimano’s threaded and Press Fit bottom brackets
-
FC-M9200 Q-Factor 168mm
-
Chain line 55mm
-
O.L.D 131mm / 141mm / 142mm / 148mm
-
Compatibility 1 x 12-speed with CS-M9200 cassettes 9-45 and 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Specification
-
Use: MTB Cross-Country
-
Group: XTR M9200
-
Model: FC-M9200
-
Gradation: Chainring is not included!
-
Q-Factor: 168mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible Chain: 12-speed HG
-
O.L.D: 131mm / 141mm / 142mm / 148mm
-
Chain line: 55mm
Size
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
Weight
- From approx. 545g with chainring
Contents
- 1 x Shimano XTR FC-M9200 1x12-Speed Crank without Chainring
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
