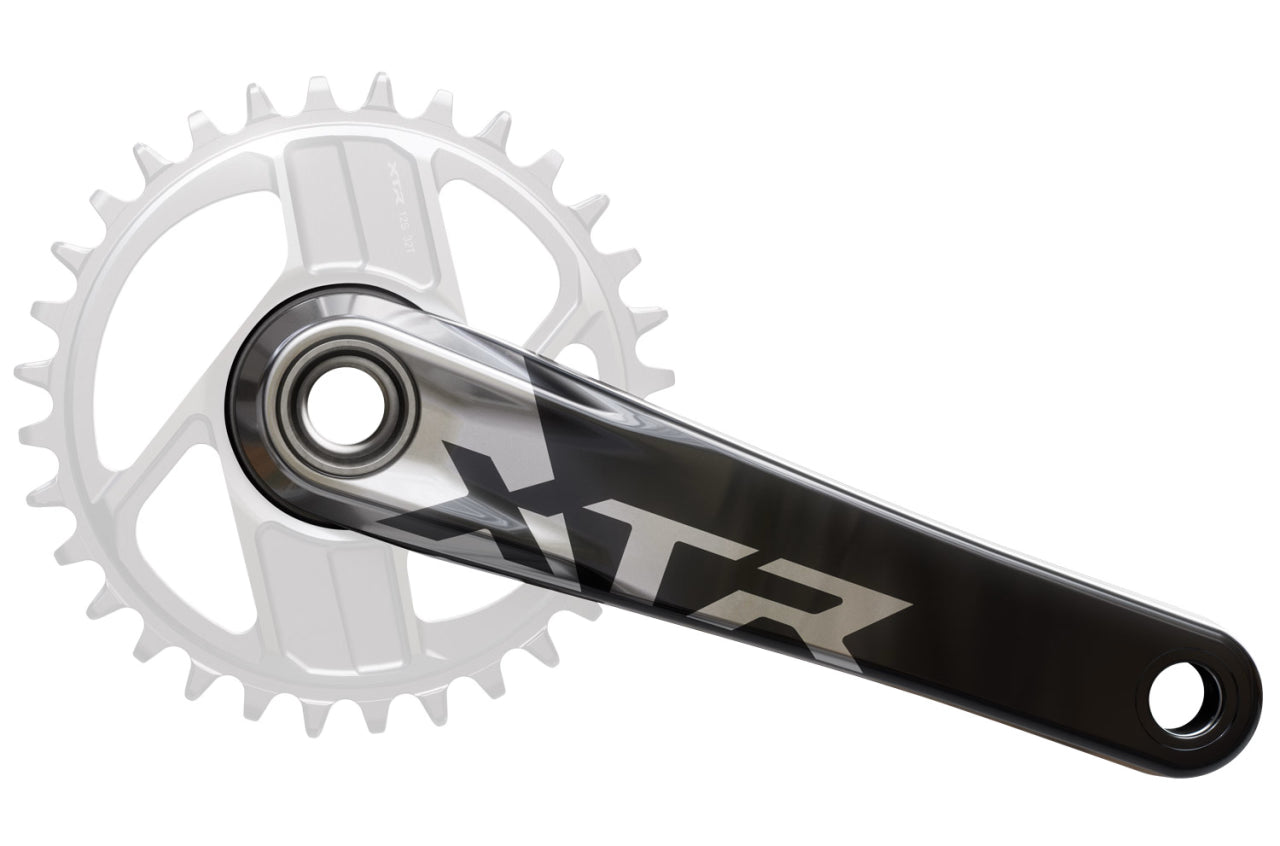

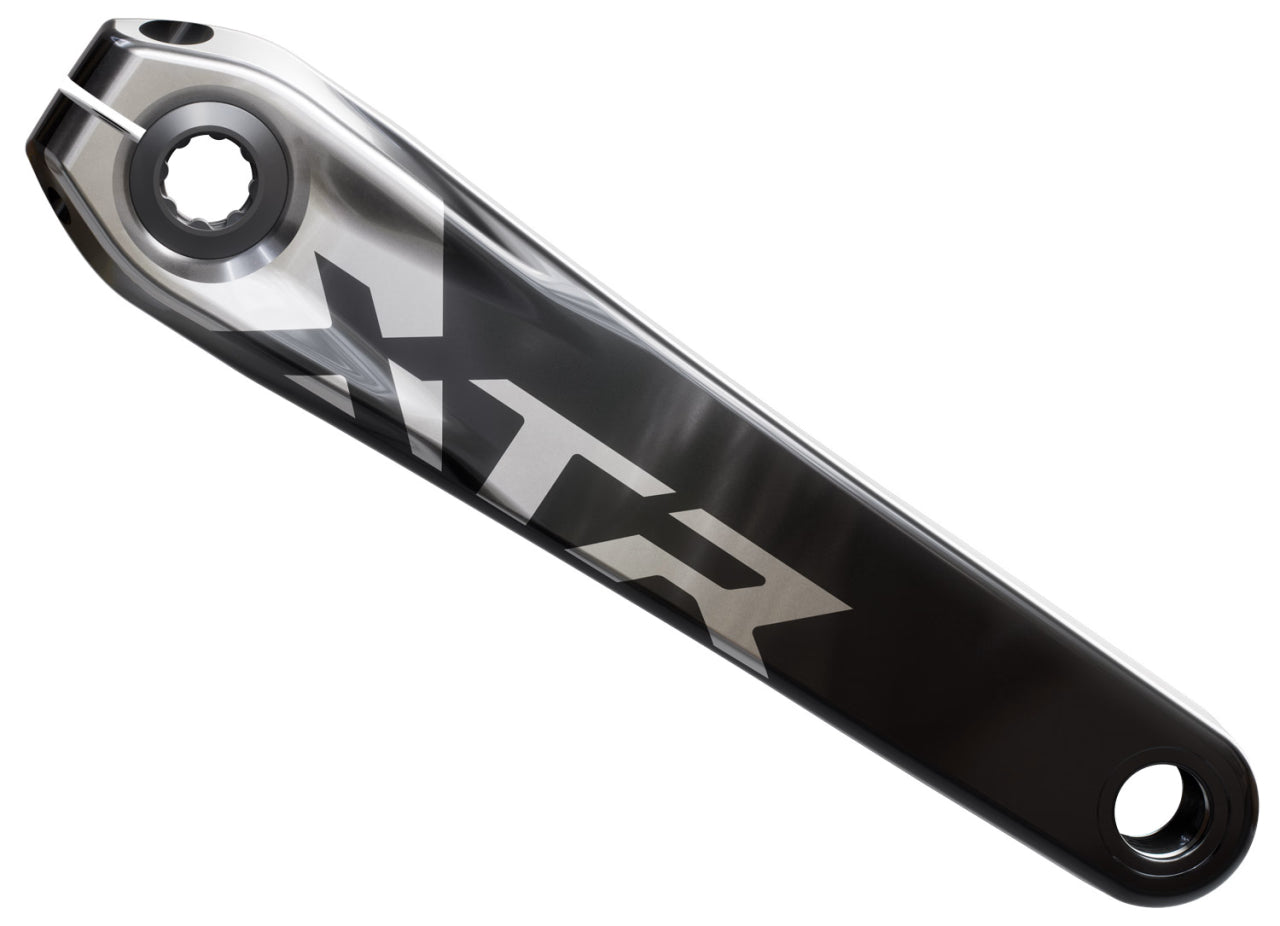

The Shimano XTR FC-M9220 1 x 12-speed Enduro crankset delivers unmatched stability for the most demanding terrain.
Built with HOLLOWTECH II forging technology and a reinforced steel axle, this crankset withstands brutal impacts whilst maintaining optimal stiffness-to-weight ratio. The 176 mm Q-factor and 55 mm chainline were engineered specifically for Enduro World Series conditions, ensuring reliable performance on technical descents and challenging climbs. Purpose-built for riders who demand durability without compromise.
Features
-
Enduro Specific Spindle: A thicker enduro-specific spindle raises the mark for durability and big- hit survivability
-
HOLLOWTECH II: Shimano’s forging provides optimal weight, stiffness and rigidity for Enduro riding and racing
-
Q Factor/Chain line: An enduro-optimized Q Factor brings race-feel familiarity, while a 55mm chain line offers maxed-out frame compatibility
-
Compatibility: M9220 cranks come standard with a 24mm spindle and are compatible with Shimano’s threaded and Press Fit bottom brackets
-
FC-M9220 Q-Factor 176mm
-
Chain line 55mm
-
O.L.D 131mm / 141mm / 142mm / 148mm
-
Compatibility 1 x 12-speed with CS-M9200 cassettes 9-45 and 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Specification
-
Use: MTB Enduro
-
Group: XTR M9200
-
Model: FC-M9220
-
Gradation: Chainring is not included!
-
Q-Factor: 176mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible Chain: 12-speed HG
-
O.L.D: 131mm / 141mm / 142mm / 148mm
-
Chain line: 55mm
Crank Arm Length
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
Weight
- From approx. 528g with chainring
Contents
- 1 x Shimano XTR FC-M9220 1x12-Speed Crank without Chainring
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
