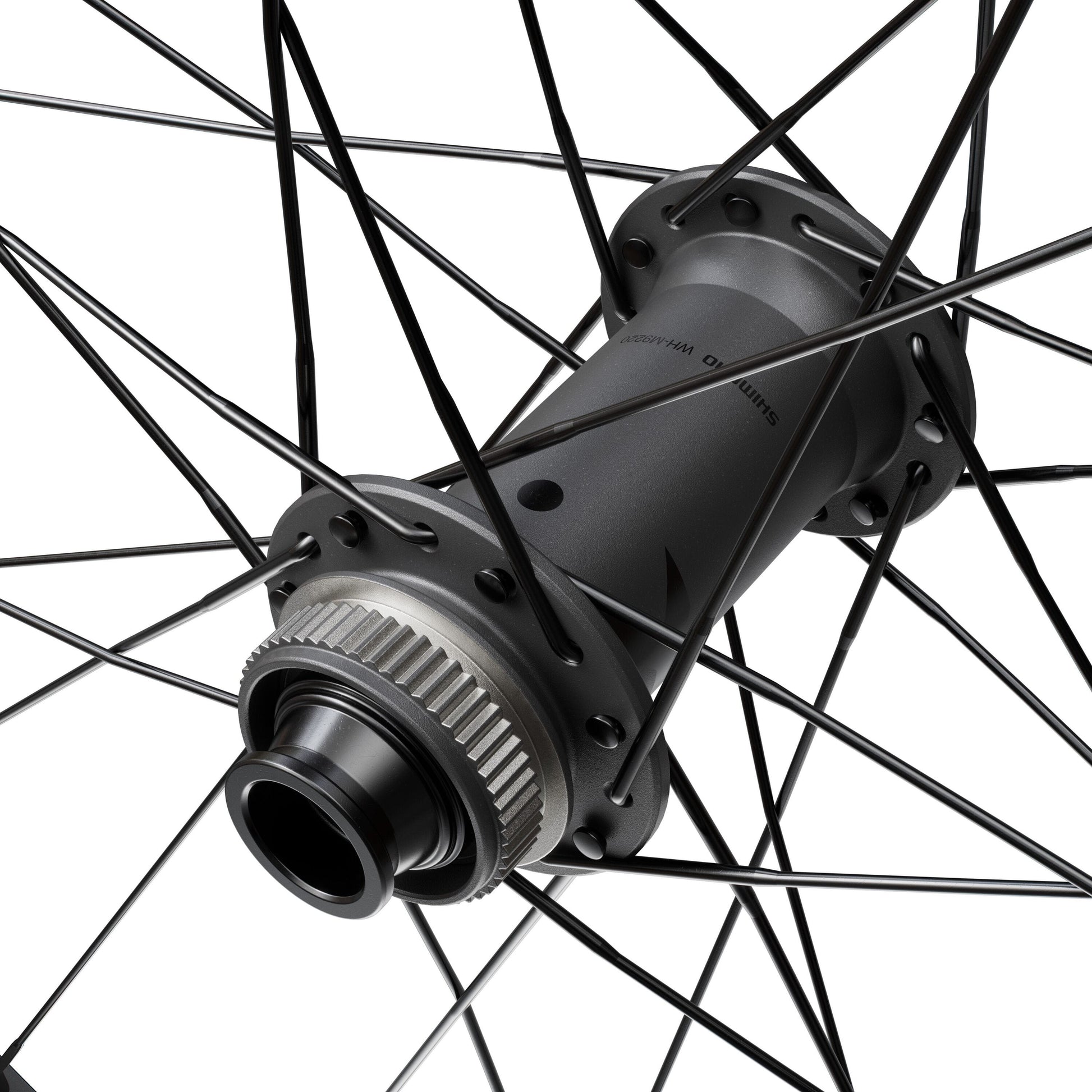

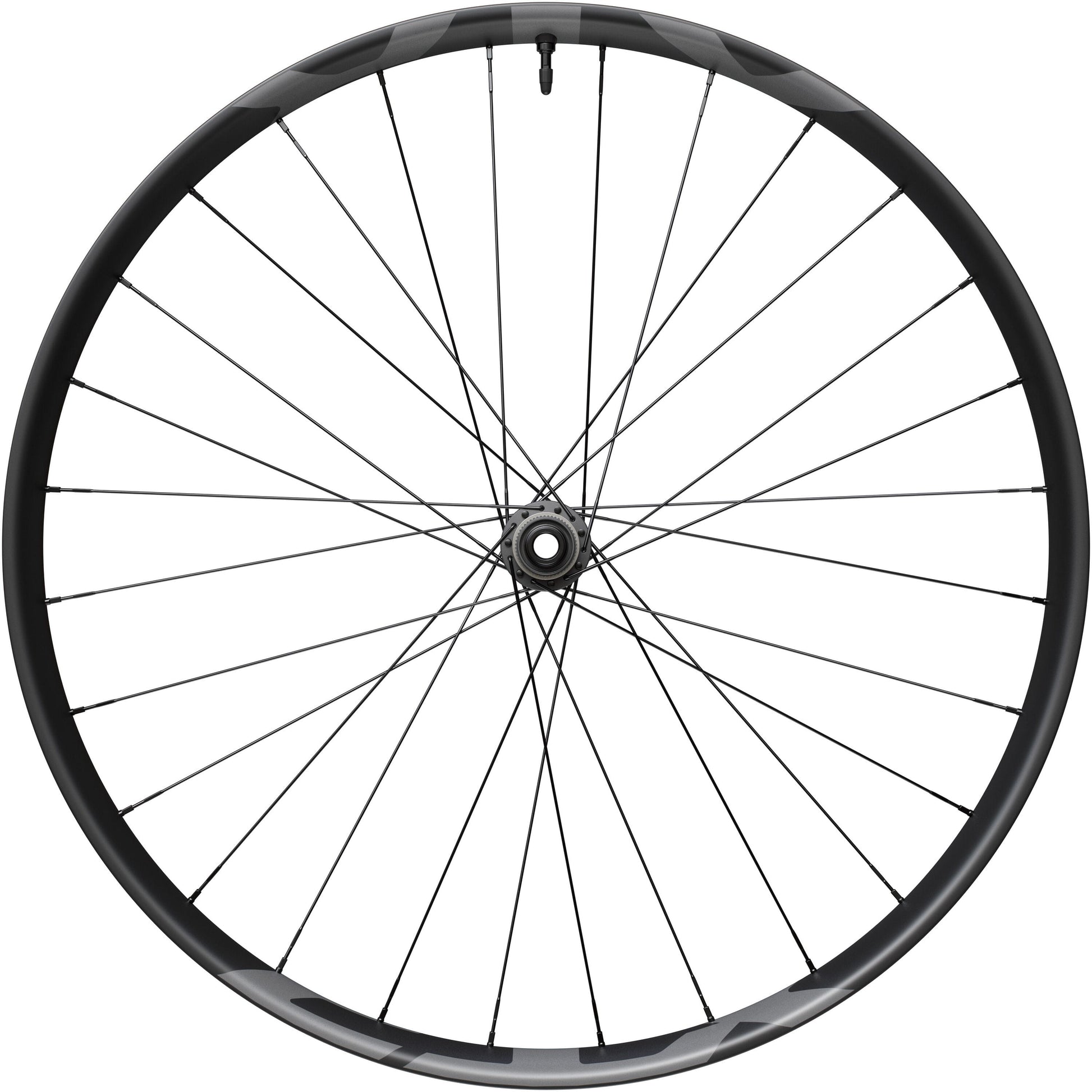

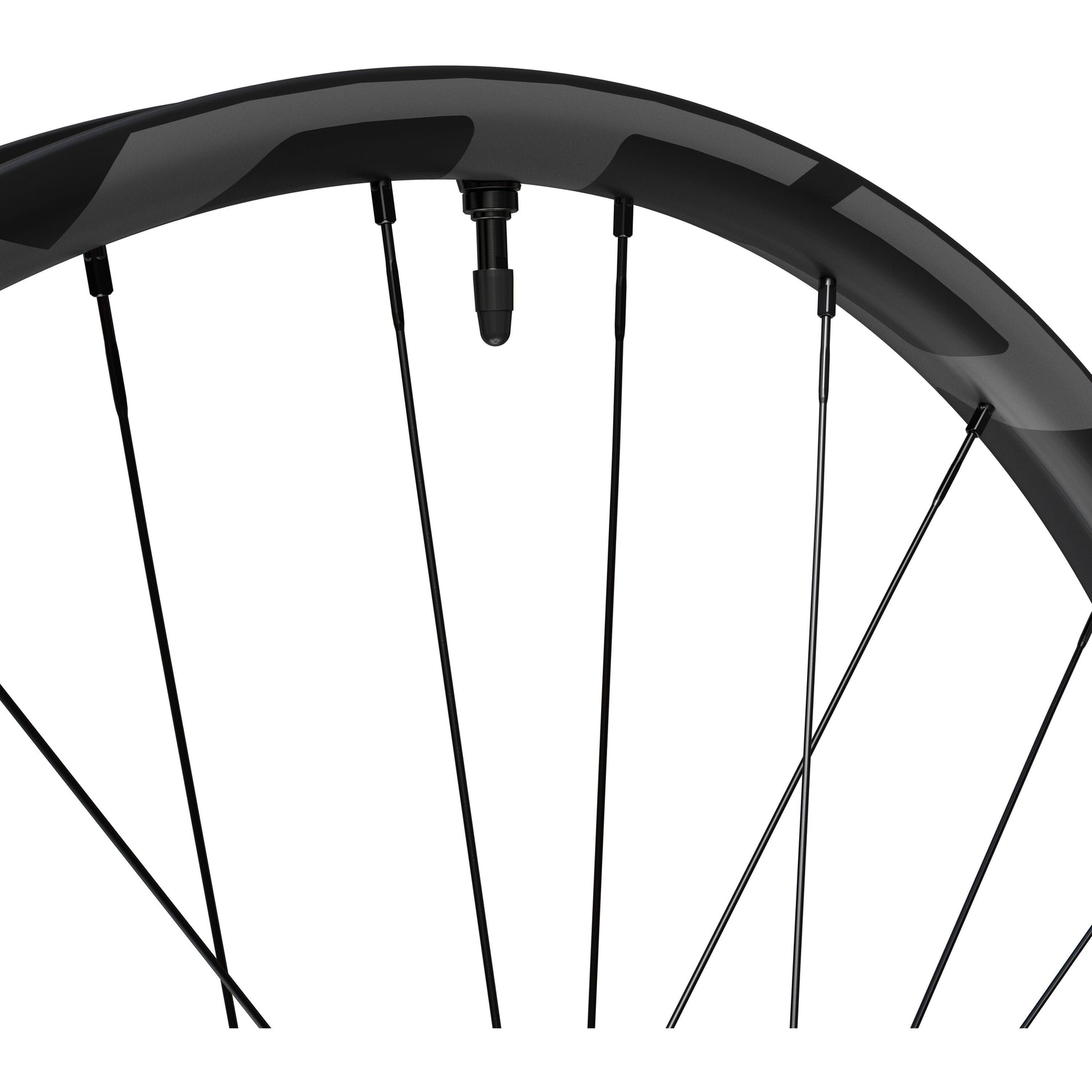

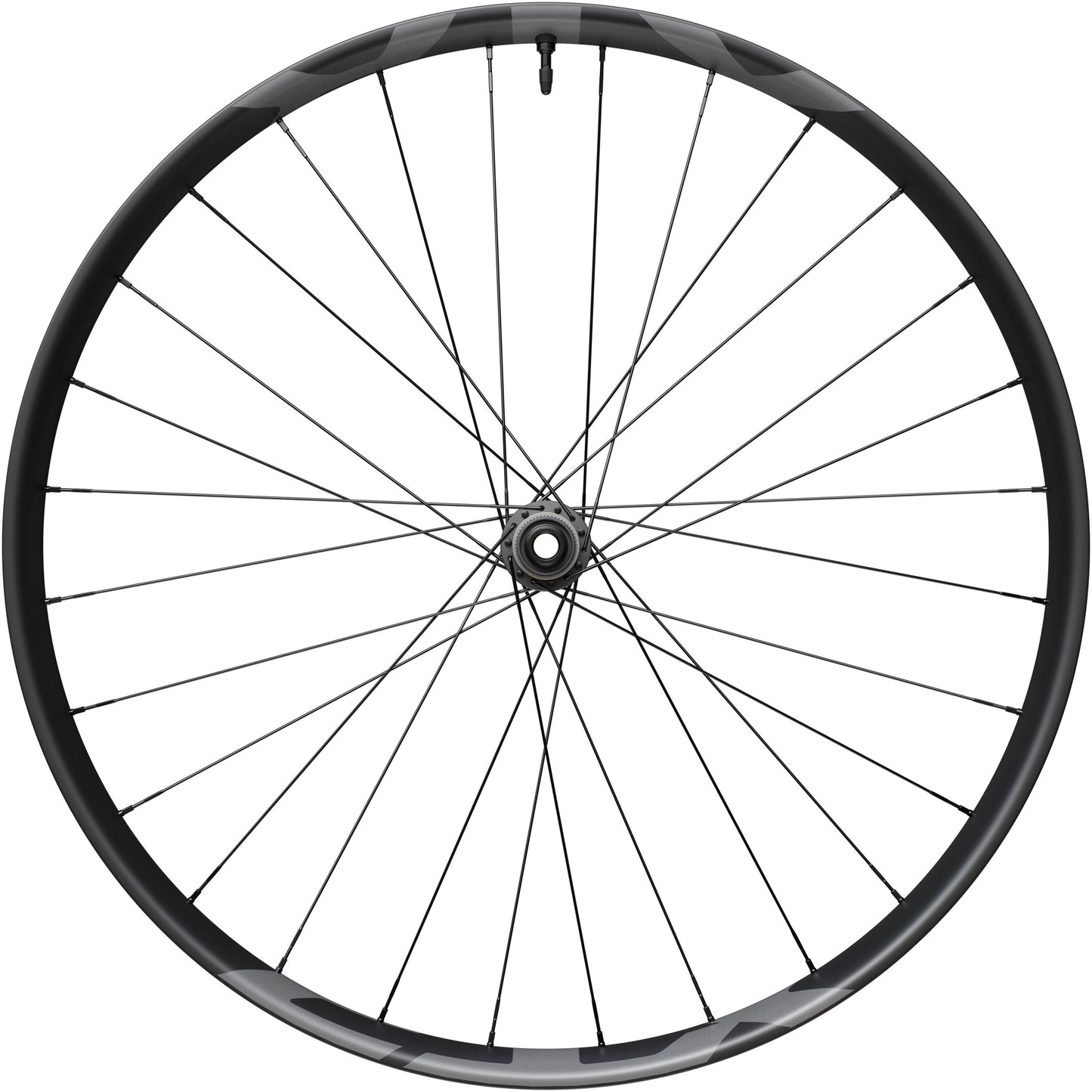

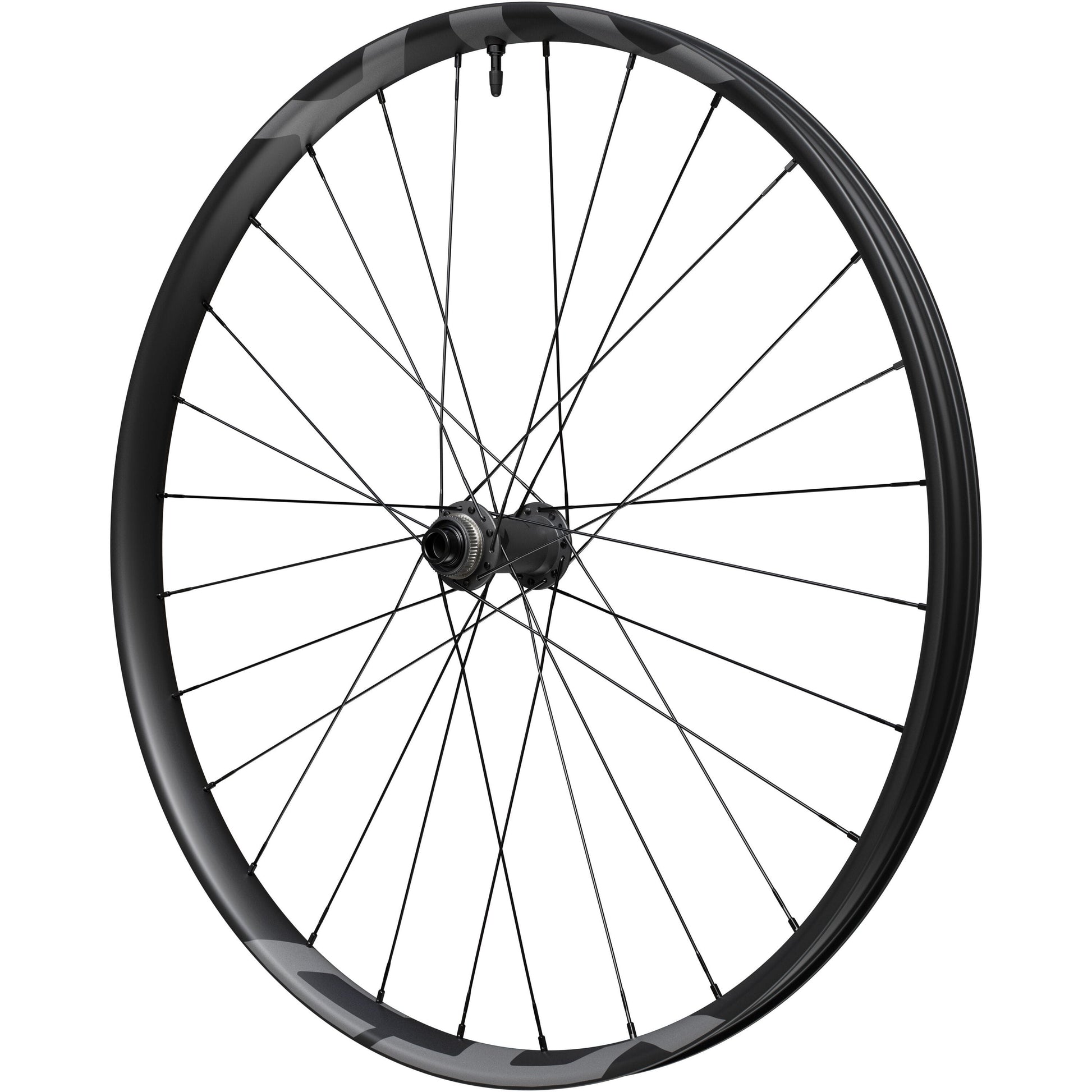

Built with Enduro World Series racing and serviceability in mind, the Shimano XTR M9220 29er Front Wheel represents Shimano's most robust full-carbon offering to date.
The hookless 30 mm carbon rim pairs with all-new XTR hubs and traditional 28H stainless steel J-Bend spokes to create a wheel engineered for durability and easy repair. Designed to handle the demands of aggressive trail riding whilst remaining straightforward to maintain when maintenance is needed. 15x110mm E-Thru axle with Centre Lock disc compatibility.
Features
-
Conventional Drilling/Boost Spacing: Available in conventional 29-inch, 110x15 front hub boost spacing and traditional 28H drilling option.
-
Cartridge Bearings: XTR hubs are now available with easily serviceable stainless steel cartridge bearings.
-
Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.
Specification
- Series XTR
- Brake type CENTER LOCK disc brake
- O.L.D. (mm) 110
- Wheel size 622 x 30TSS (29 inch)
- Tubeless ready
- Recommended Tyre Size 2.30" - 2.60"
- Height (mm) 19.7
- Internal width (mm) 30
- External width (mm) 38
- OFFSET RIM
- Spokes 28H J-bend
- Diameter (mm) 2.0-1.6
- Hub Seal Labyrinth+Contact
Material
-
Rim: Carbon
-
Spoke: Titanium
-
Freehub body: Aluminium
-
Hub: Aluminium
Colour
Weight
Contents
- 1 x Shimano XTR WH-M9200 Front Wheel
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
