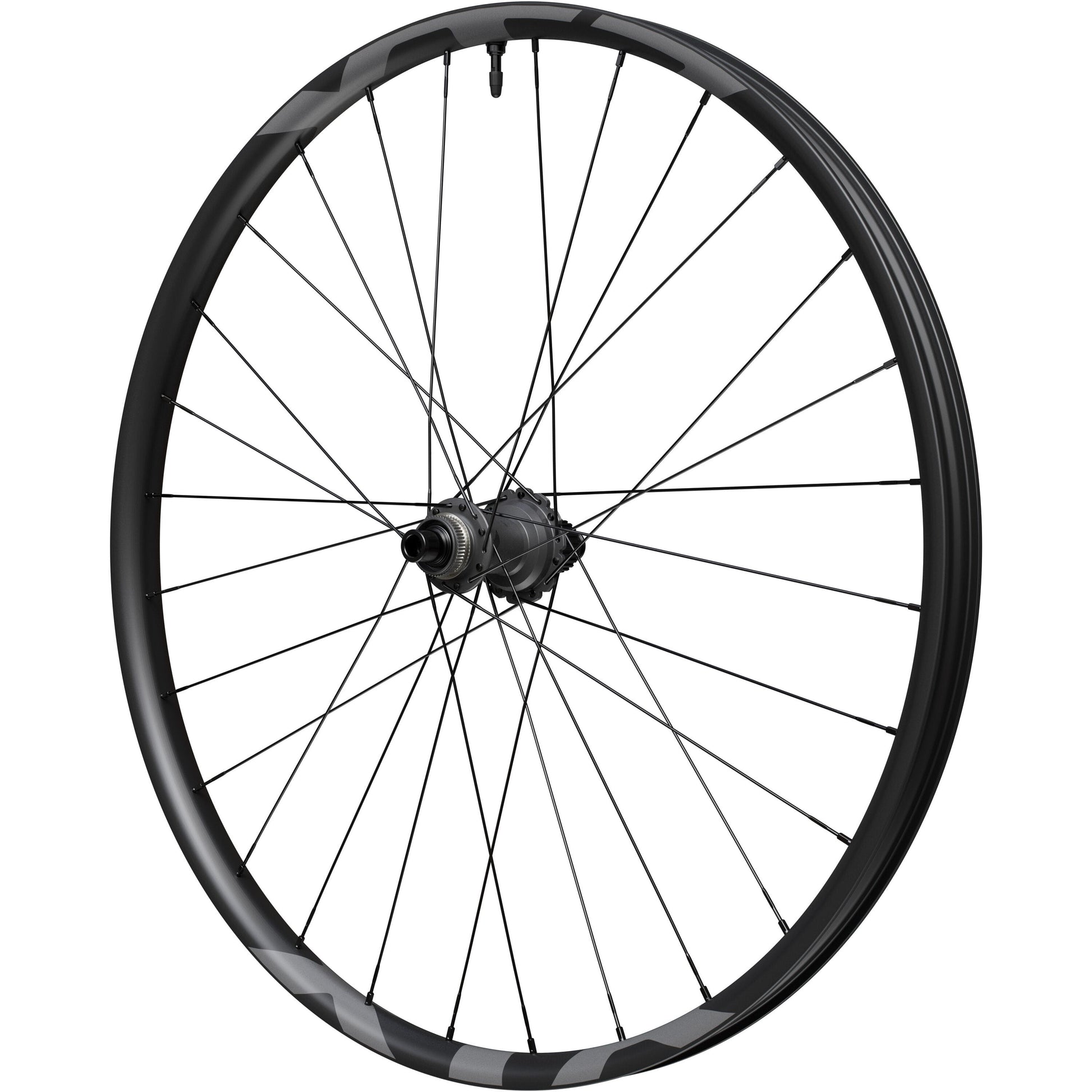

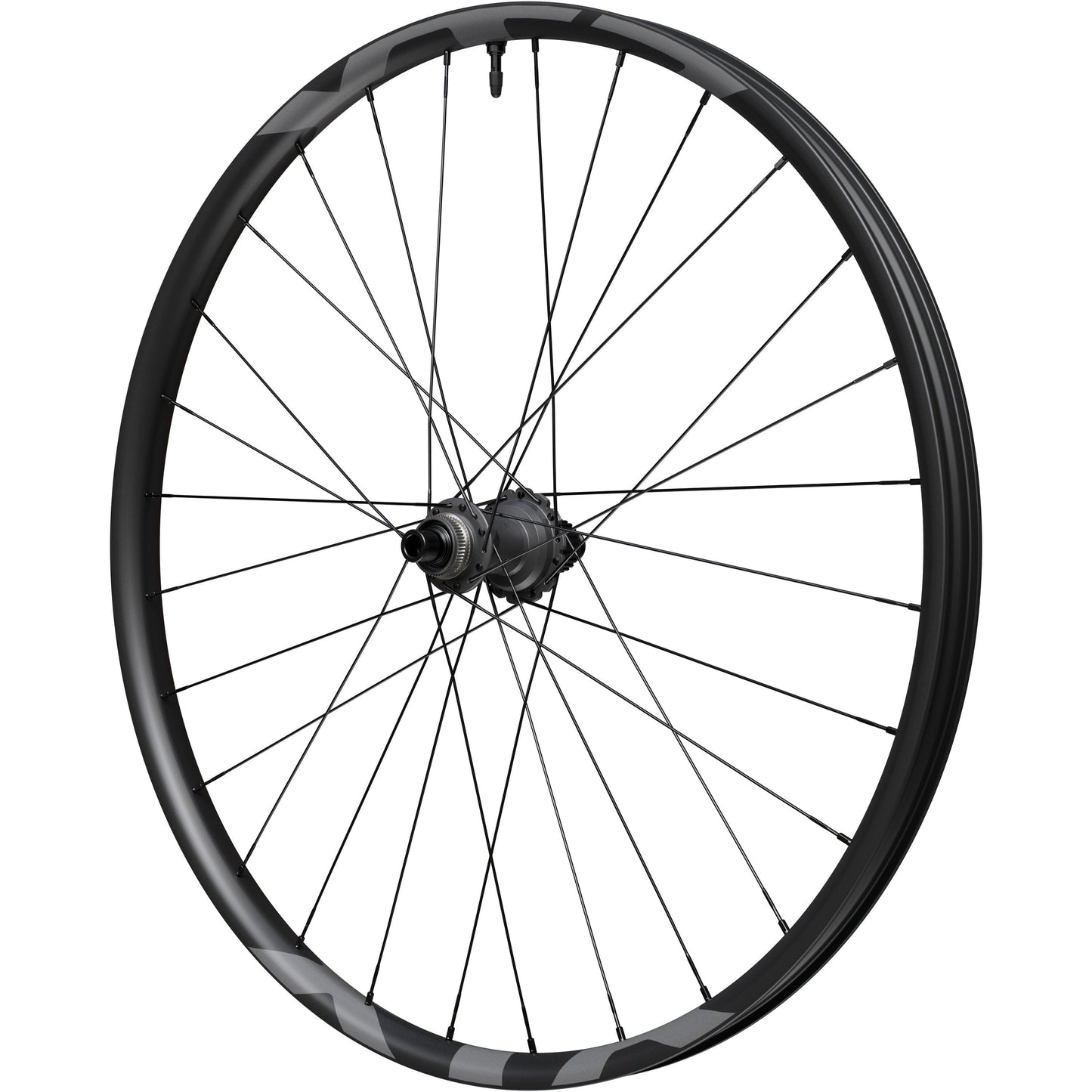

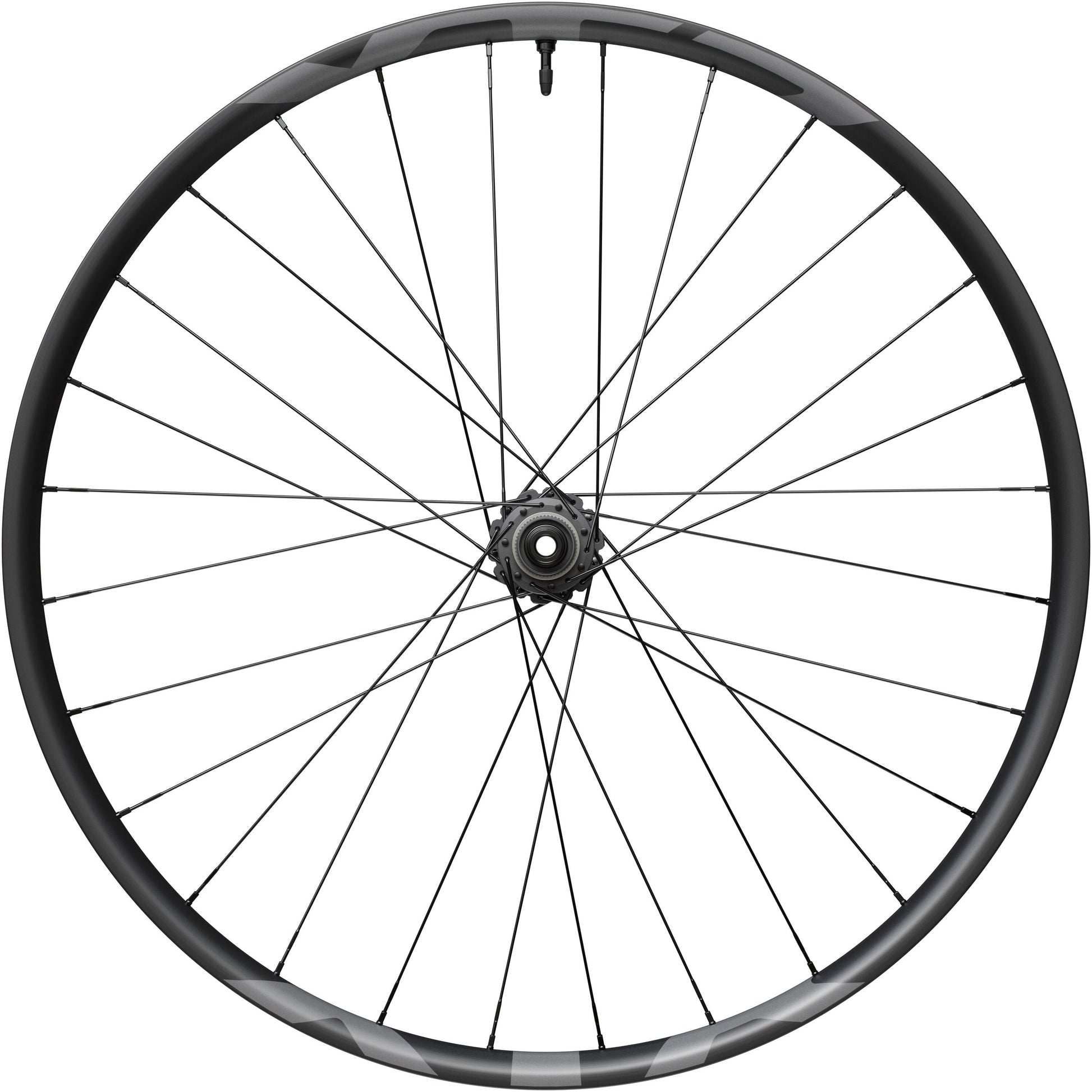

Built with the Enduro World Series racing and serviceability in mind, the Shimano XTR M9220 29er Rear Wheel is Shimano's beefiest full-carbon wheel offering yet.

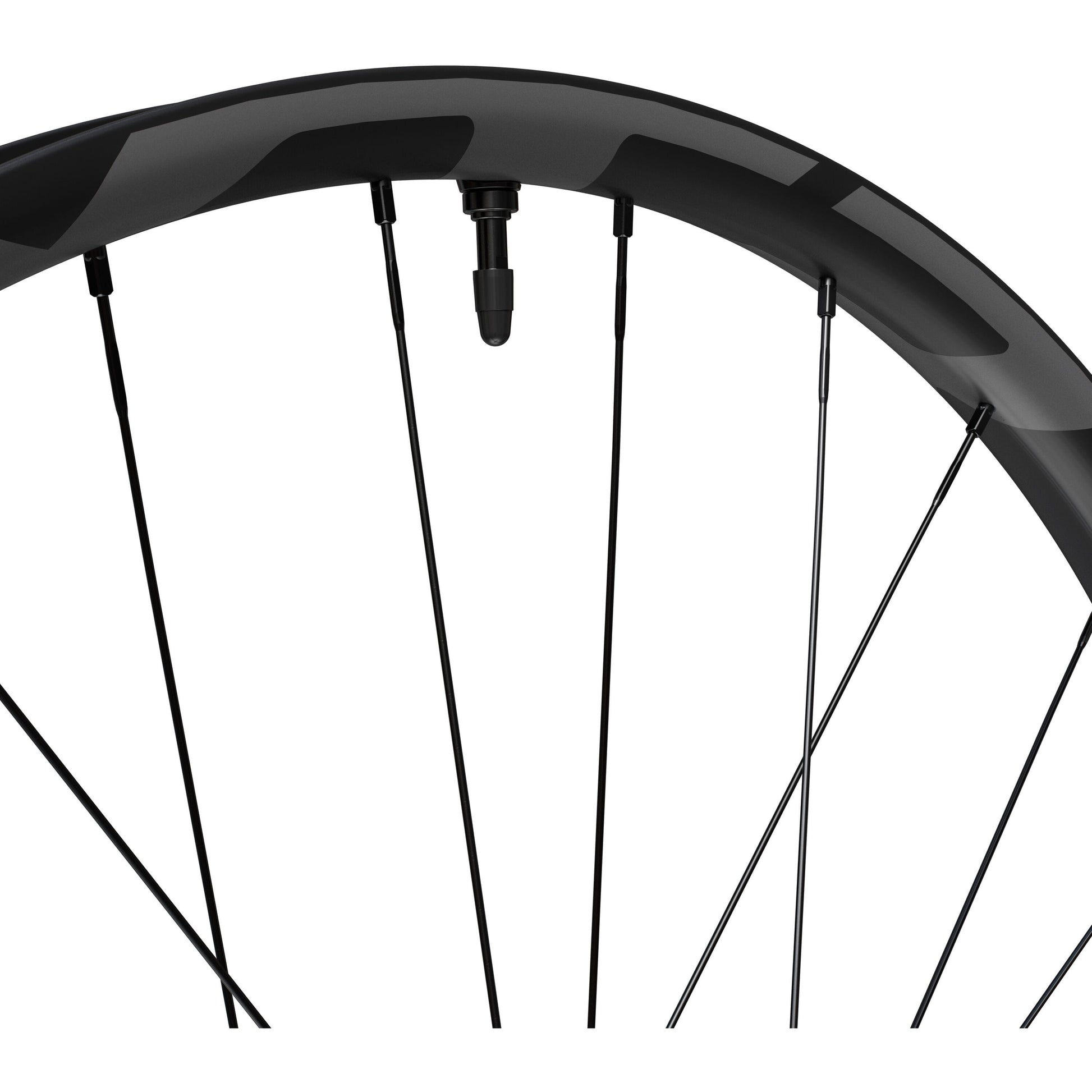

Equipped with a hookless 30 mm carbon rim, all-new XTR hubs and traditional 28H stainless steel J-Bend spokes, the WH-M9220 is built to survive and easy to repair if things go wrong. Purpose-engineered for aggressive trail riding and enduro racing, this wheel combines lightweight carbon construction with robust durability. The hookless rim design provides improved tyre stability and compatibility with modern tubeless systems, whilst the all-new XTR hub technology delivers smooth, reliable performance. Traditional J-Bend spokes offer proven strength and straightforward maintenance, making roadside repairs straightforward when you need them most. Whether you're pushing hard on race day or exploring technical terrain, the M9220 delivers the confidence and repairability serious riders demand.
Features
-
Quicker Engagement/Less Drag: A 3.5-degree engagement angle makes FH-M9210-B fast off the line, while smart seal design and smooth bearings mean less drag while coasting.
-
Conventional Drilling/Boost Spacing: Available in conventional 29-inch, 148x12 rear hub boost spacing and traditional 28H drilling option.
-

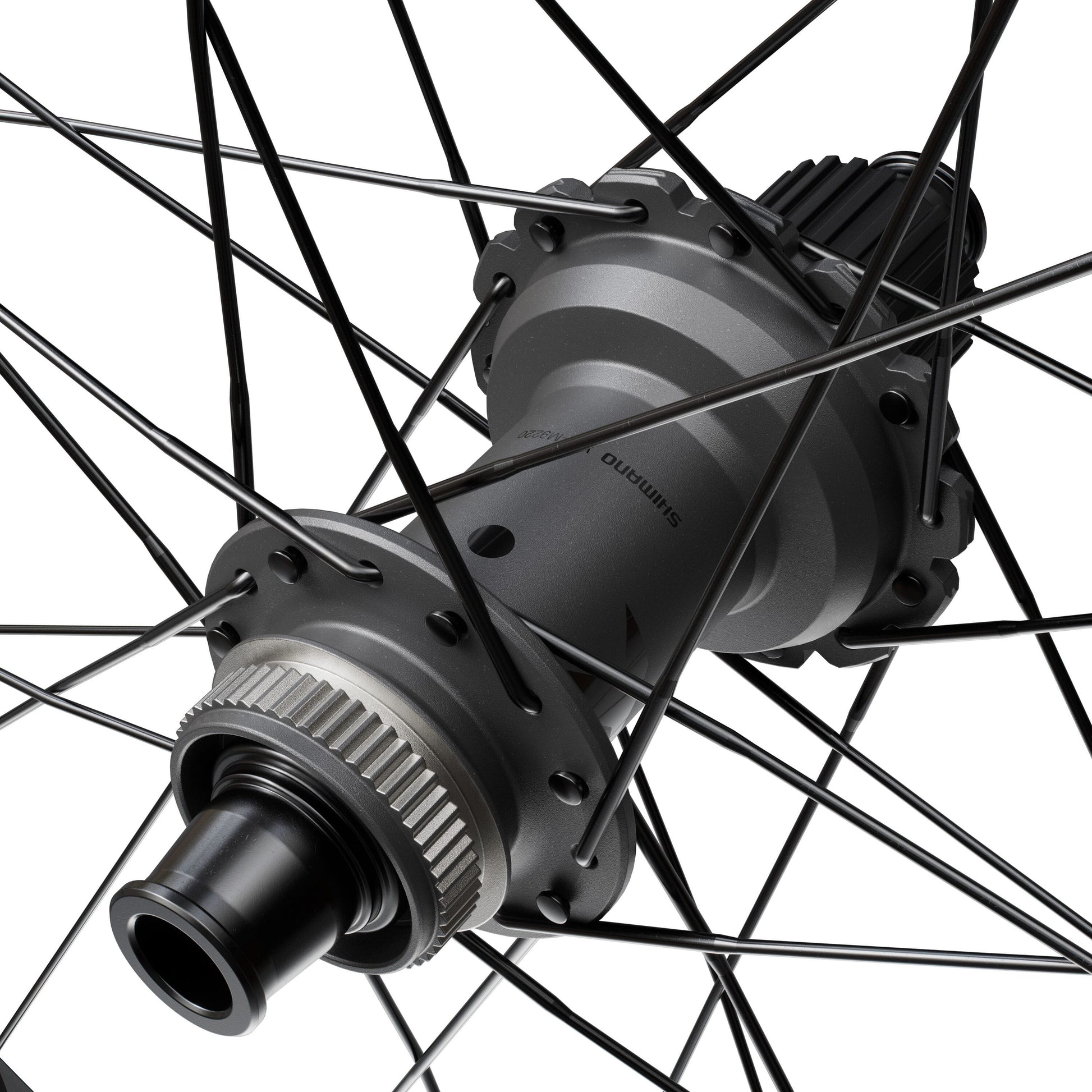

Cartridge Bearings: XTR hubs are now available with easily serviceable stainless steel cartridge bearings.
-
Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.
Specification
- Series XTR
- Model name WH-M9220-TL
- Brake type - CENTER LOCK disc brake
- Rear speeds - 12
- O.L.D. (mm) - 148
- Wheel size - 622 x 30TSS (29 inch)
- Type - Tubeless ready
- Recommended size 29 x 2.30 - 2.60
- Height (mm) 19.7
- Internal width (mm) 30
- External width (mm) 38
- Offset Rim
- Spoke type J-bend
- Diameter (mm) 2.0-1.6
- Spline type MICROSPLINE
Material
-
Rim: Carbon
-
Spoke: Titanium
-
Freehub body: Aluminium
-
Hub: Aluminium
Colour
Weight
Contents
- 1 x Shimano XTR WH-M9200 Rear Wheel
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
