For the first time ever, our legendary Code brake now wears the Ultimate crown.

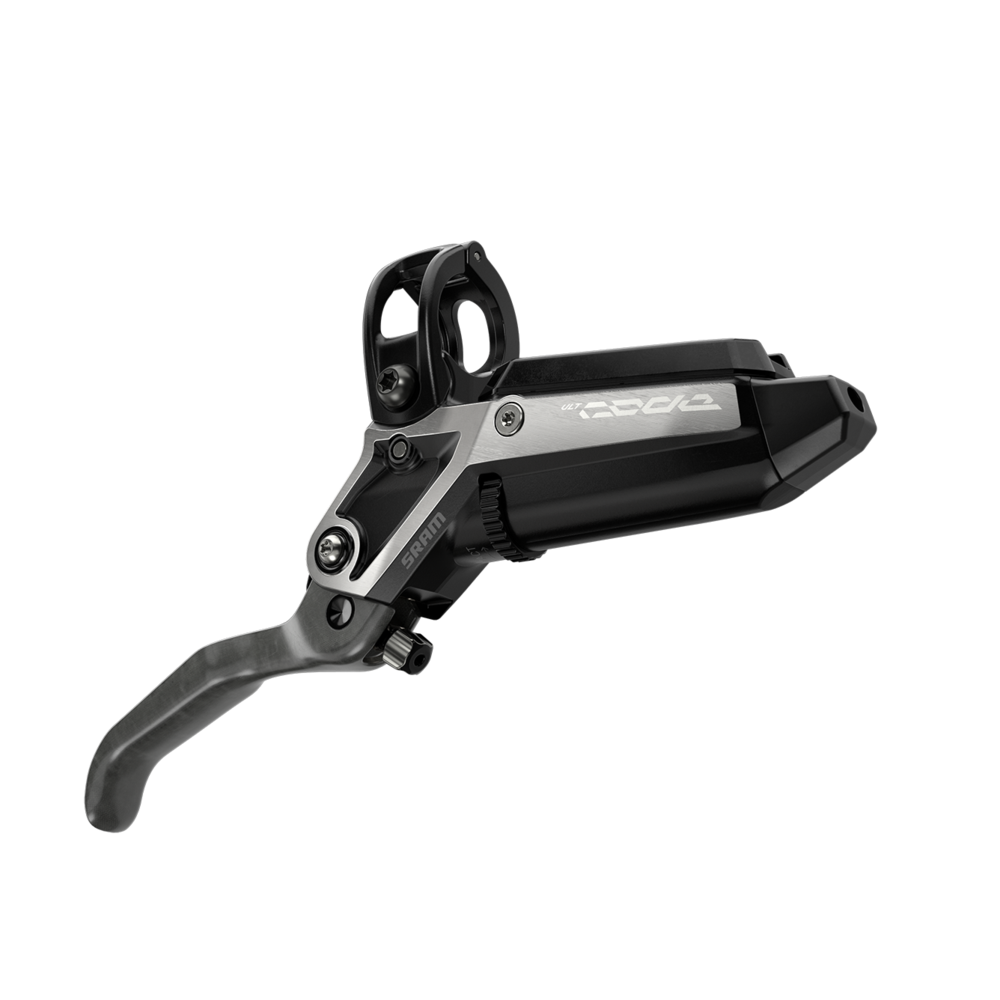

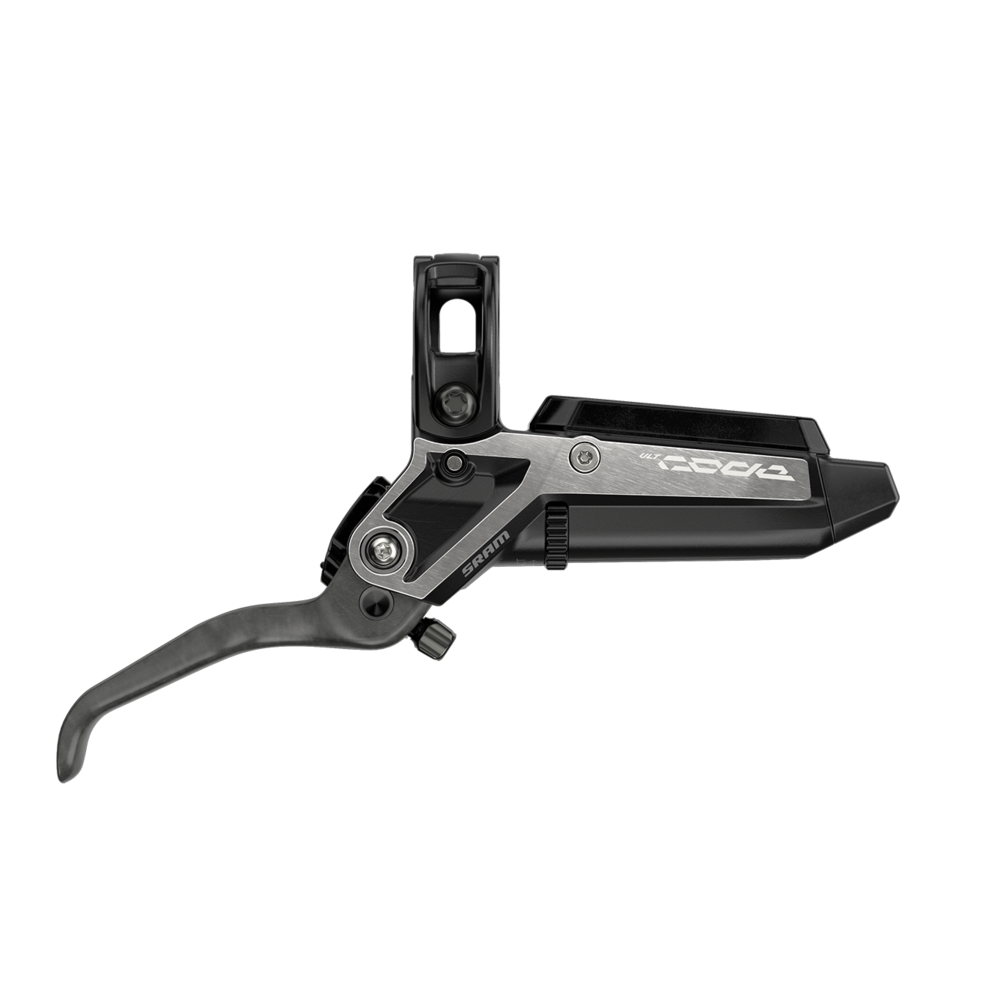

The full-powered stopper features a new technology to improve your cockpit aesthetic: Stealth. The all-new lever body design brings the hose closer to the bar, allowing for a sleeker, more modern ride. The proven internals remain the same, with SwingLink driving our signature feel. And for unrivalled ease of customization, Code Ultimate features tool-free Reach and Contact Point Adjust. To top it all off, a carbon blade joins our Lever Pivot Bearing technologies, so feel will remain smooth. Our best just got better.
Features
- Stealth body design to complement our AXS cockpit
- Designed for the most heavy-duty braking needs
- Metallic pads come standard for more power and longer wear
- Our most powerful brake, utilizing our SwingLink and Lever Pivot Bearing for a fatigue-free ride
Specification
-
Use: MTB
-
Brake type: Hydraulic
-
Blade material: Carbon
-
Orientation: Front, Rear
-
Pad type: Steel-backed metal sintered
-
Bracket: Direct Mount DIR
-
Hydraulic fluid: DOT 5.1
-
Lever pivot: Bearing
-
Contact adjust: Yes
-
Reach adjust: Tool-free
Mounting - Hose Length
- Front - 950 mm
- Rear - 2000 mm
Material
-
Lever: Aluminium
-
Body: Aluminium
-
Caliper: Aluminium
-
Pistons: Phenolic Plastic
-
Bolts: Steel
Colour
Contents
- 1 x SRAM Code Ultimate Stealth Disc Brake
- 1 x MatchMakerClamp
- 2 x Fastening screws
- 1 x Insertpin
- 1 x Olive
- 1 x Transport safety
- Disc brake is ready for installation, completely assembled and bled!
Rotor and Adapter not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
