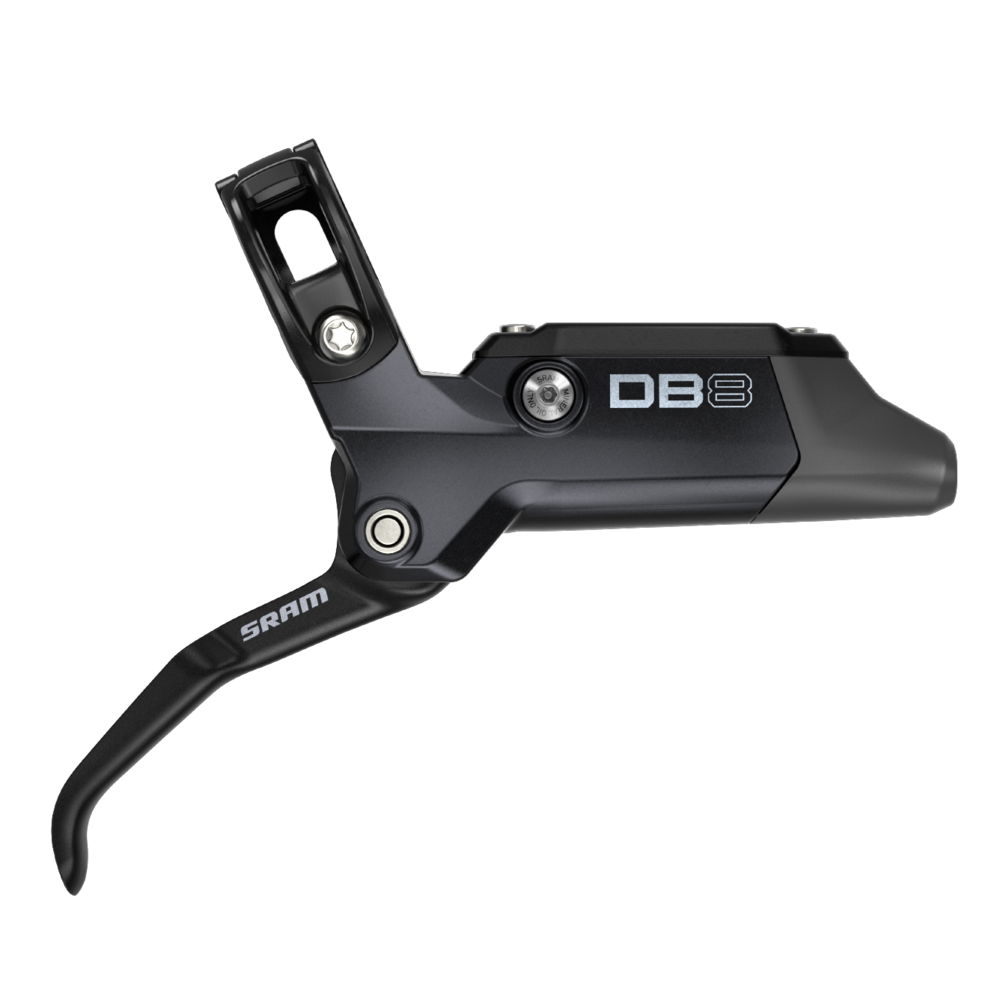

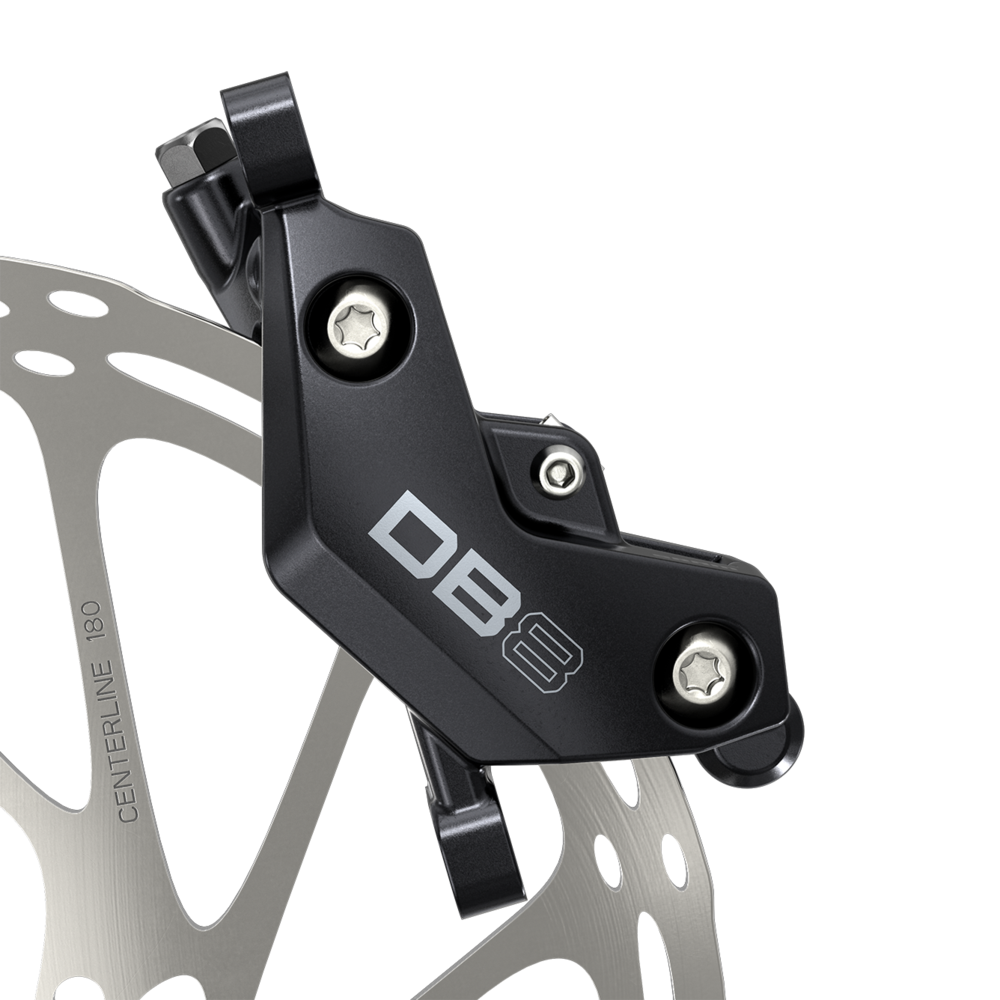

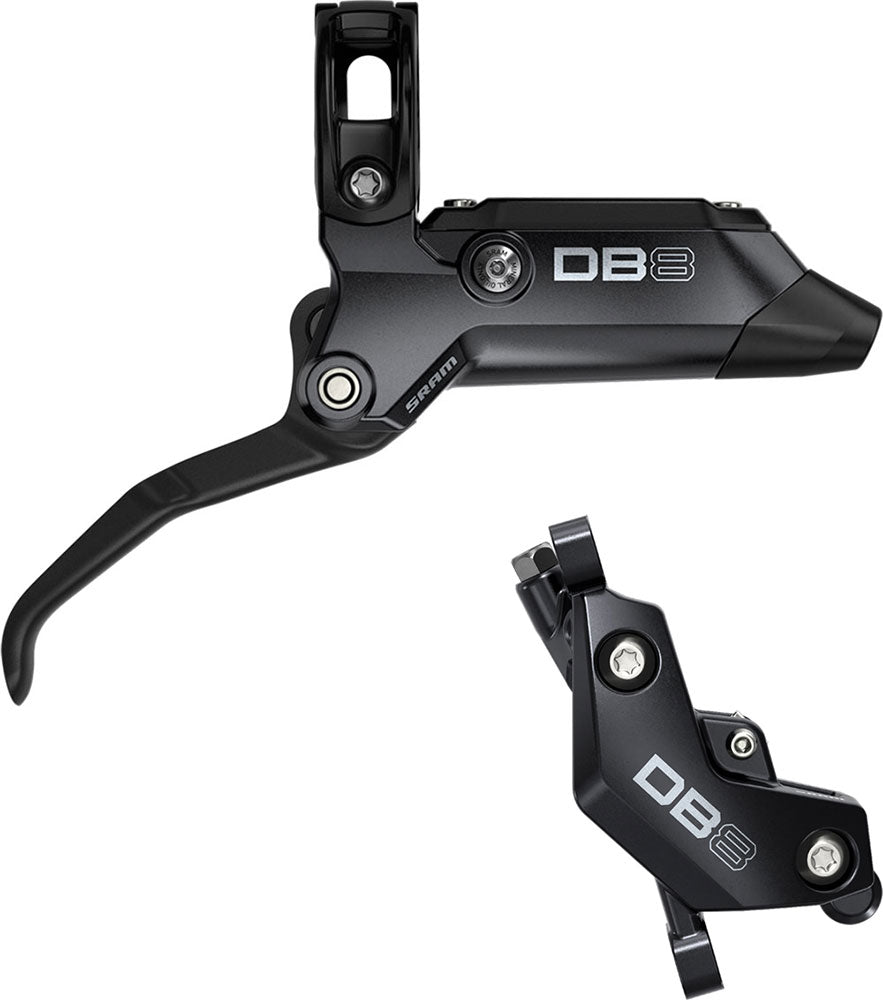

DB8 is Srams simple, robust, and powerful brake for riders who prefer to set and forget.
The low maintenance Mineral Oil system uses proven lever technologies and features easy adjustment access and superior ergonomic comfort. Code-like power is no surprise, as DB8 utilizes similar caliper architecture and existing brake pads.
Features

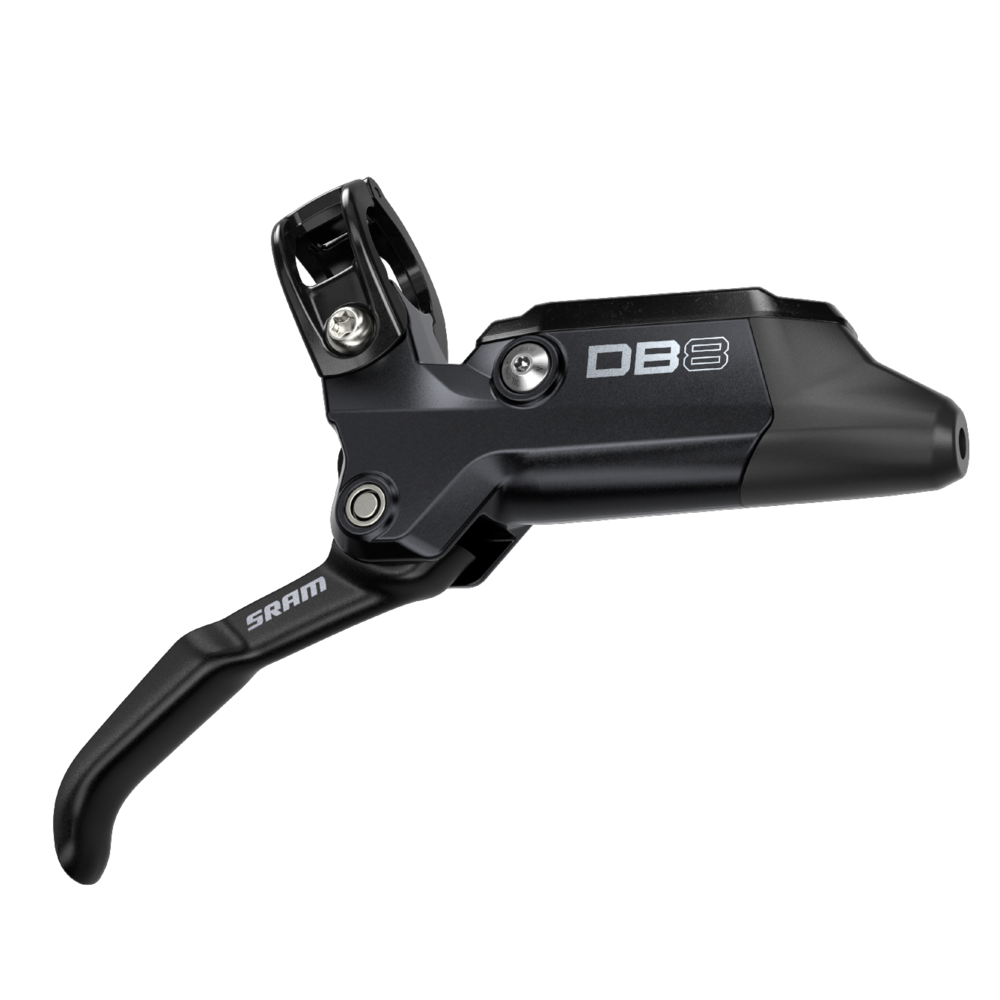

- New lever optimized for tool access.
- Code-like power.
- Uses existing Code pads.
- Designed for use with Maxima Mineral Oil only.
- Designed for use with SRAM Mineral Oil Bleed Kit only
Specification
-
Use: MTB
-
Brake type: Hydraulic
-

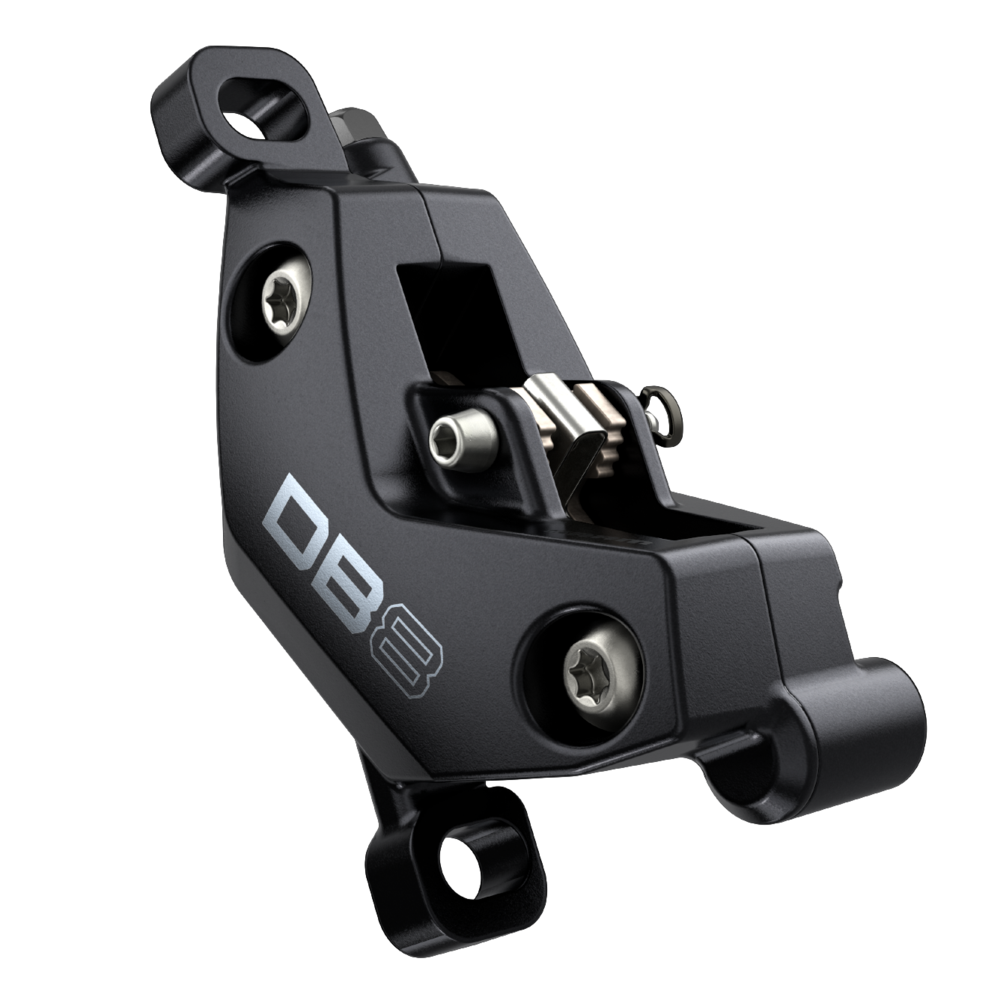

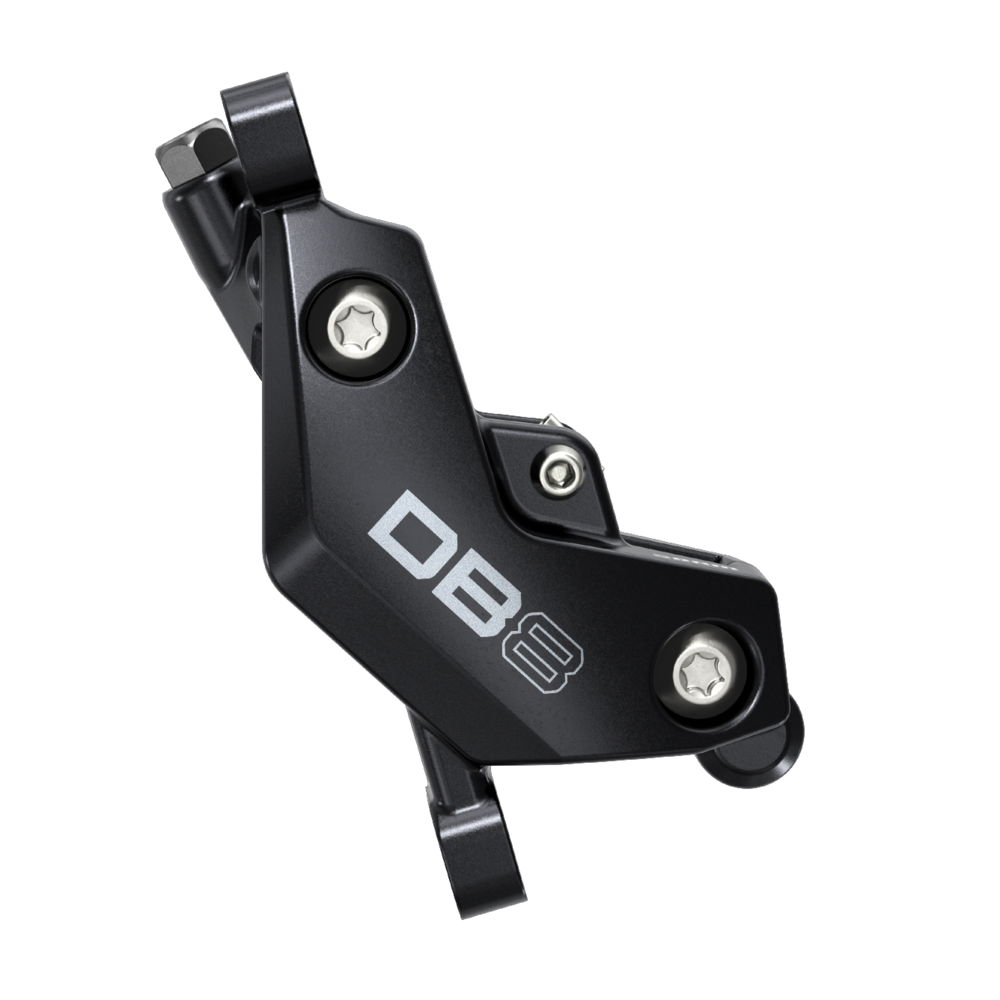

Caliper Design: Two-piece
-
Pistons: 4
-
Pad type: Steel-backed Organic
-
Bracket: Direct Mount DIR
-
Hydraulic fluid: SRAM Mineral Oil
-
Lever pivot: Bushing
-
Contact adjust: No
-
Reach adjust: Tooled
-
Caliper bleed port: Threaded
-

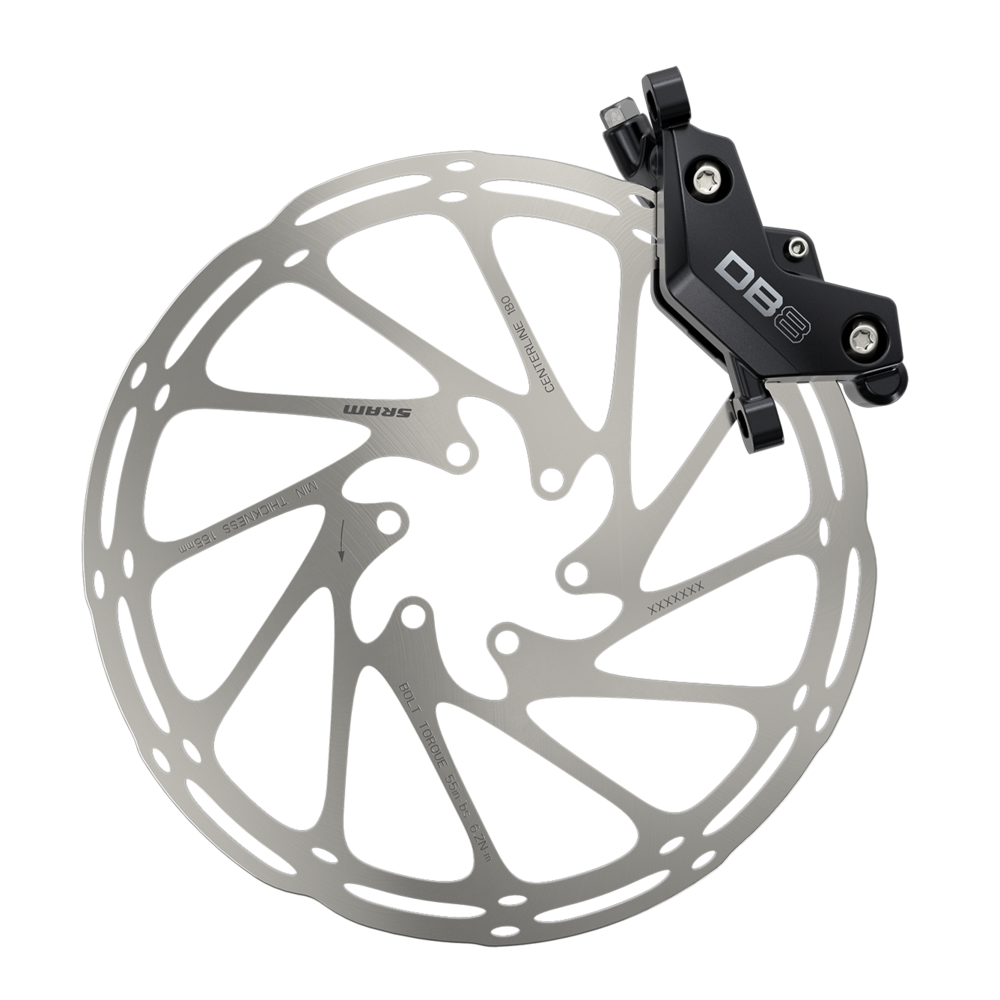

Rotor type recommended: 1-piece Centreline (not included!)
Mounting - Hose Length
- Front - 950 mm
- Rear - 2000 mm
Material
-
Lever: Aluminium
-
Body: Aluminium
-
Caliper: Aluminium
-
Pistons: Phenolic Plastic
-
Bolts: Steel
Colour
Contents
- 1 x SRAM DB8 Disc Brake
- 1 x MatchMakerClamp
- 2 x Fastening screws
- 1 x Insert pin
- 1 x Olive
- 1 x Transport safety
- Disc brake is ready for installation, completely assembled and bled!
Rotor and Adapter not included!
