SRAM EAGLE 90 TRANSMISSION AXS eMTB 12-SPEED GROUPSET

Mechanical shifting at it’s best. Eagle 90 delivers the dream, and then some.

Featuring the same Full Mount derailleur architecture as it’s AXS Transmission siblings, it is unquestionably robust.

And for the just in case, the derailleur body features replaceable outer and inner parallelogram links, skid plates, and a tool-free threaded cage assembly, making it the most rebuildable derailleur SRAM has ever built. At the heart of the system is a sleek and sturdy forged aluminum DUB crankset, with a signature silver T-Type chainring equipped with removable bash guards.

Shifting under load is a signature of Eagle Transmission, and this is made possible on 90 with an XS-1275 T-Type cassette that features full X-Sync technology, and a premium double-click T-Type Actuation mechanical shifter.

For those inclined to DIY, mechanical Eagle Trans-mission has a revolutionary simple four step setup procedure: Prepare. Hang. Tighten. Route. Featuring no limit screws, no b-tension, and no guesswork. Built to take you as far as your imagination and body will allow, Eagle 90 Transmission provides riders with an unparalleled ride experience.

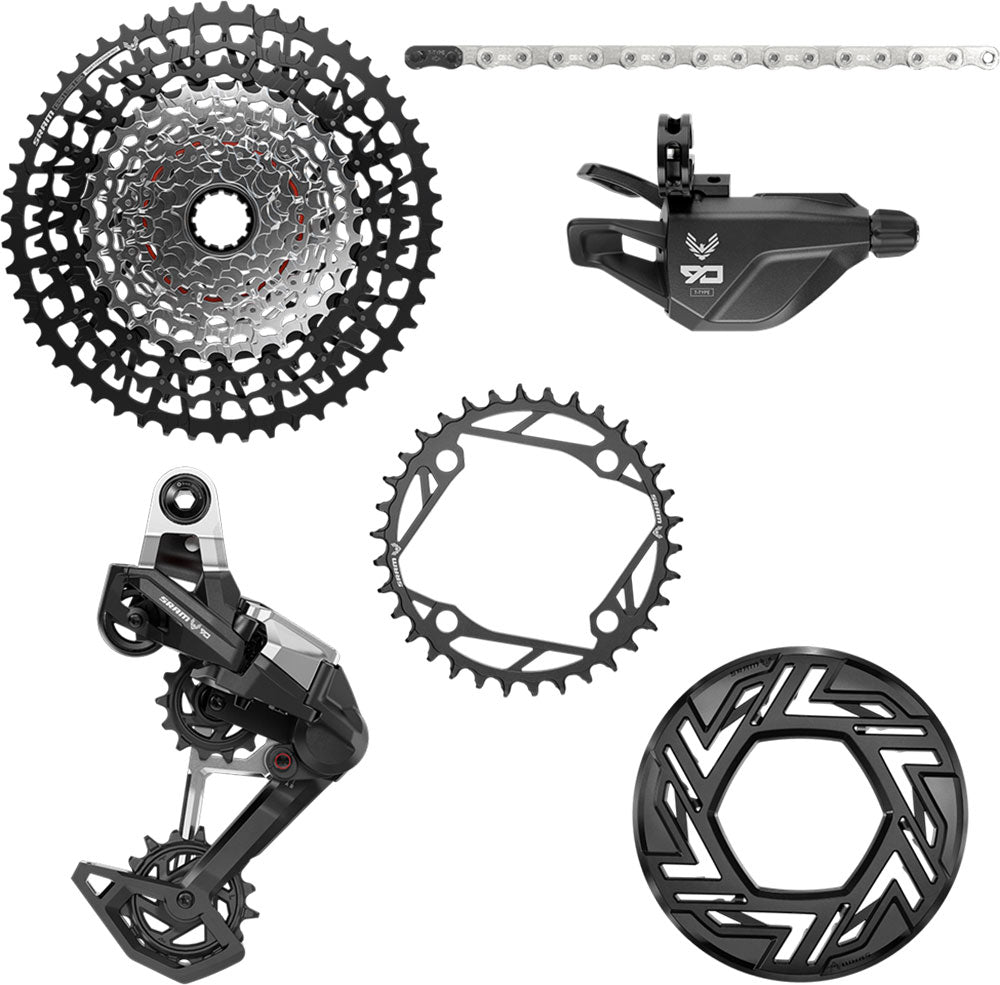

Contents

• 1 x Eagle Transmission E-MTB chainring 104mm 34T (choose variant)
• 1 x Eagle 90 Transmission 12-speed Rear Derailleur
• 1 x GX Eagle Transmission XS-1275 12-speed Cassette 10-52
• 1 x Eagle 90 Transmission E-MTB Single Click 12-speed Shifter with Clamp
• 1 x GX Eagle Transmission Flattop 12-speed Chain
• 1 x Clip on Guard

Bottom bracket DUB and Cranks not included!

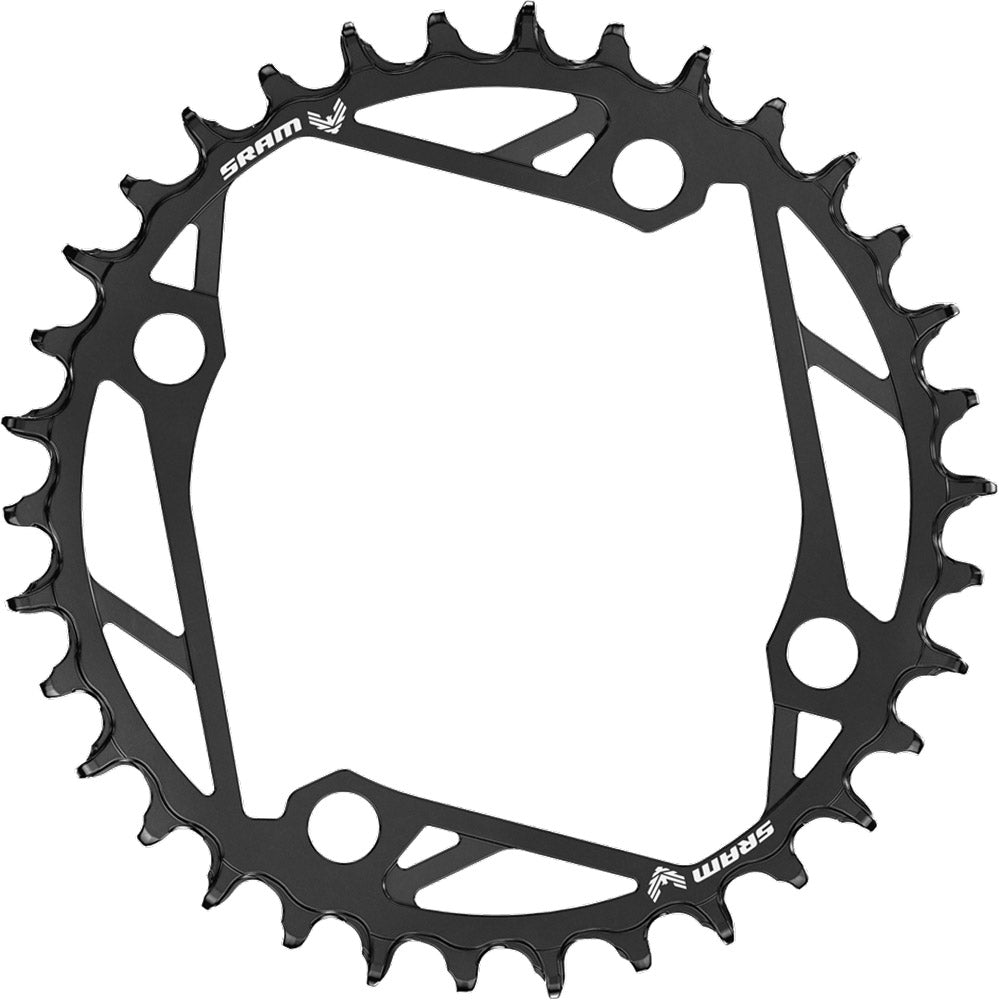

SRAM Eagle Transmission E-MTB chainring 104mm 34T

Features

• Backwards compatible with other Eagle Technology
• AeroGuard compatible with steel rings that Fufills EN 15194:2017 standard

Specification

• Use: E-MTB
• Mounting: 4-bolts
• BCD: 104 mm
• Suitable for: 12-speed
• Size: 34T

Material

• Steel

Colour

• Black

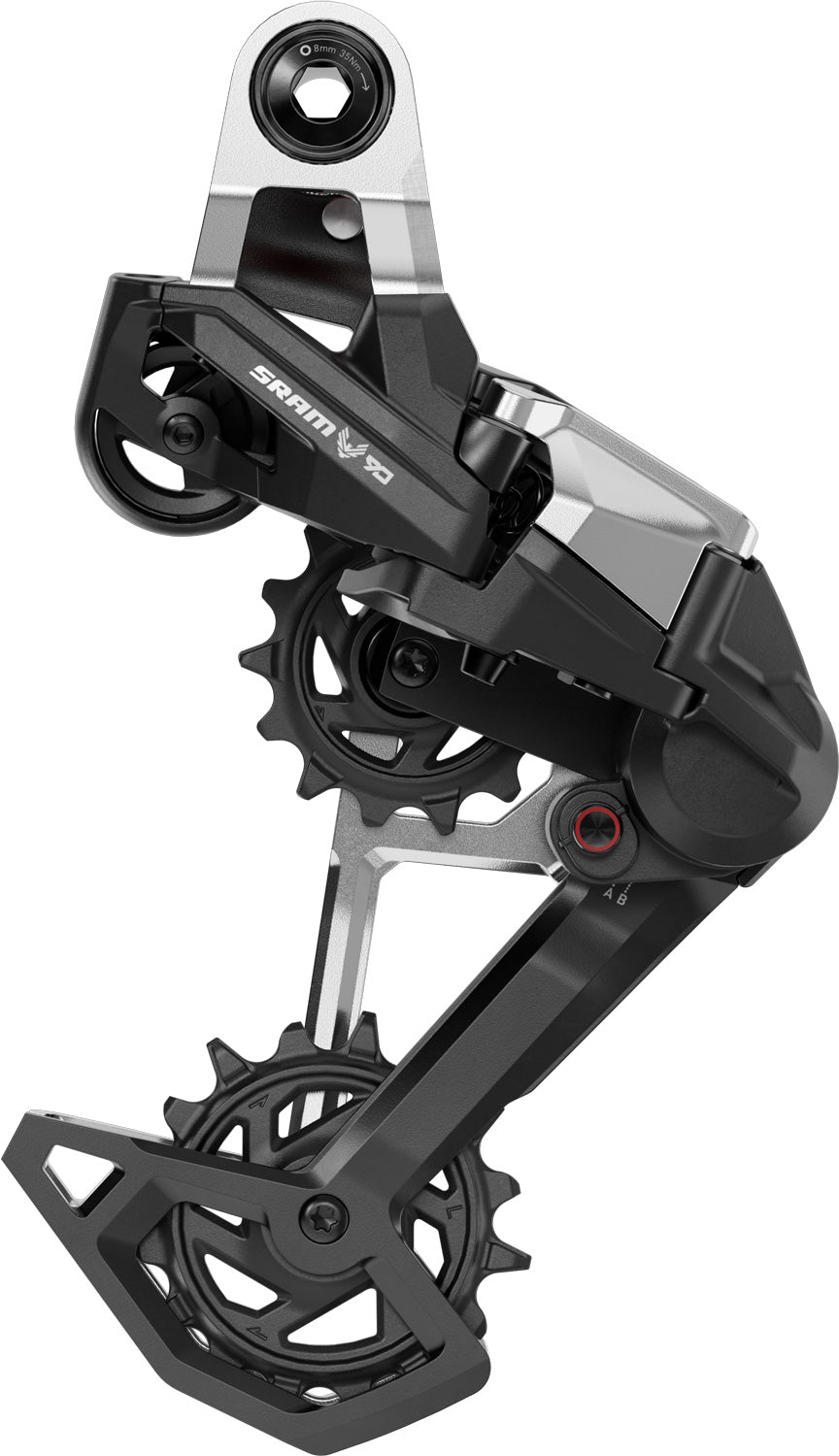

SRAM Eagle 90 Transmission 12-speed Rear Derailleur

Features

• Robust Full Mount Design
• Most robust mechanical derailleur
• T-Type compatibility
• Replaceable skid plates, outer parallelogram link, cage or cage assembly
• The most rebuildable derailleur in the Eagle Transmission Ecosystem

Specification

• Range of use: MTB
• Group: Eagle 90 Transmission (mechanical)
• Gears: 1 x 12
• Cage length: Long
• Max. teeth large sprocket: 52 teeth
• Min. teeth large sprocket: 10 teeth
• Total capacity: 42 teeth
• Chain technology: T-Type
• Shift technology: T-Type Actuation

Material

• Derailleur cage: Aluminium

Colour

• Black

Weight

• 395 g

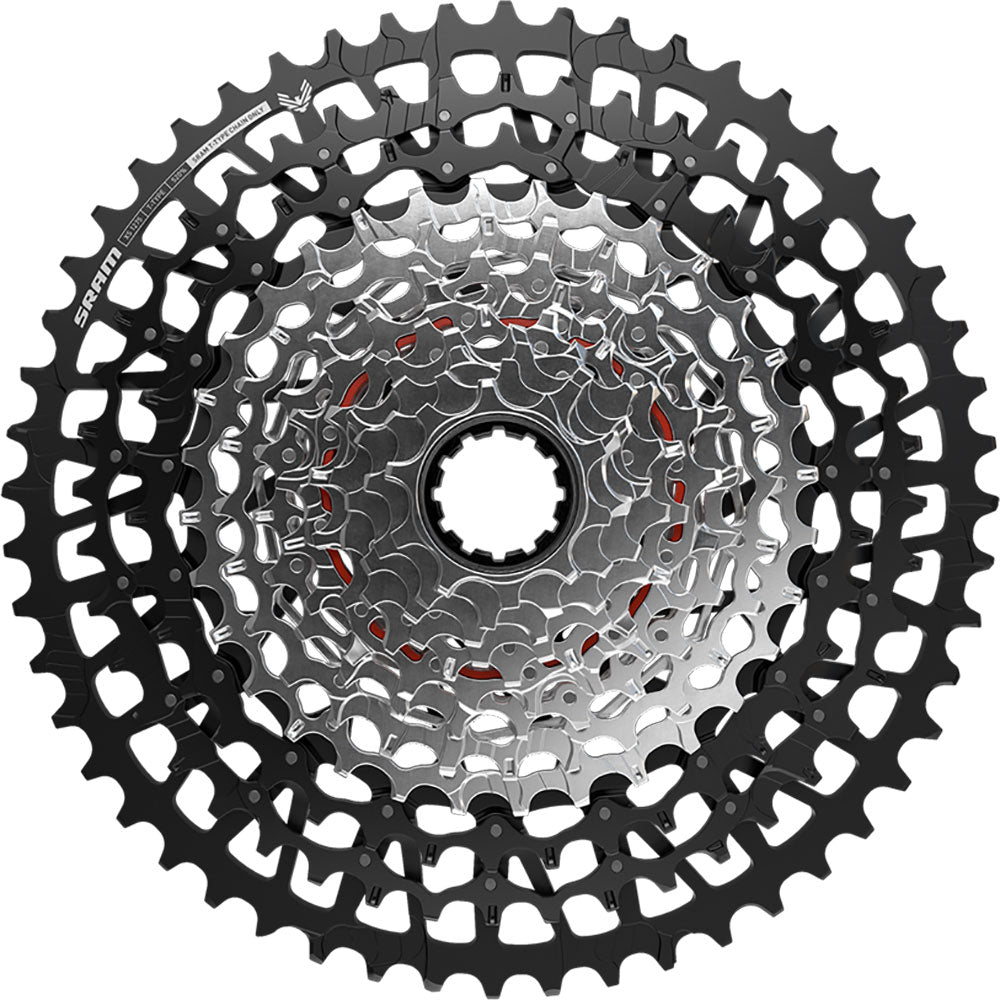

SRAM GX Eagle Transmission XS-1275 12-speed Cassette 10-52

Features

• 520% range. Full X-SYNC for best-ever inboard and outboard shifting performance under load. Optimized gear steps on low end
• 55mm chainline compatibility for more moderate chain angle, longer wear and greater precision. Setup Cog for simple set up
• Features a combination Pindome and MINI-CLUSTER design

Specification

• Use: MTB
• Model: XS-1275
• Speeds: 12-speed
• Teeth: 10-52
• Gear Ratios: 10-12-14-16-18-21-24-28-32-38-44-52
• Recommended Chain: Eagle Flattop chains only

Compatibility

• Only compatible with XD™ Driver Body and Transmission Rear Derailleurs

Colour

• Black

Weight

• 445 g

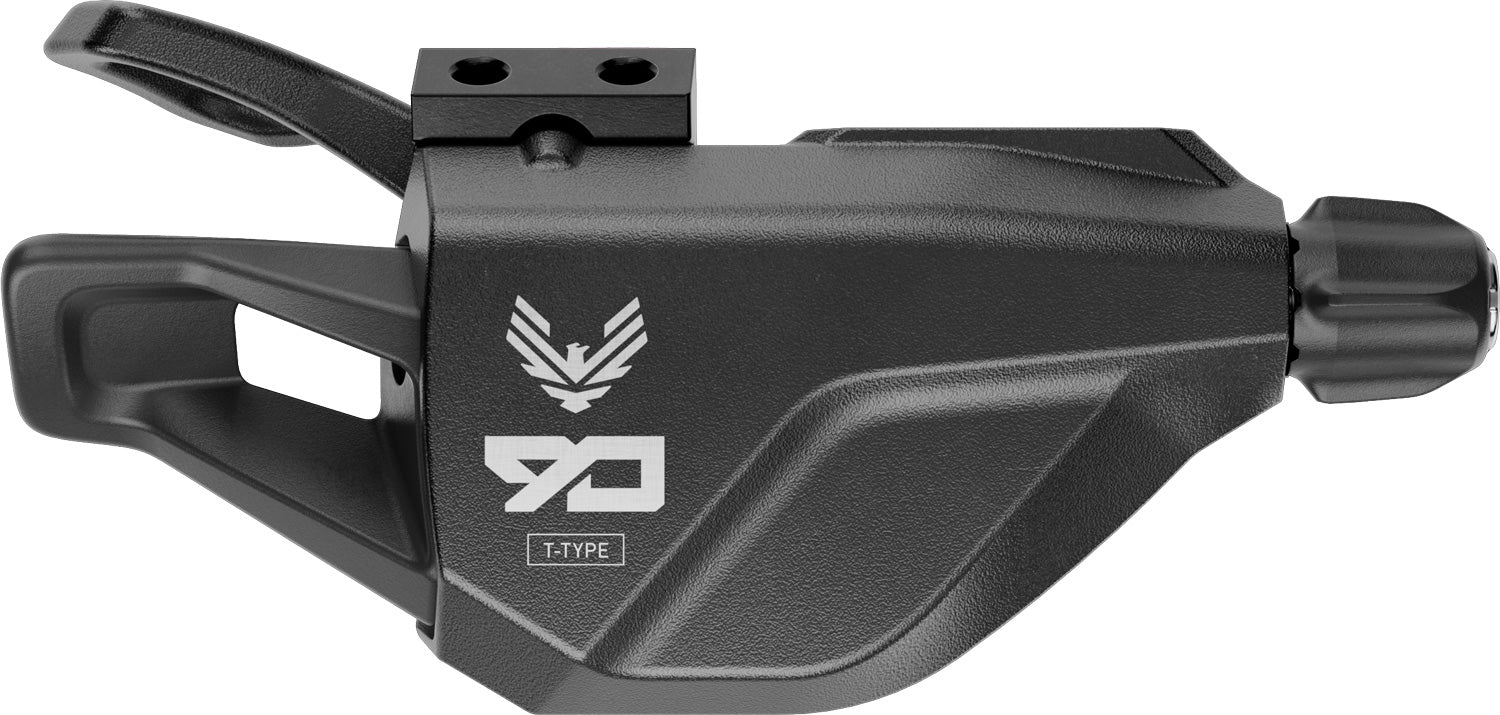

SRAM Eagle 90 Transmission E-MTB Single Click 12-speed Shifter

Features

• Modern shift ergonomics
• Best in class friction management
• Single-Click variant for E-MTB use
• Shared design language with Stealth Brakes to provide the cleanest looking and performing cockpit
• Premium textured aluminum Shift Lever touchpoint
• Cockpit tidying Shift Housing/Brake Hose clip included

Specification

• Use: MTB
• Group: Eagle 90 Transmission
• Gear rear: 12-speed
• Matchmaker compatible: Yes
• Clamp included: Yes
• Max upshifts: 1
• Pull lever adjust: No
• Multi-position: Yes
• Gear indication: No
• Cable length: 2200 mm

Material

• Plastic/Aluminium

Colour

• Black

Weight

• 135 g

SRAM GX Eagle Transmission Flattop 12-speed Chain

Features

• Strongest SRAM chain ever. Specifically engineered for Eagle Transmission
• Flattop profile, unbelievable shifting performance, game-changing aesthetics
• Solid pins, fully approved for E-MTB use

Specification

• Use: MTB
• Gear: 12-speed
• Compatible Cassette Eagle™ T-Type
• Length: 126 Links
• Chain connector: PowerLock®
• Outer Plate: Nickel
• Inner Plate: Chrome hardened
• Pin Treatment: Chrome hardened
• Pin: Solid Pin

Colour

• Silver

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
