SRAM MAVEN BASE DISC BRAKE

Modern mountain bikes have redefined what riders are capable of, pushing the requirements for extreme-duty power further than ever before.

Maven is SRAM answer to that evolution, giving you the boundless power of confidence for elevated speed and control on ever-more demanding terrain.

Maven Base’s lever body houses Directlink, which translates rider input for a smooth application of power. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. And with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Base features a Blast Black anodized finish, and for ease of customization includes tool-free Reach Adjust.

Features

• Four 18 mm pistons for extreme-duty power

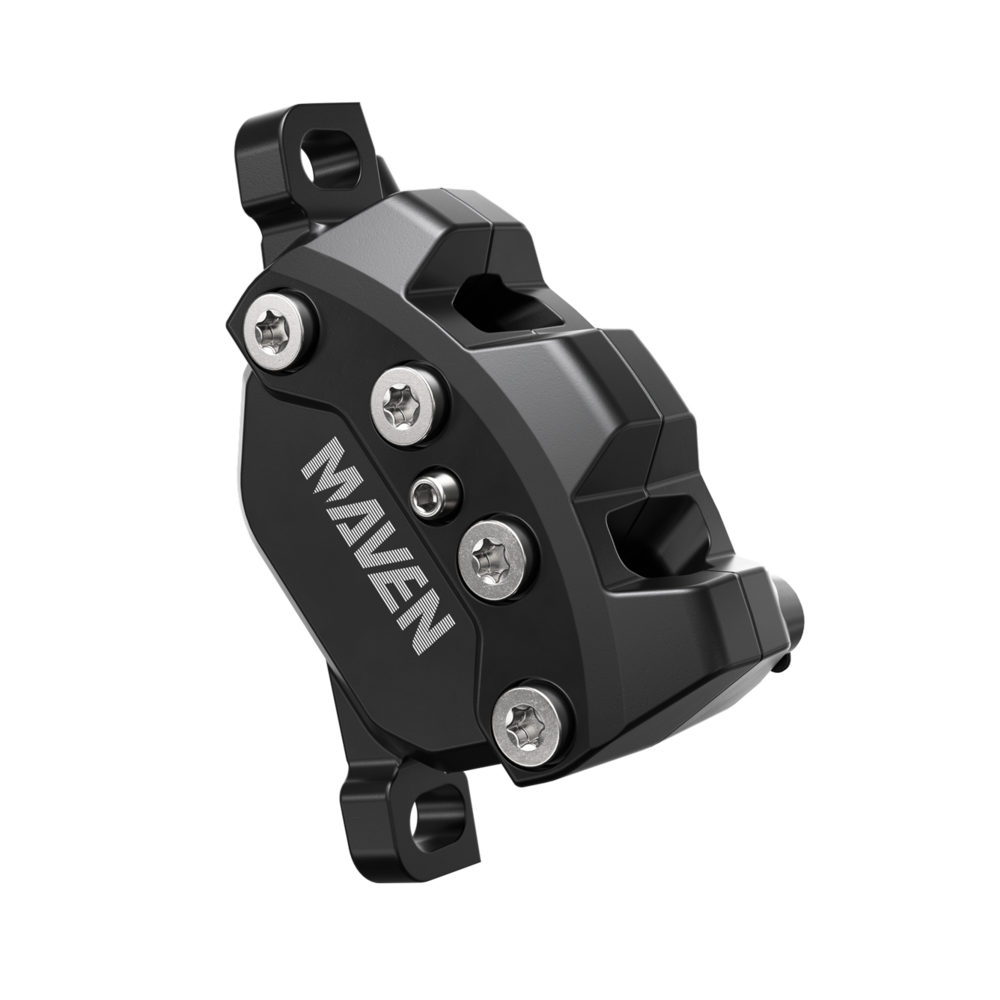

• Stiff 4-piston caliper with best heat management and easier bolt access
• Organic pads come standard for the best modulation and the quietest ride

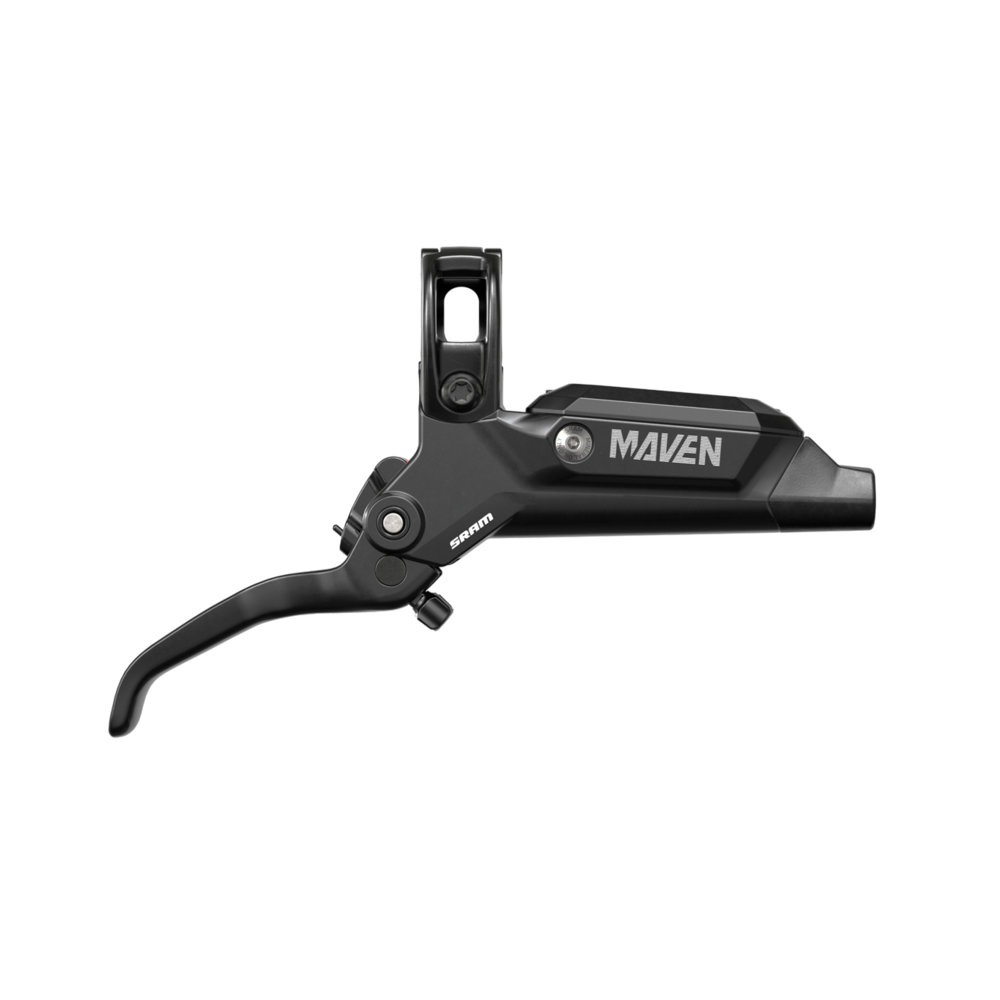

• Stealth lever architecture for a sleeker, more modern ride
• Tool-free lever reach adjust
• Mineral Oil for low maintenance and performance
• Designed for use with Maxima Mineral Brake Oil only
• Calliper features Bleeding Edge bleed port for drip-free maintenance

Specification

• Application: MTB
• Brake type: Hydraulic
• Calliper construction: 2-piece
• Pistons: 4
• Pad type: Steel-backed Organic
• Bracket: Direct Mount DIR
• Hydraulic fluid: SRAM Mineral Oil
• Lever pivot: Bushing
• Contact adjust: No
• Reach adjust: Tool-free
• Calliper bleed port: bleeding Edge
• Rotor type recommended: 1-piece Centreline (not included!)

Mount

• Front - 950 mm
• Rear - 2000 mm

Material

• Lever: Aluminium
• Body: Aluminium
• Calliper: Aluminium
• Pistons: Phenolic Plastic
• Bolts: Steel

Colour

• Blasted Black anodized

Weight

• 380 g

Contents

• 1 x Maven Base Stealth Disc Brake
• 1 x MatchMaker Clamp
• 2 x Fastening screws
• 1 x Insert pin
• 1 x Olive
• 1 x 20P-2 Adapter
• 1 x Transport safety
• Disc brake is ready for installation, completely assembled and bled!

Rotor not included!

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
