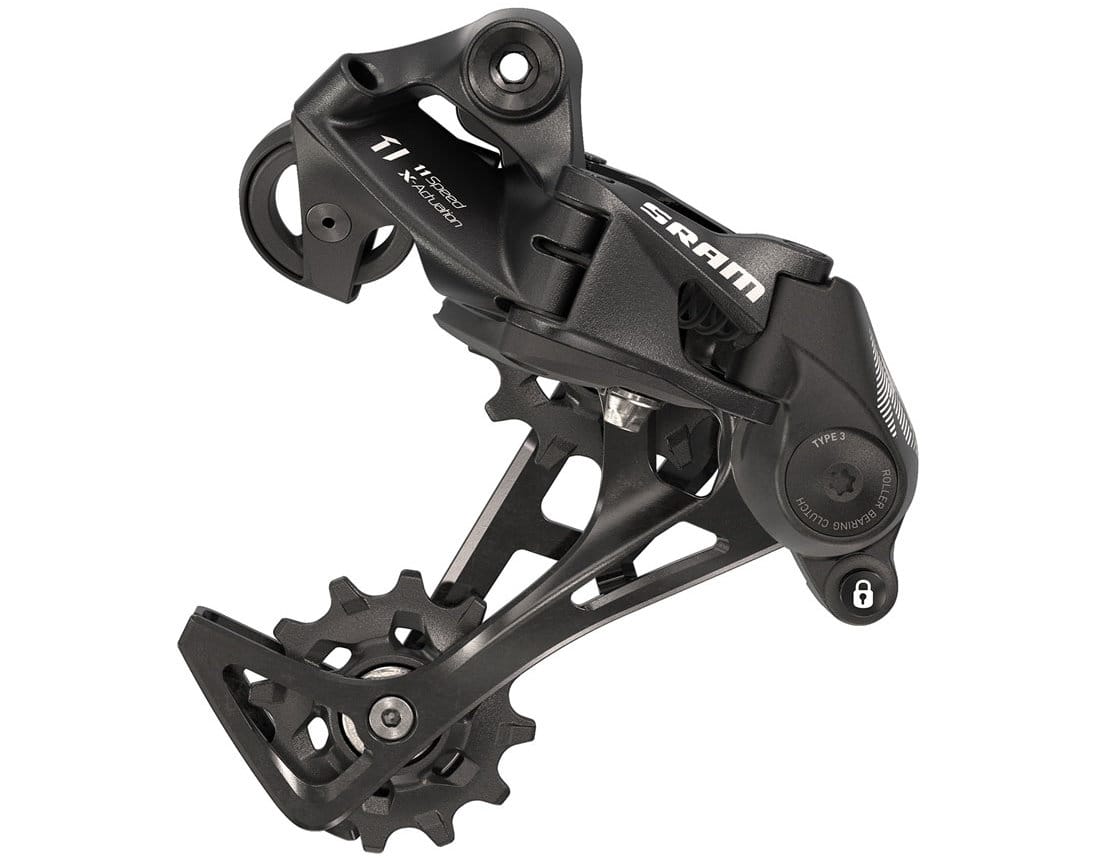

The SRAM NX X-HORIZON™ rear derailleur provides the same smooth, reliable shifting action as XX1—from the larger upper pulley offset to the 12-tooth X-SYNC™ pulley wheels.
By eliminating unwanted chain movement, X-HORIZON™ shifts faster, puts an end to ghost shifting and reduces shift force and chain slap. And with CAGE LOCK™ technology, wheel removal and installation are easier than ever.
Specifications
Features
- X-HORIZON™ design that reduces shift force, ghost shifting and chain slap
- 12-tooth X-SYNC™ pulley wheels
- Fully compatible with all SRAM 1x™ drivetrains
- Most affordable fully featured 1x rear derailleur in the industry
Specification
-
Use: MTB
-
Group: NX
-
Cage: long
-
Mounting: Direct mounting
-
Gears: 11 times
-
Compatibility: SRAM 1x11
-
Max Differerenz front: 12 teeth
-
Total capacity: 42 teeth
Material
-
Outdoor cage: Steel
-
Inner cage: Steel
Weight
Technologies
CAGE LOCK™
With CAGE LOCK™ technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just pushing the cage forward to create slack and lock it into place.
ROLLER BEARING CLUTCH™
ROLLER BEARING CLUTCH™ rear derailleurs deliver maximum drivetrain stability—even through the most punishing terrain. With ROLLER BEARING CLUTCH™ technology, derailleur bounce and chain slap are eliminated without sacrificing precision.
X-ACTUATION™
Developed specifically for SRAM 1X, X-ACTUATION keeps shifting sharp and consistent across the entire 10- to 42-tooth cassette.
X-HORIZON™
The X-HORIZON™ rear derailleur’s ‘straight parallelogram’ design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.
X-SYNC™
SRAM X-SYNC™ 1X chain rings provide the highest level of performance and durability. The SRAM X-SYNC™ tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC™ chain rings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC™ rings are an integral part of the SRAM 1X™ drivetrain.
