The X0 AXS Transmission group is the answer to the demand for a robust and reliable circuit for your enduro needs - the most robust high-performance circuit from Sram. The new Transmissions take a holistic approach to the circuit of a bike: the entire system is synchronized and gives you a superior driving experience.

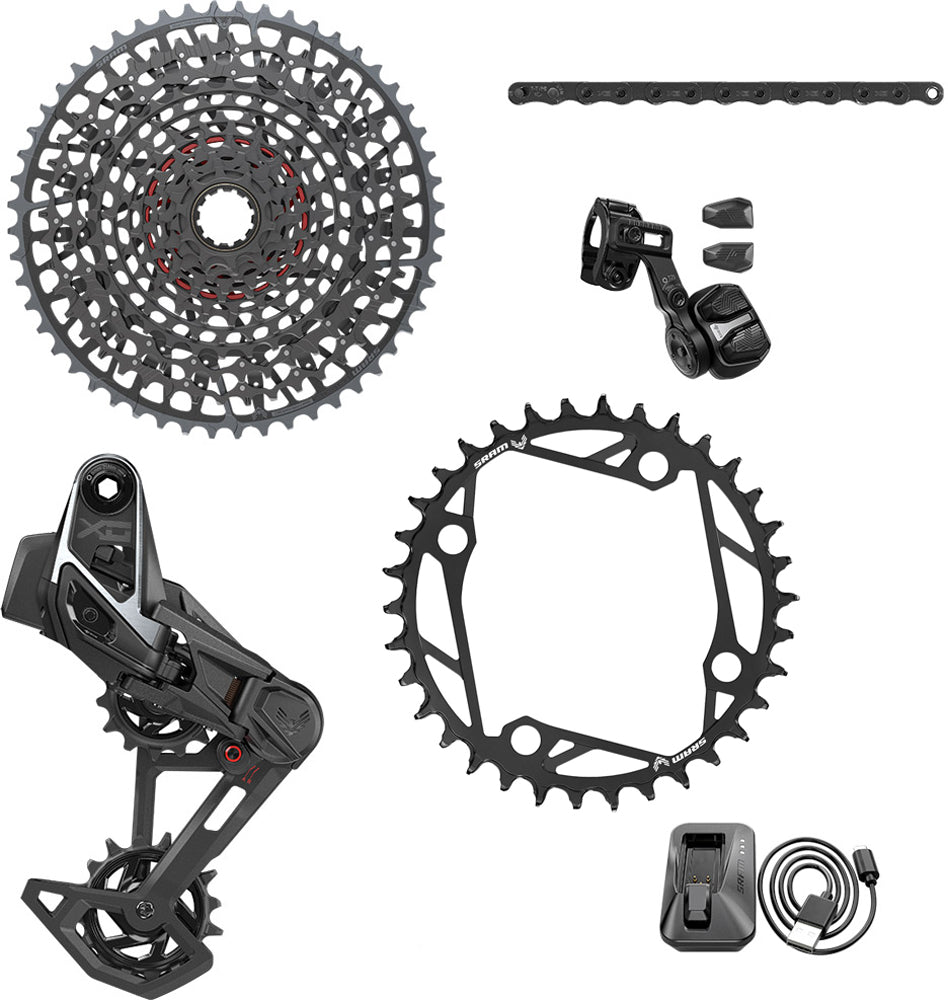

Contents

• 1 x Eagle Transmission E-MTB Chainring 104 BCD incl. Clip-On Guard
• 1 x X0 Eagle Transmission Rear Derailleur 12-speed
• 1 x AXS POD Ultimate Controller incl. Discrete Clamp
• 1 x X0 Eagle Transmission Flattop Chain
• 1 x Eagle Cassette XS-1295 10-52T 12-speed
• 1 x Battery
• 1 x Charger

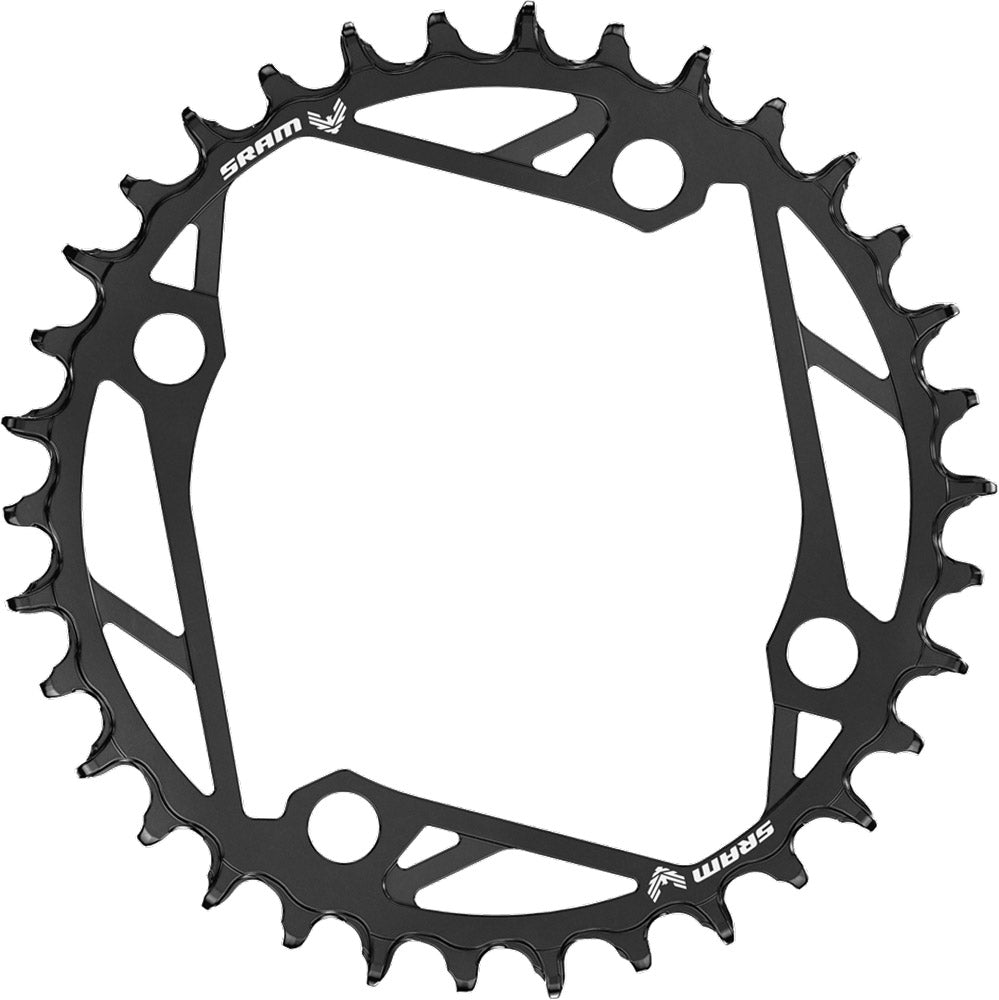

SRAM Eagle Transmission E-MTB Chainring 104 BCD

Features

• Backwards compatible with other Eagle Technology
• AeroGuard compatible with steel rings that fulfils EN 15194:2017 standard

Specification

• Use: E-MTB
• Mounting: 4-Holes
• BCD: 104mm
• Suitable for: 12-speed

Size

• 36T

Material

• Steel

Colour

• Black

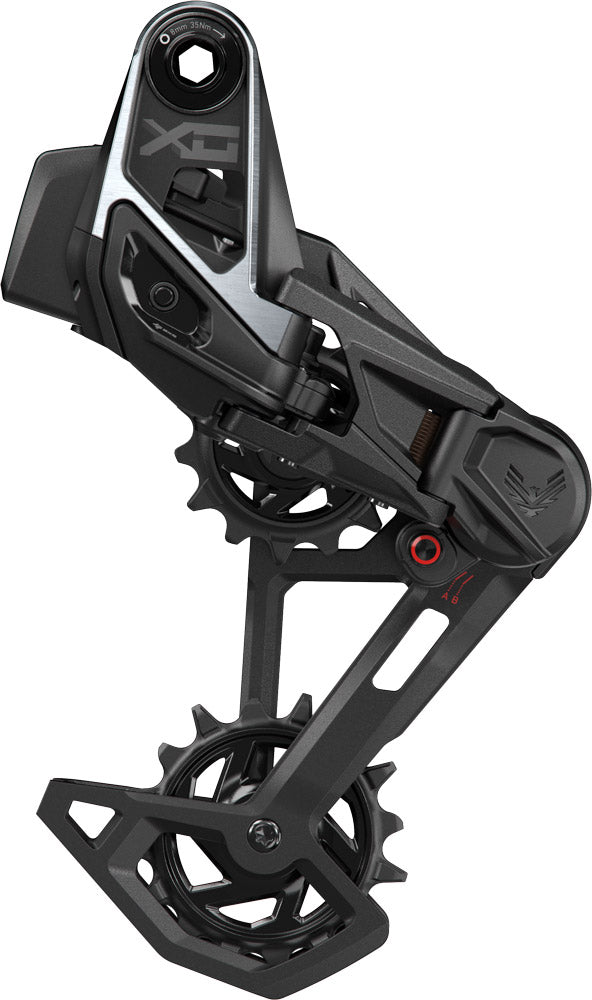

SRAM X0 Eagle Transmission 12-speed Rear Derailleur

Features

• Hangerless Interface, Full Mount attachment method
• Competition proven strength and reliability
• Install and pair via the reliable and familiar standard AXS set-up and pairing procedure
• Premium precision made to last
• Overload Clutch
• Replaceable B-Knuckle cover and outer link

Specification

• Use: MTB
• Group: X0 Eagle Transmission
• Gears: 1 x 12
• Max. tooth: 52T

Material

• Cage: Aluminium

Colour

• Black/Silver

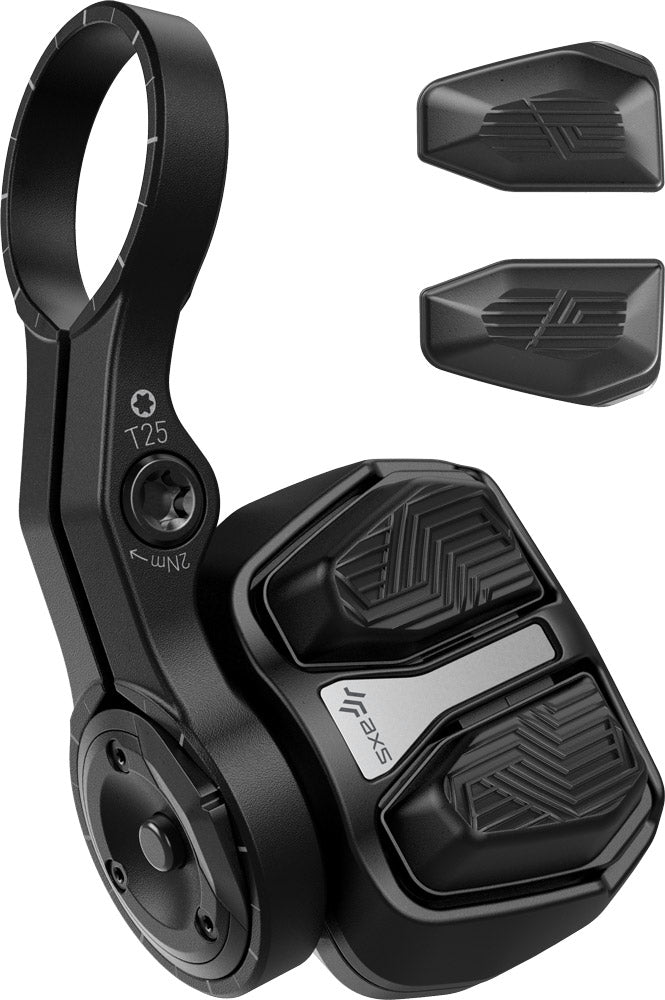

SRAM AXS Pod Ultimate Controller

Features

• Lighter weight, better and more adaptable ergonomics, superior adjustability, premium finish
• All-new “click and fire” two-button design. Intuitive and straightforward action requiring the ideal amount of rider input
• Personalize paddle options for complete customizability via the AXS™ App
• Deluxe version allows for interchangeable concave and convex buttons

Specification

• Use: MTB
• Default Function: AXS - Rear Derailleur
• Orientation: Right/Left
• Clamp: Discrete
• Compatible with ANT+ devices: Yes
• Multi-position: Yes
• Battery size: CR2032

Colour

• Black

SRAM X0 Eagle Transmission Flattop Chain

Features

• Strongest SRAM chain ever. Specifically engineered for Eagle Transmission
• Flattop profile, unbelievable shifting performance, game-changing aesthetics
• Electroless Nickel plating for optimal corrosion and wear resistance with PVD coating

Specification

• Use: MTB
• Gear: 12-speed
• Compatible Gears: Eagle™ T-Type
• Length: 126 Links
• Chain connector: PowerLock®
• Outer Plate: Nickel + PVD
• Inner Plate: Chrome plated + PVD
• Pin Treatment: Chrome hardened
• Pin: Solid Pin

Colour

• Dark Polar

Weight

• 114 Links: 256 g (manufacturer information)

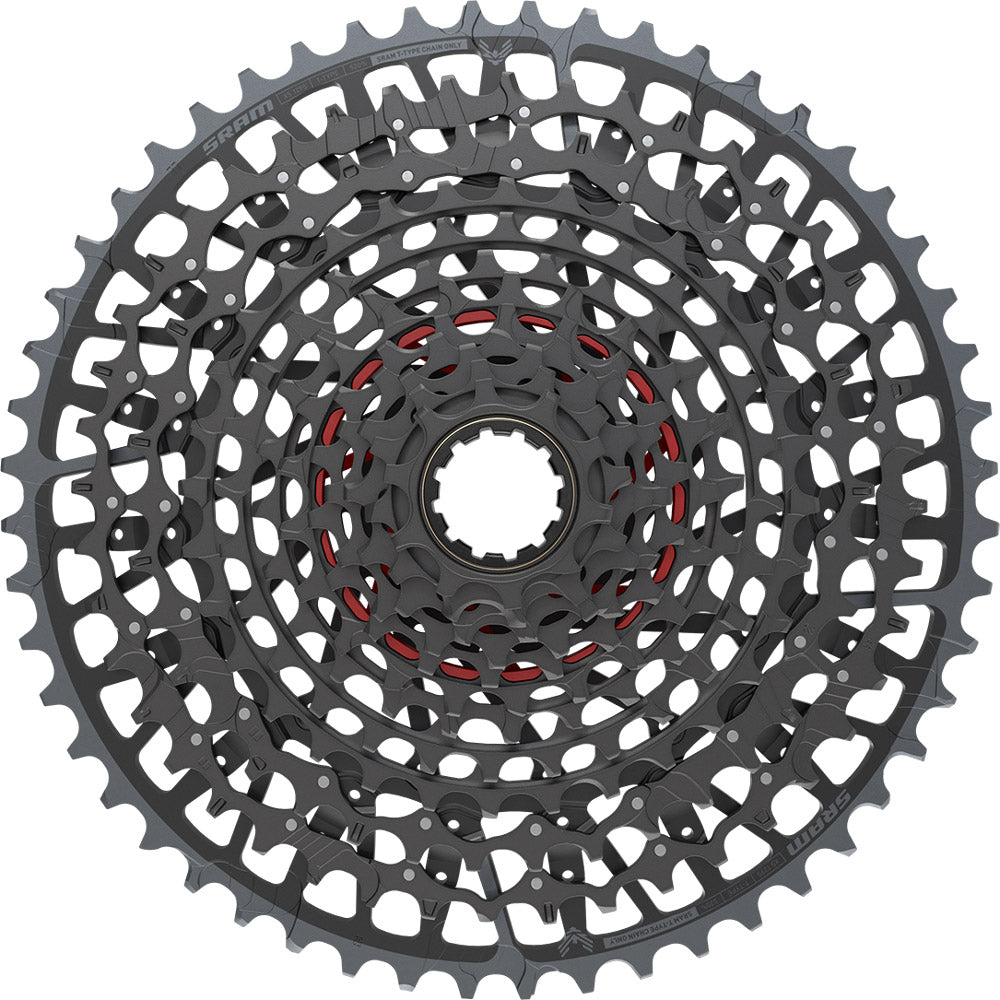

Sram X0 Eagle Transmission XS-1295 Cassette

Features

• Full X-SYNC for best-ever inboard and outboard shifting performance under load. Optimized gear steps on low end
• 55mm chainline compatibility for more moderate chain angle, longer wear and greater precision
• Setup Cog for fool-proof set up
• Utilizes well accepted and broadly available XD driverbody
• Features X-DOME with a lighter aluminium 12th gear
• Fully E-MTB approved

Specification

• Use: MTB
• Model: XS-1295
• Speeds: 12-speed
• Teeth: 10-52
• Gear Ratios: 10-12-14-16-18-21-24-28-32-38-44-52

Compatibility

• Only compatible with XD™ Driver Body

Material

• steel (gears 1-11)
• aluminium (gears 12)

Colour

• Black
