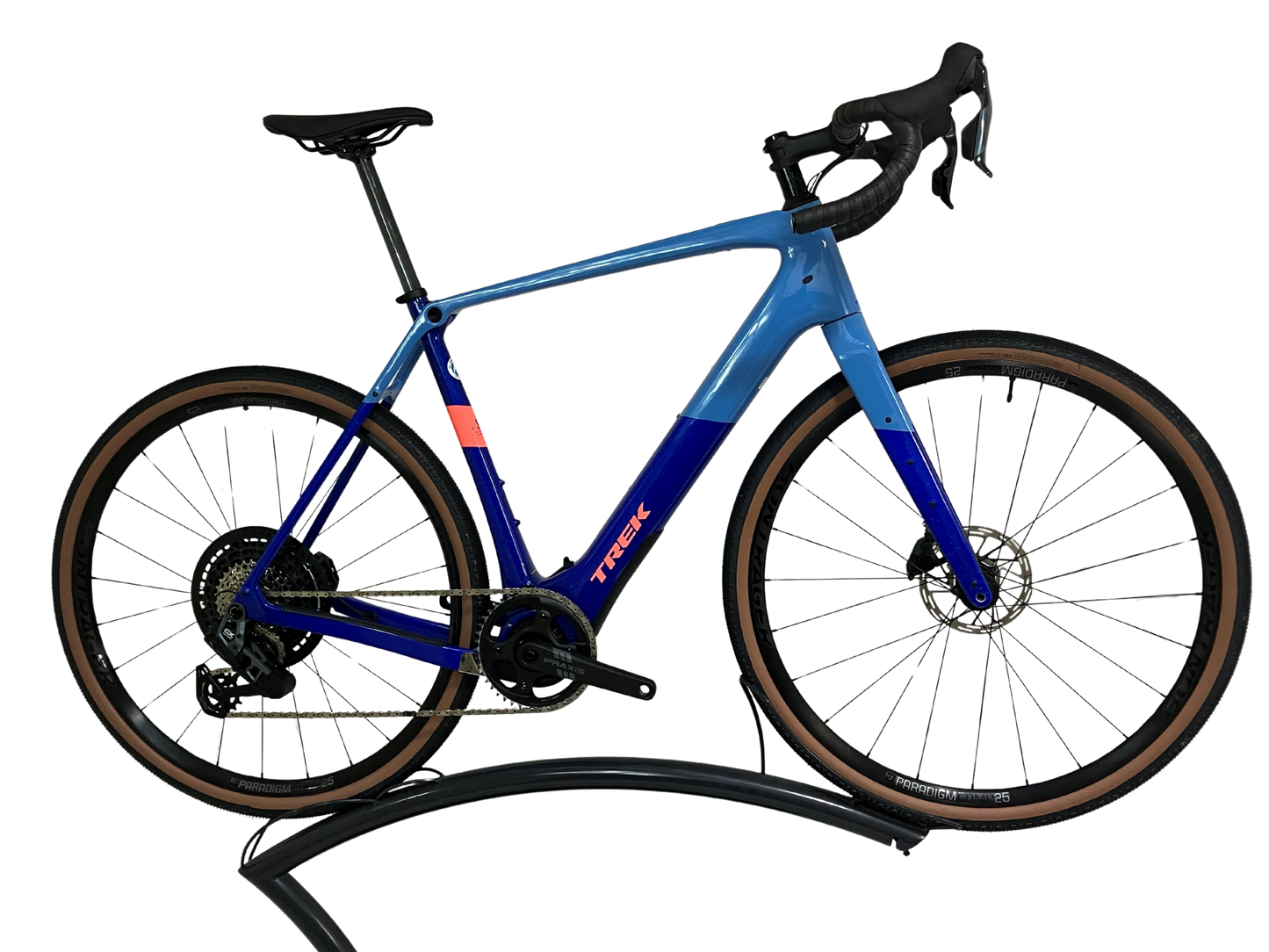

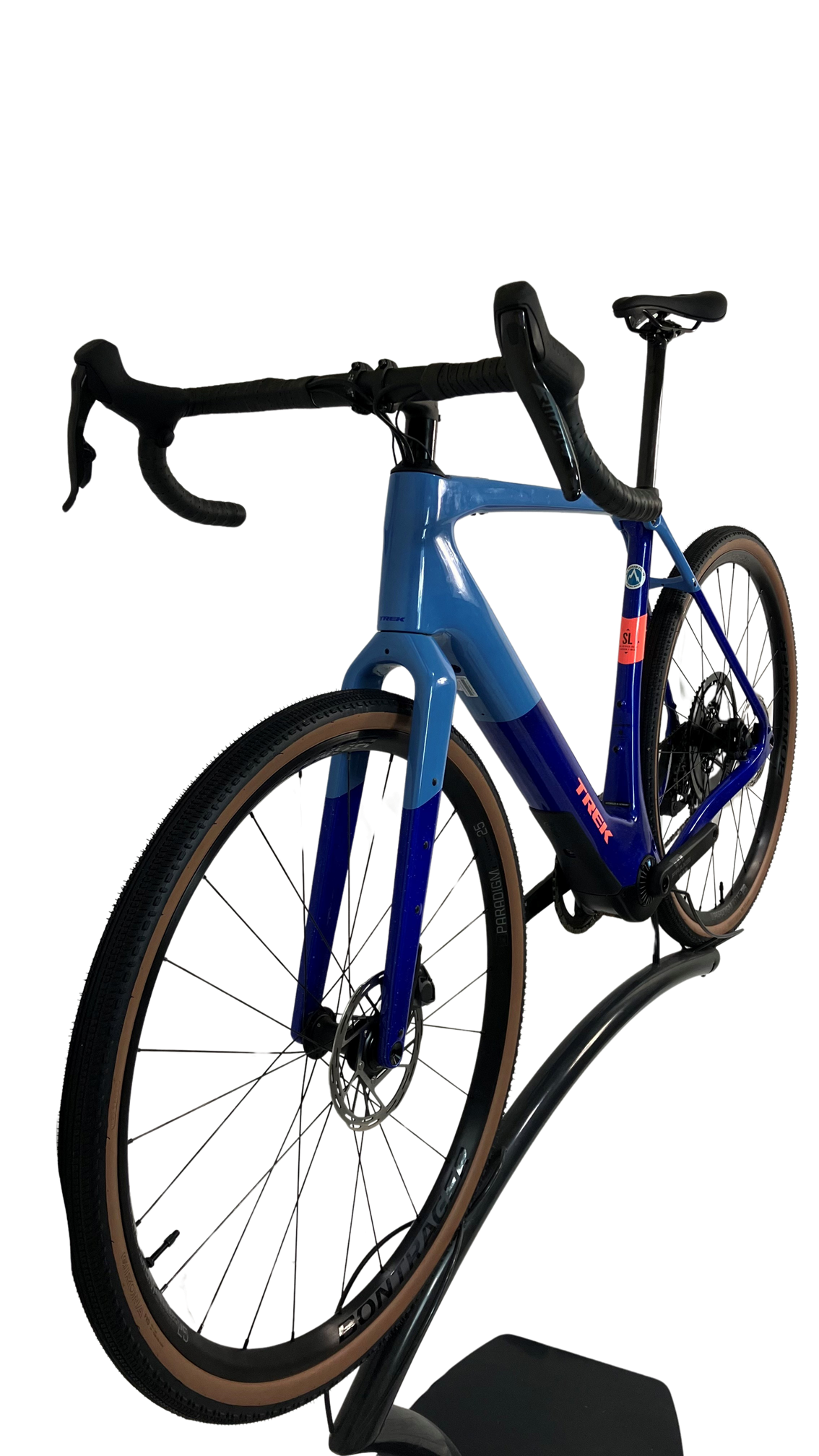

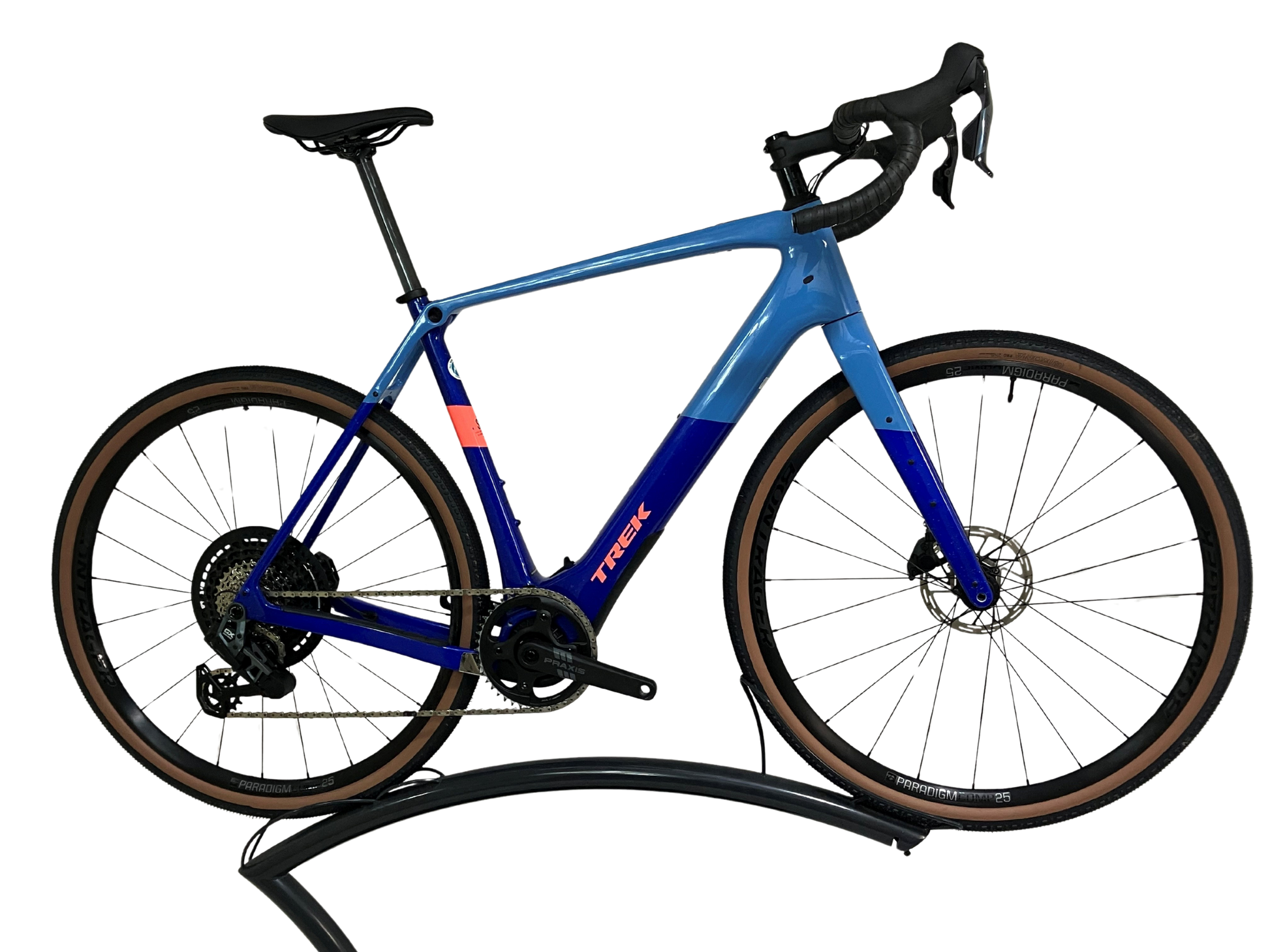

TREK CHECKPOINT + SL 6 AXS GRAVEL eBIKE 2026 FJORD BLUE/COBALT BLUE **EX DEMO**

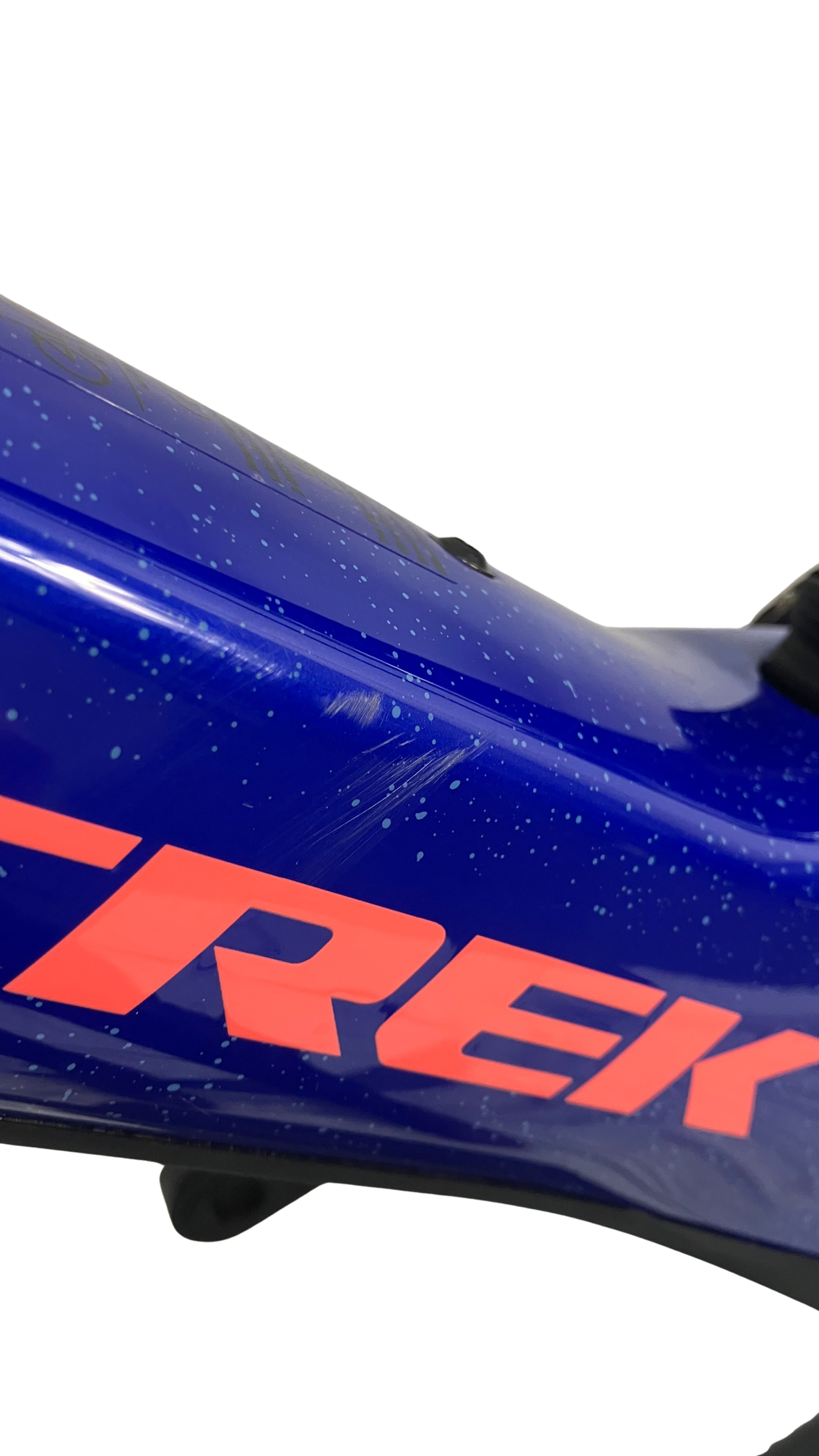

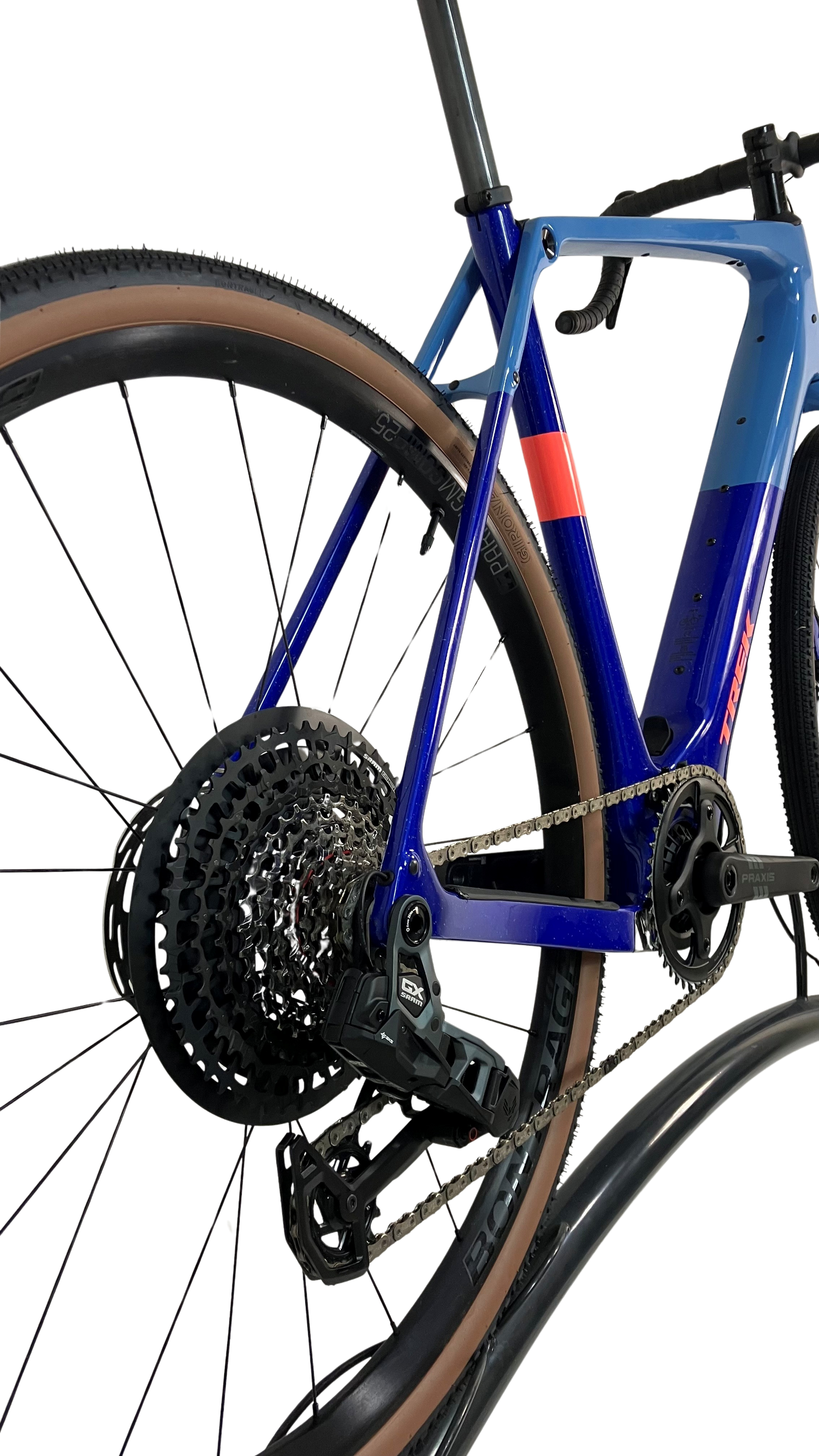

**THIS BIKE HAS BEEN LIGHTLY RIDDEN SEE IMAGES. FOR FURTHER DETAILS PLEASE EMAIL sales@allterraincycles.co.uk **

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

The Checkpoint+ SL 6 AXS is a carbon electric gravel bike for extending your adventures.

It's ready to explore anywhere, with a smooth-and-quiet TQ HPR 60 motor, SRAM GX AXS wireless 12-speed drivetrain, clearance for 50 mm tyres and loads of mounts for gear.

Key Features

• Range extender compatible: You can add on a Range Extender that fits neatly in the bottle cage
• TQ harmonic pin ring motor Motor: Discreet, compact, light and whisper-quiet, and offers a powerful assist up to 15.5 mph
• Adventure-ready SRAM drivetrain: GX AXS wireless electronic drivetrain provides precise shifting


Specification

• Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
• Fork: Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
• Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
• Battery: TQ 360Wh

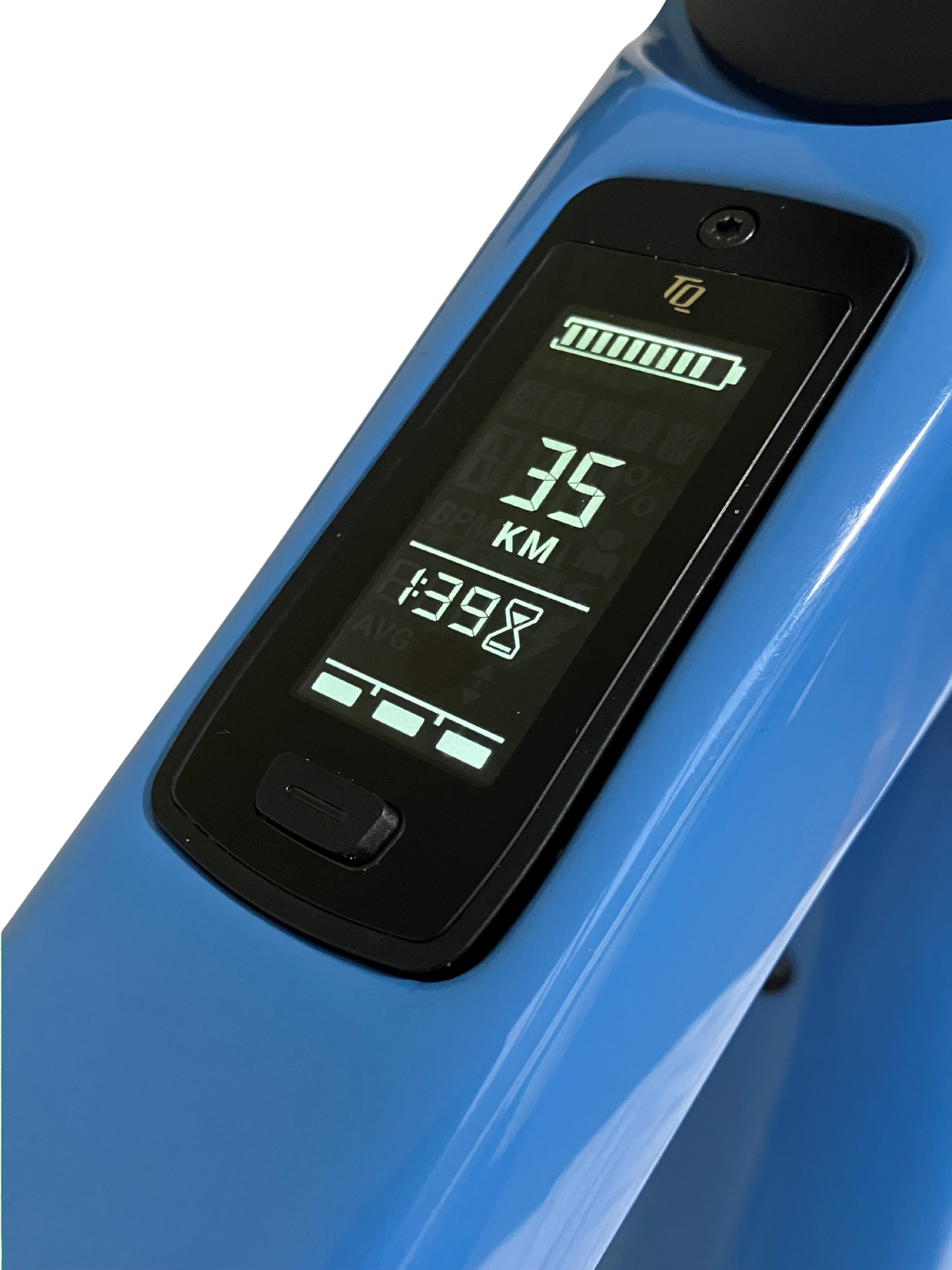

• Controller: TQ LED display with Bluetooth & ANT+ connectivity
• Shifters: SRAM Rival AXS, 13-speed

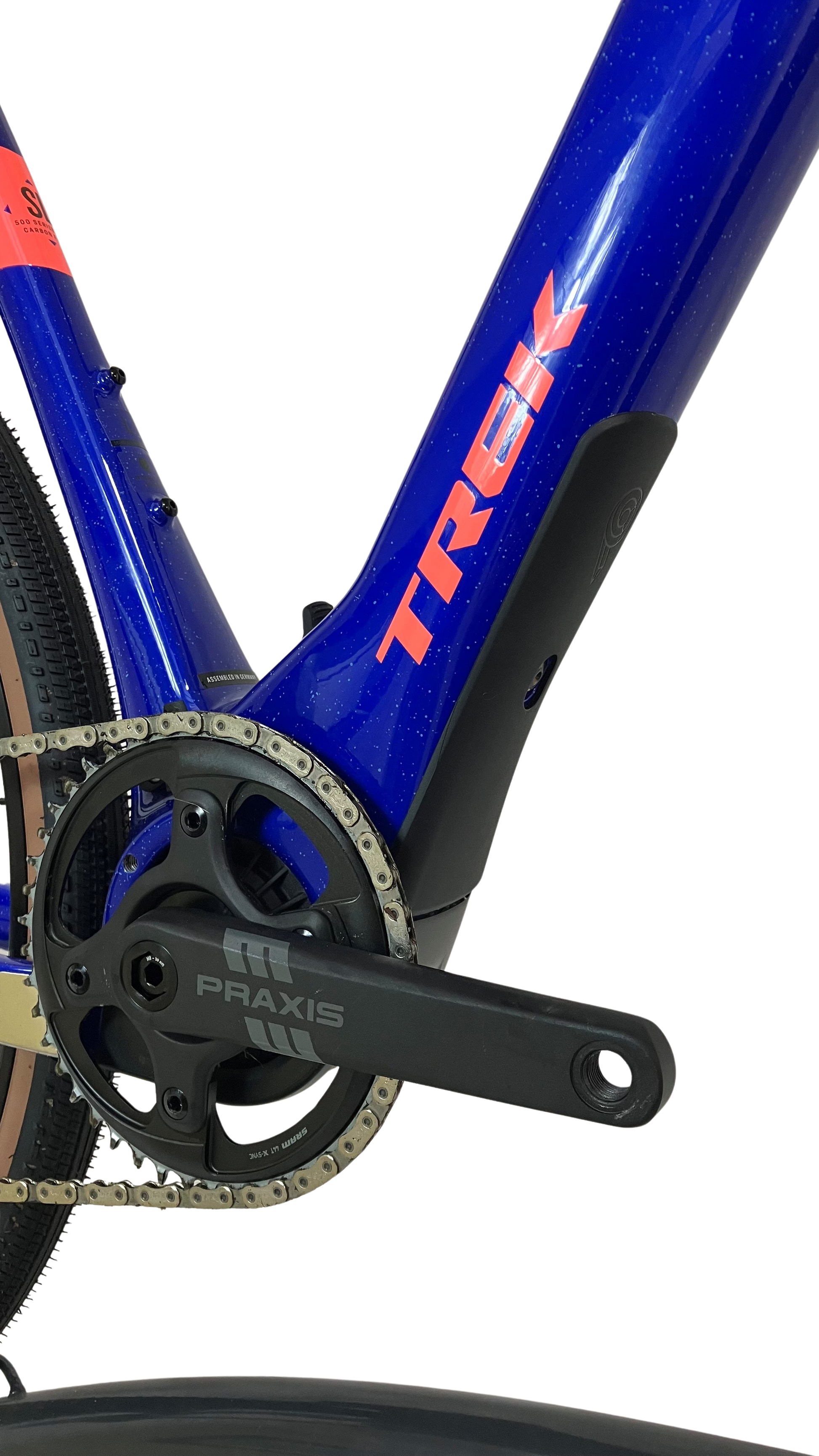

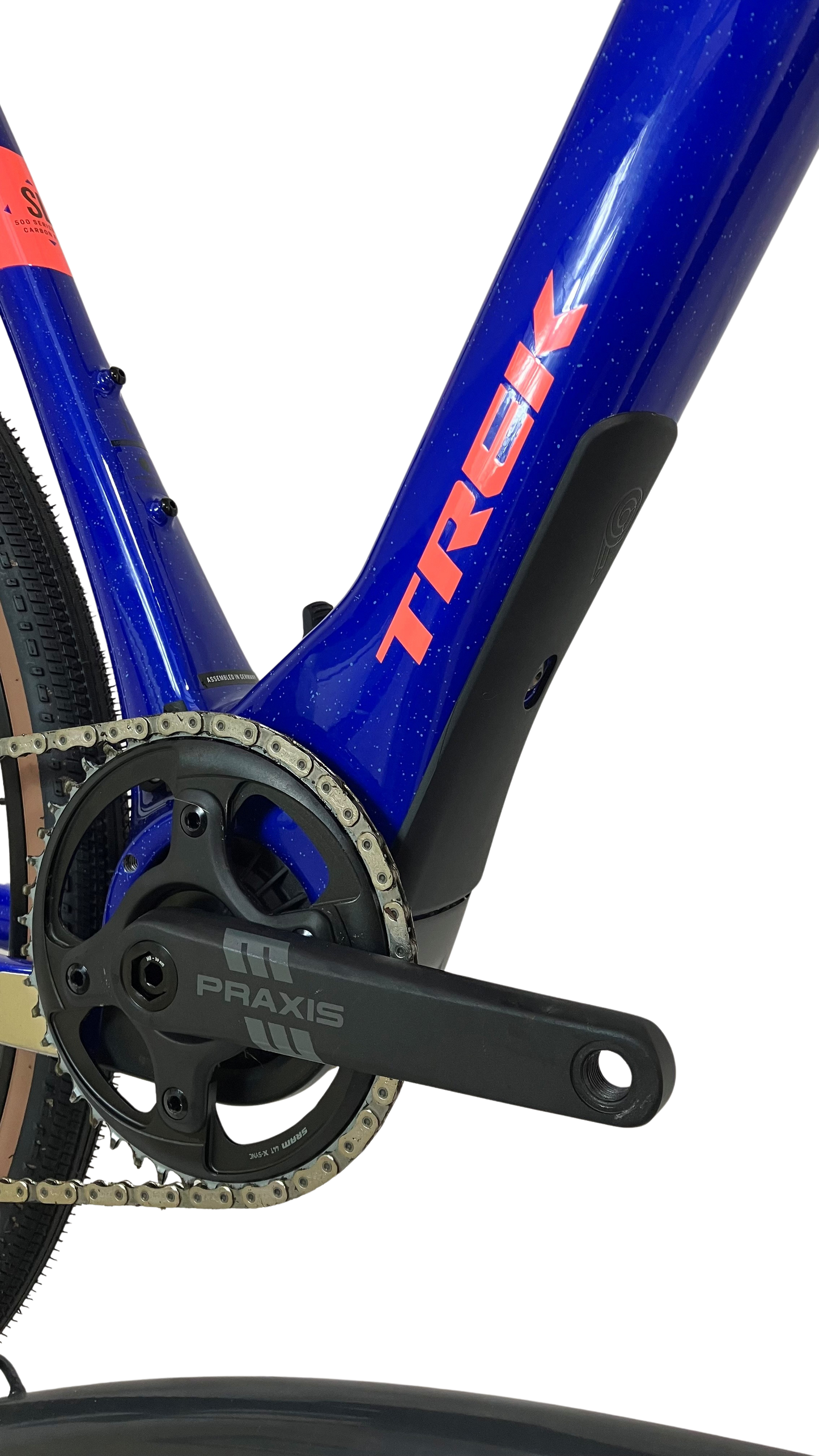

• Crankset: Praxis Alloy, XS/S 165mm, M/ML 170mm, L/XL 172.5mm
• Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
• Chain: SRAM GX Eagle, T-Type, 12-speed
• Rear Derailleur: SRAM GX Eagle AXS, T-Type
• Pedals: Not supplied
• Rims: Bontrager Paradigm Comp 25
• Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
• Brakes: SRAM Paceline, rounded, CentreLock, 160 mm
• Handlebars: Bontrager Elite Gravel, Alloy. XS/S 40cm, M/ML 42cm, L 44cm, XL 46cm
• Bar Tape: Bontrager Supertack Perf tape
• Stem: Trek Pro, -7-degree, XS 70mm, S/M 80mm, ML/L 90mm, XL 100mm
• Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

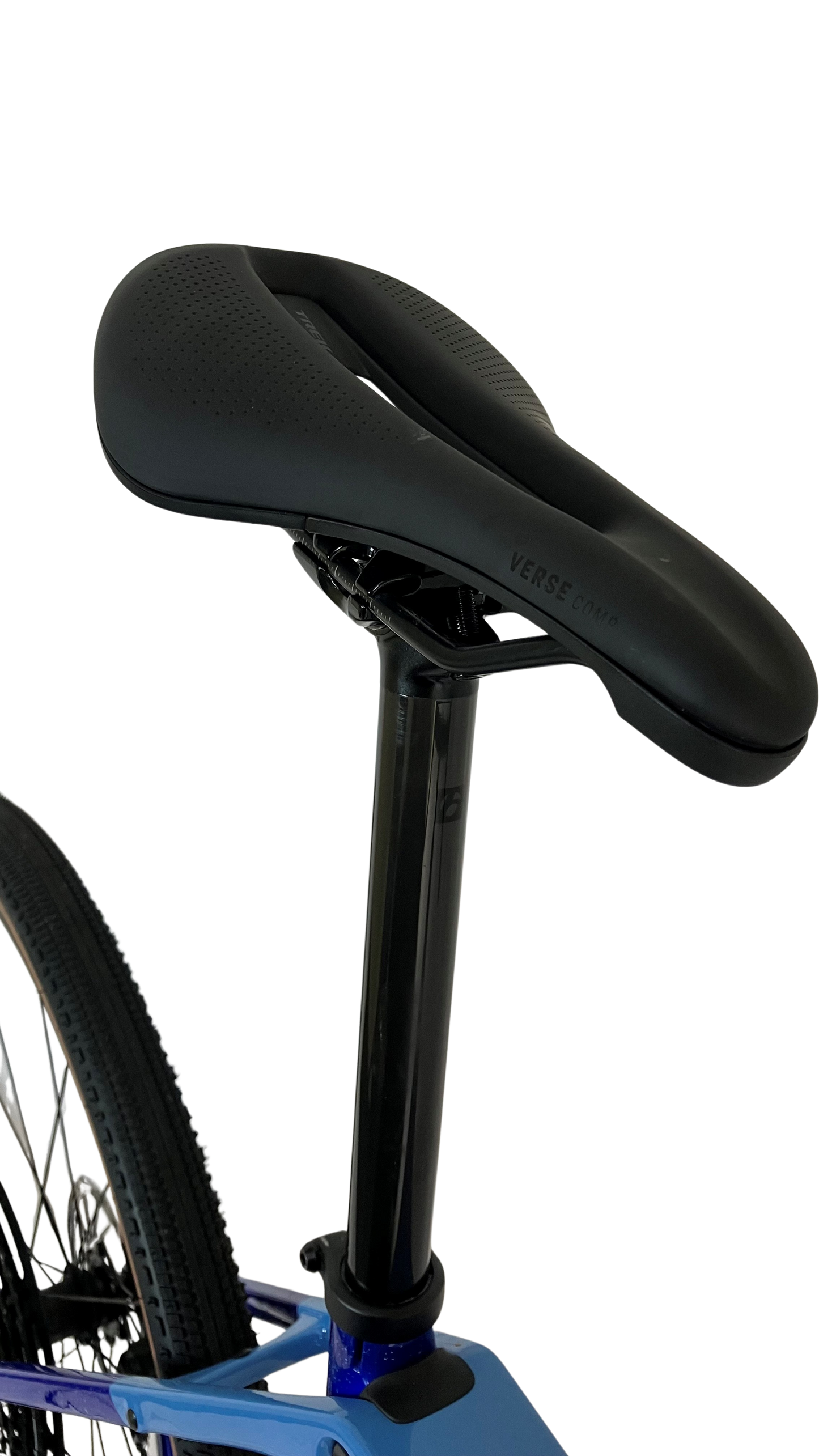

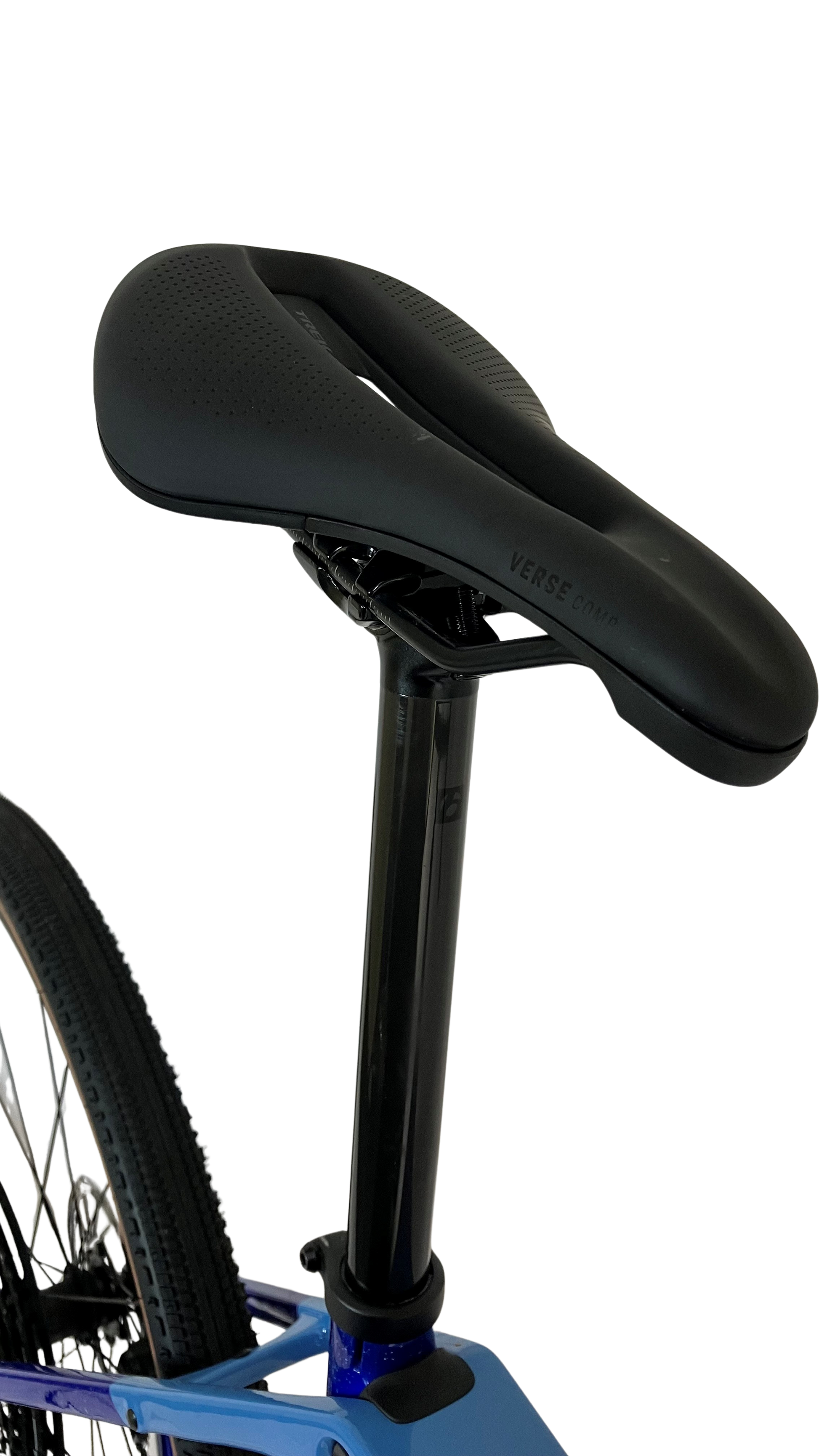

• Saddle: Verse Short Comp 145mm, Steel Rails
• Accessories: TQ 4A charger, Max Tyre size 50c without mudguards, 42c with mudguards, Bontrager TLR sealant, 180 ml/6 oz
• Weight: ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)

• SKU: 57441

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
