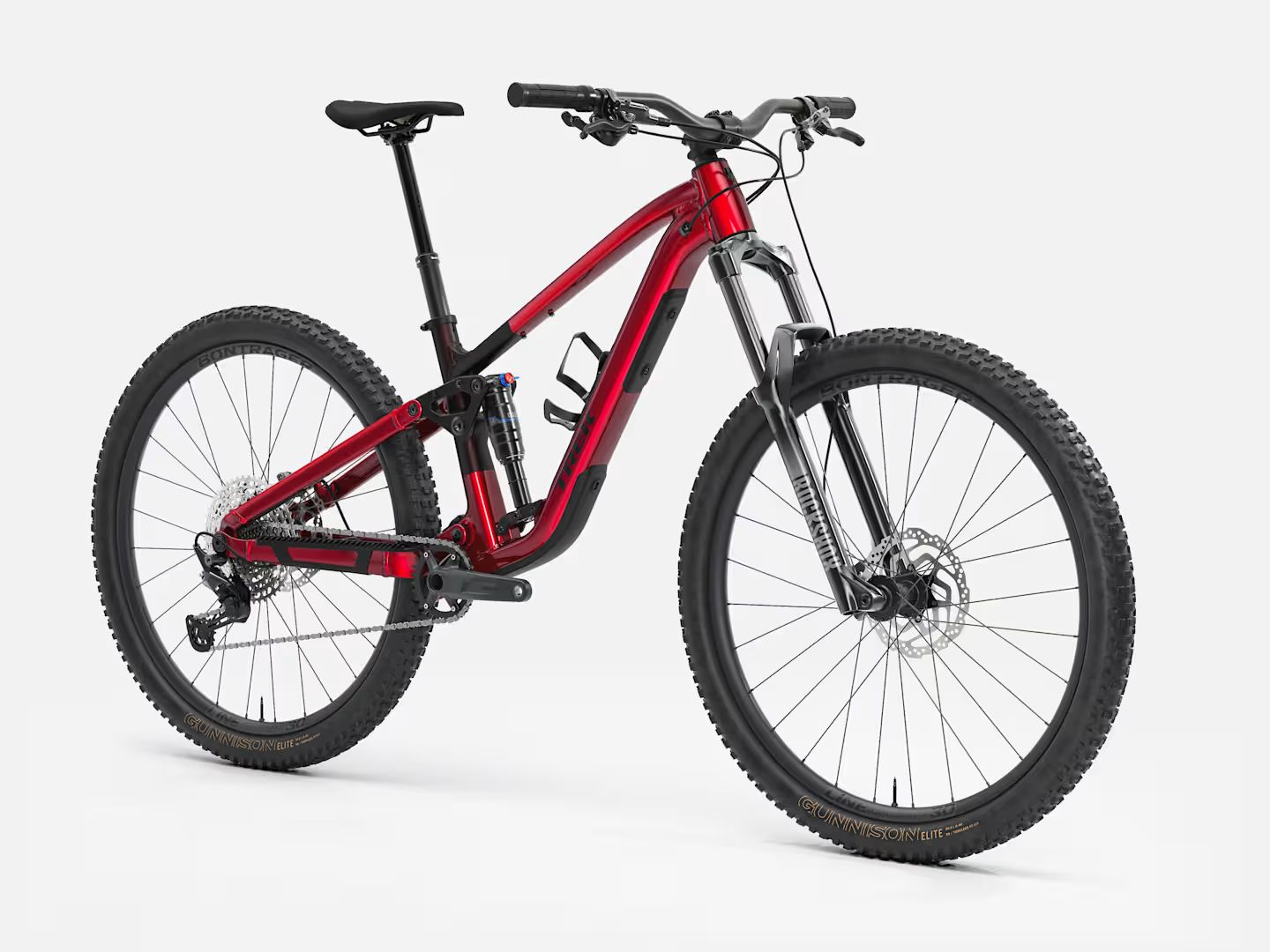

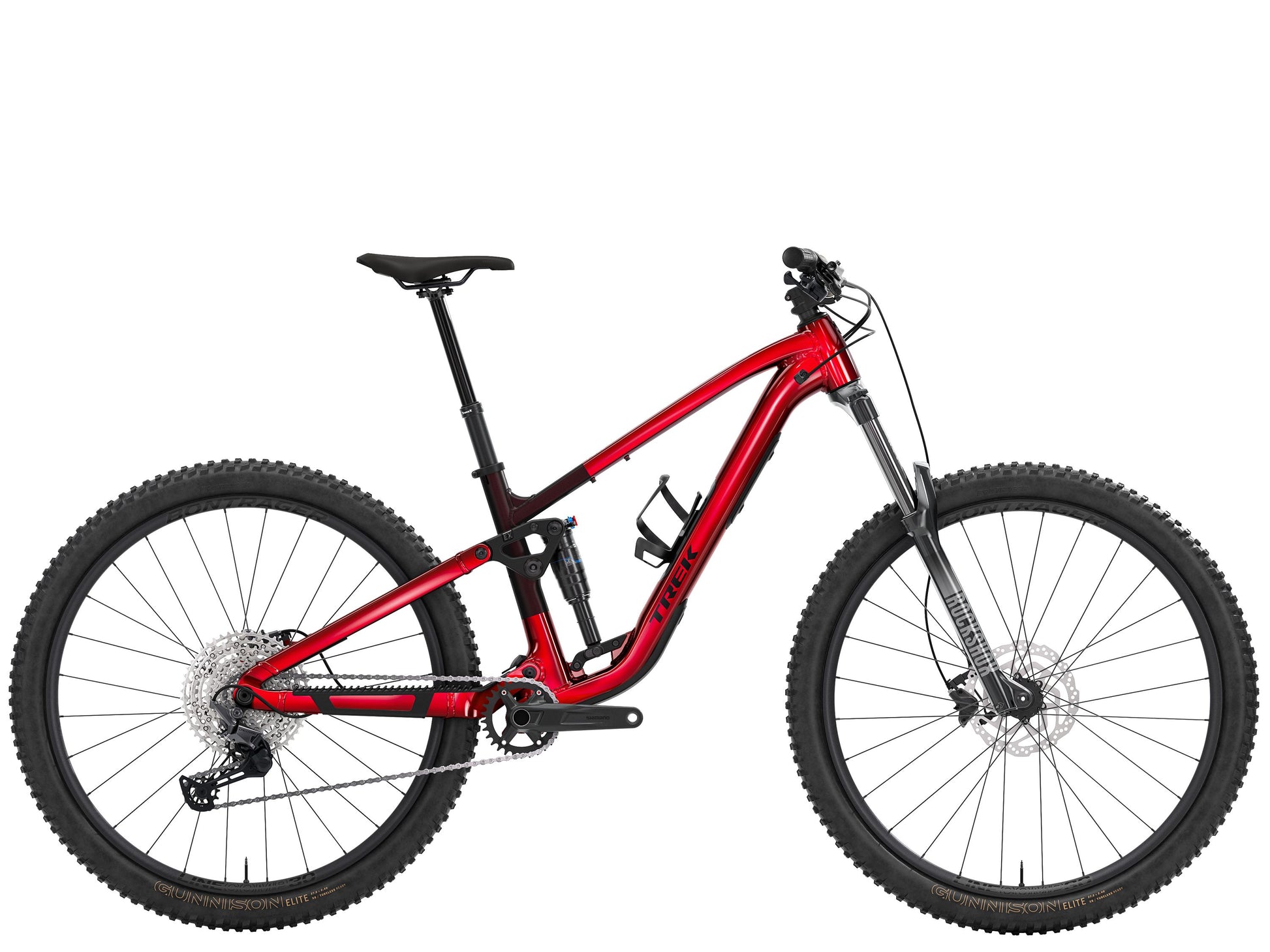

TREK FUEL EX 5 GEN 7 MTB BIKE 2026 GLOSS FURY RED/MATTE DARK CARMINE

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride.

It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.

Key Features

• Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
• Frame Storage: The Alpha Platinum Aluminium frame is robust, yet light, and packs in updated internal frame storage for easy access to gear and snacks
• 12-Speed Shimano Deore Gears: Perfect for all terrain

Full Specification

• Frame: Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
• Rear Shock: X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
• Fork: Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travelm travel
• Shifters: Shimano Deore M6100, 12-speed
• Crankset: Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
• Cassette: Shimano Deore M6100, 10-51, 12-speed
• Chain: Shimano Deore M6100, 12-speed
• Rear Derailleur: Shimano Deore M6100, long cage
• Bottom Bracket: Shimano BB-MT501 BSA
• Pedals: Not supplied
• Rims: Bontrager Line TLR 30 27.5˝ Rim
• Front Hub: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
• Rear Hub: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
• Tyres: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
• Brakes: Shimano hydraulic disc, MT201 lever, MT200 calliper
• Handlebars: Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
• Grips: Trek Line Comp, nylon lock-on
• Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
• Saddle: Bontrager Verse Short, stainless steel rails
• Seatpost: Size: S - TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, Size: M, L, XL - TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
• Weight: M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)

• SKU: 56310

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
