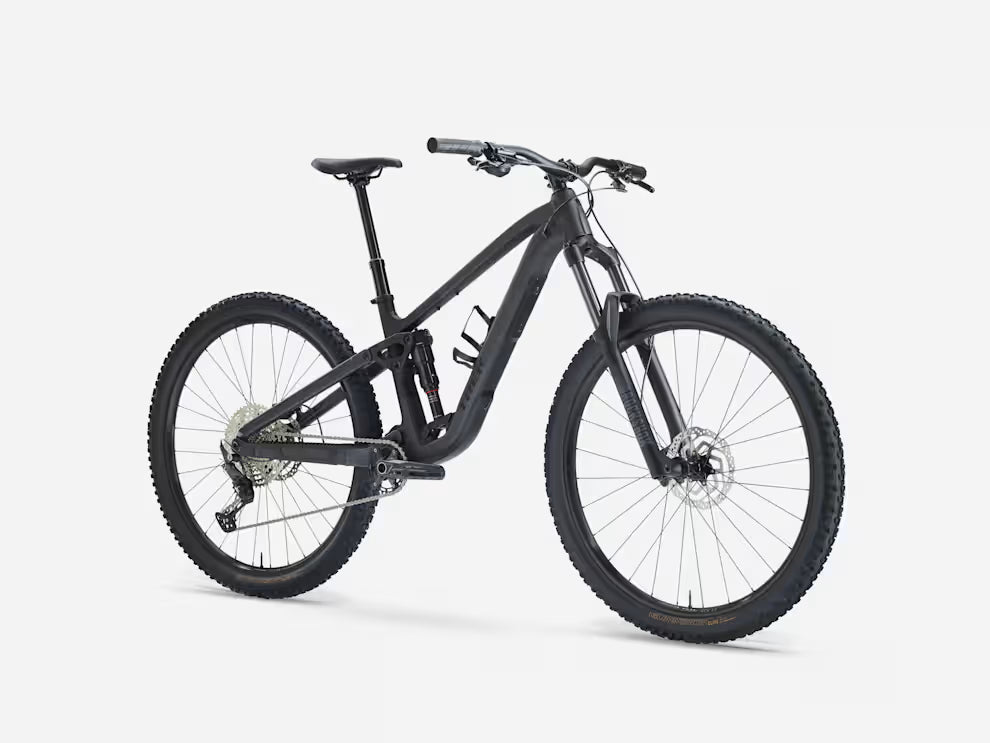

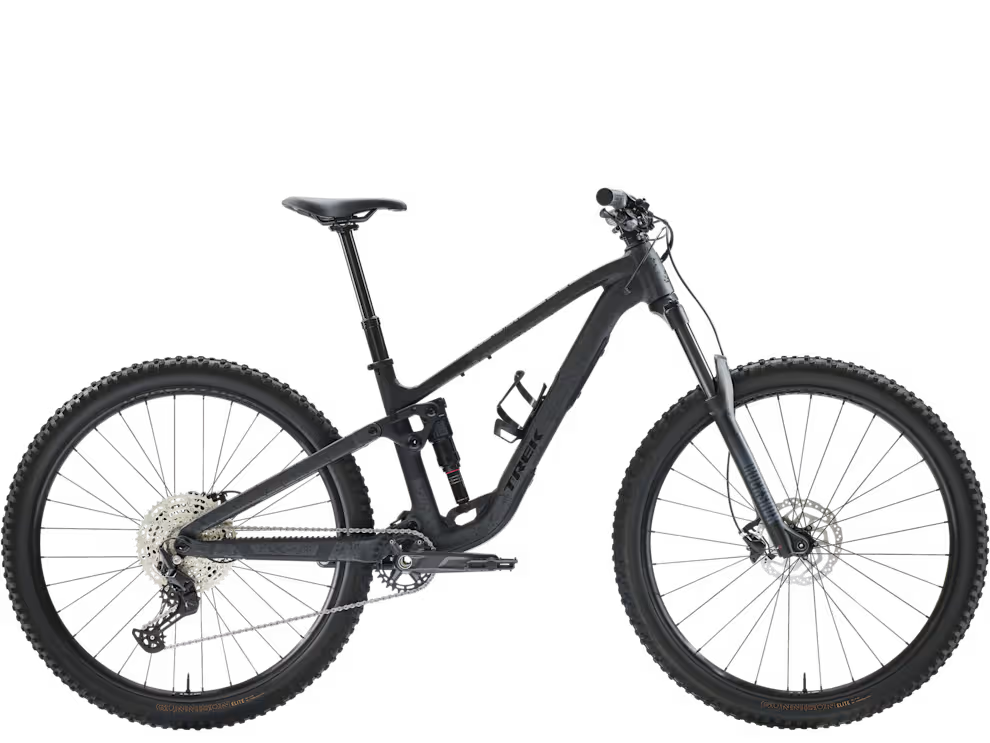

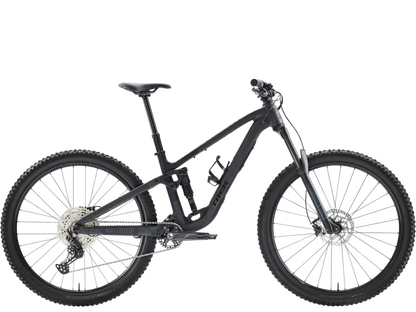

TREK FUEL EX 5 GEN 7 MTB BIKE 2027 LITHIUM GREY/TREK BLACK SPLATTER

Skip to product information
1 of 2

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride.

It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.

This generation 7 model combines lightweight aluminium construction with capable suspension geometry, making it ideal for tackling technical terrain and maintaining control on descents. The dropper post allows quick seat height adjustments between climbs and descents, whilst the tubeless-ready wheels reduce rolling resistance and puncture risk on demanding trails.

Whether you're exploring local singletrack or pushing into more challenging terrain, the Fuel EX 5 delivers the performance and reliability you need to ride with confidence.


Features

  • Capable Trail Suspension: RockShox Recon Silver RL fork and Deluxe Select rear shock provide 150mm front and 145mm rear travel for confident trail riding.
  • Trail-Ready Components: Shimano Deore 12-speed drivetrain and hydraulic disc brakes deliver reliable performance on climbs and descents alike.
  • Modern Trail Features: Integrated frame storage, tubeless-ready wheels and a TranzX dropper post help you ride further with greater confidence.

Full Specification

  • Frame: Alpha NEXT Platinum Aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145-160mm
  • Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
  • Shifters: Shimano Deore M6200
  • Crankset: Shimano XT M8120 / Shimano MT520 Deore, 30T, size-specific lengths
  • Cassette: Shimano M6200, 10-51T, 12-speed
  • Chain: Shimano Deore M6100, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano Deore M6200, long cage
  • Bottom Bracket: Shimano BB-MT501 BSA
  • Pedals: Not supplied
  • Rims: Bontrager Line TLR 30, Tubeless Ready, 28/32-hole, Presta valve
  • Front Hub: Shimano TC500 alloy, CentreLock, 15x110mm thru-axle
  • Rear Hub: Shimano TC500 alloy, CentreLock, 12x148mm thru-axle
  • Tyres: Bontrager Gunnison Elite XR, Tubeless Ready, 29x2.40" (27.5x2.40" on size S)
  • Brakes: Shimano MT201 levers with MT200 hydraulic disc calipers, 180mm rotors
  • Handlebars: Bontrager Comp alloy, 31.8mm clamp, 40mm rise, 780mm width
  • Bar Tape: Trek Line Comp nylon lock-on grips
  • Headset: FSA Orbit, sealed cartridge bearings, 1-1/8" upper, 1.5" lower
  • Stem: Bontrager Comp, 31.8mm clamp, 7°, 35mm
  • Saddle: Bontrager Verse Short, stainless steel rails
  • Seatpost: TranzX JD-YSI34 dropper post, internal routing, 150mm (S) / 170mm (M-XL)
  • Accessories: Integrated frame storage, Bontrager TLR rim strips, Bontrager Switch rear thru-axle
  • Weight: 16.88kg (size M, with TLR sealant, no tubes)
TREK FUEL EX 5 GEN 7 MTB BIKE 2027 LITHIUM GREY/TREK BLACK SPLATTER
0 ( 0  Reviews )

Est. Dispatch
Size
Regular price £2,000.00
Regular price £2,000.00 Sale price £2,000.00
Price Match
If you find the same bike cheaper, we'll try to match the price.
More information
  • SKU: 5348785
  • EPOS Code:
View full details

Product Description

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride.

It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.

This generation 7 model combines lightweight aluminium construction with capable suspension geometry, making it ideal for tackling technical terrain and maintaining control on descents. The dropper post allows quick seat height adjustments between climbs and descents, whilst the tubeless-ready wheels reduce rolling resistance and puncture risk on demanding trails.

Whether you're exploring local singletrack or pushing into more challenging terrain, the Fuel EX 5 delivers the performance and reliability you need to ride with confidence.


Features

  • Capable Trail Suspension: RockShox Recon Silver RL fork and Deluxe Select rear shock provide 150mm front and 145mm rear travel for confident trail riding.
  • Trail-Ready Components: Shimano Deore 12-speed drivetrain and hydraulic disc brakes deliver reliable performance on climbs and descents alike.
  • Modern Trail Features: Integrated frame storage, tubeless-ready wheels and a TranzX dropper post help you ride further with greater confidence.

Full Specification

  • Frame: Alpha NEXT Platinum Aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145-160mm
  • Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
  • Shifters: Shimano Deore M6200
  • Crankset: Shimano XT M8120 / Shimano MT520 Deore, 30T, size-specific lengths
  • Cassette: Shimano M6200, 10-51T, 12-speed
  • Chain: Shimano Deore M6100, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano Deore M6200, long cage
  • Bottom Bracket: Shimano BB-MT501 BSA
  • Pedals: Not supplied
  • Rims: Bontrager Line TLR 30, Tubeless Ready, 28/32-hole, Presta valve
  • Front Hub: Shimano TC500 alloy, CentreLock, 15x110mm thru-axle
  • Rear Hub: Shimano TC500 alloy, CentreLock, 12x148mm thru-axle
  • Tyres: Bontrager Gunnison Elite XR, Tubeless Ready, 29x2.40" (27.5x2.40" on size S)
  • Brakes: Shimano MT201 levers with MT200 hydraulic disc calipers, 180mm rotors
  • Handlebars: Bontrager Comp alloy, 31.8mm clamp, 40mm rise, 780mm width
  • Bar Tape: Trek Line Comp nylon lock-on grips
  • Headset: FSA Orbit, sealed cartridge bearings, 1-1/8" upper, 1.5" lower
  • Stem: Bontrager Comp, 31.8mm clamp, 7°, 35mm
  • Saddle: Bontrager Verse Short, stainless steel rails
  • Seatpost: TranzX JD-YSI34 dropper post, internal routing, 150mm (S) / 170mm (M-XL)
  • Accessories: Integrated frame storage, Bontrager TLR rim strips, Bontrager Switch rear thru-axle
  • Weight: 16.88kg (size M, with TLR sealant, no tubes)
