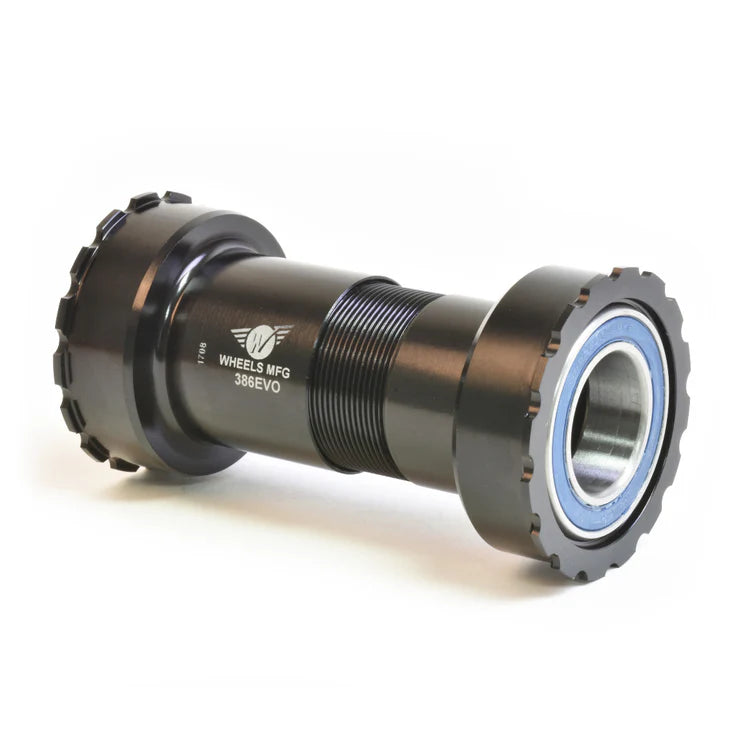

Engineered for 386EVO frames and 22/24mm diameter spindle cranks, this bottom bracket features machined aluminium cups that thread together for rock-solid stability.
The angular contact design extends bearing life and eliminates the hassle of complex installation and maintenance. Say goodbye to creaking. Experience smooth, silent operation every ride. When bearings need replacing, swap them out in minutes—no special tools required. Thread together BB for 386EVO frames and 24mm diameter spindle cranks.
Specification
- Drive Side Bearing: Enduro Angular Contact
- Non-Drive Side Bearing: Enduro ABEC-3
- Colour: Black
- Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
- Bottom Bracket Shell Width (mm): 86mm - 92mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 22/24mm
- Over Bearing Width: 91.8mm in 86.5mm wide shell
- Tool Pattern: 16 Notch 48.5
- Weight: 145g
- Over Bearing Width Dimensions include supplied silicone dust shields.
Contents
- 1 x Wheels Mfg 386EVO Angular Contact BB for 24/22mm (SRAM) Cranks
