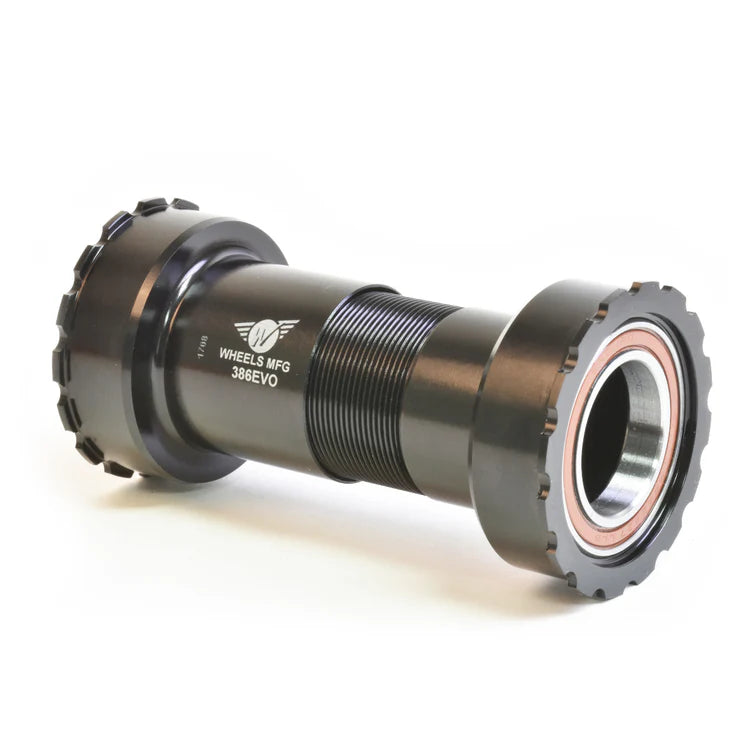

Thread together BB for 386EVO frames and 24mm diameter spindle cranks.
Machined aluminium cups thread together for stability, increased bearing life, and simple installation and maintenance. No more creaking. Smooth operation. Fast bearing replacement. Compatible with Shimano-compatible 24mm spindle cranks and 386EVO bottom bracket shells. The threaded cup design eliminates play and reduces noise whilst making maintenance straightforward — replace bearings without removing the entire unit.
Specification
- Bearings: Enduro Angular Contact
- Colour: Black
- Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
- Bottom Bracket Shell Width (mm): 86mm - 92mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 24mm
- Over Bearing Width: 91.5mm in 86.5mm wide shell
- Tool Pattern: 16 Notch 48.5mm
- Weight: 133g
- Over Bearing Width Dimensions include supplied silicone dust shields.
Contents
- 1 x Wheels Mfg 386EVO Angular Contact BB for 24mm (Shimano) Cranks
