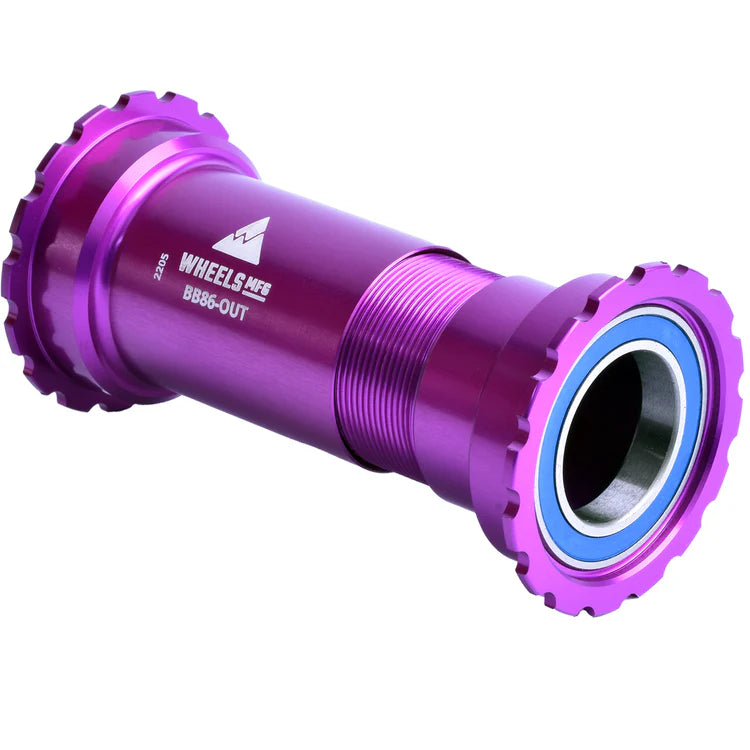

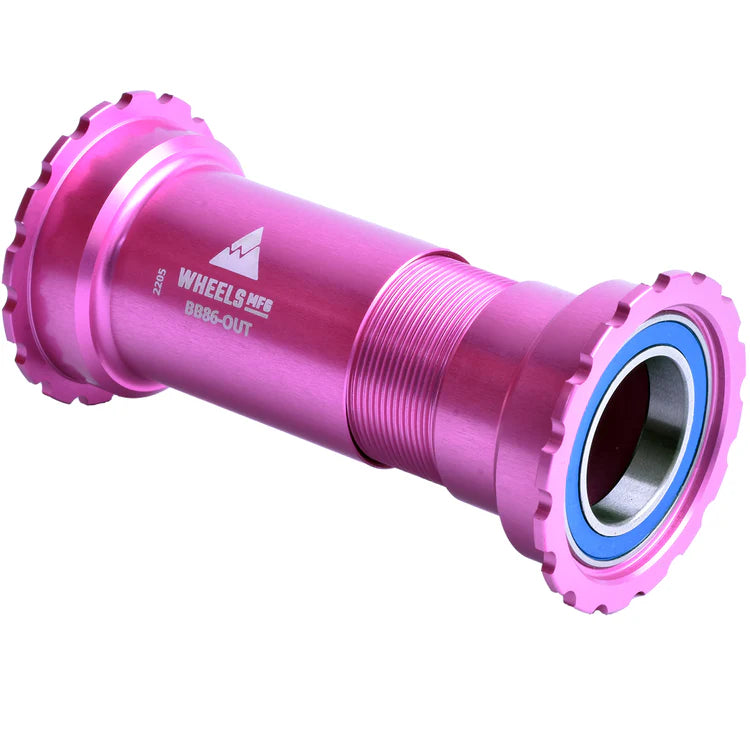

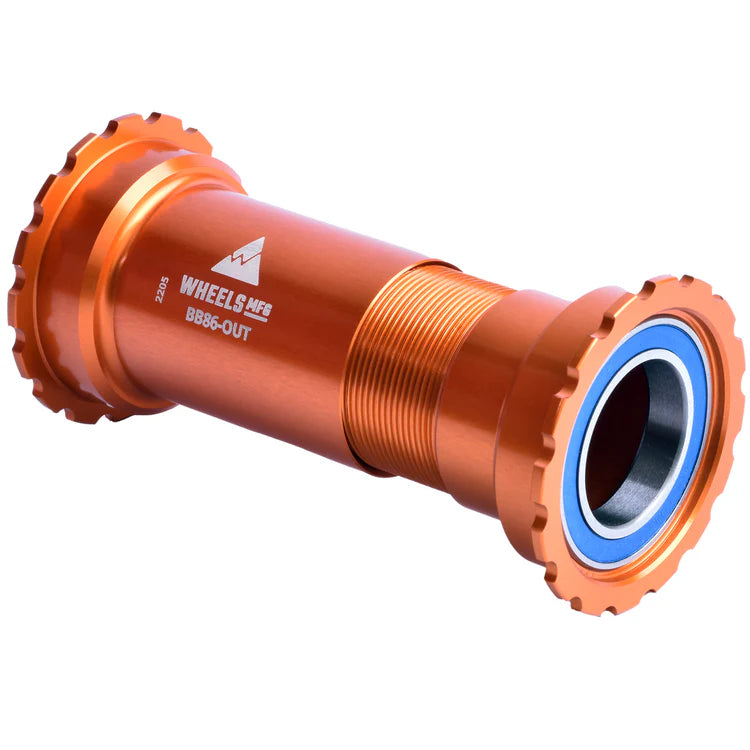

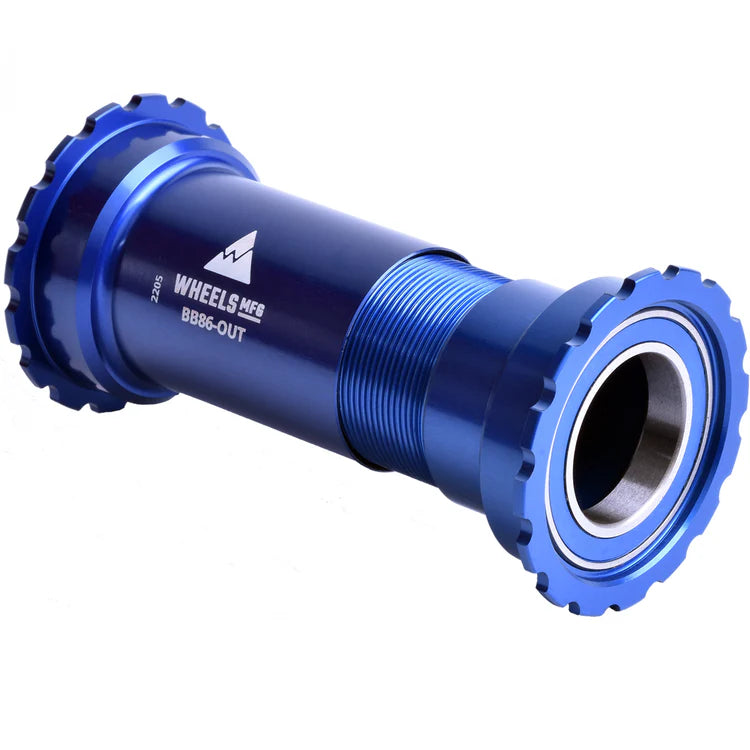

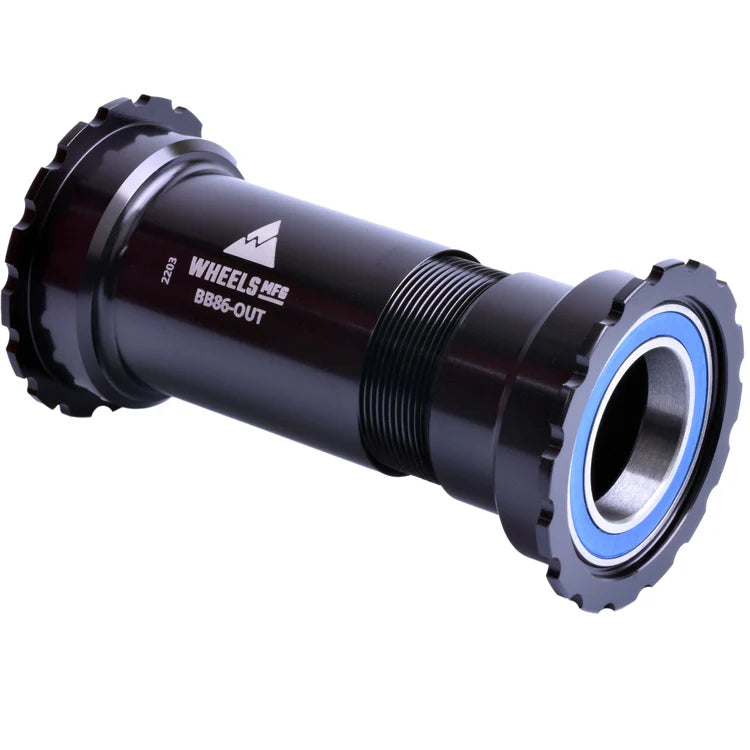

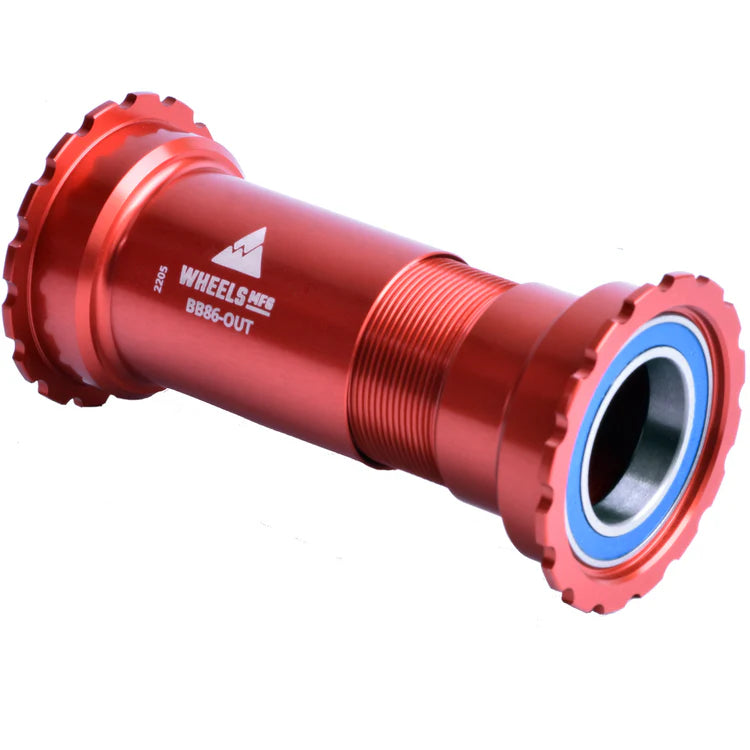

Threaded bottom bracket engineered for BB86, BB92, and PF90 frames with 24mm diameter spindle cranks.
Machined cups thread together to deliver exceptional stability, extended bearing life, and straightforward installation and maintenance. Eliminates creaking and delivers smooth, reliable operation. ABEC-3 bearings ensure consistent performance, while the threaded design allows quick bearing replacement when needed. Built for durability and ease of service.
Specification
- Bearings: Enduro ABEC-3
- Color: Red
- Bottom Bracket/Frame Interface: BB86, BB92, PF90
- Bottom Bracket Shell Width: 86mm - 92mm
- Bottom Bracket Shell I.D.: 41mm
- Over Bearing Width: 93mm in 86.5mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 106g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Colour
- Black
- Blue
- Orange
- Pink
- Purple
- Red
Contents
- BB Cups with bearings
- 2 - Silicone Dust Seal, 24mm ID
- 2 - 0.5mm, 24mm ID Crank Spindle Spacer
- 2 - 1.0mm, 24mm ID Crank Spindle Spacer
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
