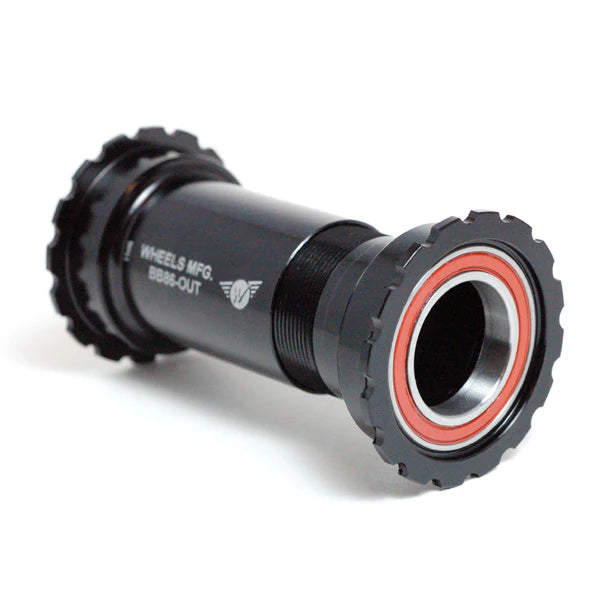

Precision-engineered threaded bottom bracket designed for BB86, BB92, and PF90 frames with 24mm spindle cranks.
The machined cups thread together to create a rock-solid connection that eliminates creaking and delivers smooth, reliable operation. Built for durability with angular contact bearings that extend service life and reduce maintenance hassles. Installation is straightforward, and bearing replacement takes minutes when needed. Experience the difference quality engineering makes to your ride.
Specification
- Bearings: Enduro Angular Contact
- Colour: Black
- Bottom Bracket/Frame Interface: BB86, BB92, PF90
- Bottom Bracket Shell Width: 86mm - 92mm
- Bottom Bracket Shell I.D.: 41mm
- Over Bearing Width: 93mm in 86.5mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 106g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Contents
- 1 x Wheels Mfg BB86/92 Thread Together Angular Contact BB for 24mm (Shimano) Cranks
