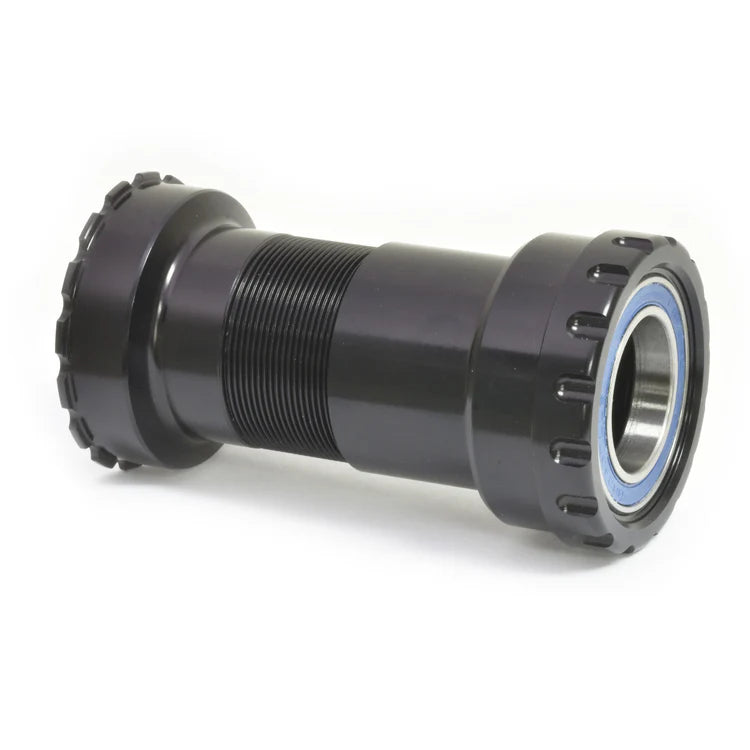

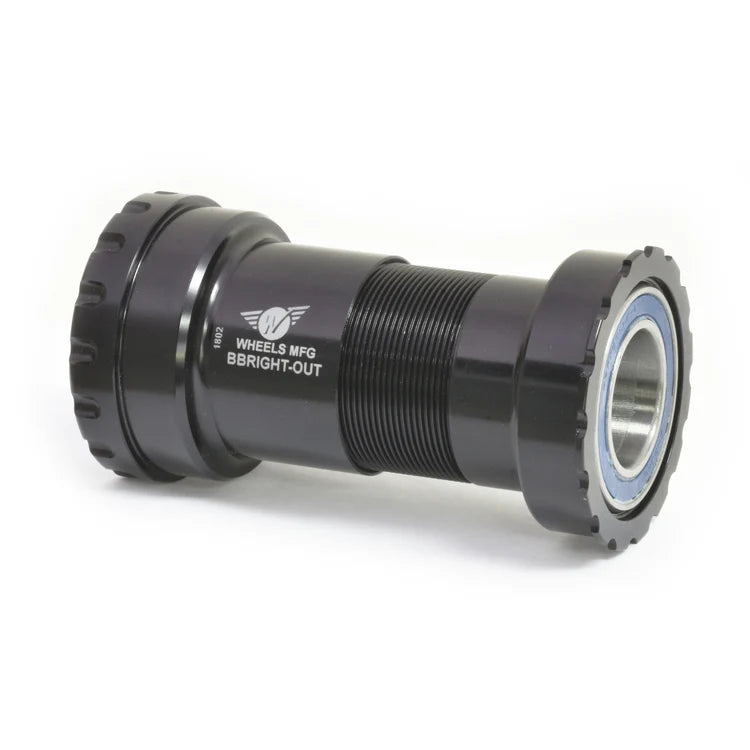

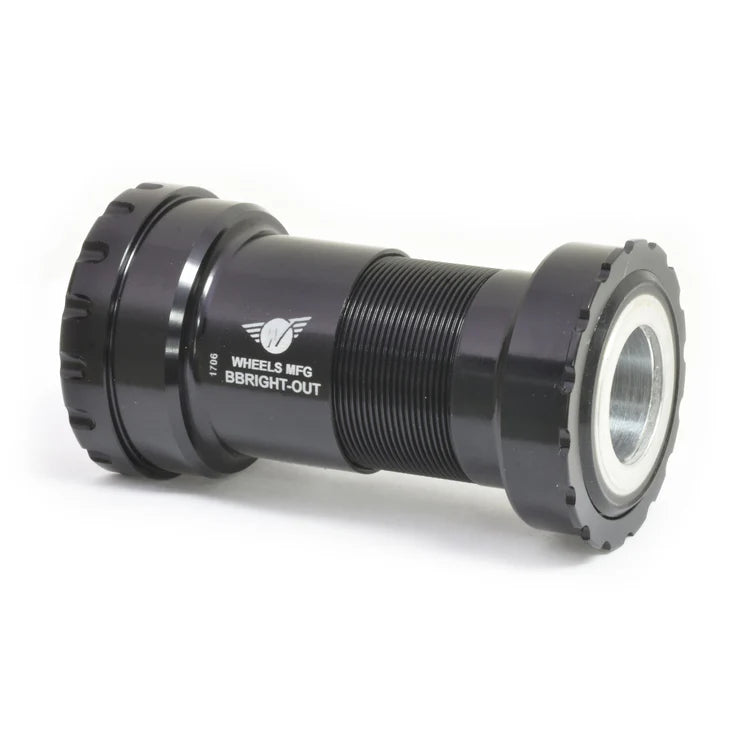

The BBRight™ bottom bracket standard delivers a rock-solid connection between frame and crankset.
Two precision-machined aluminium cups thread together to lock the bottom bracket firmly in place, eliminating play and the creaking that comes with it. This design extends bearing life significantly by reducing movement and stress on internal components. Maintenance becomes straightforward too — when it's time to service or replace bearings, the threaded cup system makes the job quick and hassle-free. You'll notice the difference immediately: smoother pedalling, quieter operation, and a bottom bracket that stays tight season after season. Built with ABEC-3 bearings and sized for 24mm cranks, this is the upgrade that transforms how your bike feels underfoot.
Specification
-
Bearings: Enduro ABEC-3
-
Colour: Black
-
Bottom Bracket/Frame Interface: BBRight™ Press Fit
-
Bottom Bracket Shell Width: 79mm
-
Bottom Bracket Shell I.D.: 46mm
-
Crank Spindle Diameter: 22/24mm
-
Tool Pattern: 48.5mm x 16 notch
-
Over Bearing Width: 92mm in 79mm wide shell*
-
Weight: 164g
Over Bearing Width Dimensions include supplied silicone dust shields.
Notes
Wheels Mfg BBRight™ Outboard BB for use with 24/22mm spindle cranks will not work with the following older Quarq SRAM/GXP powermeter cranksets: SRAM S975, SRAM S2275, CinQo Saturn, Saturn2, and Quatro.
Contents

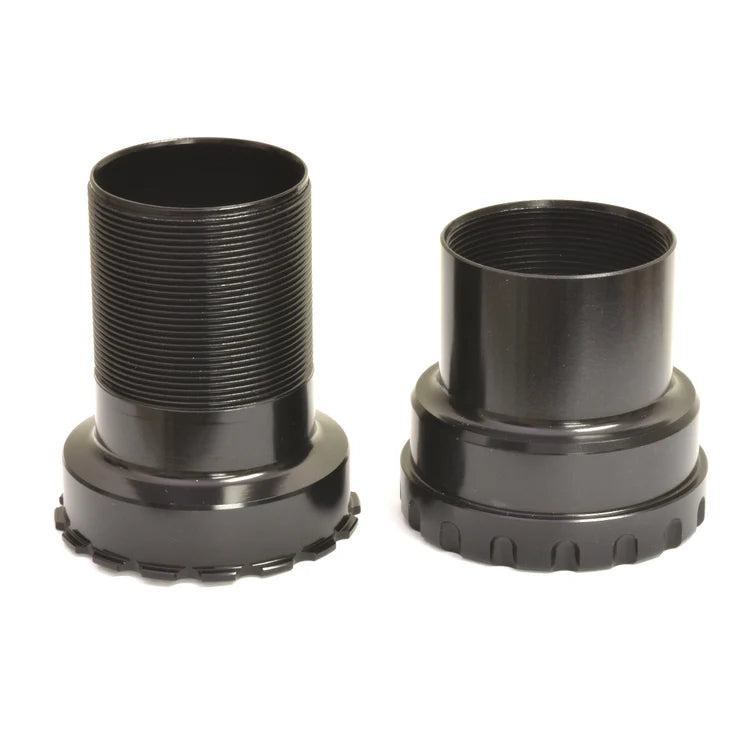

- BB Cups with bearings

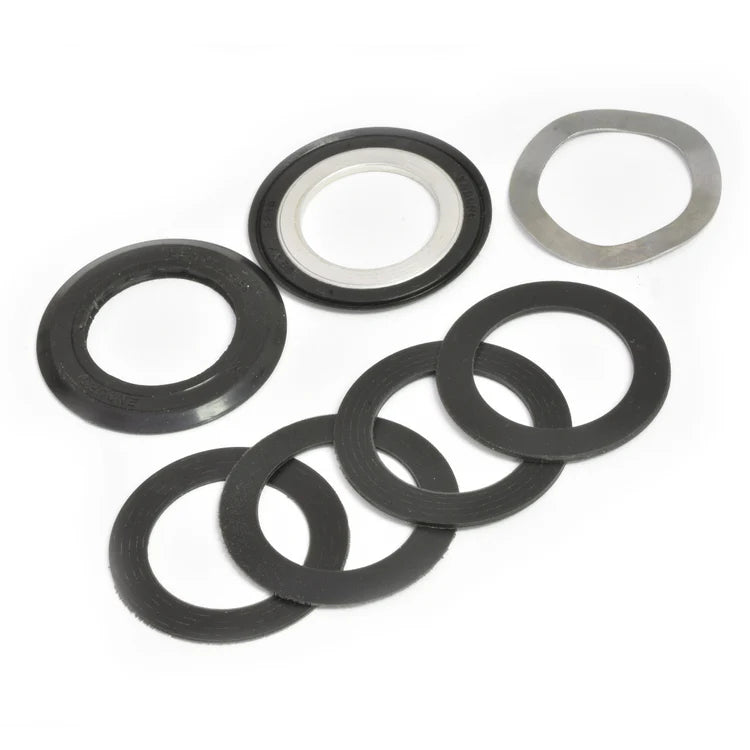

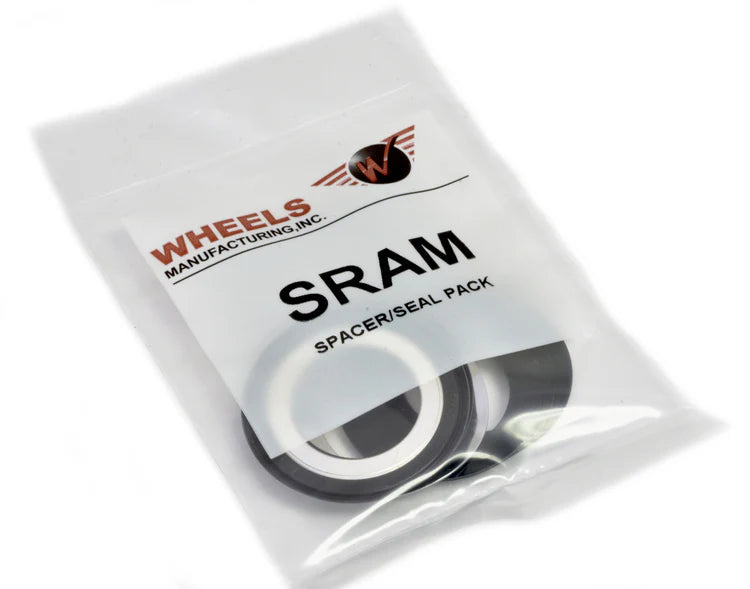

- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers

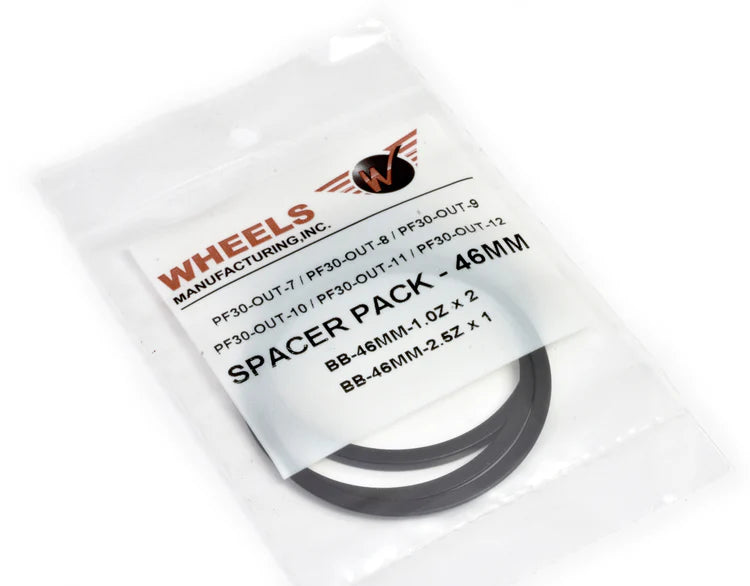

- 2 - 46mm x 1.0mm cup spacers
- 1 - 46mm x 2.5mm cup spacer
- 1 - wave washer
