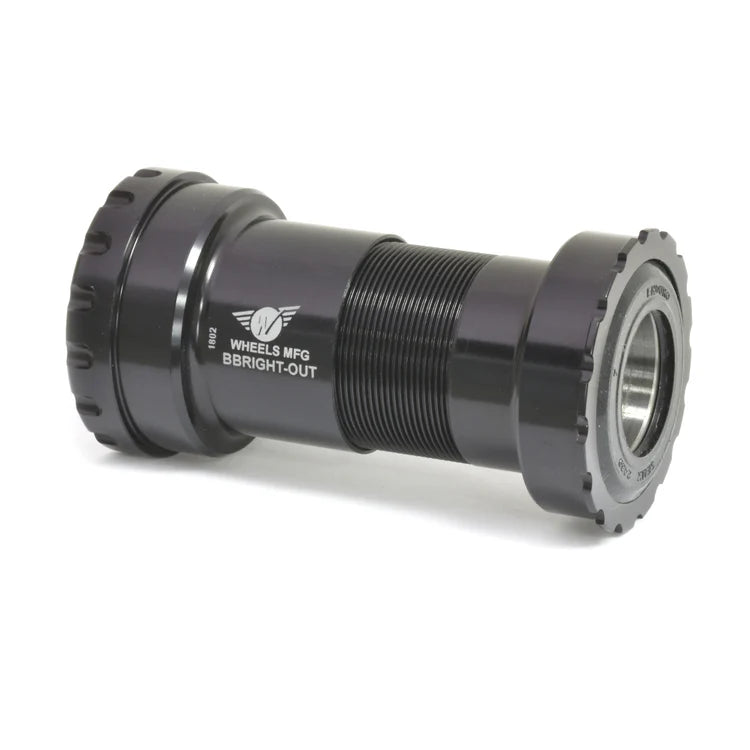

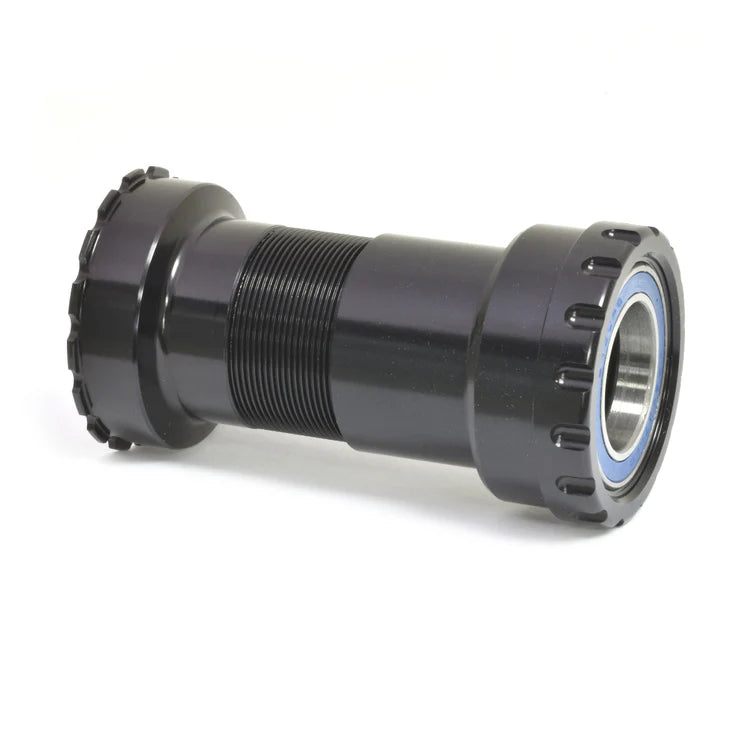

The BBRight™ bottom bracket standard delivers a rock-solid connection between frame and crankset.

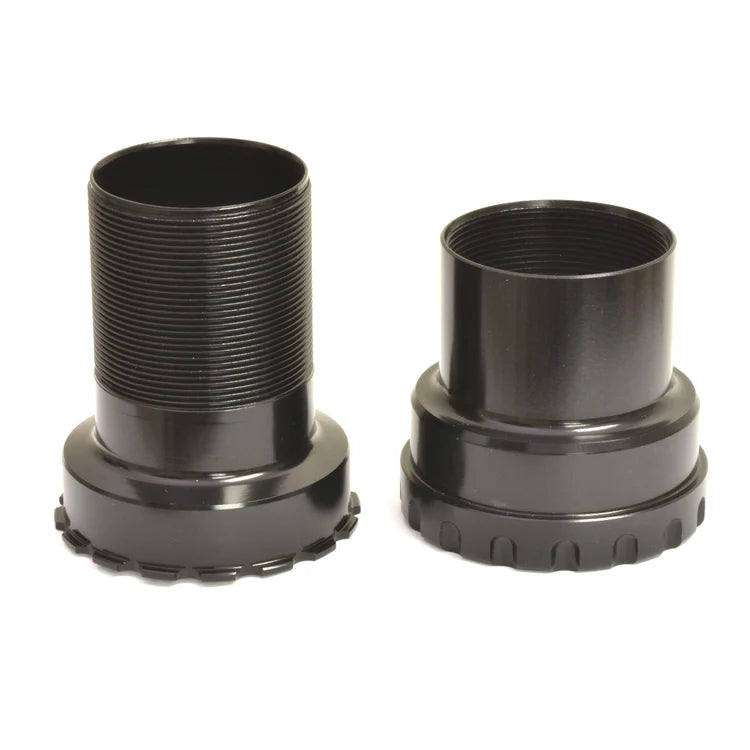

Two precision-machined aluminium cups thread together to lock the bottom bracket firmly in place, eliminating play and the creaking that comes with it. This design extends bearing life significantly by reducing movement and stress on internal components. Maintenance becomes straightforward too — when it's time to service or replace bearings, the threaded cup system makes the job quick and hassle-free. You'll notice the difference immediately: smoother pedalling, quieter operation, and a bottom bracket that stays tight season after season. Built with ABEC-3 bearings and sized for 24mm cranks, this is the upgrade that transforms how your bike feels underfoot.
Specification
-
Bearings: Enduro ABEC-3
-
Colour: Black
-
Bottom Bracket/Frame Interface: BBRight™ Press Fit
-
Bottom Bracket Shell Width: 79mm
-
Bottom Bracket Shell I.D.: 46mm
-
Crank Spindle Diameter: 24.00mm
-
Tool Pattern: 48.5mm x 16 notch
-
Over Bearing Width: 91.5mm in 79mm wide shell*
-
Weight: 146g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Contents
- BB Cups with bearings

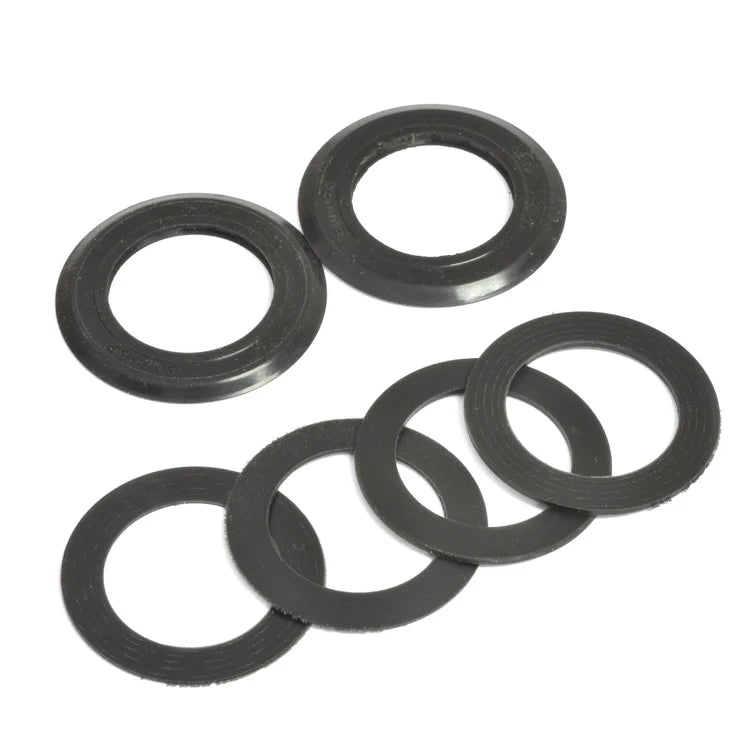

- 2 - Silicone dust seals

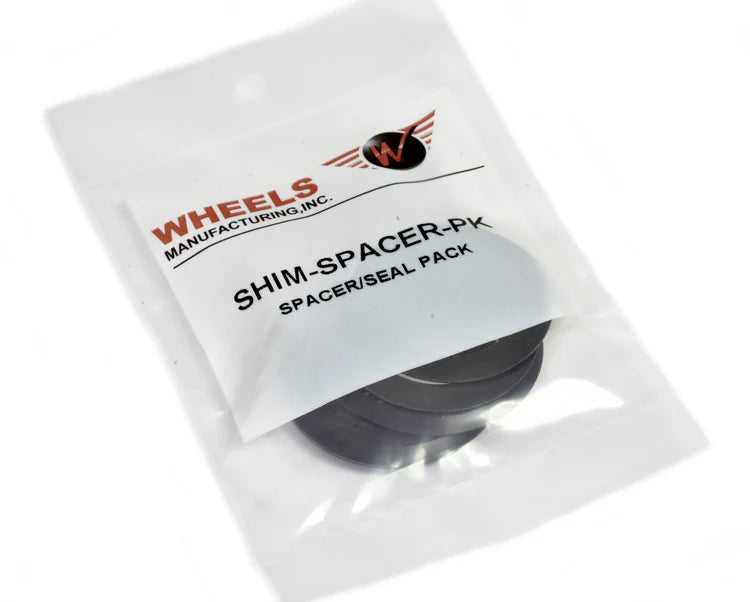

- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
