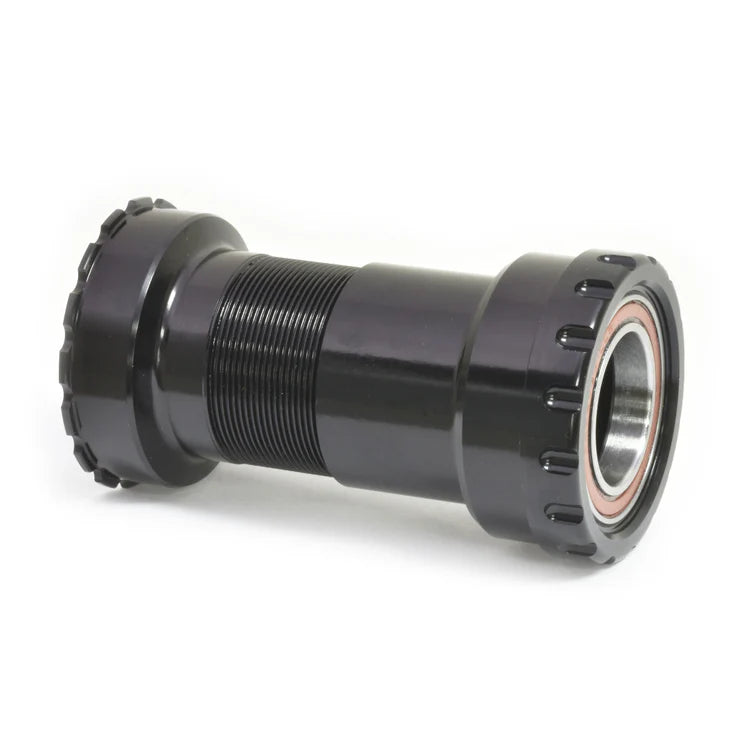

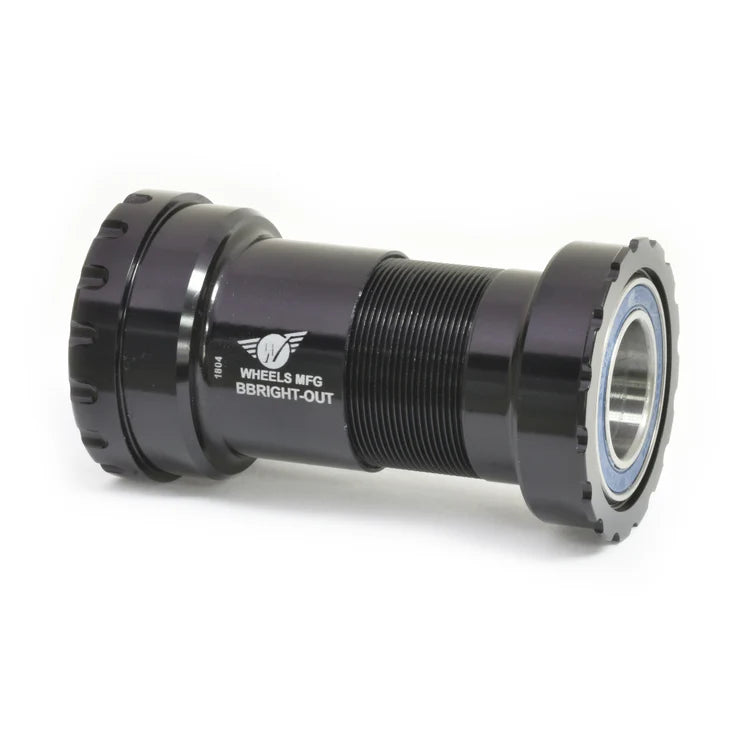

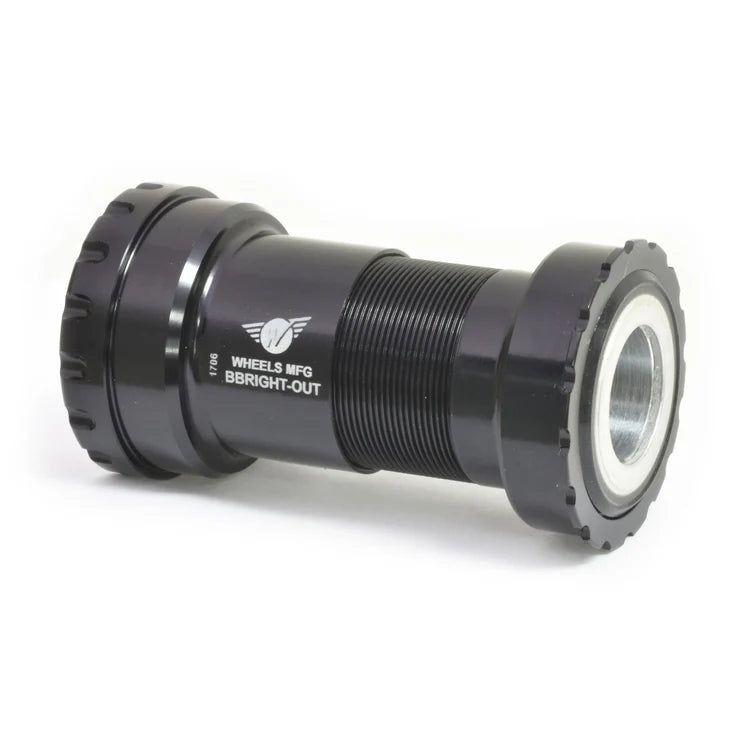

The BBRight™ bottom bracket standard delivers a threaded connection that keeps your frame's bottom bracket rock-solid.
Two precision-machined aluminium cups thread together to eliminate movement, extending bearing life and making maintenance straightforward. Say goodbye to creaking and hello to smooth, reliable operation. When it's time for service, bearing replacement takes minutes. Built for durability and designed for simplicity — the upgrade your drivetrain deserves. Compatible with 24/22mm SRAM cranks.
Note
Wheels Mfg BBRight™ Outboard BB for use with 24/22mm spindle cranks will not work with the following older Quarq SRAM/GXP powermeter cranksets: SRAM S975, SRAM S2275, CinQo Saturn, Saturn2, and Quatro.
Specification
-
Drive Side Bearing: Enduro Angular Contact
-
Non-Drive Side Bearing: Enduro ABEC-3
-
Colour: Black
-
Bottom Bracket/Frame Interface: BBRight™ Press Fit
-
Bottom Bracket Shell Width: 79mm
-
Bottom Bracket Shell I.D.: 46mm
-
Crank Spindle Diameter: 22/24mm
-
Tool Pattern: 48.5mm x 16 notch
-
Over Bearing Width: 92mm in 79mm wide shell*
-
Weight: 165g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Contents

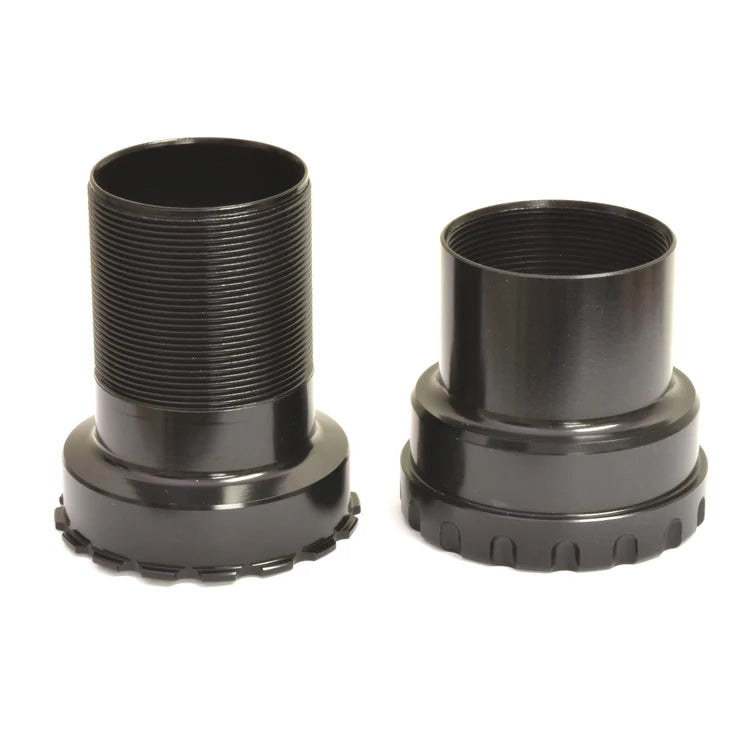

- BB Cups with bearings

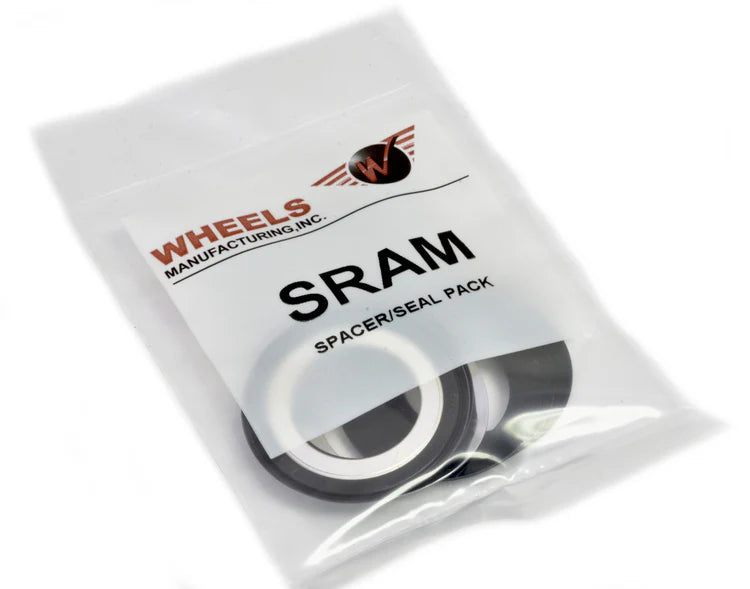

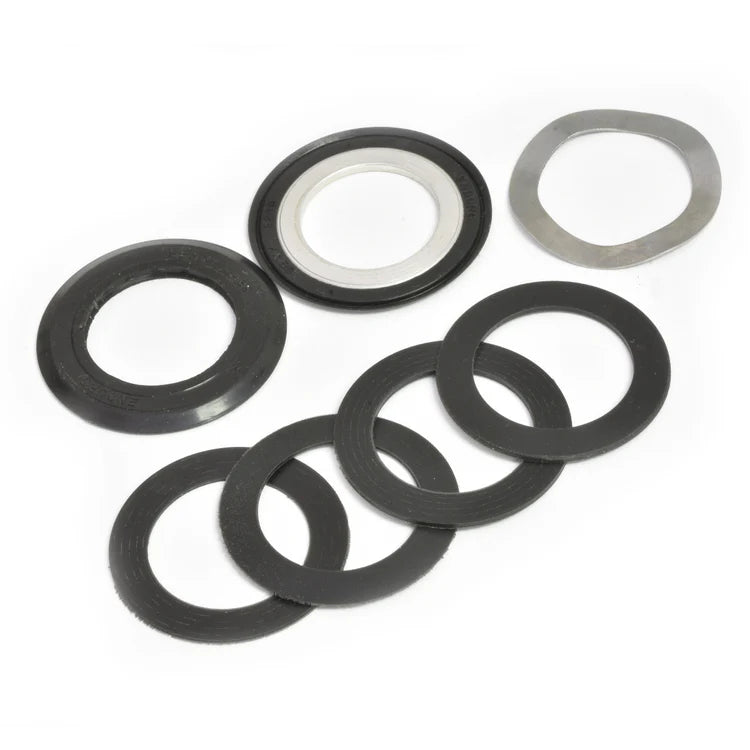

- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers

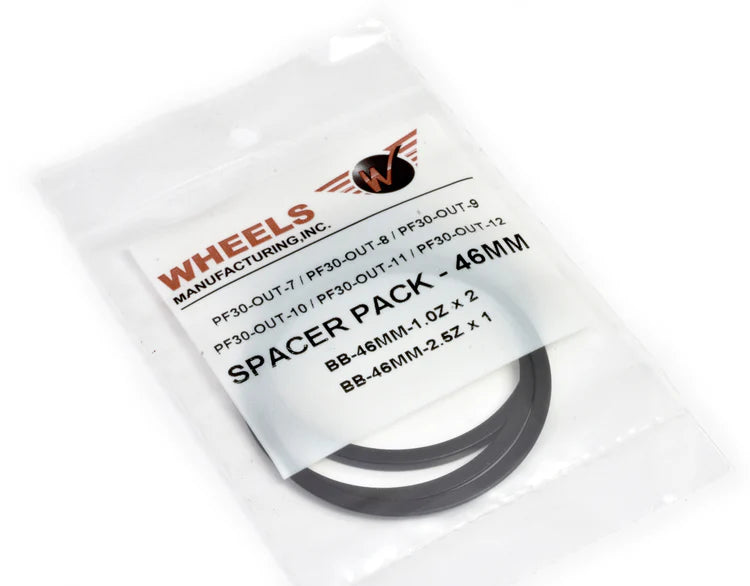

- 2 - 46mm x 1.0mm cup spacers
- 1 - 46mm x 2.5mm cup spacer
- 1 - wave washer
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
