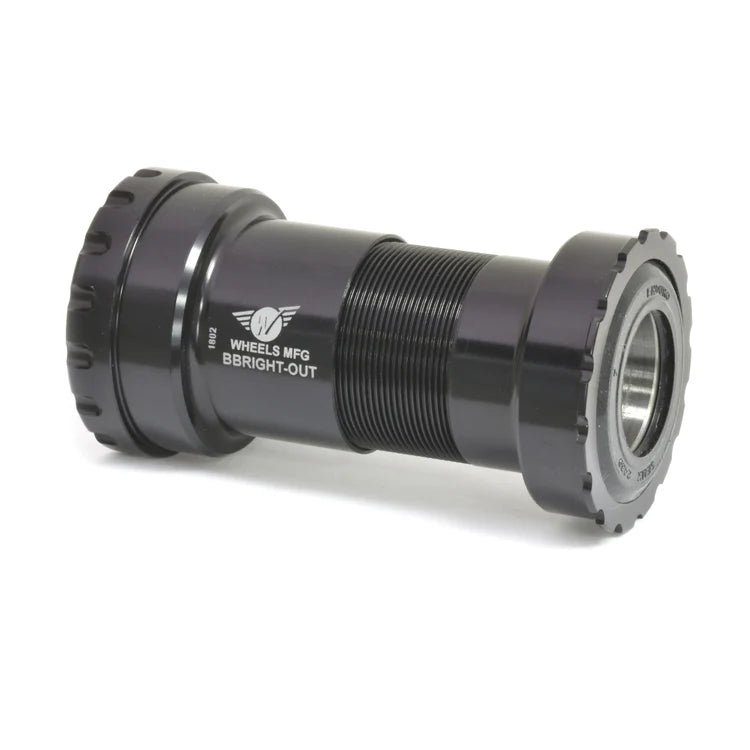

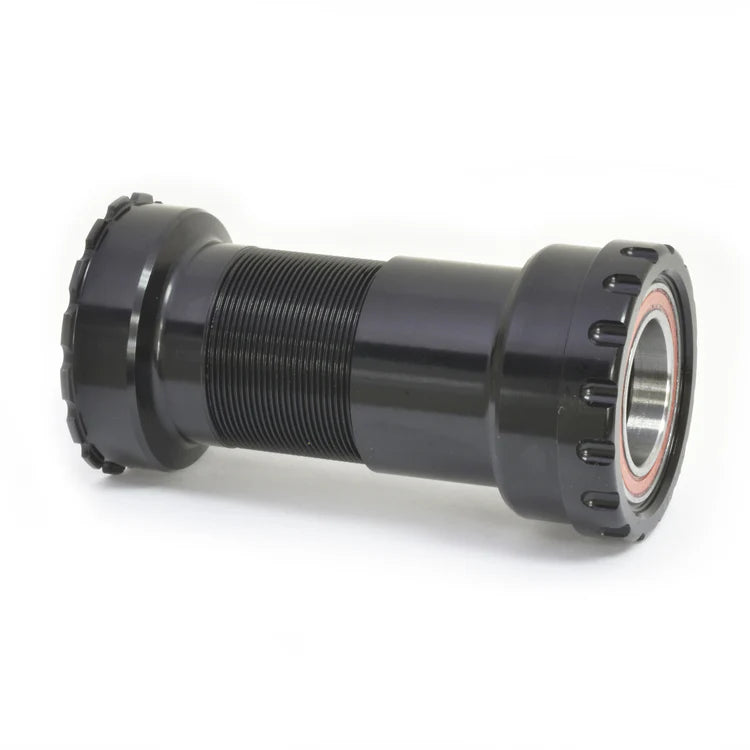

The BBRight™ bottom bracket standard delivers a rock-solid connection between frame and crankset.

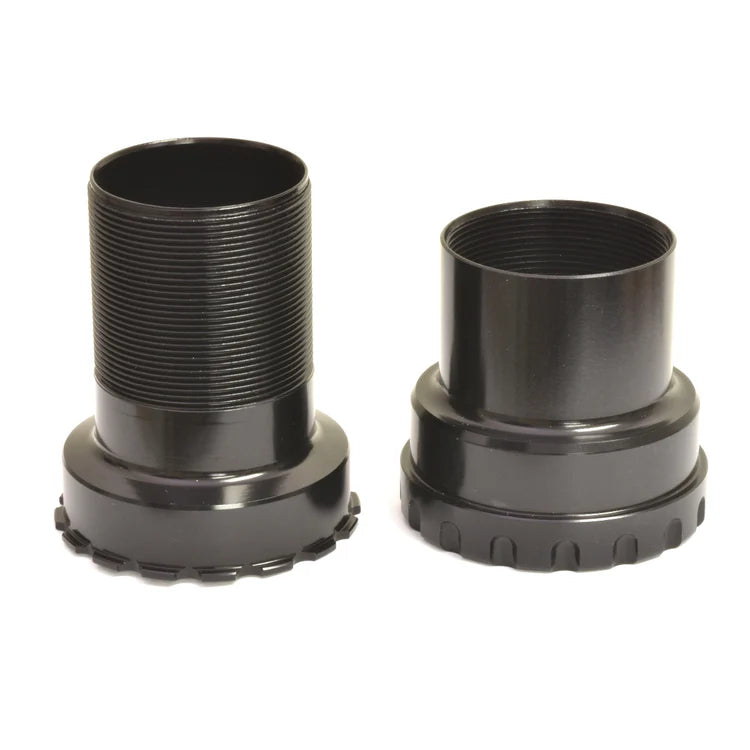

Two precision-machined aluminium cups thread together to lock the bottom bracket firmly in place, eliminating play and the creaking that comes with it. This design extends bearing life significantly by reducing stress and movement. Maintenance becomes straightforward — when bearings need replacing, you'll swap them out in minutes without faffing about with complex tools or procedures. The result is noticeably smoother pedalling, zero creaks, and bearings that last longer. Compatible with 24mm Shimano cranks, this outboard angular contact bearing setup is engineered for reliability on any terrain.
Specification
-
Bearings: Enduro Angular Contact
-
Color: Black
-
Bottom Bracket/Frame Interface: BBRight™ Press Fit
-
Bottom Bracket Shell Width: 79mm
-
Bottom Bracket Shell I.D.: 46mm
-
Crank Spindle Diameter: 24.00mm
-
Tool Pattern: 48.5mm x 16 notch
-
Over Bearing Width: 91.5mm in 79mm wide shell*
-
Weight: 146g
* Over Bearing Width Dimensions include supplied silicone dust shields.
Contents
- BB Cups with bearings

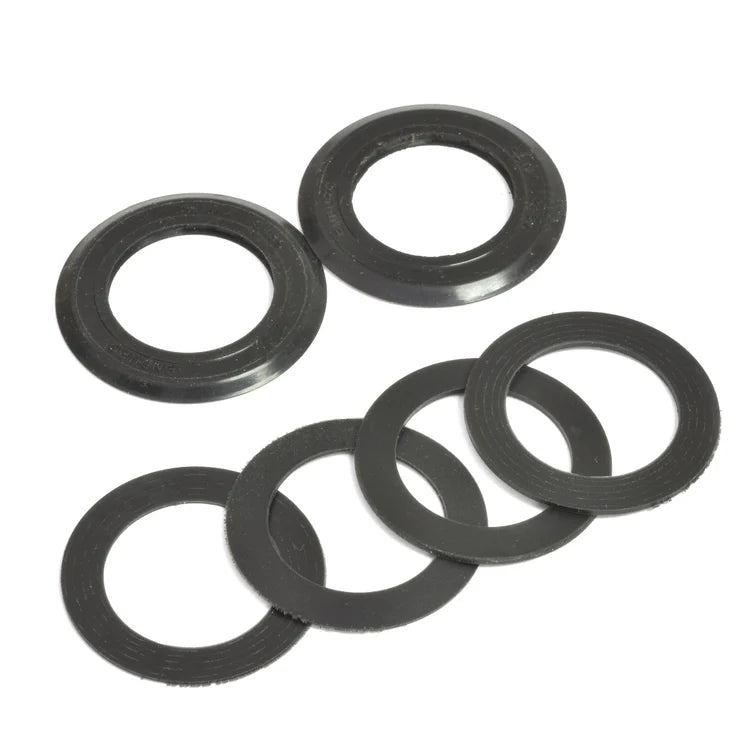

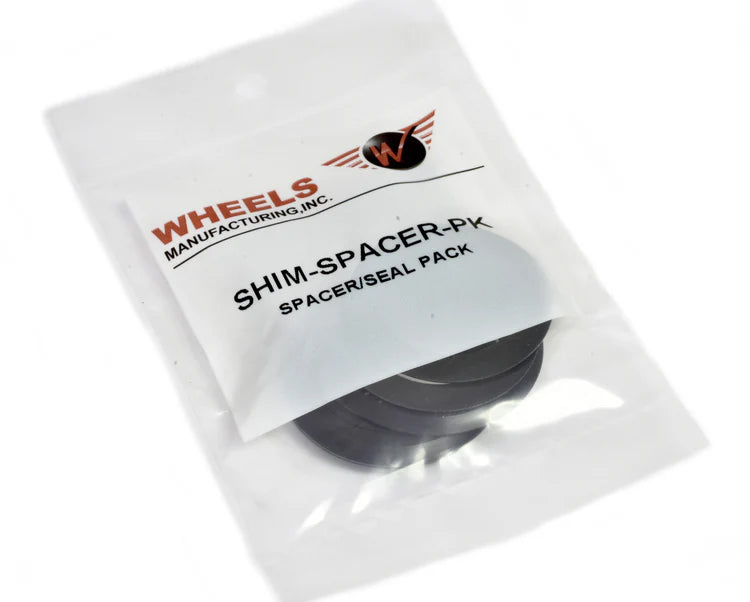

- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers
