Precision-engineered solution for running a 30mm spindle crankset in Italian threaded frames.
Machined aluminum cups thread directly into your frame's standard threads, eliminating the need for adapters. Features outboard 6806 ceramic sealed bearings positioned beyond the BB shell for enhanced durability and smooth rotation. Fully serviceable design allows easy maintenance and bearing replacement without frame removal. Built for reliability on road bikes demanding modern drivetrain compatibility with classic frame geometry.
Notes
- For use with 30mm diameter cranks with a spindle length of at least 106mm when used in a 70mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
- Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
Features
- Machined aluminium cups thread in to a standard threaded frame and feature 6806 Ceramic sealed bearings outboard of the BB shell
- Fully serviceable
- 2 year warranty on bearings
- Made in the USA
Specification
-
Bearings: 6806 Ceramic
-
Colour: Black
-
Bottom Bracket/Frame Interface: Italian Threaded (36mm x 24 threads per inch TPI)
-
Bottom Bracket Shell Width (mm): 70mm
-
Bottom Bracket Shell I.D.: 36mm
-
Crank Spindle Diameter: 30mm
-
Tool Pattern: 48.5mm x 16-notch
-
Over Bearing Width:
-
Weight: 102g
Contents

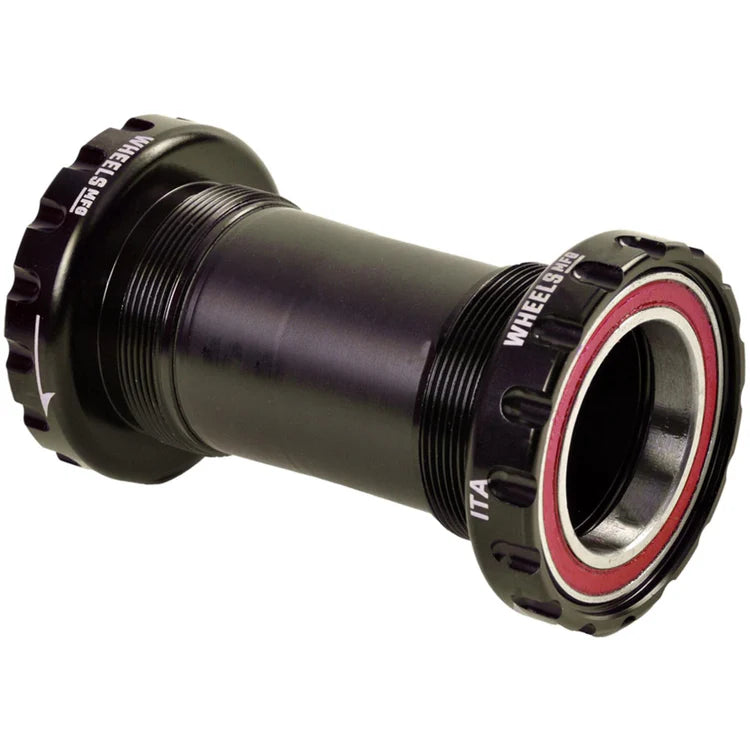

- 1 x Wheels Manufacturing Italian Threaded Road Ceramic BB for 30mm Cranks
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
