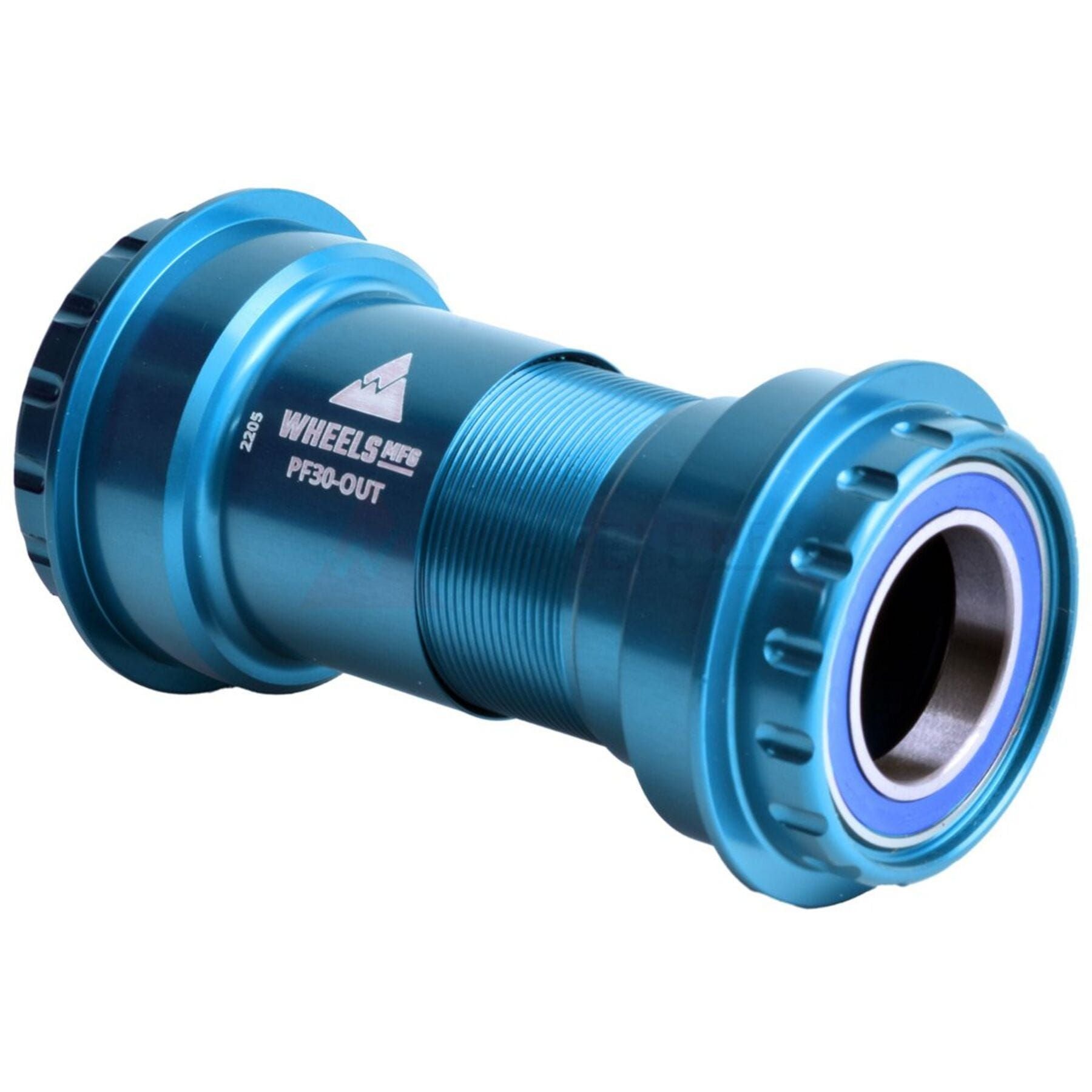

The Wheels Manufacturing PF30 Outboard Bottom Bracket delivers rock-solid performance for your frame.
Two precision-machined aluminum cups thread together to lock the bottom bracket firmly in place, eliminating creaks and ensuring smooth, reliable operation. Engineered specifically for 24mm spindle cranks (Shimano and compatible brands) in PF30 46mm ID bottom bracket shells—no adapters needed. The outboard bearing design extends bearing life significantly while making maintenance straightforward. When it's time for service, bearing replacement takes just minutes. ABEC-3 bearings provide dependable smoothness for trail and road riding. Built tough for all-terrain cycling, this bottom bracket combines simplicity with durability.
Specification
-
Bearings: Enduro ABEC-3
-
Colour: Teal
-
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
-
Bottom Bracket Shell Width: 61mm* - 73mm
-
Bottom Bracket Shell I.D.: 46mm
-
Over Bearing Width: 90.5mm in 68mm wide shell
-
Crank Spindle Diameter: 24.00mm
-
Tool Pattern: 44mm, 16-notch
-
Weight: 161g
Notes
- Specialized Carbon OSBB frames with a 61mm shell width need additional cup spacers.
- BB cups produced after July 2018 do not use o-rings.
- Over Bearing Width Dimensions include supplied silicone dust shields.
Contents
- BB Cups with bearings
- 2 - Silicone dust seals
- 2 - 0.5mm crank spindle spacers
- 2 - 1.0mm crank spindle spacers
Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work!
