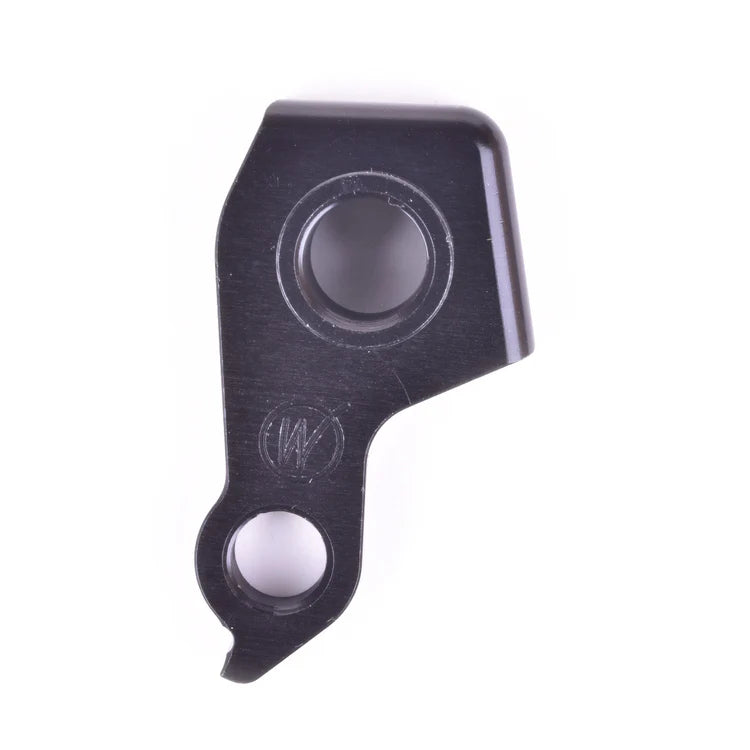

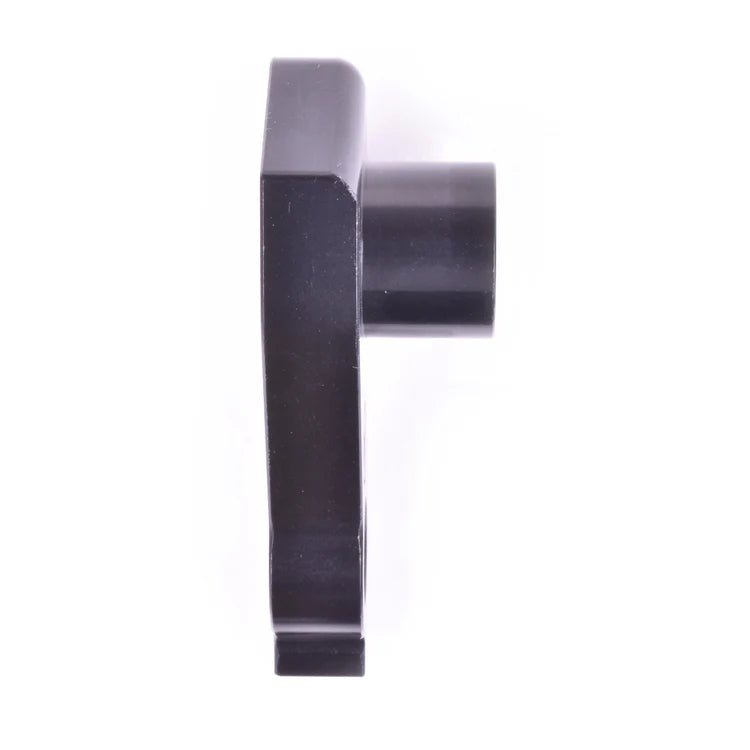

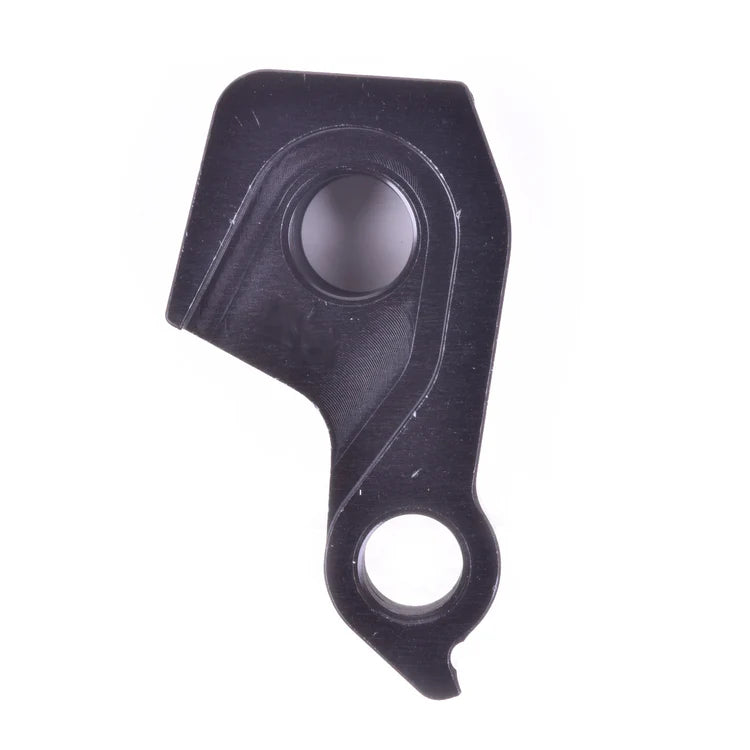

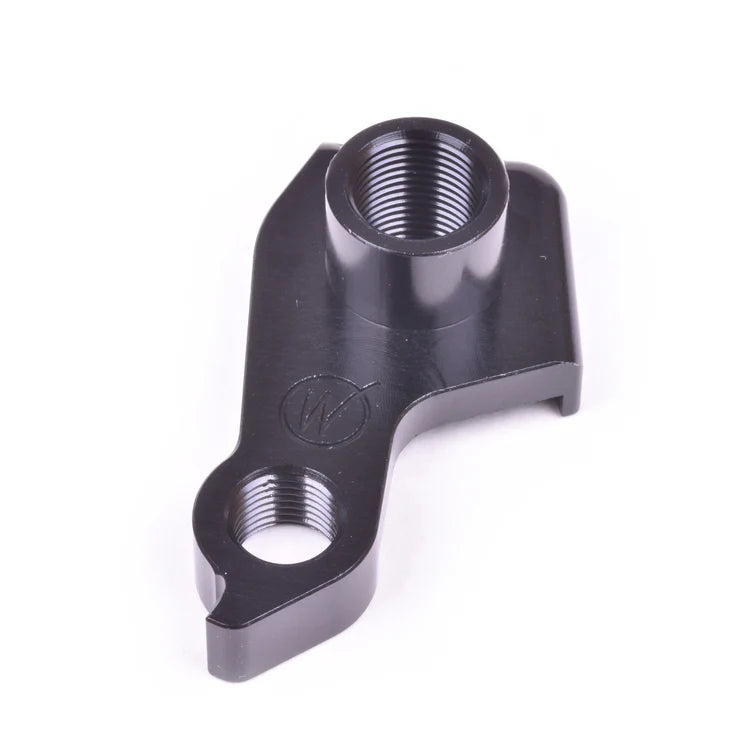

Precision-engineered replacement derailleur hanger from Wheels Manufacturing, crafted in their Colorado workshop to exacting tolerances.
The 314 model ensures perfect alignment and reliable shifting performance. Built to restore your bike's drivetrain geometry with the accuracy of original equipment.
Features
- CNC machined 6061 aluminum
- Black anodized finish
- Replaces Santa Cruz Part #04-17052
- Fits Santa Cruz frames with 12x148 rear end spacing
- For use with M12x1.0 Thru Axle
- Overall Length of Post: 11mm
Note: For Santa Cruz frames with 142mm rear end spacing, use DROPOUT-288.
Compatibility
-
Santa Cruz
- 5010 2 (148x12 DO) - All
- Bronson 2 (148x12 DO) - All
- Furtado 2 (148x12 DO) - All
- Hightower 1 C (148x12 DO) - All
- Hightower LT 1 C (148x12 DO) - All
- Joplin 2 (148x12 DO) - All
- Nomad 4 (148x12 DO) - All
- Roubion 2 (148x12 DO) - All
- Strega 1 (148x12 DO) - All
- Tallboy 3 (148x12 DO) - All
Contents
- 1 x Wheels Manufacturing Replaceable Derailleur Hanger / Dropout 314
