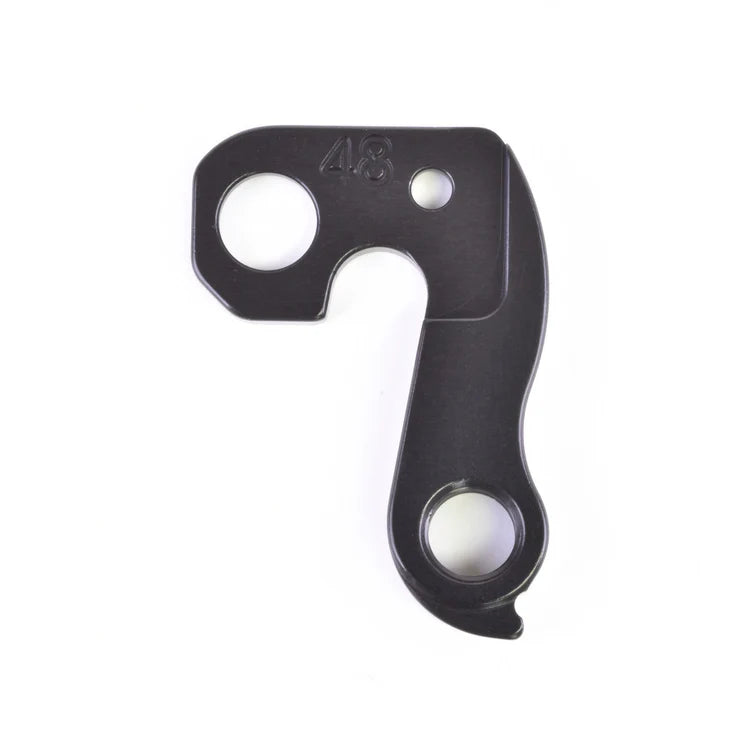

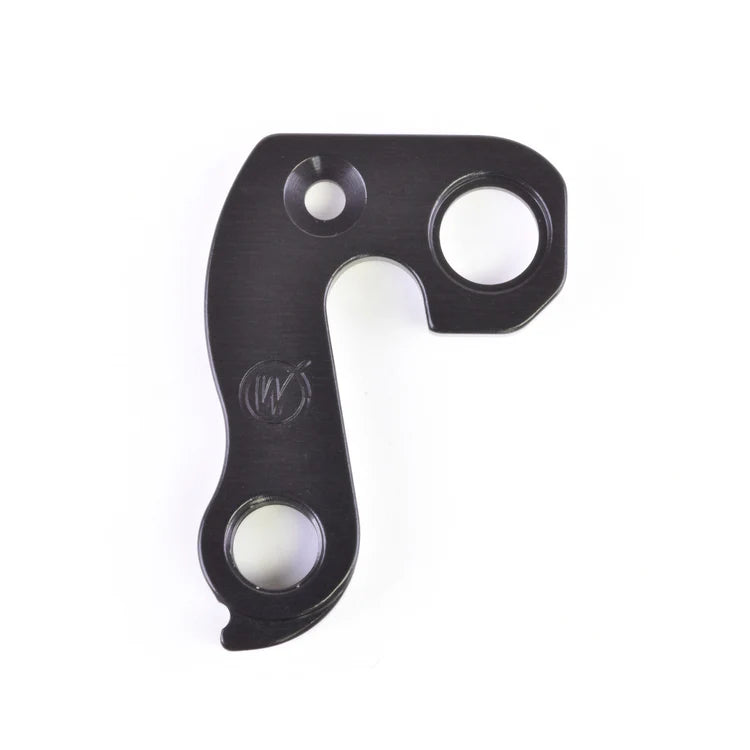

WHEELS MANUFACTURING REPLACEABLE DERAILLEUR HANGER/DROPOUT 48

Precision-engineered replacement derailleur hanger from Wheels Manufacturing, crafted in their Colorado workshop to exacting tolerances.

The 48 model ensures perfect alignment and reliable shifting performance. Built to restore your bike's drivetrain geometry with the accuracy of original equipment.

Features

• CNC machined 6061 aluminum
• Black anodized finish

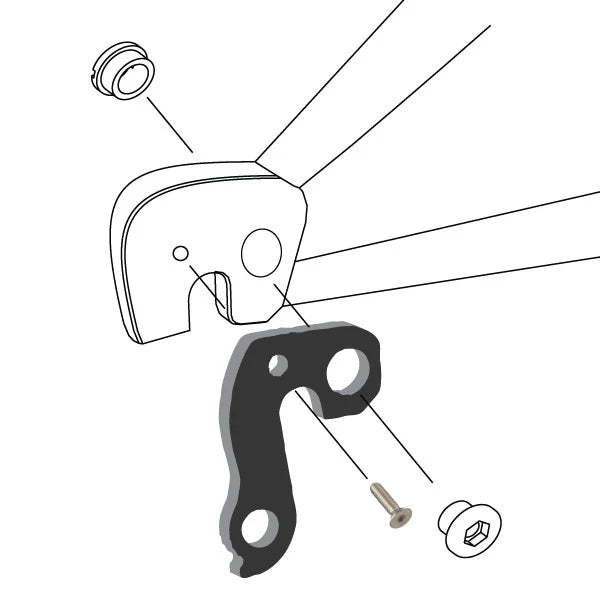

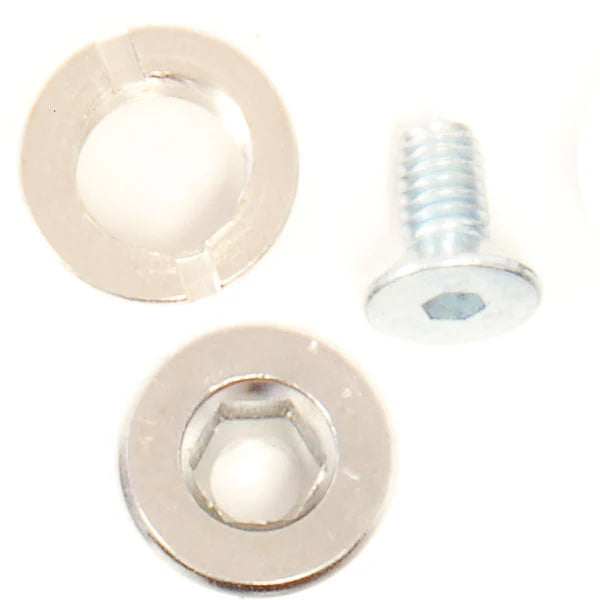

• Attaches to frame with (1) M4x8 Flat Head Screw and (1) M8 Chainring Bolt
• Replaces:
  • DiamondBack Part #32-73-250
  • Ghost Part # EZ1852

Compatibility

• Diamondback
  • 2 & 3 - 1999
  • Apex - 2004-2005
  • Apex Coil SS - 2003
  • Assault - 2005
  • ATROZ - 2015
  • ATROZ COMP - 2015
  • Axis - 2005
  • Axis Frame - 2003-2004
  • Carolina - 2003-2004
  • Coil EX - 2004-2006
  • Comp - 2004
  • Comp - 2006
  • Crestview - 2000
  • Crestview - 2002
  • DLX - 2003
  • EX - 2004
  • Expert - 1999
  • Lakeside - 1998
  • LUX - 2008-2016
  • Miramar - 2003
  • Oakpoint - 2000-2002
  • OVERDRIVE - 2011
  • OVERDRIVE COMP - 2011
  • OVERDRIVE PRO - 2011
  • OVERDRIVE SMU - 2011
  • OVERDRIVE SPORT - 2011
  • Override - 2008
  • RECOIL PRO 29 - 2016
  • Recoil Series - 2008-2016
  • RECOIL TRAIL 27.5, 29, COMP 29 - 2015-2016
  • Response (Sport) - 2005
  • Response 26 - 1999-2013
  • RESPONSE 26 - 2008-2013
  • Response Sport - 2000
  • SE - 1999
  • Sherwood - 1999-2000
  • SL Super - 2003-2005
  • Sorrento - 2003
  • Sorrento - 2001
  • SPLINTER - 2016
  • Sport - 2001
  • Sport - 2006
  • Team Issue - 1998-1999
  • Topanga - 1999-2005
  • Topanga Comp - 2000-2003
  • Topanga Comp Disc - 2003
  • Topanga EX - 2004
  • Topanga SE - 1999
  • Trail - 2006
  • V-10 - 1998
  • V-6 - 1998
  • V-8 - 1998
  • V-Link 1.2 - 1998
  • Ventura - 2003
  • Voyager - 1999
  • Voyager 1 - 1998
  • Voyager 2 - 1998
  • Voyager 3 - 1998
  • Wildwood - 2003
  • Wildwood (Deluxe) - 2005
  • Wildwood (DLX) - 2004
  • Wildwood Deluxe - 2002
  • X Series - 1999
  • X-2 - 2000
  • X-6 - 2000

  • X-Link - 2000
  • XR Series - 1999
  • XR-1 - 2000
  • XR-4 - 2000
  • XR-8 - 2000
  • XSL - 2006
  • XSL - 2003
  • XSL Comp - 2004-2005
  • XSL Elite - 2005
  • XSL Trail - 2003-2005
  • XTS Series - 2001
  • Zetec Comp - 1998-1999
  • X-2 - 2000
  • X-6 - 2000
• Ghost
  • 4X - 2009-2010
  • 4X Comp - 2011
  • 4X Pro - 2011
  • CROSS incl. Lady - 2004-2010
  • DUAL Comp - 2006-2008
  • DUAL Pro - 2006-2008
  • EBS 1, 2 Aluminum Only - 2006-2009
  • HTX Scandium - 2006
  • HTX Team Edition - 2005-2007
  • MISS Hardtail - 2008-2009
  • MISS Hardtail 3300 - 2007
  • MISS Hardtail 4500, 5100 - 2006-2007
  • MISSY 24" - 2006-2014
  • POWERKID 24" - 2006-2014
  • SE - 2005-2009
  • TR incl. Lady - 2004-2007
• Univega
  • Lakeside - 1997
  • Response - 1997
  • V-Link 1.1 - 1997
  • V-Link 3.1 - 1997
  • V-Link Pro - 1997
  • Zetec 2.1 - 1997
  • Zetec 4.1 - 1997
  • Zetec Pro - 1997

Contents

• 1 x Wheels Manufacturing Replaceable Derailleur Hanger / Dropout 48
