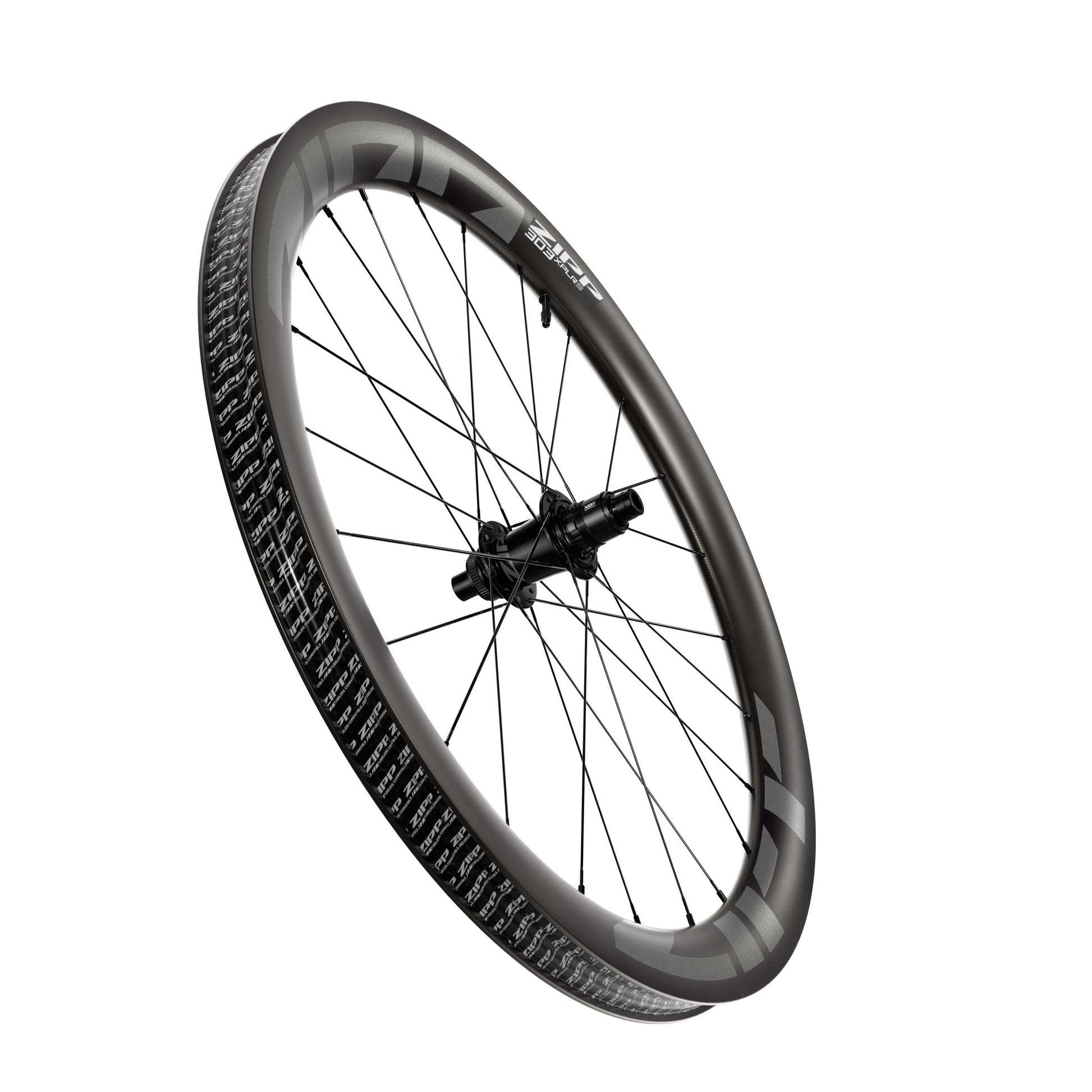

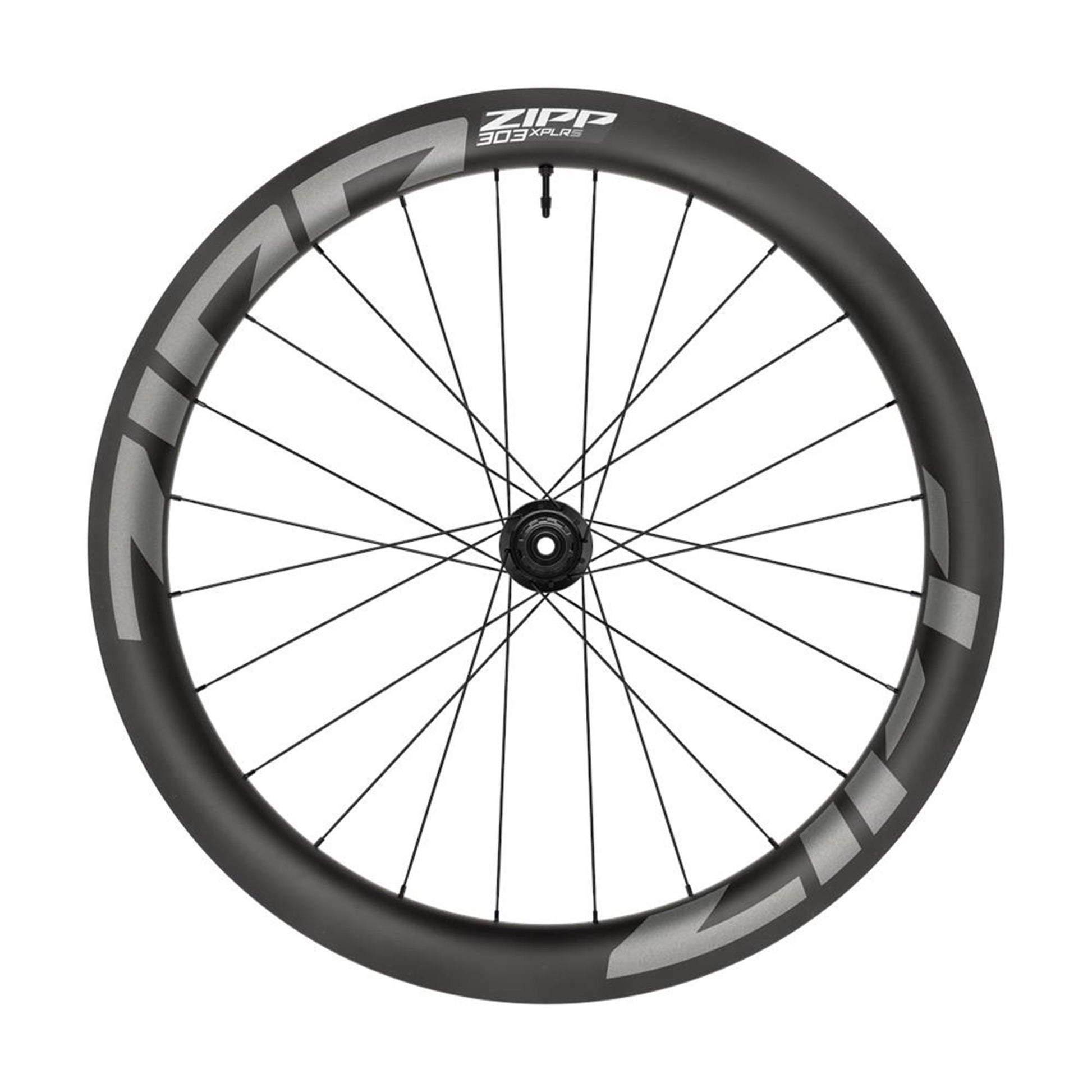

ZIPP 303 XPLR S CARBON DISC TUBELESS CL REAR WHEEL

The Zipp 303 XPLR S is big upgrade in speed for gravel riders without a big price tag.

This wheelset borrows key innovations from Zipp's premium wide gravel wheelset, it is affordable and robust for discerning gravel riders. This wheelset is the fastest on gravel, thanks to its mega-wide rim that integrates seamlessly with approved gravel racing tyres.

Current gravel wheels are slightly modified versions of existing road wheels, focusing on high stiffness and low weight. Zipp takes a different approach, solely with speed in mind. In gravel, rolling resistance and vibration loss from rough surfaces, and wind are significant barriers to speed. To combat this, Zipp applied its Total System Efficiency design philosophy specifically to the challenges of gravel.

Typical tyre widths for gravel racing range from 38-50mm with varying tread patterns. Current gravel wheels have an external rim width of 28-30mm, which creates an aerodynamic mismatch when you use a 40mm+ gravel tire. With that narrower rim and wider tyre, the tyre-wheel interface looks more like the bulge of a lightbulb than the ideal seamless airfoil cross-section. According to Zipp testing, the efficient pairing of wheel and gravel tire of the 303 XPLR S design provides a 5-watt aerodynamic advantage over a leading competitor.

Note: This wheel is optimized for use with the Goodyear XPLR Slick and Goodyear XPLR Inter, both tyres designed in partnership with Zipp.

Features

• Fast and robust gravel wheel, features tubeless and hookless rim profile
• Ultra-wide internal profile for decreased rolling resistance, ability to run pressures under 30psi (2.1 bars)
• Wide and deep profile integrates seamlessly with gravel tires to increase aerodynamic efficiency
• Applies Zipp’s Total System Efficiency to high-performance gravel
• 176 DB hubs with Centre locking interface XDR or SRAM/Shimano driver bodies
• Max tyre pressure 50 psi/3.45 bar

Specification

• Range of use: Gravel
• Model: XPLR S
• Rim diameter: 28"
• ETRTO: 622 mm
• Tire interface: Hookless tubeless
• Rim type: Clincher
• Tubeless Ready: Yes
• Hub type: 176D
• Freehub system: 3 Pawls
• Rim height: 54 mm
• Outer width: 40 mm
• Inner width: 32 mm
• Axle system: 12 mm Thru Axle
• Built-In dimension: 142 mm
• Number of holes: 24
• Spoke pattern: Two-cross
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc Centerlock
• Spokes: CX-Sprint
• Nipple: Sapim Secure-Loc
• Recommended system weight: 130 kg (body weight + bike + equipment)
• ASTM classification: 2

Freehub body

• Shimano HG/SRAM
• SRAM XDR

Material

• Rim: Carbon
• Hub: Aluminium
• Spoke: Stainless steel
• Nipple: Brass
• Freehub body: Aluminium

Colour

• Black

Contents

• 1 x Zipp 303 XPLR Carbon Tubeless Centerlock Rear Wheel
• Tubeless Tape
• 12 mm end cap

Thru axle not included!

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
