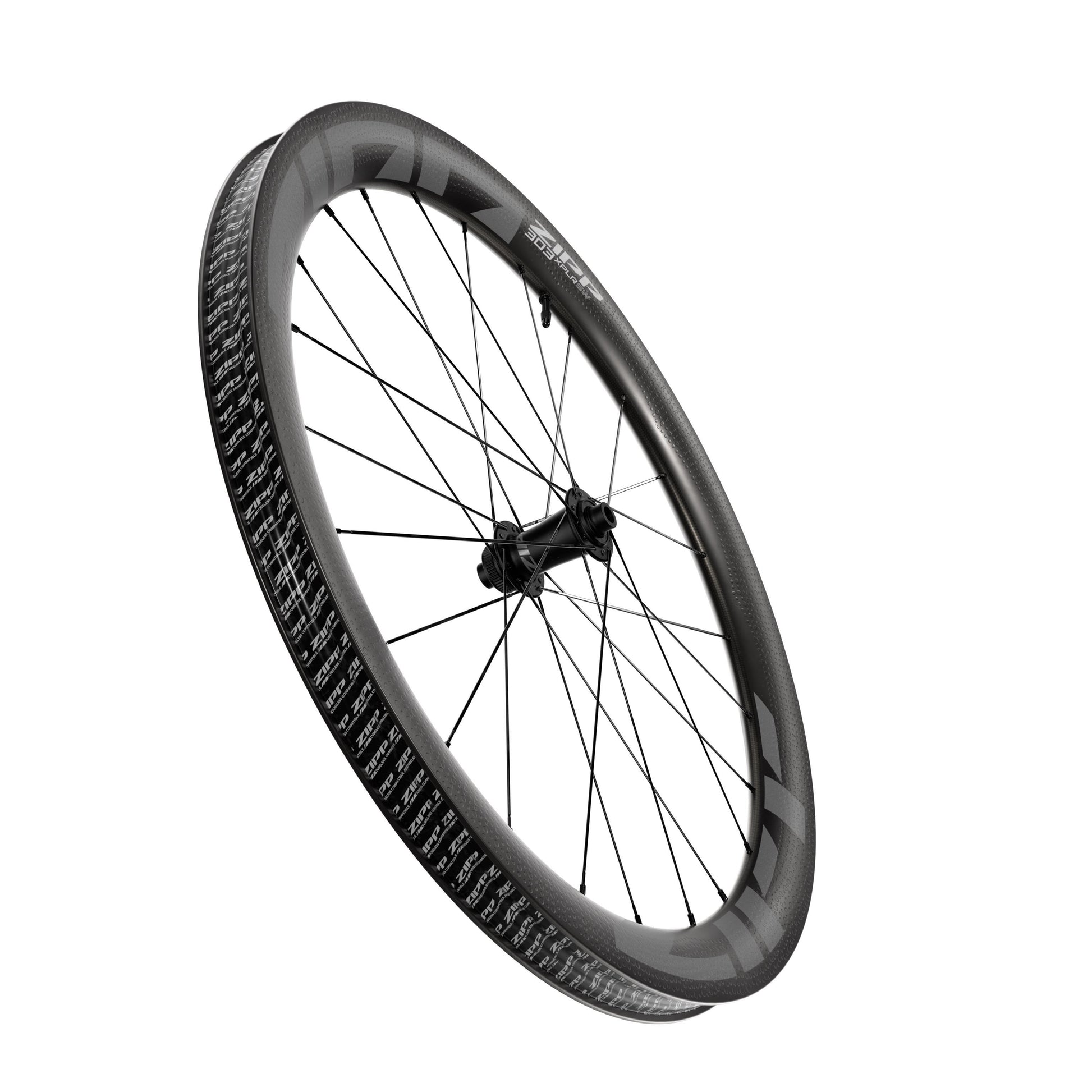

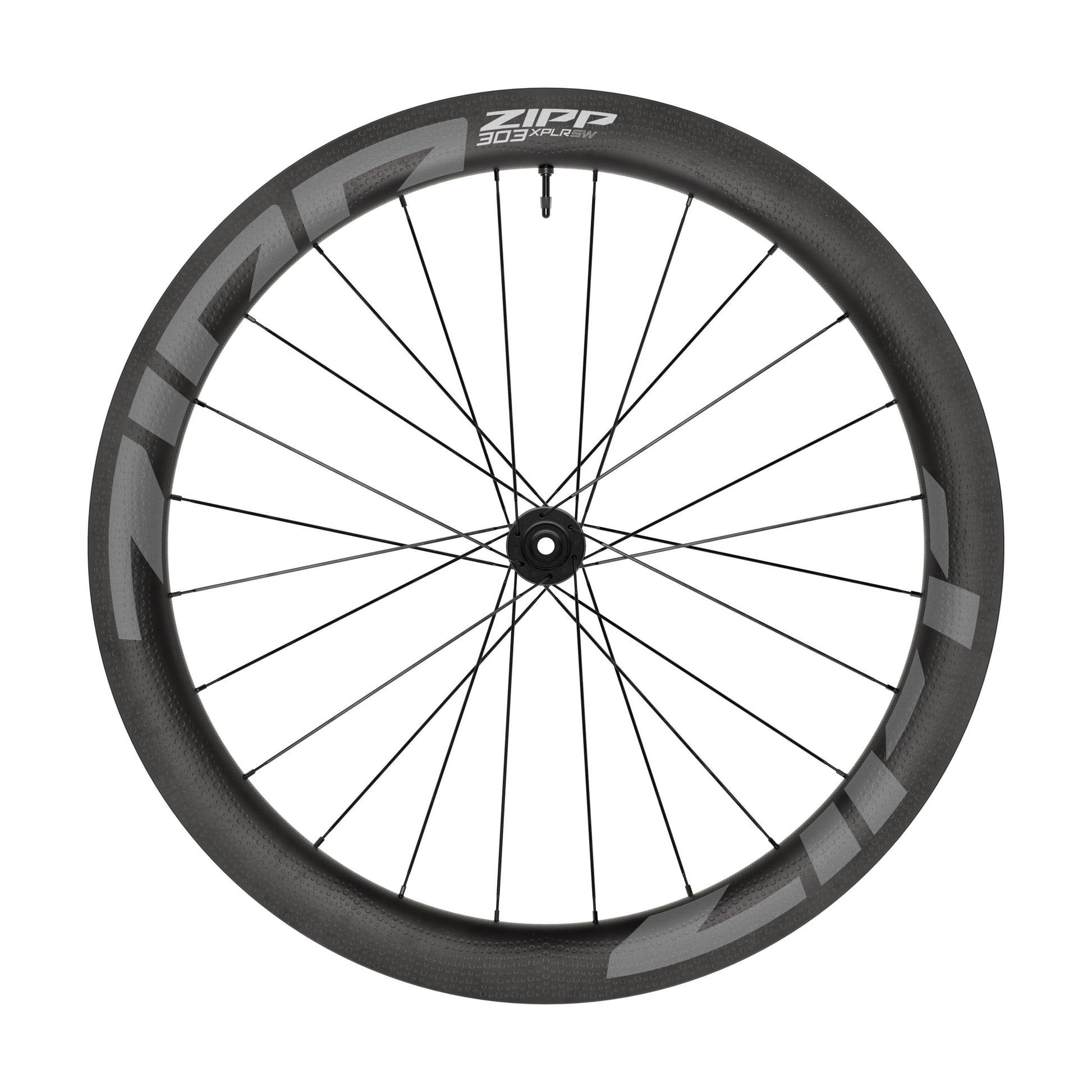

ZIPP 303 XPLR SW CARBON DISC TUBELESS CL FRONT WHEEL

The 303 XPLR SW is Zipp's fastest gravel wheel ever, thanks to its mega-wide and deep rim that integrates seamlessly with gravel tyres.

The 303 XPLR SW is a speed-focused gravel wheel designed with a new approach: Start with the perfect gravel tire and design a wheel around it.

Current gravel wheels are slightly modified versions of existing road wheels, focusing on high stiffness and low weight. Zipp takes a different approach, solely with speed in mind. In gravel, rolling resistance and vibration loss from rough surfaces, and wind are significant barriers to speed. To combat this, Zipp applied its Total System Efficiency design philosophy specifically to the challenges of gravel.

Typical tire widths for gravel racing range from 38-50mm with varying tread patterns. Current gravel wheels have an external rim width of 28-30mm, which creates an aerodynamic mismatch when you use a 40mm+ gravel tire. With that narrower rim and wider tire, the tire-wheel interface looks more like the bulge of a lightbulb than the ideal seamless airfoil cross-section. According to Zipp testing, the efficient pairing of wheel and gravel tire of the 303 XPLR S design provides a 5-watt aerodynamic advantage over a leading competitor.

Note: This wheel is optimized for use with the Goodyear XPLR Slick and Goodyear XPLR Inter, both tyres designed in partnership with Zipp.

Features

• Fast and robust gravel wheel, features tubeless and hookless rim profile
• Ultra-wide internal profile for decreased rolling resistance, ability to run pressures under 30psi (2.1 bars)
• Wide and deep profile integrates seamlessly with gravel tyres to increase aerodynamic efficiency
• Applies Zipp’s Total System Efficiency to high-performance gravel
• ZR1 DB hub is engineered in Germany with better seal design for improved durability
• Max tyre pressure 50 psi/3.45 bar

Specification

• Range of use: Gravel
• Model: XPLR SW
• Rim diameter: 28"
• ETRTO: 622 mm
• Tire interface: Hookless tubeless
• Rim type: Clincher
• Tubeless Ready: Yes
• Hub type: ZR1
• Rim height: 54 mm
• Outer width: 40 mm
• Inner width: 32 mm
• Axle system: 12 mm Thru Axle
• Built-In dimension: 100 mm
• Number of holes: 24
• Spoke pattern: Two-cross
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc Centerlock
• Spokes: CX-Ray
• Nipple: Sapim Secure-Loc
• Recommended system weight: 130 kg (body weight + bike + equipment)
• ASTM classification: 2

Material

• Rim: Carbon
• Hub: Aluminum
• Spoke: Stainless steel
• Nipple: Brass

Colour

• Black

Contents

• 1 x Zipp 303 XPLR SW Carbon Tubeless Centerlock Front Wheel
• Tubeless Tape
• 12 mm end cap

Thru axle not included!

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
