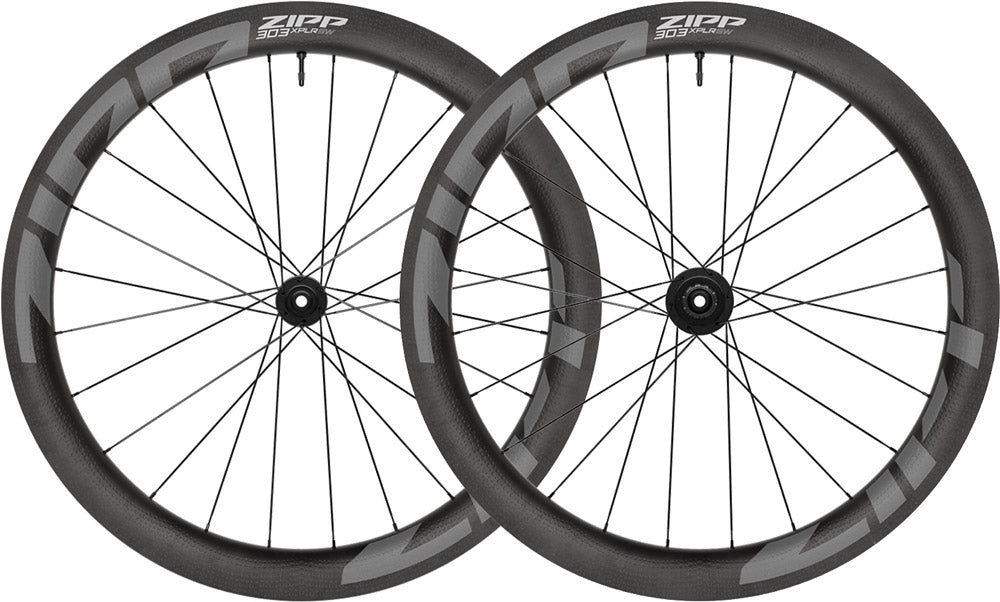

ZIPP 303 XPLR SW CARBON WHEELSET

The Zipp 303 XPLR SW is big enough for your biggest gravel goals. Just how big?

This wheelset is the fastest on gravel, thanks to its mega-wide rim that integrates seamlessly with approved gravel racing tires*. Most gravel wheels are modified versions of existing road wheels, focusing on stiffness and lightweight.

In gravel, resistance and vibrations from bumpy surfaces create a barrier that slows riders down. To combat this, Zipp applied Total System Efficiency specifically to the challenges of gravel. The wide profile increases air volume, allowing for lower tire pressures without squirm. That means you mitigate surface vibrations while maintaining grip when cornering or traction while climbing. The rim profile also creates a seamless transition with gravel tires for unsurpassed aero efficiency on gravel. And while the 303 XPLR SW is built big, it’s light to keep you fast and fresh for those long, fulfilling days in the saddle.

Features

• Fast and robust gravel wheel, features tubeless and hookless rim profile
• Ultra-wide internal profile for decreased rolling resistance, ability to run pressures under 30psi (2.1 bars)
• Wide and deep profile integrates seamlessly with gravel tyres to increase aerodynamic efficiency
• Applies Zipp’s Total System Efficiency to high-performance gravel
• ZR1 DB hub is engineered in Germany with better seal design for improved durability and quicker response with 66 points of engagement
• Max tyre pressure 50 psi/3.45 bar


Specification

• Range of use: Gravel
• Model: XPLR SW
• Rim diameter: 28"
• ETRTO: 622 mm
• Tyre interface: Hookless tubeless
• Rim type: Clincher
• Tubeless Ready: Yes
• Hub type: ZR1
• Freehub system: 6 Pawls
• Rim height: 54 mm
• Outer width: 40 mm
• Inner width: 32 mm
• Built-In dimension:
  • Front: 12 x 100 mm Thru Axle
  • Rear: 12 x 142 mm Thru Axle
• Number of holes: 24 front and rear
• Spoke pattern: Two-cross
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc Centerlock
• Spokes: CX-Ray
• Nipple: Sapim Secure-Loc
• Recommended system weight: 130 kg (body weight + bike + equipment)
• ASTM classification: 2

Material

• Rim: Carbon
• Hub: Aluminium
• Spoke: Stainless steel
• Nipple: Brass
• Freehub body: Aluminium

Colour

• Black

Contents

• 1 x Zipp XPLR S Carbon Disc Tubeless Wheelset
• 2 x Tubeless Tape
• 2 x 12 mm end cap

Thru axles not included!

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
