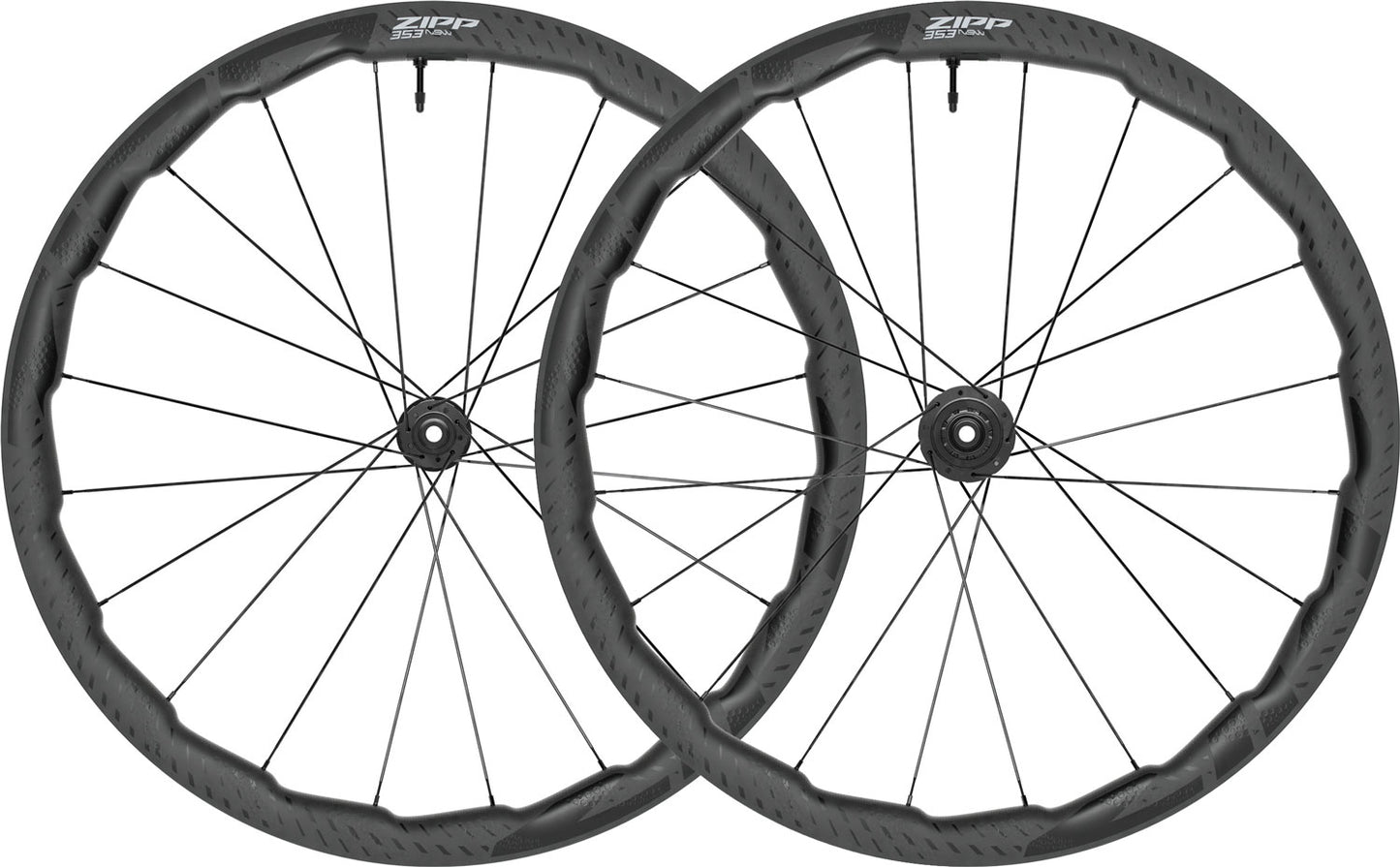

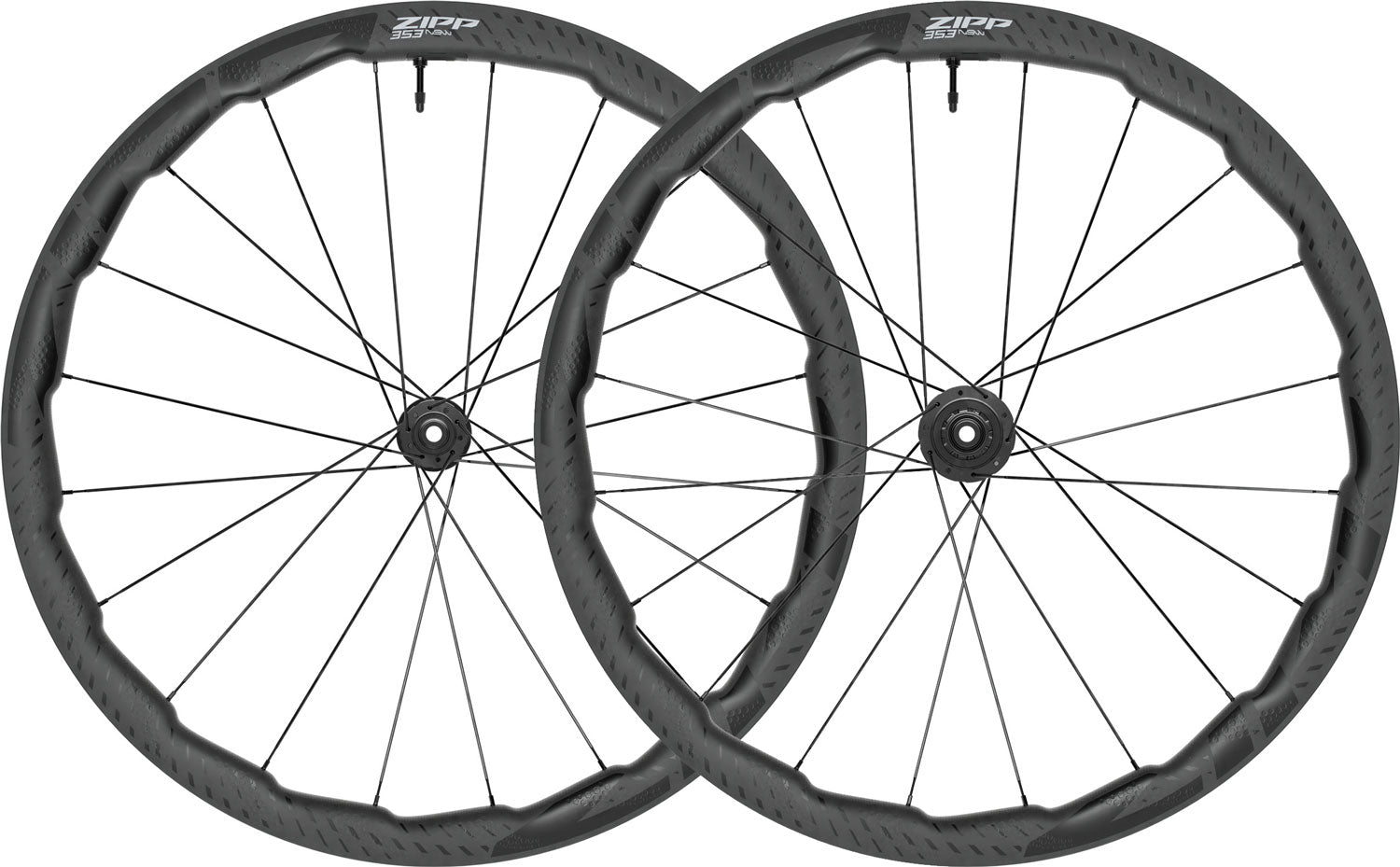

The Zipp 353 NSW Carbon Rear Wheel is a high-performance endurance and road racing wheel engineered for modern riders seeking efficiency, durability, and aerodynamics.
Its hookless 40mm carbon rim integrates Zipp’s AXS Wheel Sensor, enabling real-time tyre pressure monitoring without external devices. The revised carbon layup increases rim impact strength by over 16%, providing exceptional durability while maintaining feather-light weight. The ZR1 SL hubset with ceramic bearings and 66 points of engagement offers smooth, responsive rolling, 30g lighter than the predecessor hub. Optimised for 30mm tyres, the 353 NSW rear wheel is compatible with SRAM road driver bodies, delivering precise shifting, low rolling resistance, and improved crosswind stability. This wheel is tubeless-only, features a symmetrical sawtooth rim with Hyperfoil nodes and HexFin ABLC dimples, and includes a centre-lock rotor interface with lockring.
Features
- Integrated SRAM AXS wheel sensor for real-time tyre pressure monitoring
- Tubeless-ready, hookless carbon rim
- ZR1 SL hubset with ceramic bearings and 66 points of engagement
- Optimised for 30mm road tyres
- Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern
- Centre-lock disc brake interface with included lockring
- Lifetime warranty
Specification
-
Range of application: Road bike
-
Model: 353 NSW
-
Rim diameter: 28"
-
ETRTO: 622 mm
-
Rim profile: Symmetrical
-
Tyre interface: Hookless TSS
-
Rim type: Clincher (folding/wire tires)
-
Tubeless Ready: Yes
-
Hub type: ZR1 SL
-
Freehub system: 6 pawls, compression springs
-
Rim height: 35/40 mm
-
Outer width: 30 mm
-
Rim width: 25 mm
-
Axle system: 12 mm Thru Axle
-
Built-in dimension: 100 mm / 142 mm
-
Number of holes: 20
-
Spoke pattern: Two-cross (1:1)
-
Valve hole: Presta / SV Ø 6.5 mm
-
Brake interface: Disc Center Lock
-
Spokes: CX-Sprint
-
Spoke length drive side
-
Front: 276 mm
-
Rear: 274 mm
-
Spoke length non-drive side
-
Front: 278 mm
-
Rear: 276 mm
-
Nipples: Sapim Secure-Loc
-
Maximum tire pressure: 5.0 Bar (73 psi)
-
Recommended system weight: 114 kg (body weight + bike + equipment)
Material
-
Rim: Carbon
-
Hub shell: Aluminium
-
Spokes: Aluminium
-
Nipples: Aluminium
-
Freehub body: Aluminium
Weight
Contents
- 1 x Zipp 353 NSW Carbon wheelset
- incl. wheel sensors
Thru axles not included!
