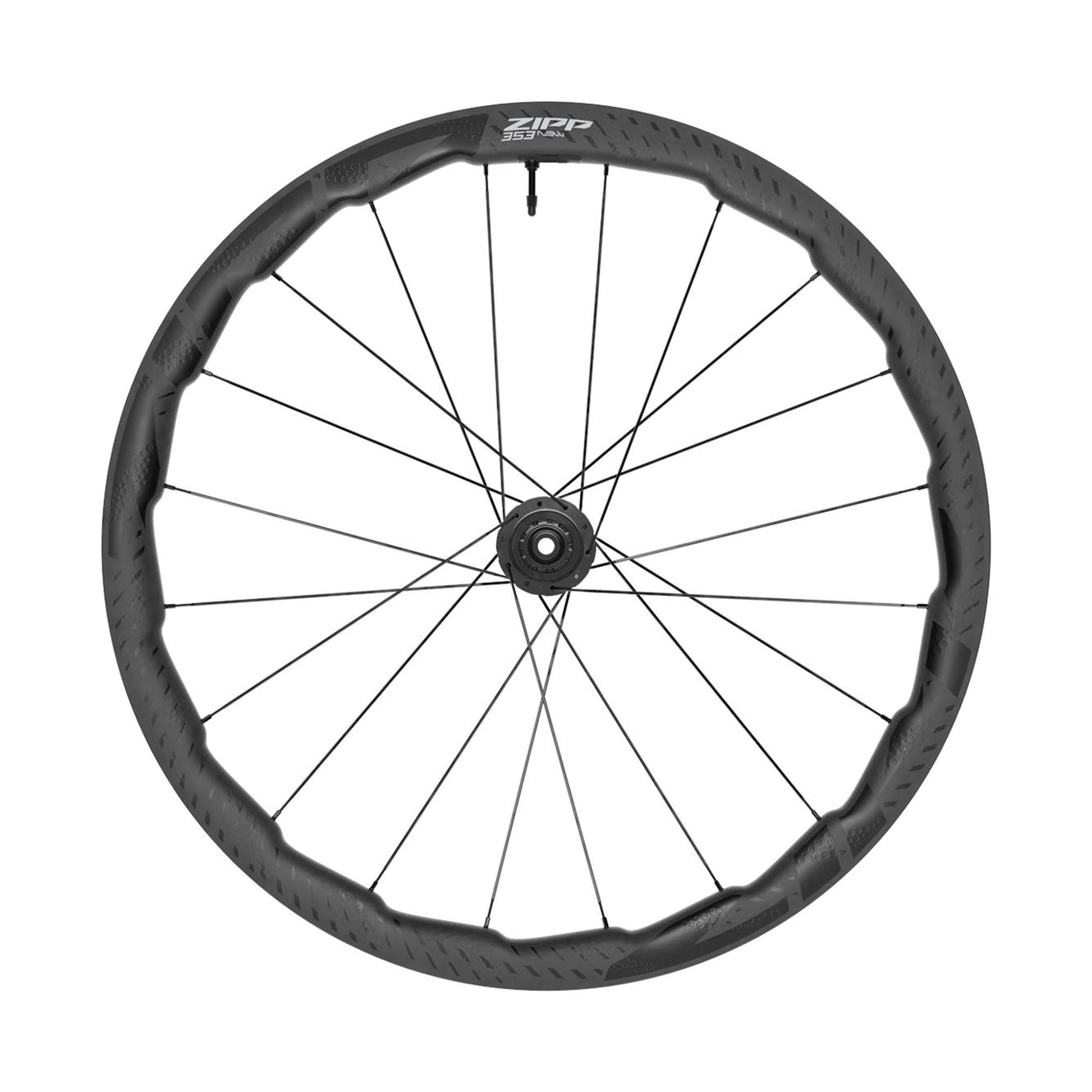

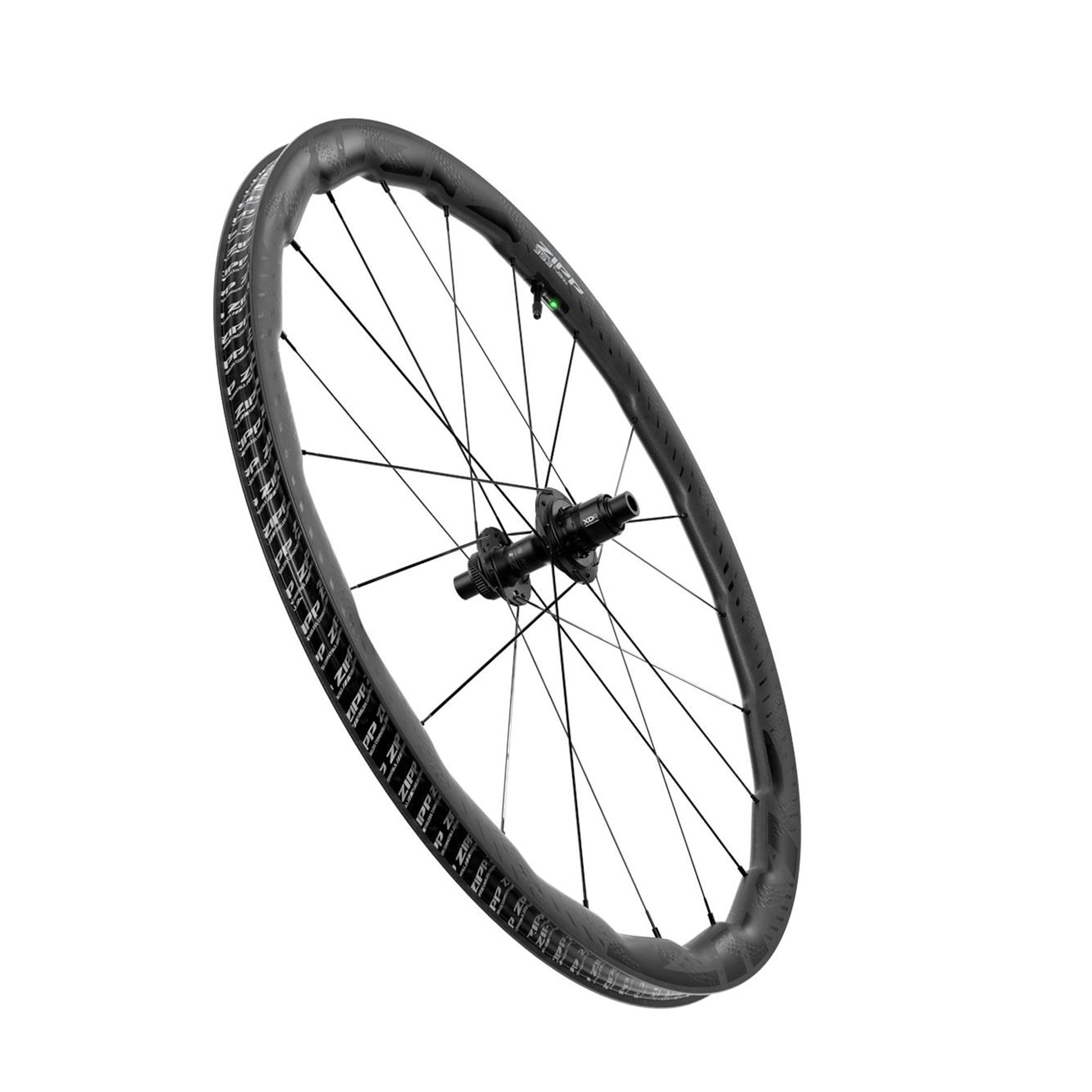

The combination of innovative rim design and AXS connection in the form of an integrated sensor for precise monitoring of tyre pressure makes the 353 NSW wheelset one of the most advanced models in the ZIPP line-up in all performance areas.
With their low weight, the wheels for disc brakes are ideal for climbers as well as modern endurance and road race cyclists.
The wave-shaped HyperFoil profile with its differentiated SawTooth rim depth of 35/40 mm and the HexFin ABLC dimple structure are responsible for the excellent aerodynamic properties and outstanding crosswind stability of the 353 NSW. However, the wheelset is also characterized by enormous durability and is even stronger in the current version. Thanks to a revised carbon layup, the resistance has been increased by a further 16 % compared to previous models.
The wheels are rounded off with the help of the ZR1 SL premium hubs, which are 30 grams lighter than the previous version and feature ceramic hybrid bearings that reduce rolling resistance on any surface, whether on country roads, uphill or downhill.
Note: The 353 NSW is not approved for gravel riding.
Features
- Versatile endurance wheelset for the modern road bike with tubeless and hookless rim profile
- First integrated, connected SRAM AXS wheel with Zipp AXS Wheel Sensor, with ability to monitor pressure with specially designed tube.
- ZR1 SL hubset with ceramic bearings
- Optimized for 30mm tires
- TSE for greater efficiency and reduced rolling resistance
- Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for top aero and crosswind-stability performance with an undulating rim depth
Specification
-
Range of application: Road bike
-
Model: 353 NSW
-
Rim diameter: 28"
-
ETRTO: 622 mm
-
Rim profile: Symmetrical
-
Tyre interface: Hookless TSS
-
Rim type: Clincher (folding/wire tires)
-
Tubeless Ready: Yes
-
Hub type: ZR1 SL
-
Freehub system: 6 pawls, compression springs
-
Rim height: 35/40 mm
-
Outer width: 30 mm
-
Rim width: 25 mm
-
Axle system: 12 mm Thru Axle
-
Built-in dimension: 142 mm
-
Number of holes: 20
-
Spoke pattern: Two-cross (1:1)
-
Valve hole: Presta / SV Ø 6.5 mm
-
Brake interface: Disc Center Lock
-
Spokes: CX-Sprint
-
Spoke length drive side: 274 mm
-
Spoke length non-drive side: 276 mm
-
Nipples: Sapim Secure-Loc
-
Maximum tyre pressure: 5.0 Bar (73 psi)
-
Recommended system weight: 114 kg (body weight + bike + equipment)
Freehub body
Material
-
Rim: Carbon
-
Hub shell: Aluminium
-
Spokes: Aluminium
-
Nipples: Aluminium
-
Freehub body: Aluminium
Contents
- 1 x Zipp 353 NSW Carbon Rear Wheel
- incl. wheel sensor
Thru axle not included!
