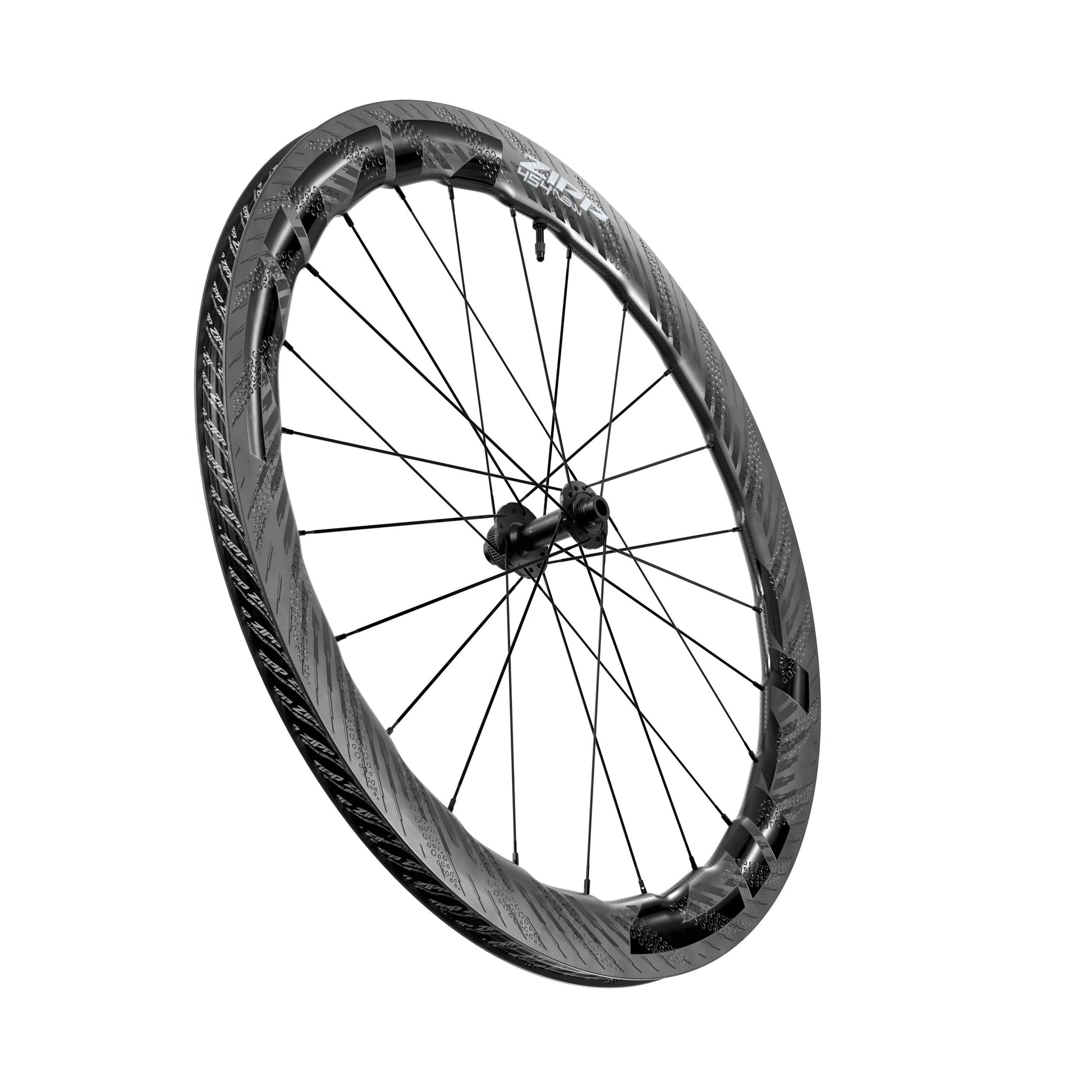

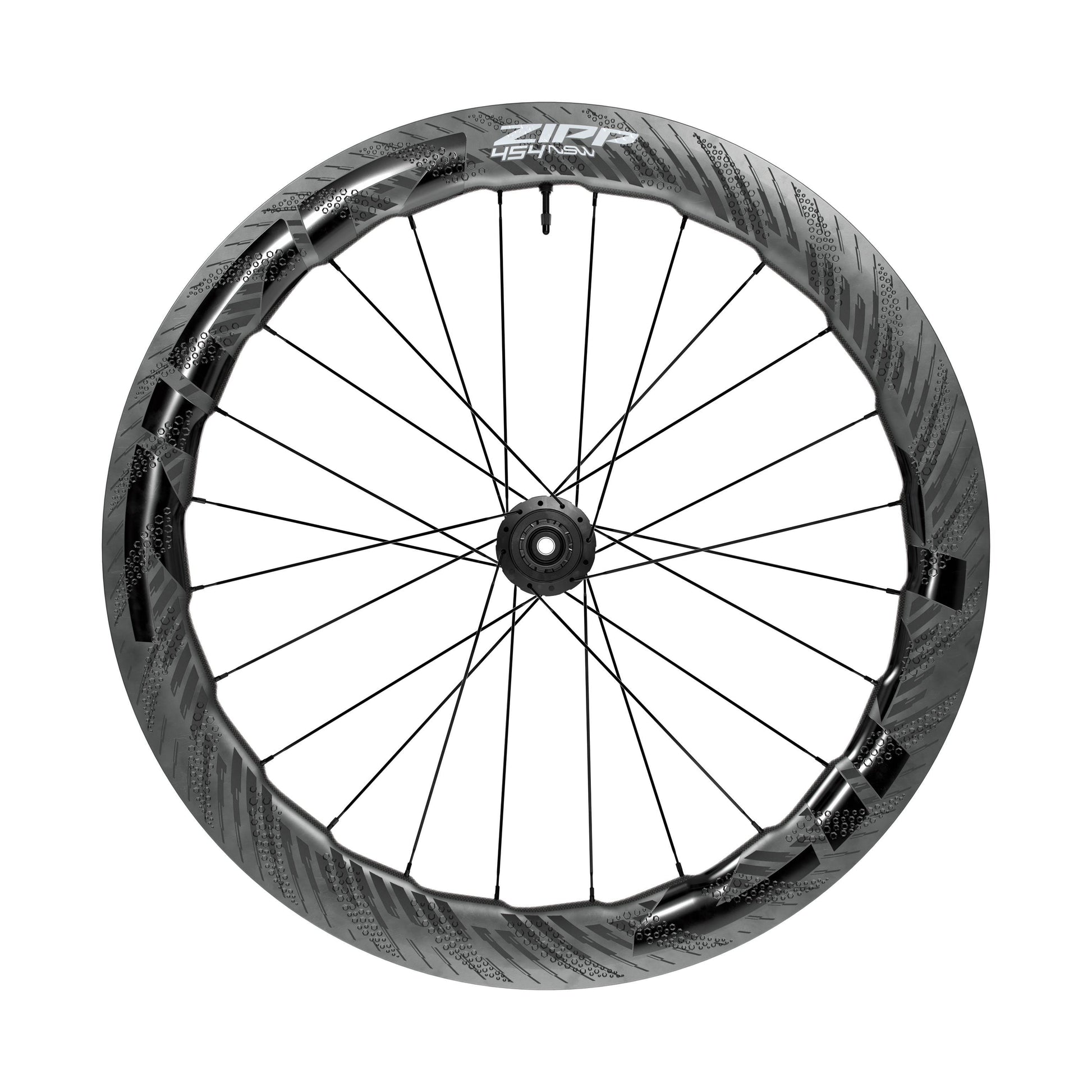

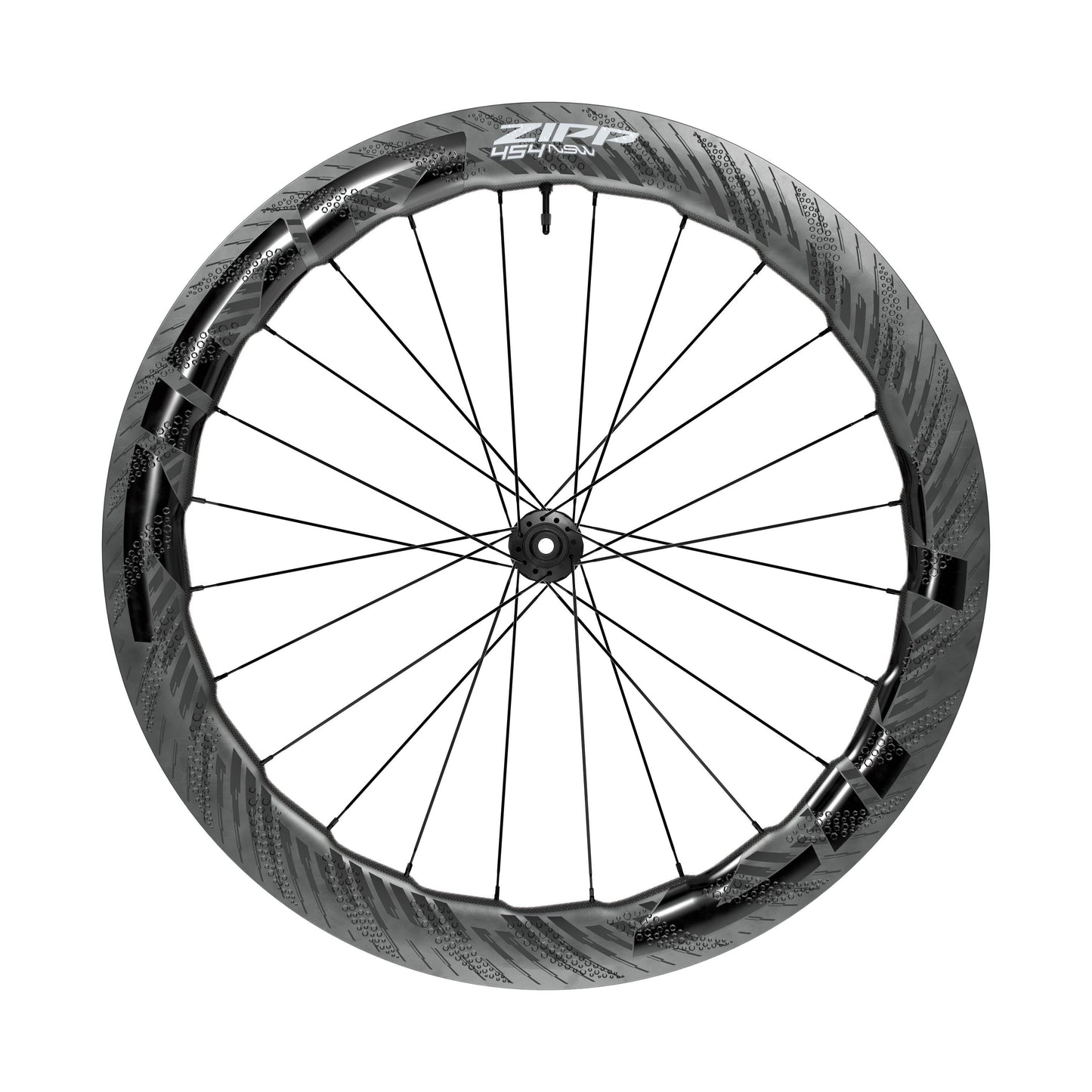

Zipp’s 454 NSW Tubeless Disc-brake is the ultimate road racing wheel.
This wheel delivers everything the performance cyclist demands. It’s aerodynamically efficient and stable in all wind conditions.
What’s more, a wider rim is designed for tubeless tires at lower pressure for reduced rolling resistance and vibration damping, so you’ll lose as little energy as possible out on the road. For the best combination of aerodynamics and rolling resistance gains a 28 mm tire is recommended on this wheel. Its undulating 58 mm Sawtooth rim shape with Hyperfoils is our most aerodynamic and stable wheel. The 454 NSW features Zipp’s Total System Efficiency (TSE), our approach at combating the biggest enemies of speed: wind resistance, gravity, rolling resistance, and vibration losses.
Zipp’s use of hookless (straight side) rims in the 454 NSW is integral to Making You Faster. With hookless, the transition between the tire and the rim is more seamless and aero. Zipp’s hookless rims have more efficient resin distribution, which means lighter, stronger wheels. The 454 NSW features the race-ready ZR1 SL hubset with ceramic bearings and 66 points of engagement. The hubset also is 30 g lighter than the predecessor hub in NSW wheels.
Features
- Weighs 30 g lighter than previous model
- ZR1 SL hubset with ceramic bearings
- TSE for greater efficiency and reduced rolling resistance
- Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for top aero and crosswind-stability performance with an undulating 53/58 mm rim depth
- Zipp graphics applied using Zipp’s ImPress direct-print technology
Specification
-
Range of application: Road bike
-
Model: 454 NSW
-
Rim diameter: 28"
-
ETRTO: 622 mm
-
Rim profile: Symmetrical
-
Tire interface: Hookless TSS
-
Rim type: Clincher (folding/wire tires)
-
Tubeless Ready: Yes
-
Hub type: ZR1 SL
-
Freehub system: 6 pawls, compression springs
-
Rim height: 53/58 mm
-
Outer width: 28 mm
-
Rim width: 23 mm
-
Axle system: 12 mm Thru Axle
-
Built-in dimension: 142 mm
-
Number of holes: 24
-
Spoke pattern: Two-cross (1:1)
-
Valve hole: Presta / SV Ø 6.5 mm
-
Brake interface: Disc Center Lock
-
Spokes: CX-Ray
-
Spoke length drive side: 252 mm
-
Spoke length non-drive side: 256 mm
-
Nipples: Sapim Secure-Loc
-
Maximum tire pressure: 5.0 Bar (73 psi)
-
Recommended system weight: 114 kg (body weight + bike + equipment)
Freehub Body
Material
-
Rim: Carbon
-
Hub shell: Aluminum
-
Spokes: Aluminium
-
Nipples: Aluminium
-
Freehub body: Aluminium
Contents
- 1 x Zipp 454 NSW Carbon rear wheel
- incl. 12 mm end cap
Thru axle not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
