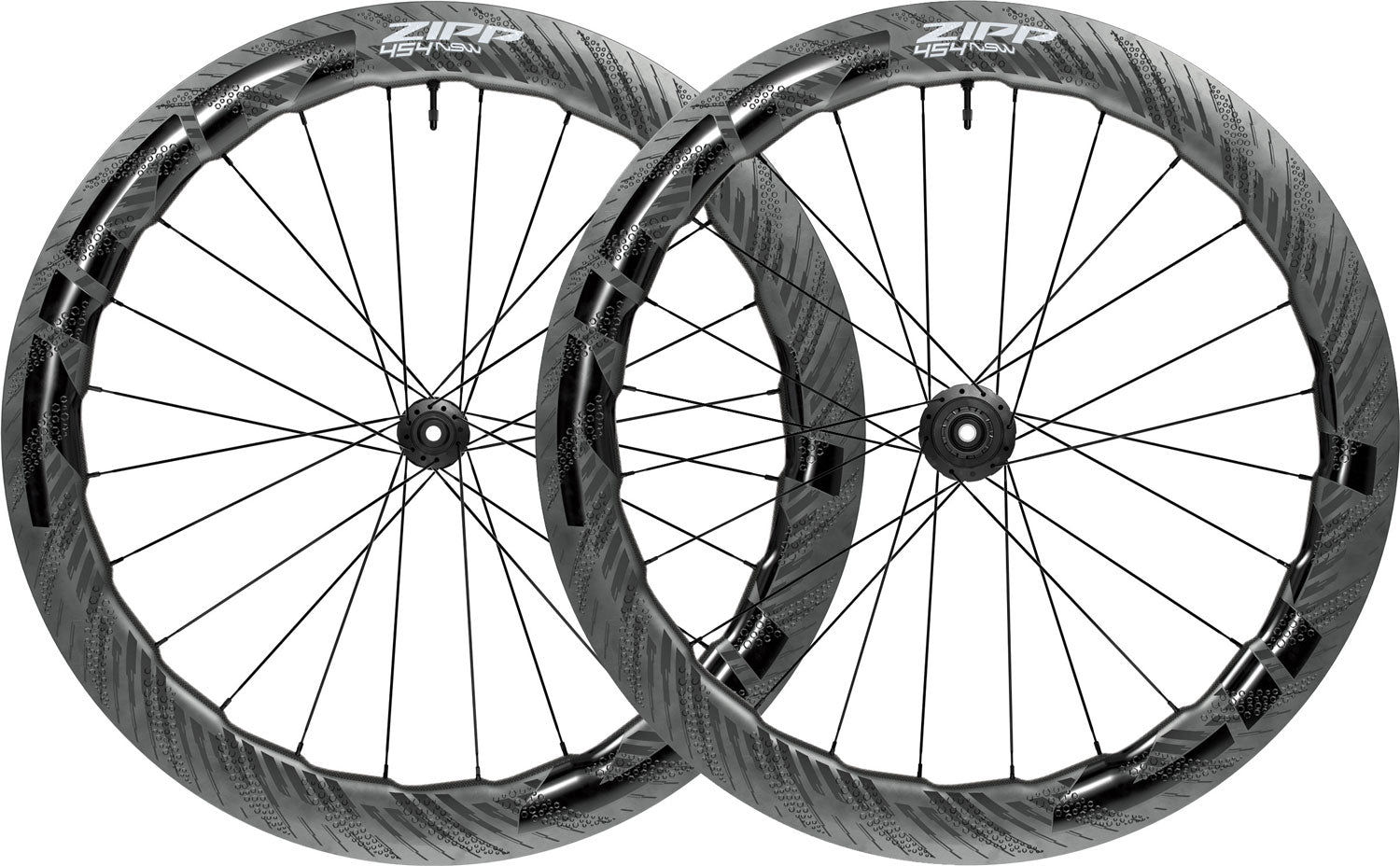

The Zipp 454 NSW Carbon Wheelset is a high-performance tubeless-ready wheelset engineered for road racing.
Its 58mm deep Sawtooth rim profile with Hyperfoils delivers aerodynamic efficiency and stability in all wind conditions. The wider, hookless rims allow for lower-pressure tyres, reducing rolling resistance and damping vibrations, while a 28mm tyre offers the best balance of speed and comfort.
Featuring Zipp’s Total System Efficiency (TSE) technology, the 454 NSW combats the main barriers to speed: wind resistance, gravity, rolling resistance, and vibration losses. The wheelset is equipped with ZR1 SL hubs with ceramic bearings and 66 points of engagement, providing smooth power transfer and reliable performance front to rear. This complete wheelset is ideal for triathletes, time trialists, and road racers seeking maximum efficiency and speed.
Features
- Weighs 30 g lighter than previous model
- ZR1 SL hubset with ceramic bearings
- TSE for greater efficiency and reduced rolling resistance
- Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for top aero and crosswind-stability performance with an undulating 53/58 mm rim depth
- Zipp graphics applied using Zipp’s ImPress direct-print technology
Specification
-
Range of application: Road bike
-
Model: 454 NSW
-
Rim diameter: 28"
-
ETRTO: 622 mm
-
Rim profile: Symmetrical
-
Tire interface: Hookless TSS
-
Rim type: Clincher (folding/wire tires)
-
Tubeless Ready: Yes
-
Hub type: ZR1 SL
-
Freehub system: 6 pawls, compression springs
-
Rim height: 53/58 mm
-
Outer width: 28 mm
-
Rim width: 23 mm
-
Axle system: 12 mm Thru Axle
-
Built-in dimension: 100 mm / 142 mm
-
Number of holes: 24
-
Spoke pattern: Two-cross (1:1)
-
Valve hole: Presta / SV Ø 6.5 mm
-
Brake interface: Disc Center Lock
-
Spokes: CX-Ray
-
Spoke length drive side: 252 mm
-
Spoke length non-drive side: 256 mm
-
Nipples: Sapim Secure-Loc
-
Maximum tire pressure: 5.0 Bar (73 psi)
-
Recommended system weight: 114 kg (body weight + bike + equipment)
Material
-
Rim: Carbon
-
Hub shell: Aluminium
-
Spokes: Aluminium
-
Nipples: Aluminium
-
Freehub body: Aluminium
Weight
Contents
- 1 x Zipp 454 NSW Carbon Wheelset
- incl. 12 mm end caps front & rear
Thru axles not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
