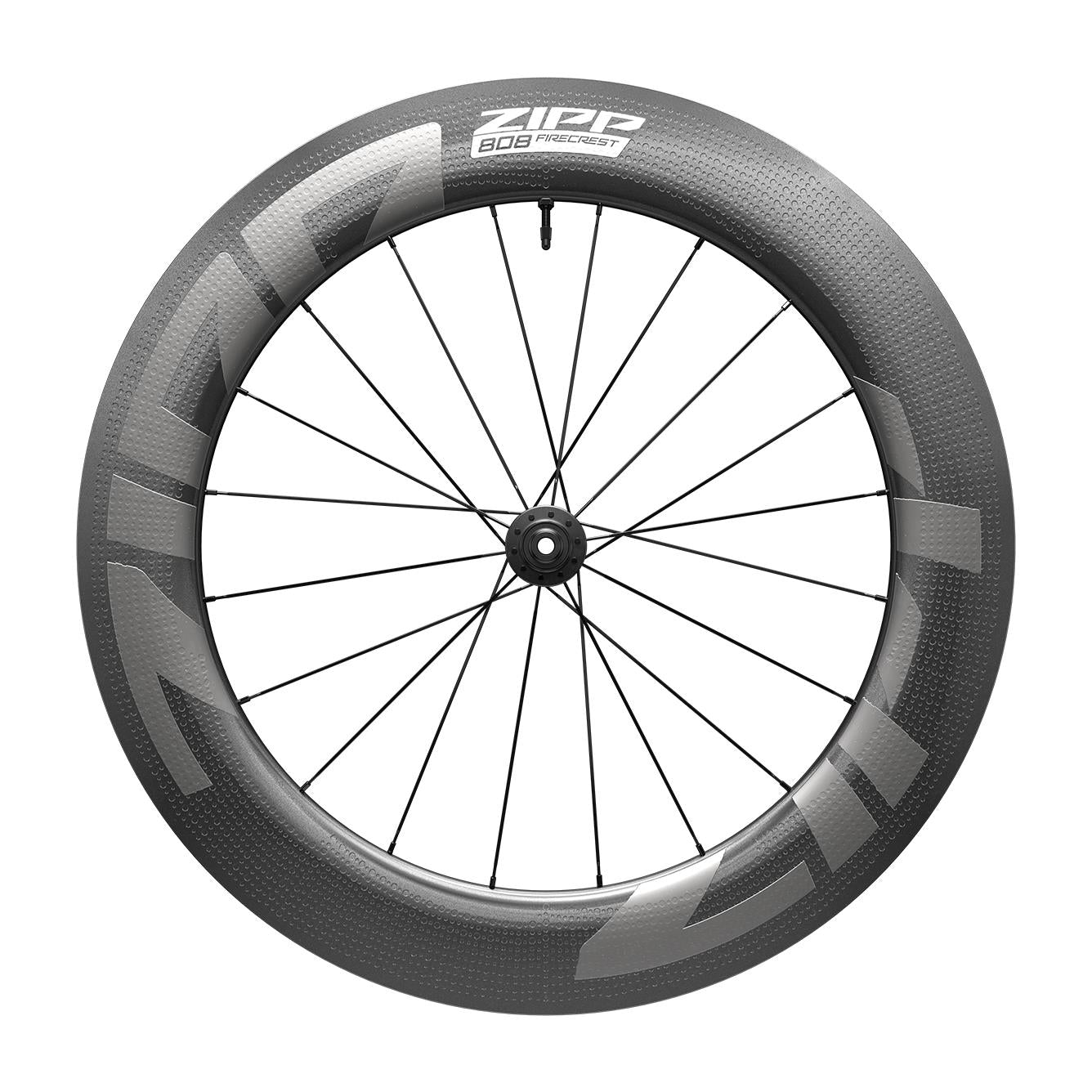

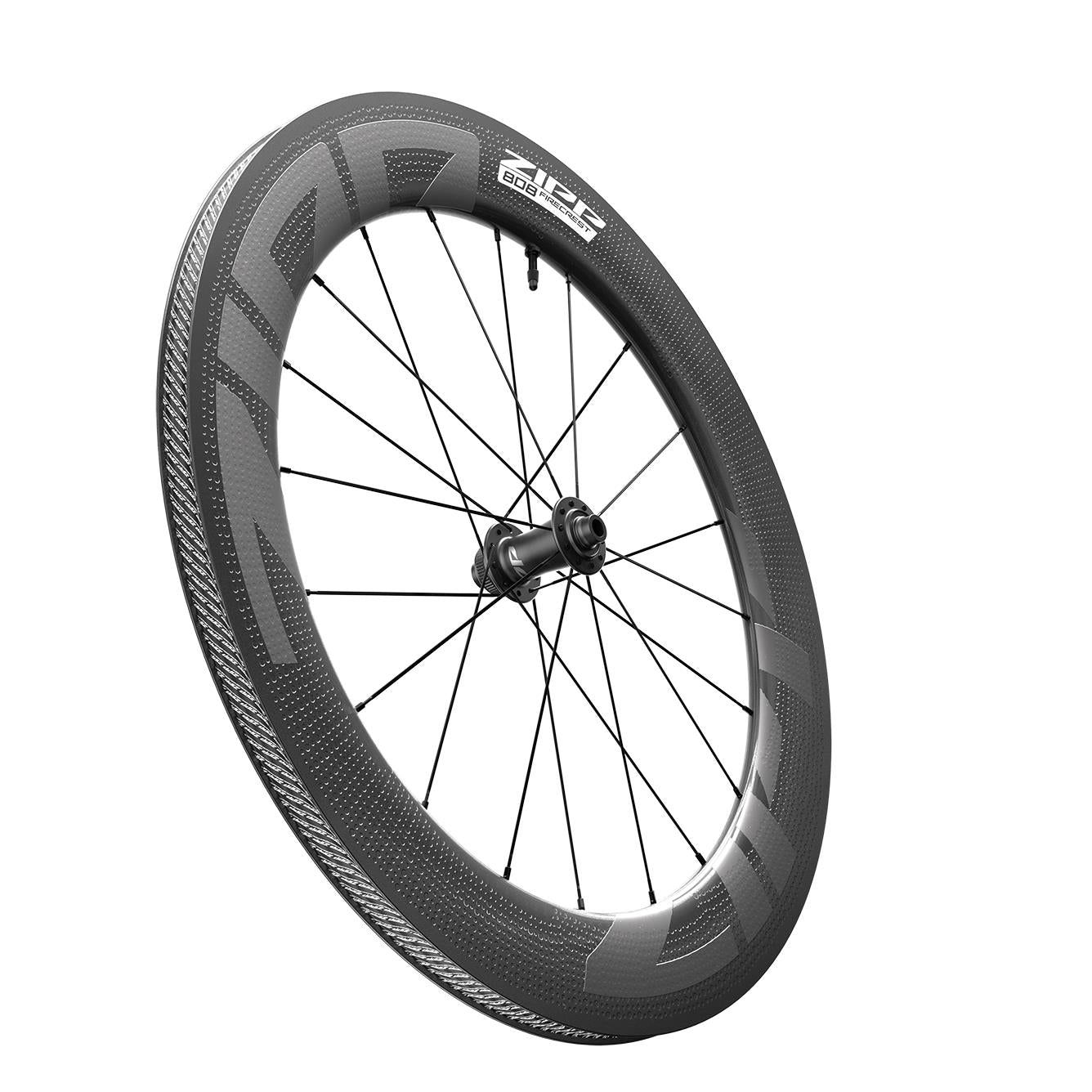

ZIPP 808 FIRECREST CARBON DISC FRONT WHEEL

Zipp’s 808 Firecrest® Tubeless Disc-wheelset is all about science to achieve speed.

At 80mm deep, its rim is designed to make you faster in every way. Zipp’s Total System Efficiency™ technology, or TSE™, infuses the 808 Firecrest with new features, including a huge drop in weight from its previous iteration. Also, the wheel is designed with a hookless and tubeless rim profile and 23mm internal width. That’s ideal for running wider tires at lower pressure for reduced rolling resistance and greater cornering grip. In fact, TSE™ attacks the four primary barriers to speed: Wind Resistance, Gravity, Rolling Resistance, and Vibration Losses. Zipp’s legendary Firecrest rim shape provides high aero efficiency and crosswind stability. Also, Zipp’s ABLC™ Sawtooth™ Technology uses a complex dimpling pattern to improve aero efficiency. Zipp’s German-engineered ZR1 DB Hubset provides quick engagement with robust durability, adding to the punchiness of the 808 Firecrest.

Features

• TSE™ design with 23mm internal width with tubeless and hookless rim profile ideal for wider tires at lower tire pressure
• Minimum 25mm tire width
• Almost 274g lighter than previous model
• ZR1 DB hub is engineered in Germany with better seal design for improved durability and quicker response with 66 points of engagement
• Built with Sapim CX Sprint J-bend spokes
• An all-out aero 80mm rim profile
• ABLC Sawtooth™ dimple design helps manage air flow around the rim, and contributes to create a faster, more stable wheel
• Center locking rotor interface. Lockring is included
• XDR™ driver bodie
• Ships with 12mm front and rear end caps
• Lifetime warranty
• Zipp graphics and cosmetic identity that scream speed
• Campagnolo driver body sold separately
• Superior modulation and stopping power of disc brakes

Specification

• Use: Road bike
• Model: 808 Firecrest® Carbon Disc
• Rim size: 28"
• Tyre type: Tubeless tire
• Brake type: Centerlock disc brake
• Tubeless system: Yes
• Maximum recommended system weight: 114g (body weight + bike + equipment)
• Maximum air pressure: 5 bar (125psi)
• Rims:
  • Rim: Zipp 808 Firecrest
  • Rim profile: Symmetrical
  • Inner rim width: 23mm
  • Rim width outside: 27mm
  • Rim depth: 80mm
  • Valve hole: SV (6.5mm)
• Hub: Zipp ZR1
• Installation width: 12 x 100mm thru axle
• Spokes:
  • Spoke type: Sapim CX-Sprint
  • Spoke length:
    • Drive site: 224mm
    • Non drive site: 238mm
  • Spoke pattern: 2 Cross
  • Number of spokes: 20
  • Nipple type: Sapim secure-loc

Material

• Rim: Carbon
• Hub shell: Aluminium
• Spokes: Stainless steel
• Nipples: Aluminium

Colour

• Black

Weight

• 752 g

Contents

• 1 x Zipp 808 Firecrest® Carbon Disc Tubeless Front Wheel
• 1 x Zipp tubeless rim tape
• 1 x Zipp tubeless valve

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
