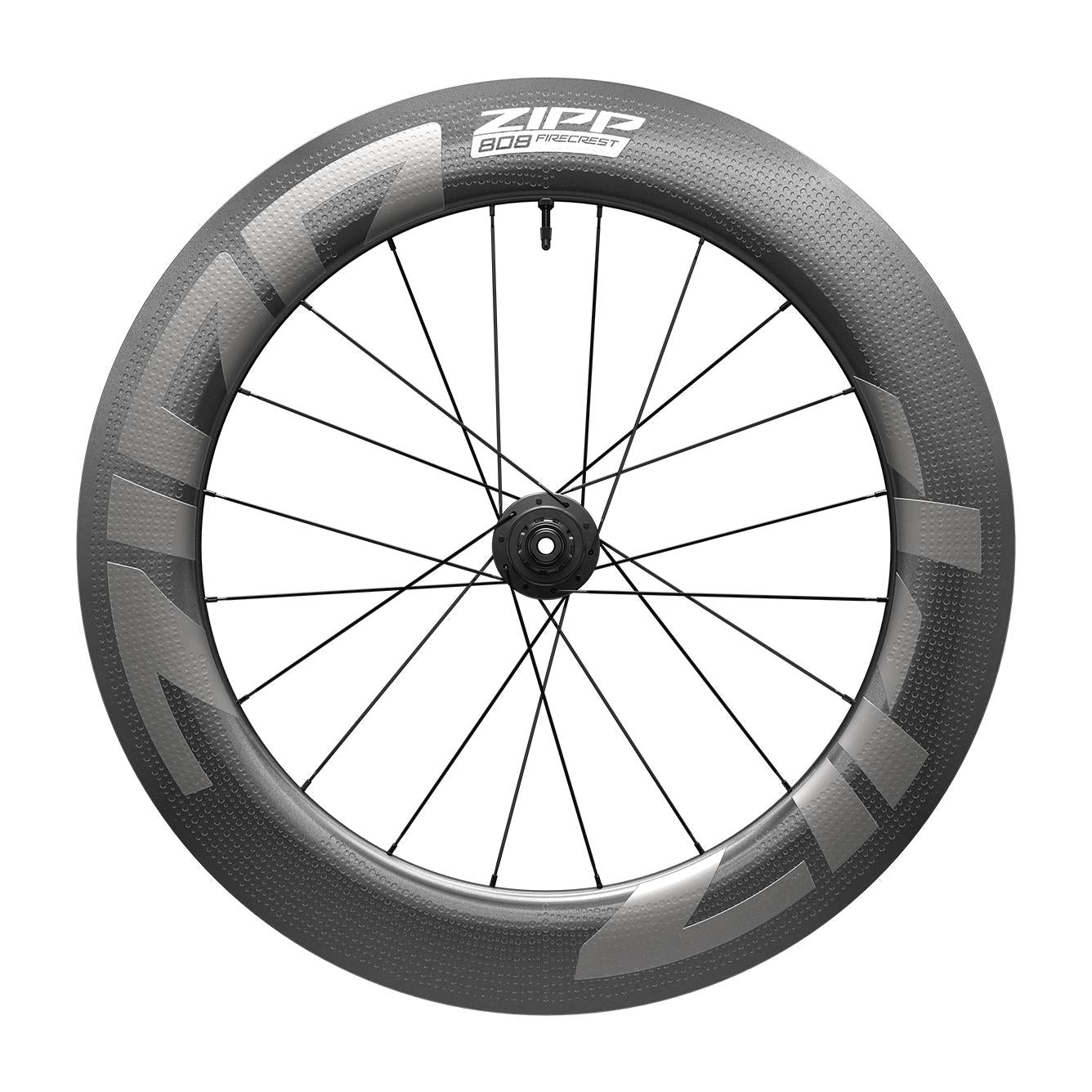

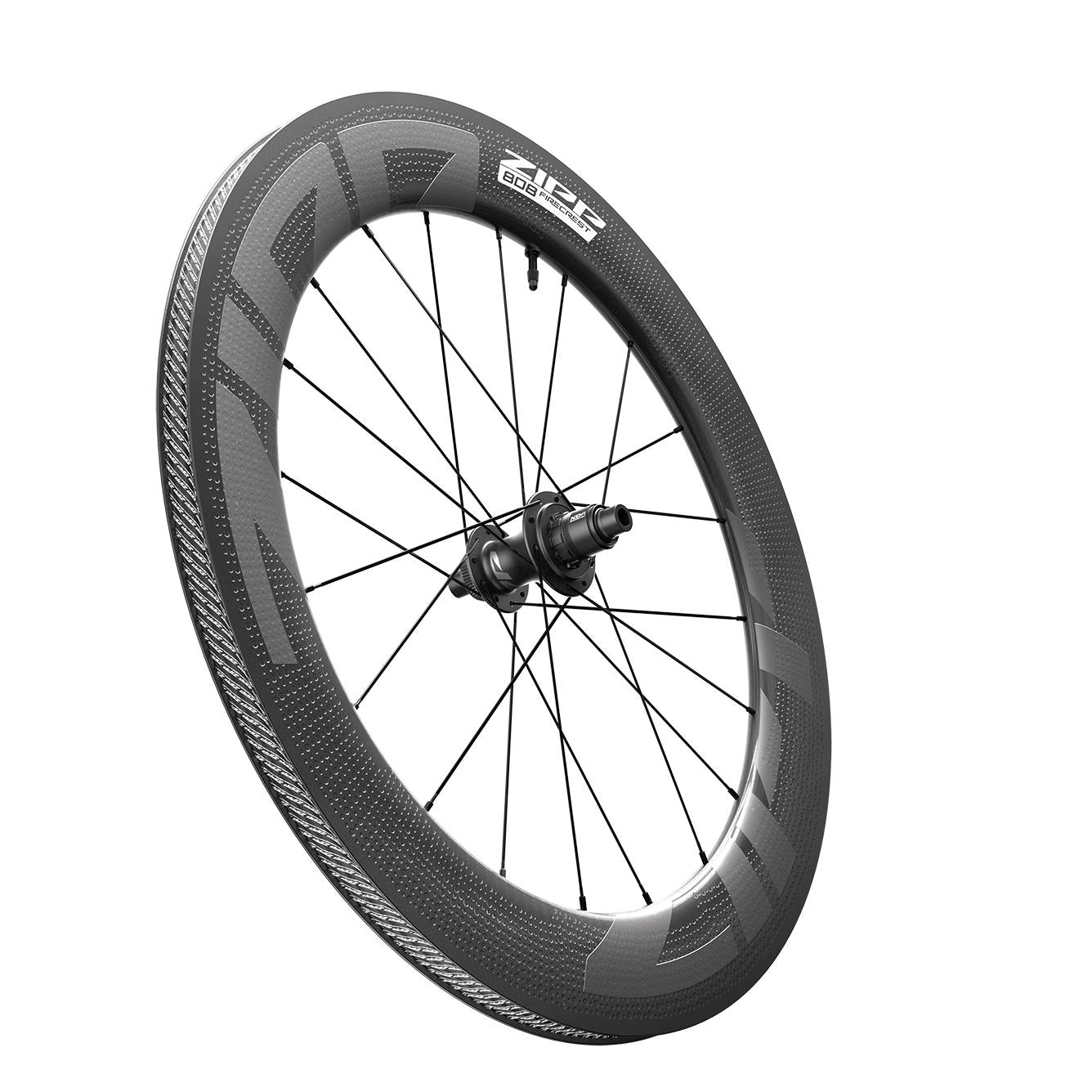

ZIPP 808 FIRECREST CARBON DISC TUBELESS REAR WHEEL

Zipp’s 808 Firecrest® Tubeless Disc-wheelset is all about science to achieve speed.

At 80mm deep, its rim is designed to make you faster in every way. Zipp’s Total System Efficiency™ technology, or TSE™, infuses the 808 Firecrest with new features, including a huge drop in weight from its previous iteration. Also, the wheel is designed with a hookless and tubeless rim profile and 23mm internal width. That’s ideal for running wider tires at lower pressure for reduced rolling resistance and greater cornering grip. In fact, TSE™ attacks the four primary barriers to speed: Wind Resistance, Gravity, Rolling Resistance, and Vibration Losses. Zipp’s legendary Firecrest rim shape provides high aero efficiency and crosswind stability. Also, Zipp’s ABLC™ Sawtooth™ Technology uses a complex dimpling pattern to improve aero efficiency. Zipp’s German-engineered ZR1 DB Hubset provides quick engagement with robust durability, adding to the punchiness of the 808 Firecrest.

Features

• TSE™ design with 23mm internal width with tubeless and hookless rim profile ideal for wider tires at lower tire pressure
• Minimum 25mm tire width
• Almost 274g lighter than previous model
• ZR1 DB hub is engineered in Germany with better seal design for improved durability and quicker response with 66 points of engagement
• Built with Sapim CX Sprint J-bend spokes
• An all-out aero 80mm rim profile
• ABLC Sawtooth™ dimple design helps manage air flow around the rim, and contributes to create a faster, more stable wheel
• Centre locking rotor interface. Lockring is included
• XDR™ or SRAM/Shimano driver bodies
• Ships with 12mm rear and rear end caps
• Lifetime warranty
• Zipp graphics and cosmetic identity that scream speed
• Campagnolo driver body sold separately
• Superior modulation and stopping power of disc brakes

Specification

• Use: Road bike
• Model: 808 Firecrest® Carbon Disc
• Rim size: 28"
• Tire type: Tubeless tire
• Brake type: Centerlock disc brake
• Tubeless system: Yes
• Maximum recommended system weight: 114g (body weight + bike + equipment)
• Maximum air pressure: 5 bar (125psi)
• Rims:
  • Rim: Zipp 808 Firecrest
  • Rim profile: Symmetrical
  • Inner rim width: 23mm
  • Rim width outside: 27mm
  • Rim depth: 80mm
  • Valve hole: SV (6.5mm)
• Hub: Zipp ZR1
• Installation width: 12 x 142mm thru axle
• Spokes:
  • Spoke type: Sapim CX-Sprint J-bend
  • Spoke length:
    • Drive site:224mm
    • Non drive site: 238mm
  • Spoke pattern: Radial
  • Number of spokes: 20
  • Nipple type: Sapim secure-loc

Feehub

• Sram/Shimano
• SRAM XD-R

Rim material

• Rim: Carbon
• Hub shell: Aluminium
• Spokes: Stainless steel
• Nipples: Aluminium

Colour

• Black

Weight

• 883 g

Contents

• 1 x Zipp 808 Firecrest® Carbon Disc Tubeless Rear Wheel
• 1 x Zipp tubeless rim tape
• 1 x Zipp tubeless valve
